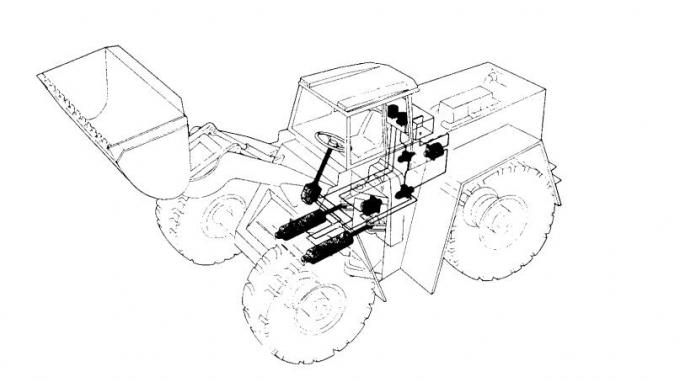

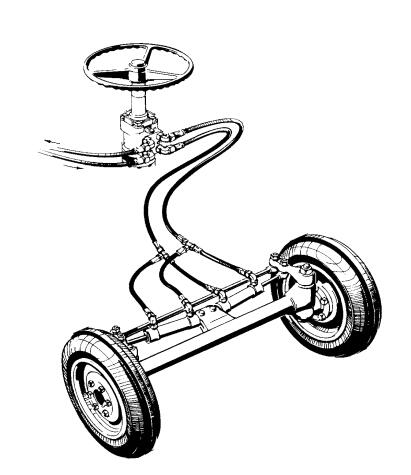

Hydraulic steering control unit(SCU) is widely used both in the steering system of vehicles and the marine rudder. The operator can obtain bigger steering control force with less steering force,and its function is more safety and reliable, its operation is more smooth and flexible.

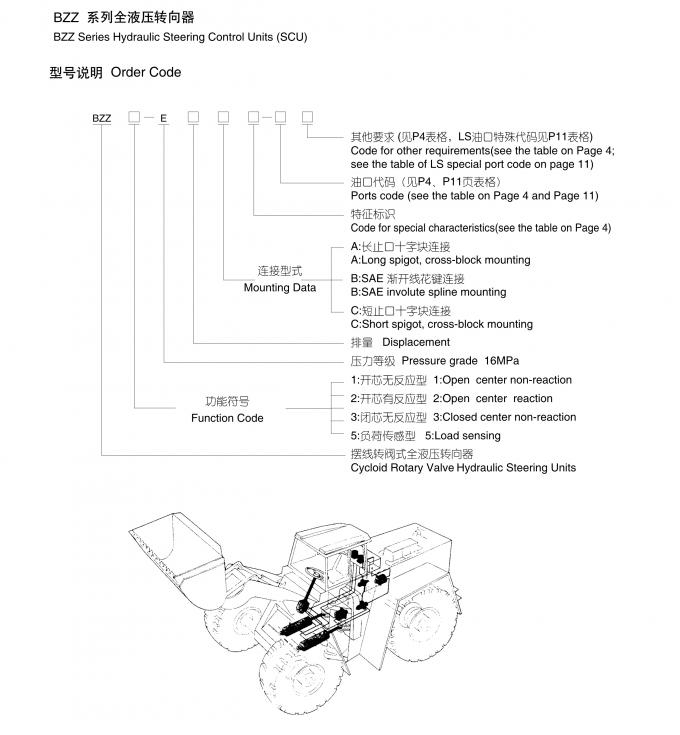

BZZ5 Series Hydraulic Steering Control Units (SCU)

As for load sensing steering system, the steering system and the

operational system may use the same pump through the priority

valve or the load sensing system can distribute the surplus oil of

the steering system into the operational system. Meanwhile, if the

pump with load sensing is used , the load sensing will have obviously

productive results.

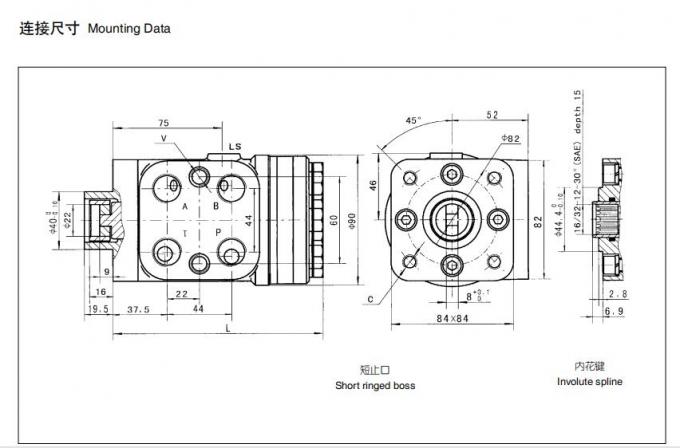

Type	Displacement (mL/r)	Length L(mm)
BZZ5–E 50*	50	140
BZZ5–E 63*	63	141
BZZ5–E 80*	80	142.5
BZZ5–E 100*	100	145
BZZ5–E 125*	125	148
BZZ5–E 160*	160	153
BZZ5–E 200*	200	158
BZZ5–E 250*	250	164
BZZ5–E 280*	280	169
BZZ5–E 315*	315	174
BZZ5–E 400*	400	184
BZZ5–E 500*	500	197
BZZ5–E 630*	630	216
BZZ5–E 800*	800	236
BZZ5–E 1000*	1000	262

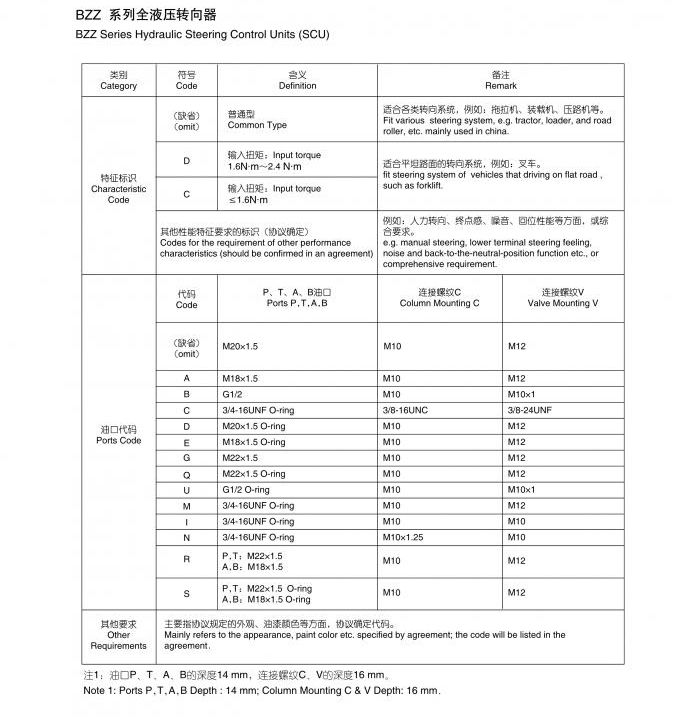

Specifications:

Parameters	Series: BZZ similar to OSPB
Function code	1,2,4,5							1,4,5
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	16
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5

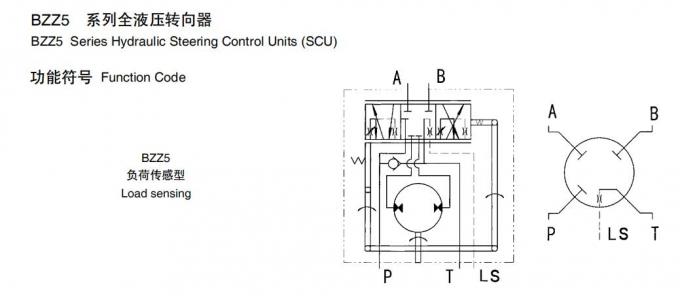

Load sensing

In load sensing steering systems both the steering system and the working hydraulics can be supplied with oil from the same pump, using a load sensing pump, also delivers the potential for energy saving.

Load sensing steering units have an extra connection for load sensing (LS), so that a load pressure signal can be directed via the steering unit to a Danfoss priority valve and/or an LS pump. The load sensing signal controls the oil flow from the priority valve (and/or the LS pump) to the steering unit. The LS connection is open to tank when the steering unit is in the neutral position.

The LS port of the load sensing steering unit has to connect with priority valve or LS port of load sensing pump, so that the signal of the steering load pressure of the steering unit can be transferred to priority valve or load sensing pump through oil hose ( we suggest that the length of the hose is ≤2 m), to control the oil volume supplied to

steering unit by the control system.

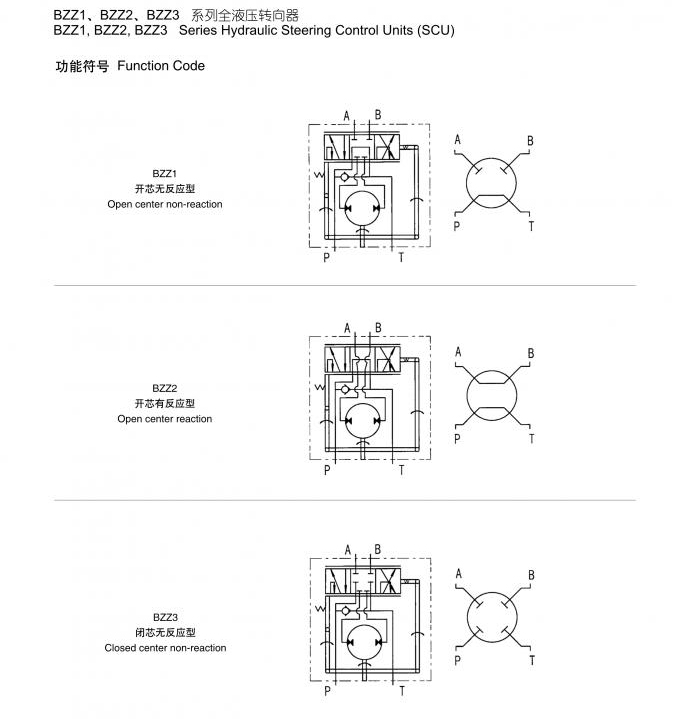

More founctions are available:
