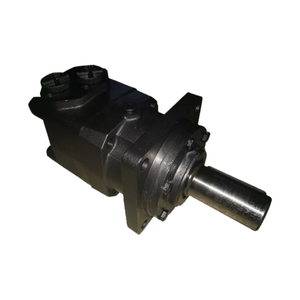

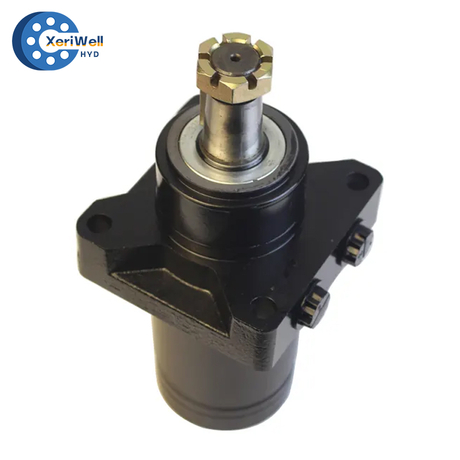

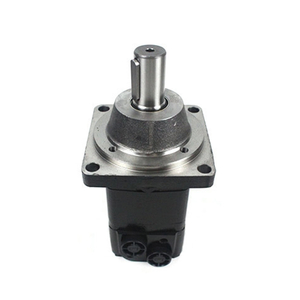

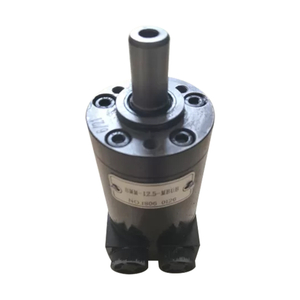

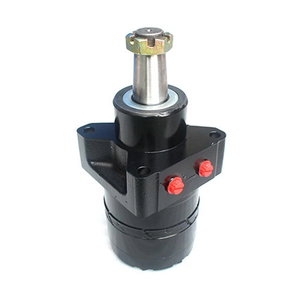

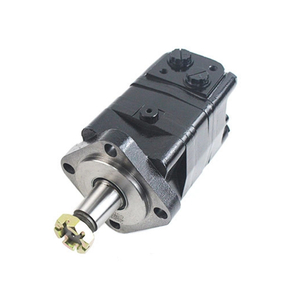

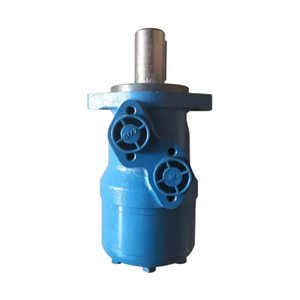

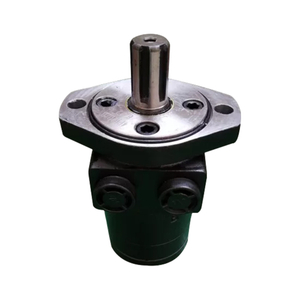

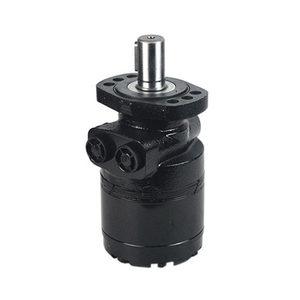

Selecting the wrong drive mechanism for heavy-duty, low-speed applications invites serious trouble. System inefficiency rises quickly. Excessive heat generation occurs inside the machine. Premature equipment failure often follows. You need a robust, reliable power source to prevent these issues. The Hydraulic Orbital Motor stands as the industry standard for Low-Speed, High-Torque (LSHT) tasks. It offers extreme power density in a compact footprint. Best of all, it eliminates complex, failure-prone gearboxes from your design.
This comprehensive guide deconstructs the internal orbital mechanism. We compare critical valve architectures, focusing specifically on spool versus disc designs. We also provide a practical, engineering-grade sizing framework to help you specify components accurately. Finally, we highlight essential procurement risks. These factors directly impact your operational efficiency and machine lifespan. By the end, you will know exactly how to match the right motor to your specific duty cycle. You can confidently deploy systems built for rigorous environments. Let us dive into the mechanics.
Mechanical Advantage: Orbital motors utilize a Gerotor or Geroler™ mechanism to multiply internal rotations into high torque at the output shaft, eliminating the need for external speed reducers.
Application Fit: Ideal for harsh, explosive, or high-vibration environments where traditional electric motors fail or require impractically large footprints.
Design Selection: Spool valve designs suit standard, cost-sensitive operations, while disc valve designs deliver the higher volumetric efficiency and longevity required for continuous heavy-duty cycles.
Sizing Reality: Sizing must account for start-up loads—which demand significantly more force than steady-state operation—to prevent motor stalling and internal wear.
The heart of the orbital system relies on a unique eccentric movement. The central rotor always features one less tooth than the surrounding outer stator. As pressurized fluid enters the chamber, it creates an imbalance of force. This pressure forces the rotor to move toward the path of least resistance. Because of the unequal tooth count, the rotor cannot simply spin in place. Instead, it orbits eccentrically around the central axis. This orbital dance continuously opens and closes internal fluid pockets. It transforms fluid pressure into immense rotational force.
A precision distributor valve manages this complex internal motion. You can think of this valve as an intelligent traffic controller. It constantly directs incoming high-pressure fluid into expanding chambers. Simultaneously, it exhausts low-pressure fluid from the contracting chambers. Accurate timing remains critical here. If fluid enters the wrong chamber too early, it creates counter-rotation. This reduces overall power. High-quality manufacturing ensures the distributor valve syncs perfectly alongside the rotor's eccentric orbit.
The eccentric orbit alone cannot drive external machinery directly. You need pure concentric rotation at the output shaft. An internal drive shaft, often called a dog bone, solves this problem. This specialized shaft filters out the wobbly, eccentric orbit. It transmits only smooth, concentric rotational force outward. This design creates a massive mechanical advantage. A practical heuristic exists for engineers: the orbital motor effectively multiplies its displacement. It can produce roughly seven times the torque of a standard gear mechanism of similar physical size. You generate immense turning force at very low RPMs.
Manufacturers use two primary internal designs to manage friction. Understanding the difference helps you specify the right component for your load requirements.
Feature | Gerotor (Sliding Friction) | Geroler™ (Rolling Friction) |
|---|---|---|
Mechanism | Direct metal-on-metal sliding contact between rotor and stator teeth. | Uses cylindrical rollers inserted into the stator lobes to act as bearings. |
Efficiency | Moderate. Sufficient for standard applications. | High. Reduces friction significantly, improving startup and running torque. |
Lifespan | Shorter under high pressure due to wear. | Longer lifespan. Rollers distribute wear evenly across the stator. |
Best Fit | Light-duty conveyors, sweepers, intermittent use. | Heavy winches, wheel drives, continuous high-pressure cycles. |
Engineers frequently debate between hydraulic and electric power. In heavy industrial settings, the orbital design usually wins. It delivers substantially higher torque inside a vastly smaller footprint. You cannot easily achieve this power density using electricity alone. Furthermore, orbital units boast extreme environmental resilience. They remain completely sealed from dust, mud, and water. They are also immune to spark risks. These traits make them the default choice for agriculture machinery, marine winches, and explosive industrial environments. Electric equivalents often fail here or require impractically large protective enclosures.
You might wonder how orbital designs compare to other fluid power options. A standard Hydraulic Motor of the gear or vane type operates natively at high speeds. They produce relatively low torque. To use them in heavy machinery, you must attach secondary planetary gearboxes. This adds weight, complexity, and multiple failure points. Conversely, orbital units are native LSHT devices. They provide direct-drive capabilities straight out of the box. This integration simplifies your machinery design. It reduces overall vehicle weight. It also minimizes long-term maintenance overhead.
Direct Drive: Eliminates the need for external speed reducers.
Space Savings: Frees up critical chassis space in mobile equipment.
Fewer Wear Parts: Removes gearbox oil changes and gear mesh maintenance.

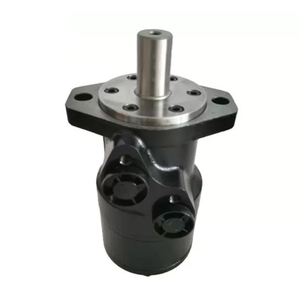

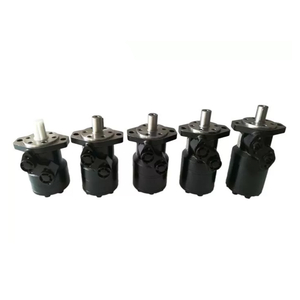

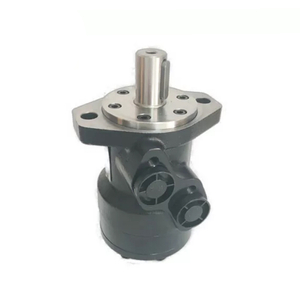

The spool valve represents the more traditional, cost-effective approach. In this architecture, the timing mechanism integrates directly into the main output shaft. As the shaft turns, it opens and closes the necessary fluid ports automatically. It offers a simpler design and a lower initial purchase price. However, this integrated approach forces the fluid to travel through longer internal paths. Longer paths result in higher pressure drops across the unit. Performance slightly decreases as a result. We recommend spool valve designs for intermittent use. They work perfectly for medium-duty conveyors and sweeping attachments where cost-efficiency outweighs the need for extreme, sustained performance.

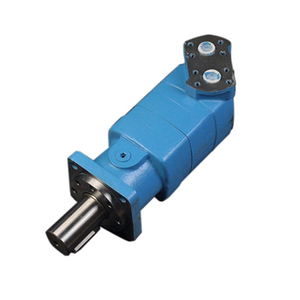

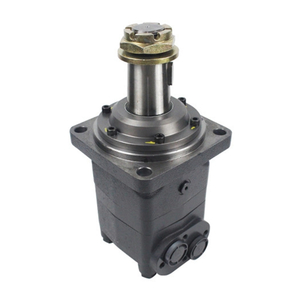

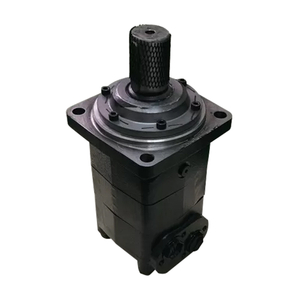

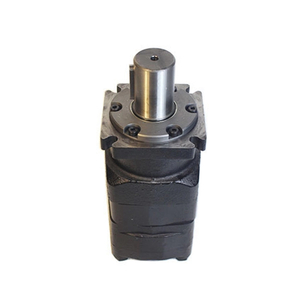

Heavy-duty applications demand superior fluid management. Disc valve architecture answers this need. It uses a separate, pressure-balanced disc driven by a dedicated short valve drive. The fluid paths remain incredibly short. This minimizes internal pressure drop. Furthermore, the pressure-balanced nature of the disc prevents uneven wear against the mating surfaces. It sustains high volumetric efficiency over a much longer operational lifespan. While it carries a higher upfront cost, the performance gains are substantial. You should specify disc valve designs for continuous heavy-duty cycles. They excel in heavy winches, wheel drives on large excavators, and high-pressure industrial processing systems.
Proper sizing requires discipline. Before you ever look at a manufacturer's catalog, you must establish firm baselines. Engineers must lock in two critical parameters. First, determine the maximum required output torque (measured in inch-lbs or Nm). Second, determine the required rotational speed (measured in RPM). Guessing these numbers leads to catastrophic system failure. Measure your actual load demands under worst-case operational conditions.
Displacement serves as the core metric for any orbital hydraulic motor. As a general rule of thumb, physical size correlates directly with internal displacement capacity. A larger internal volume handles more fluid per revolution. It generates much higher torque. However, it will operate at slower speeds for a given flow rate. You can calculate your specific needs using standard fluid power formulas.
Determine Torque Capacity: Theoretical Torque = [Displacement × Pressure Drop] / (2π). Note that real-world torque will always be slightly lower due to internal mechanical friction.
Determine Rotational Speed: RPM = [Flow Rate × 231] / Displacement. (Use this constant if calculating in GPM and cubic inches).
Assess Flow Availability: Ensure your existing pump can deliver the required GPM to reach your target RPM.
Many engineers make a critical implementation error during sizing. They calculate strictly for steady-state running torque. The force required to break static friction is always significantly higher than the force needed to maintain motion. We call this the start-up load. If you size strictly for running torque, the motor will stall under a heavy initial load. It simply will not turn. Always specify a motor where the required start-up torque falls comfortably within the manufacturer's intermittent pressure ratings. Never push the continuous rating to its absolute limit just to start the machine.
The fluid power market contains many commoditized, low-quality components. Avoid them. Poor grinding of the internal star wheel or stator results in excessive internal leakage. We call this fluid blow-by. High-pressure fluid escapes past the rotor teeth instead of doing mechanical work. High manufacturing tolerances remain non-negotiable for stable low-speed operation. If the tolerances are loose, the shaft will stutter or stall when operating below 50 RPM.
Opting for an undersized motor just to save upfront costs guarantees poor operational efficiency. We call this the "little horse pulling a big cart" scenario. When a small unit constantly fights a massive load, it operates at peak pressure continuously. This spikes fluid temperatures dangerously high. It dramatically increases energy and fuel consumption. It also destroys the internal seals and bearings prematurely. Specify the correct displacement, even if the larger casing costs more initially. The resulting energy savings and prolonged uptime quickly justify the decision.
A credible supplier will design heavy-duty units with proper case drain ports. The case drain protects the shaft seal from high internal pressure. It also serves as a critical diagnostic tool. As internal components wear down over years of use, more fluid leaks past the rotor into the casing. Monitoring the volume of fluid returning through the case drain line indicates internal wear perfectly. It is the most reliable diagnostic indicator of volumetric efficiency loss. High case drain flow means the motor needs a rebuild.

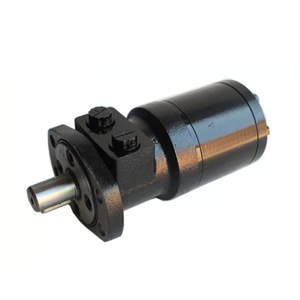

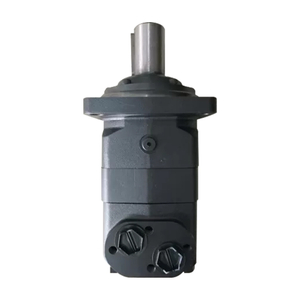

Evaluate your potential suppliers based on their engineering flexibility. They should easily match industry-standard footprints. Compatibility with major brands like Parker or Danfoss remains crucial for quick field maintenance. However, they should also offer deep customization. Look for suppliers who provide custom shaft configurations, specialized porting options, or heavy-duty tapered bearings. High radial side-load applications demand these custom bearing upgrades to prevent shaft snapping.
A successful fluid power deployment requires careful planning and precise calculation. You must match the internal valve type (spool versus disc) to your exact duty cycle. You must also calculate displacement accurately to balance your required torque against available RPM. Finally, you must strictly factor in start-up loads to prevent unexpected stalling. Skipping any of these steps compromises machine performance.
We recommend you take action today. Audit your current hydraulic system's pressure capabilities. Document your maximum flow rates. Identify the true operational duty cycles of your equipment. Once you gather this baseline data, contact a qualified manufacturer. Request customized CAD models or specify a reliable drop-in replacement that meets your newly defined engineering standards.
A: Fluid viscosity drops significantly as heat rises. Thinner fluid increases internal leakage across the gerotor gaps, reducing pressure differentials. This usually indicates either worn internal components causing high case drain flow, or severely degraded hydraulic fluid. Check your cooling circuit and test fluid viscosity immediately.
A: Standard units possess very limited side-load capacity. Directing heavy lateral force onto a standard shaft will destroy the internal seals quickly. For applications like direct wheel drives or heavy chain sprockets, you must specify motors equipped with heavy-duty tapered roller bearings.
A: Volumetric efficiency relates directly to internal fluid leakage. It determines how much flow is lost inside the casing, which directly affects your actual RPM. Mechanical efficiency relates to physical friction within the gerotor and bearings. It dictates how much theoretical pressure translates into actual output torque.
