BMV
Xeriwell or Others
| Products Name: | Hydraulic Orbital Motor | Shaft: | 50mm |
|---|---|---|---|
| Oil Port: | G1 | Drain Port: | G1/4" |
| Warranty: | 12-18 Months | Application: | Heavy Equipments, Construction Machines, Etc. |
| Replace: | 151B-3103 ( OMV) | ||
| Highlight: | large hydraulic motor,hydraulic lift motor | ||
151B-3103 Hydraulic Motor , 4 bolt Square-flange 200, Shaft 50 parallel key
BMV-630-4AD is a replacement motor of 151B-3103
BMV = OMV
displacement = 630cc
4-Ø18 Square-flangeØ200
4-Ø18 Square-flangeØ200
G1 Manifold 4×M12, G1/4
Introduction:
Xeriwell strong at replacement motor of many makes, , Eaton Char-lynn, Parker, M+S, White, Brevini, Rexroth
| Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here. |
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

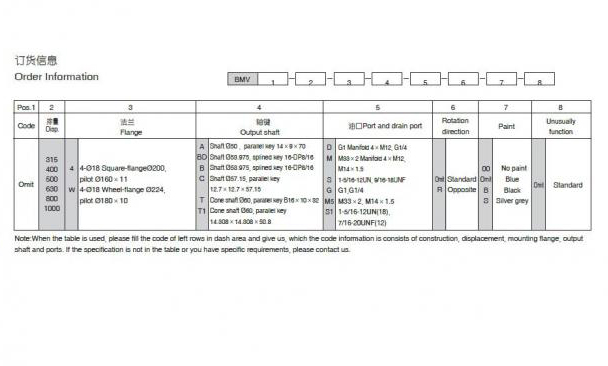

| Pos.1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
| Code | 序号 Disp. | 法兰 Flange | 轴键 Output shaft | 油口Port and drain port | Rotation direction | Paint | Unusually function | ||||||
| Omit | 315 | 4 W | 4-018 Square-flangeO200,pilot O160 × 11 4-018 Wheel-flange O224,pilot O180 × 10 | A B0 B C T T1 | Shaft O50,parallel key 14 × 9 × 70 Shaft O50.975,spined key 16-CP8/16 Shaft O50.975,spined key 16-CP8/16 Shaft O57.15,parallel key 12.7 × 10.7 × 57.15 Cone shaft O60,parallel key B16 × 10 × 92 Cone shaft O60,parallel key 14.308 × 14.908 × 50.8 | D M S G M5 S1 | G1 Manifold 4 × M12,G1/4 M33 × 2 Manifold 4 × M12,M14 × 1.5 1-5/16-12UN,#16-18UNF G1,G1/4 M33 × 2,M14 × 1.5 1-5/16-12UN(18),7/16-20UNF(12) | Onl R | Standard Opposite | 0 Onl B S | No paint Blue Black Silver grey | Onl | Standard |
| 400 | |||||||||||||
| 500 | |||||||||||||
| 630 | |||||||||||||
| 800 | |||||||||||||
| 1000 | |||||||||||||
Note:When the table is used,please fill the code of left rows in dash area and give us,which the code information is consists of construction,displacement,mounting flange,output shaft and ports. If the specification is not in the table or you have specific requirements,please contact us. | |||||||||||||

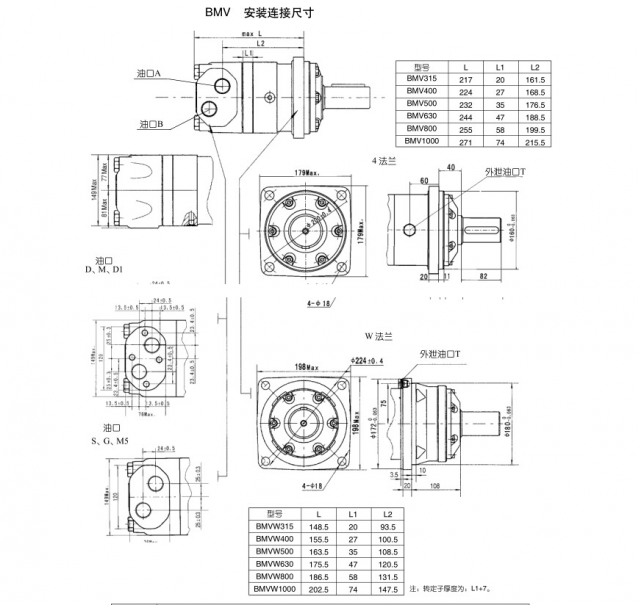

| 型号 | L | L1 | L2 |
| BMV315 | 217 | 20 | 161.5 |
| BMV400 | 224 | 27 | 168.5 |
| BMV500 | 232 | 35 | 176.5 |
| BMV630 | 244 | 47 | 188.5 |
| BMV800 | 255 | 58 | 199.5 |
| BMV1000 | 271 | 74 | 215.5 |
| 型号 | L | L1 | L2 |
| BMVW315 | 148.5 | 20 | 93.5 |
| BMVW400 | 155.5 | 27 | 100.5 |
| BMVW500 | 163.5 | 35 | 108.5 |
| BMVW630 | 175.5 | 47 | 120.5 |
| BMVW800 | 186.5 | 58 | 131.5 |
| BMVW1000 | 202.5 | 74 | 147.5 |
