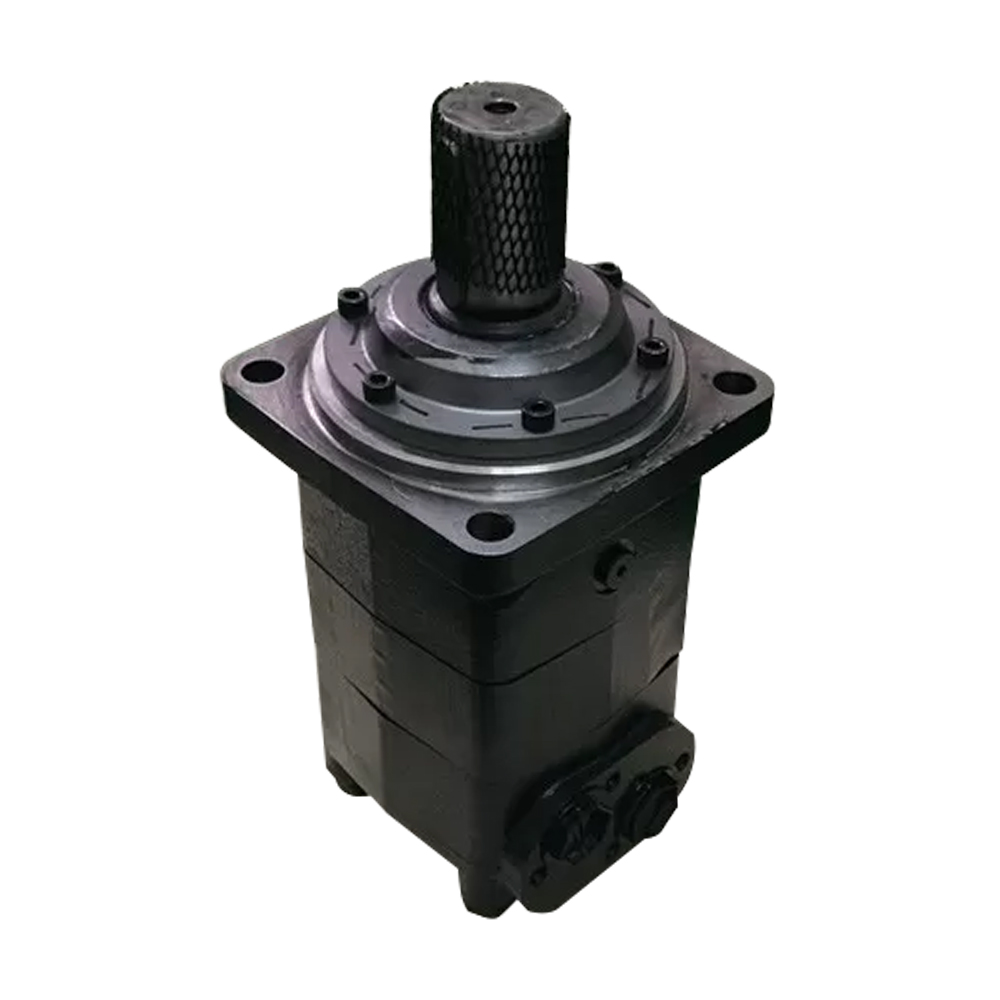

Black Precision Hydraulic Orbital Motors / Variable Displacement Hydraulic Motor BMV-800-4ADB

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BMV-800-4ADB

  • Xeriwell or Others

Product: Gerotor Geroler Hydraulic Motor Replace: Eaton Char Lynn 1000 Series
Performance: 99% Apply To: Heavy Construction And Mining Equipment
Displacement: 800 Ml/r (800 Cc, 800 Cm3/r) Flange: 4 Hole Square
Shaft: Straight 40mm With Paraller Key Max Flow: 150 L/min
Max Speed: 185 Rpm Weight: 35 Kgs
Measurement: 51x25x25cm

Highlight:

orbital hydraulic motor

,

cycloid hydraulic motor


OMV800, OMV315, OMV400, OMV500, OMV630, Orbit Hydraulic Motor BMV-800-4ADB
BMV indroduction:


BMV series orbit hydraulic motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.This motor is a Orbital hydraulic motor, also called Low Speed High Torque type motor, also called geroler hydraulic motor, also dis valve hydraulic motor.

It's applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers


Characteristics:

This motor produced by Xeriwell Technology from China, it's a alternative orbit hydraulic motor to OMV series, to Eaton Char lynn 10000 series (10k series), also alternative with M+S MV series, and alternative with many other manufacturers from USA and European.

Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.


What benefit can i get?

As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Construction, Heavy Equipment, Farm & Agri, Mining, Metallurgical, Chemical, Transportation industries. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.

1. Xeriwell BMV-800-4ADB = Eaton Char lynn 10000 series (10k series), from USA

2. Xeriwell BMV-800-4ADB = OMV series, from Danmark

3. Xeriwell BMV-800-4ADB = M+S MV series, from Bulgaria

4. we have strong ability to match OEM part no. and provide you.


Specifications/ Technical Data:

This Orbit hydraulic motor BMV is a big motor compare with other series like BMM(OMM,MM), BMP(OMP, MP), BMR(OMR, MR), BMH(OMH, MH), it's displacement start from 315 ml/r to 1000 ml/r, speed from 200 rpm to 630 ml/r, torque from 1110 N.m to 2400 N.m, max output from 28.6 kw to 56.0 kw, max flow from 160 L/min to 240 L/min. Below is the detail specifications of this BMV Orbit hydraulic motors.

Main Specifications:

Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.-266Hydraulic
