Crushers lie at the heart of mining, aggregate, demolition, and recycling operations. To meet the demands of high throughput, variable loads, safety, and adjustability, modern crushers increasingly rely on hydraulic systems for crusher. In this deep dive, we explore what hydraulic crusher systems are, how they function, their benefits and challenges, design considerations, real-world examples, and future directions.
Crushing is inherently a high-force, high-stress process. Whether breaking rock, concrete, ore, or demolition waste, crushers must apply tremendous mechanical force to reduce materials to a desired size.
Traditional mechanical linkages and rigid gearing approaches have limitations in flexibility, adjustability, and overload protection. Hydraulic systems address many of these limitations. A well-engineered hydraulic system for crusher allows:
On-the-fly adjustment of crushing settings
Overload / tramp material relief
Smooth motion control, shock absorption, and protection
Integration with control systems for automation
Compact, modular power architectures
In short, hydraulics empower crushers to perform reliably, flexibly, and safely under diverse conditions.
Before reviewing applications, let’s clarify the structure and behavior of a hydraulic system in crusher machinery.
A typical hydraulic system for crusher includes:
Hydraulic Power Unit (HPU) — The prime mover (electric motor or diesel) drives pumps that provide pressurized fluid
Control Valves — Directional, proportional, relief, sequence valves to manage fluid direction, pressure, sequence, and safety

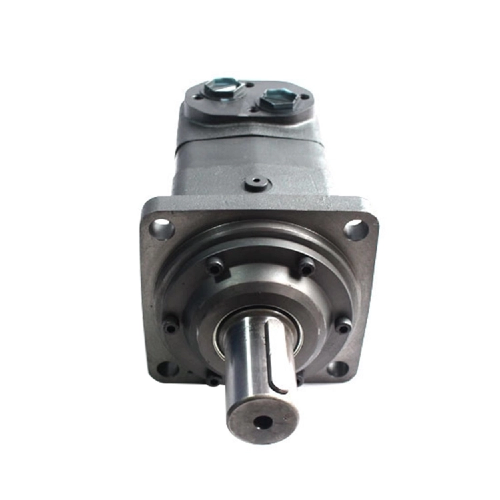

Hydraulic Actuators — Cylinders or motors that drive crusher movements (e.g. adjusting jaw position, opening tramp relief)
Reservoir & Tank — Holds hydraulic oil, allows settling, de-aeration, heat dissipation
Filtration & Coolers — Filters to remove contaminants, coolers or heat exchangers to control fluid temperature
Hoses, Pipes, Fittings, Manifolds — Connect the system components, accommodating motion, routing, and structural constraints
Sensors & Electronics — Pressure sensors, temperature sensors, flow meters, and control units for automation
Basic flow: The pump draws oil from the reservoir, pressurizes it, and sends that fluid to controlled valves, which in turn feed actuators. The actuators perform mechanical work (adjust, move, relieve). The return fluid goes through filtration and cooling back into the reservoir.
Because hydraulic fluid is nearly incompressible, force transmission is direct, efficient, and nearly instantaneous—ideal for heavy-duty operations.
Hydraulic systems for crushers can adopt different flow architectures, depending on application needs:
Open-loop systems: Fluid from reservoir → pump → valves → actuator → return → reservoir. Simpler and cost-effective.
Closed-loop systems: The actuator return is partly looped back to the pump suction, improving efficiency under steady states.
Load-sensing systems: The pump output is modulated based on demand (pressure or flow feedback), reducing energy waste.
Parallel vs Series Circuits: Multiple actuators may operate in parallel (each with its own valve) or series (cascading flow).
Selecting the proper architecture depends on crusher type, load variation, and energy efficiency goals.
This section explores how hydraulic systems are used in actual crusher mechanisms—what functions they enable, and how they enhance crusher performance.
One of the key advantages of hydraulic systems in crushers is the ability to adjust the Closed-Side Setting (CSS) dynamically. The CSS determines the minimum gap between crushing surfaces, thereby controlling the final particle size.
In hydraulic jaw crushers or cone crushers, double-acting cylinders push or pull the movable element to tighten or loosen the gap.
Operators can adjust CSS via push-button commands or automatic control loops—no manual shimming or downtime.
This dynamic adjustment allows real-time fine-tuning to optimize throughput, particle distribution, and wear compensation.
For example, hydraulic jaw crushers allow changes to CSS without halting operation—unlike shim-adjust models which require shutdown and manual repositioning.
In crushing operations, foreign objects ("tramp material") such as uncrushable metal or large boulders may enter the crusher. Without protection, they can damage the crusher’s internal structure. Hydraulic systems provide:
Automatic relief mechanism: When pressure spikes above a threshold, the hydraulic system temporarily opens the gap (tramp release), allowing the foreign item to pass. The system then resets to original position automatically.
Bypass / relief valves: These valves bleed off excess pressure to protect pumps, pipes, and actuators.
This function greatly reduces risk of catastrophic damage and downtime.
In the event of jamming or blockage, hydraulic systems may include reverse-flow or clearing modes:
Operators may reverse hydraulic flow to open the crusher slightly and dislodge stuck material.
Some systems incorporate flushing or back-flush circuits to clean crushing chamber.
Here we categorize several crusher types and how hydraulic systems are integrated into them.
Jaw crushers are among the most common primary crushers. Hydraulic features often include:
CSS adjustment cylinder: Permits real-time adjustment of jaw gap
Toggle / slip system replacement: Replaces mechanical toggle with hydraulic release
Hydraulic tensioning: Adjust tension in components like belts or chains
Advantages over shim-adjust models include faster adjustment and automatic tramp clearance.
Cone crushers are widely used for secondary and tertiary crushing. Their hydraulic systems often provide:
Gap control / CSS adjustment
Hydraulic tramp release
Unclogging or reset function for stuck material
Given the high speed and fine control demands, the hydraulic circuits must respond swiftly and stably.
Impact crushers may integrate hydraulics for:
Curtain / apron adjustment: Change the angle or position of crushing elements
Overload protection: Relief the system when excessive force is detected
In large-scale mining operations, gyratory crushers sometimes use hydraulics for:
Mainshaft position control
Overload protection
Adjustment to maintain optimal crushing cavity profile
Beyond stationary crushers, hydraulic crusher attachments (mounted on excavators or demolition machines) are common in demolition and recycling. These hydraulic attachments use:
The base machine’s hydraulic supply
On-board hydraulic control valves and cylinders
Compact, powerful crushing jaws with rotating or oscillating mechanisms
Such attachments allow versatile on-site crushing without transporting material to a primary crusher.
Examples: Many manufacturers offer hydraulic crushers for excavator attachments.
When properly engineered, hydraulic crusher systems bring many advantages.
Operators can fine-tune crusher settings without shutting down operations, optimizing throughput and product size dynamically.
Hydraulic relief and tramp release protect equipment and personnel from damage or accidents due to overload.
Hydraulic systems dampen shock loads and vibrations, preserving structural integrity and reducing wear.
Hydraulic lines and modules allow flexible layouts, useful where space is constrained.
Hydraulics can integrate with control systems (PLC, SCADA), enabling closed-loop feedback, diagnostics, and remote monitoring.
Load-sensing pumps, proportional control, and efficient circuit topologies reduce wasted energy.
Designing and implementing a robust hydraulic system for crusher demands attention to key challenges.
Crushers operate in dirty, dusty environments. Contamination is one of the leading causes of hydraulic failure. Best practices:
Multi-stage filtration (suction, pressure, return lines)
Bypass filters
Use of desiccant breathers on tanks
Routine fluid sampling and condition monitoring
Under high load, hydraulics generate heat:
Use coolers or heat exchangers
Proper reservoir design for heat dissipation
Monitor temperature and include thermal protection
Minimize pressure drop in hose runs, fittings, bends. Match pump flow and pressure to actuator demand to avoid under- or overperformance.
Select seals, cylinder materials, hoses, and fittings that resist abrasion, wear, and high pressures. Use corrosion-resistant alloys where required.
High-speed crushers require stable hydraulic control. Consider:
Valve sizing and response dynamics
Damping or feedback elements
Control loop tuning
Avoiding oscillation or hunting
Include:
Relief valves
Redundant pump or dual circuits
Emergency override or bypass
Diagnosis and alarm systems
To highlight the real-world impact, here’s a comparison between hydraulic-adjust and traditional shim-adjust crushers.
Feature | Shim-Adjust Crusher | Hydraulic-Adjust Crusher |
Adjustment Method | Manual shims, downtime required | Push-button or remote hydraulic adjustment |
Downtime | High (must stop crusher) | Minimal or none |
Tramp Release | Mechanical break of toggle or component | Automatic hydraulic relief and reset |
Fine Adjustment | Limited, manual | Precise, continuous adjustment |
Operator Effort | High | Low |
Energy Use | Simpler system, less hydraulic overhead | Additional hydraulic consumption |
Complexity | Lower | Higher (valves, sensors) |
Safety | Risk of manual intervention | Safer automated release systems |
As a result, hydraulic crushers tend to offer higher flexibility and operational safety, particularly in demanding or variable-load scenarios.
To illustrate, imagine an aggregate plant replacing shim-adjust cone crushers with hydraulic counterparts:
Before: frequent shutdowns for shim adjustments, manual intervention, unplanned downtime
After: operators adjust CSS via control panel, shape distribution more consistent, less wear on components
Benefit: increased throughput, reduced maintenance cost, higher process stability
Alternatively, a demolition contractor adopting hydraulic crusher attachments on excavators can crush concrete directly on site, reducing hauling cost and increasing operational flexibility.
Here’s a recommended step-by-step design and deployment workflow:
Load & Demand Study
Analyze crushing forces, feed rates, surge loads
Derive pressure and flow requirements
Architecture Selection
Choose between open-loop, closed-loop, load-sensing, or hybrid systems
Component Selection
Pumps (fixed, variable), valves (proportional, relief), cylinders, sensors
Circuit Layout & Routing
Minimize hose length, avoid sharp bends, allow motion
Thermal & Filtration System Design
Coolers, filters, reservoir sizing
Control Strategy & Integration
PLC/SCADA signals, sensor feedback, safety interlocks
Simulation & FEA Analysis
Simulate pressures, response, dynamic loads
Prototyping & Testing
Bench test, pressure tests, endurance cycles
Installation & Commissioning
Leak tests, calibration, operator training
Operation & Feedback Loop
Monitor performance, collect data, refine control logic
The landscape of hydraulic system for crusher is evolving. Key emerging trends include:
IoT sensors embedded in hydraulic systems can monitor pressure trends, vibration, temperature, and fluid condition. Predictive algorithms can flag impending faults, allowing proactive maintenance.
Crushers may incorporate electric drives for baseline tasks, switching to hydraulics only when high force is needed. This hybrid approach can reduce energy consumption and emissions.
Designs can recover hydraulic energy from deceleration or rebound phases and reuse it, thereby improving efficiency and lowering heat generation.
As environmental regulations tighten, use of biodegradable hydraulic fluids is increasing—especially important when leaks might occur in sensitive sites.
Pre-fabricated hydraulic modules (pump blocks, valve manifolds) reduce engineering time, simplify maintenance, and enable system scalability.
Hydraulic systems have become an essential part of modern crushers, ensuring superior performance, safety, and operational flexibility. A well-engineered hydraulic system for crusher enables precise adjustments, effective overload protection, smooth motion, and intelligent control integration. While challenges such as contamination, heat control, and stability remain, these can be effectively managed through advanced engineering and proper system design.
As the technology evolves, hydraulic systems are becoming smarter, more energy-efficient, and environmentally friendly. For industries seeking reliable, customized hydraulic solutions, Xeriwell Co., Ltd. offers professional expertise, high-quality engineering, and tailor-made systems to enhance crusher performance. Connect with the Xeriwell team to explore how their innovative hydraulic technologies can elevate your equipment’s reliability and productivity.
