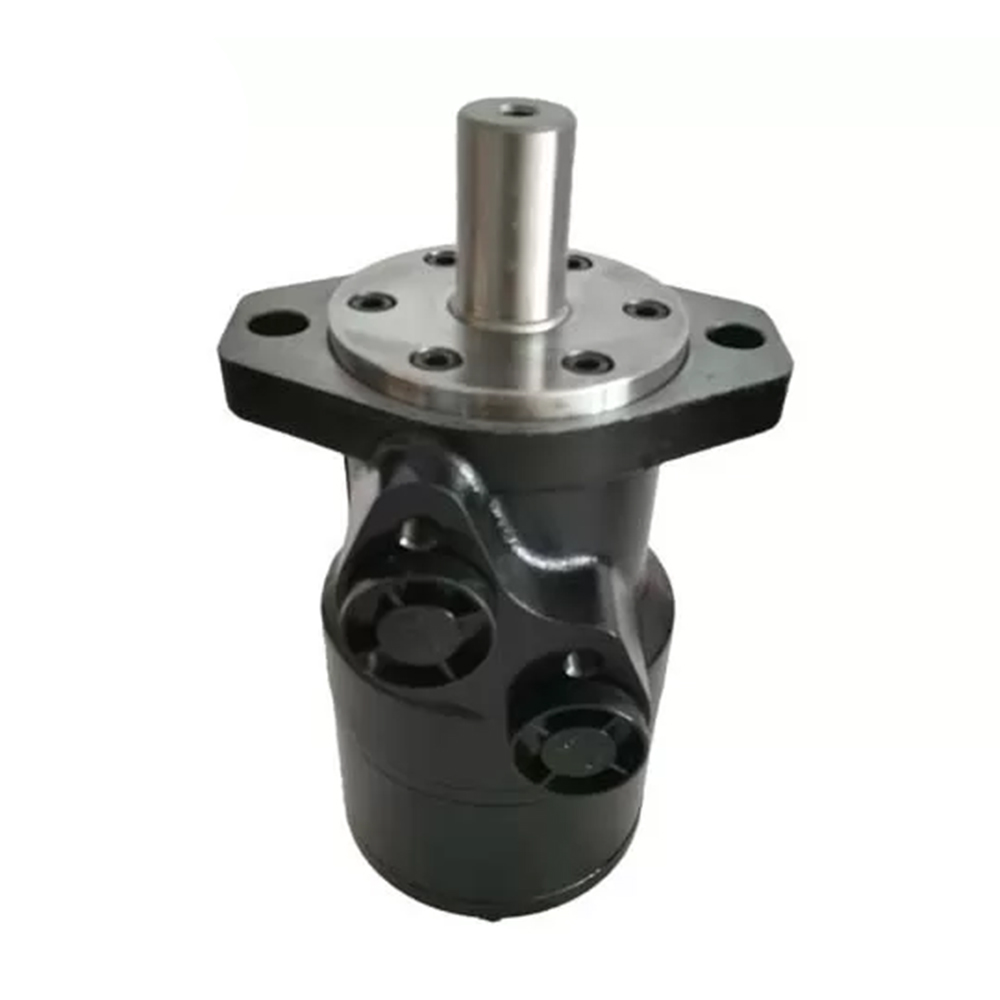

Medium Size BMR Hydraulic Motor , Hydraulic Orbital Motors With Shaft Size 25mm

S , T Series Hydraulic Orbital Motors - OMR Gerotor Motors , Shaft Size 25mm


Introduction:

The BMR orbital motors are medium size units with gerotor set equipped with rollers. It causes high starting torque, low pressure at start and work at high allowable pressure, but lowers maximum rotational speed at the same time. The cardan shaft rotates distributor valve and transfers mechanical energy from gerotor set to output shaft. Distribution valve is hydrodynamically bearinged and has virtually infinite life when load ratings are not exceeded, but of course other elements reduce the durability. That is why new ball bearings have been added to output shaft. The overall life cycle have been radically extended.

Features:

• Displacement: 51.7 - 401.9 cm3/rev;

• Rotational speed range: 5 - 775 rpm;

• Maximum pressure: 140/225 (continuous/peak);

• Maximum power: 4 - 10 kW.

Advantages:

• Low starting pressure;

• Reinforced shaft seals;

• Possibility of serial and parallel combination of motors;

• Low noise level;

• Compact design and easy installation;

• Shaft ball bearing.

Specification:

• Sprinkler

• Mini excavator

• Driven scraper conveyor

• Screw

• Baler

• Hydraulic Winch

• Fishing boat

• Plastic injection mold machine

• Cleaner

• Grass cutter

• Winches

• Conveyors

• Slews

• Sweeper Drives

• Augers Cutters

• Mowers

• Chippers

• Drilling machine

• Municipal machinery, agriculture, forestry and construction equipment etc.
