| Quantity: | |
|---|---|
BMV-315-W-T-G
Xeriwell or Others
| Product: | Hydraulic Wheel Motor | Model No.: | BMV-315-W-T-G |
|---|---|---|---|
| Flange: | Wheel Mount | Application: | Wheel Loader |
| Highlight: | mounted Hydraulic wheel motor,315cc Hydraulic wheel motor,Orbital Hydraulic wheel motor | ||
Welcome!
Hydraulic Motor manufacturer from China specializes in high performance CW and CCW rotation Hydraulic Wheel Motor for various applications
For example, engineering, construction, agriculture, forestry
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:
Quick review:

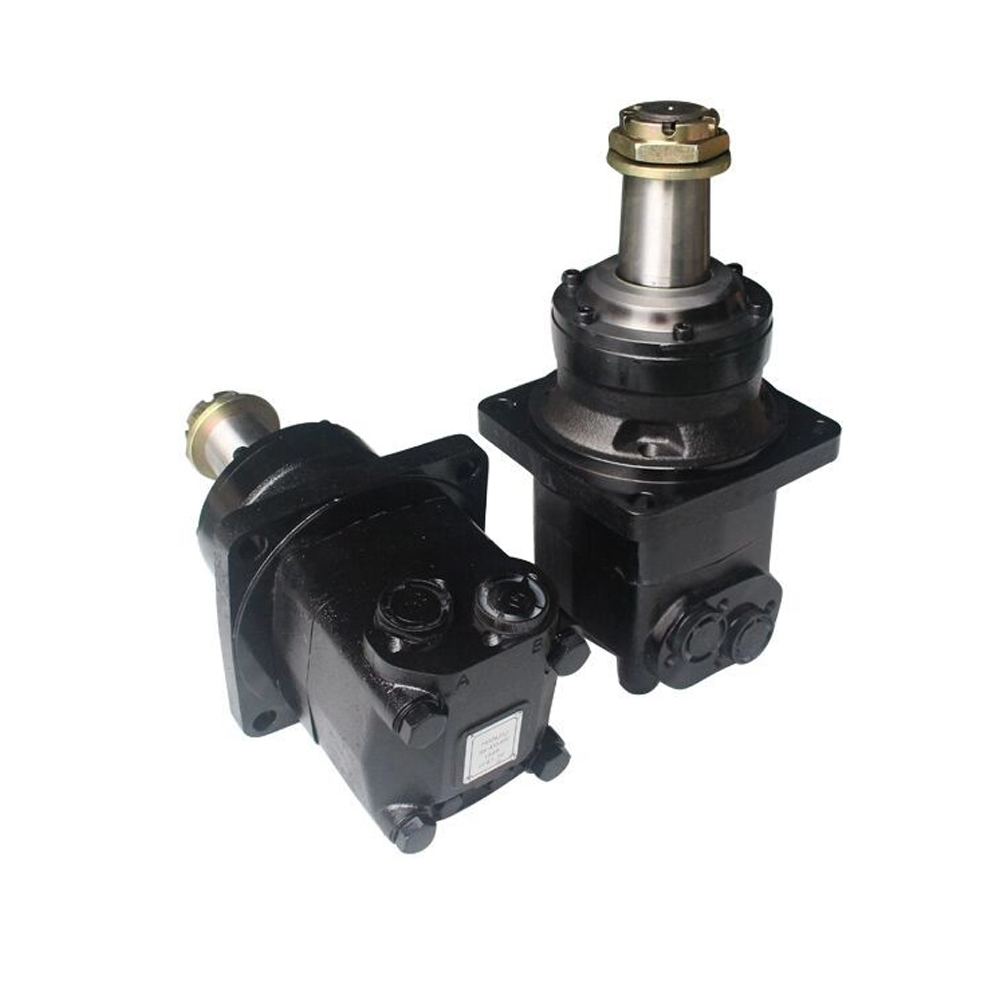

This is an BMV315 Orbital Motor with wheel mounted flange apply to Wheel Loader, it can be clockwise rotate and counter-clockwise rotate, excellent for Whell Loader usage.

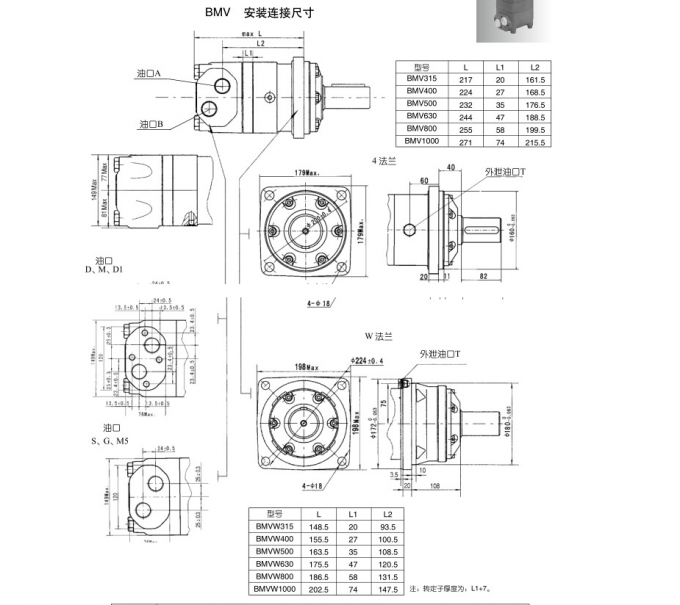

Technical information
BMV-315-W-T-G
"Tapered shaft Ø60 mm
Wheel flange 4 bolt
Working port, G 1, G 1/4
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Product: | Hydraulic Wheel Motor | Model No.: | BMV-315-W-T-G |
|---|---|---|---|
| Flange: | Wheel Mount | Application: | Wheel Loader |
| Highlight: | mounted Hydraulic wheel motor,315cc Hydraulic wheel motor,Orbital Hydraulic wheel motor | ||
Welcome!
Hydraulic Motor manufacturer from China specializes in high performance CW and CCW rotation Hydraulic Wheel Motor for various applications
For example, engineering, construction, agriculture, forestry
Partners include OEM, hydraulic importers, hydraulic distributors
Please see product introduction below:
Quick review:
This is an BMV315 Orbital Motor with wheel mounted flange apply to Wheel Loader, it can be clockwise rotate and counter-clockwise rotate, excellent for Whell Loader usage.
Technical information
BMV-315-W-T-G
"Tapered shaft Ø60 mm
Wheel flange 4 bolt
Working port, G 1, G 1/4
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
