Views: 0 Author: Site Editor Publish Time: 2025-12-29 Origin: Site
In modern maritime engineering, hydraulic systems for ship decks are indispensable. These systems deliver high power density, precise control, and mechanical robustness in challenging sea environments. Whether for lifting heavy cargo, maneuvering anchors, controlling hatch covers, or steering gear, hydraulics enable smooth, reliable operations.
On a ship deck, loads are heavy, space is limited, and environmental conditions (salt, vibration, motion) are harsh. Hydraulic solutions offer advantages over mechanical or purely electrical systems in these settings, making them the preferred choice for many deck applications.
In this article, we explore how a Hydraulic System for Ship Deck works, its primary applications, design considerations, maintenance practices, and future trends.
To appreciate applications, it's helpful to understand how such a system functions, its key parts, and the principle behind it.
A typical hydraulic system (for ship deck use) consists of:

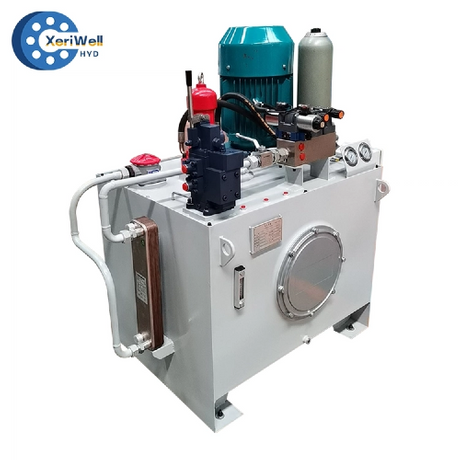

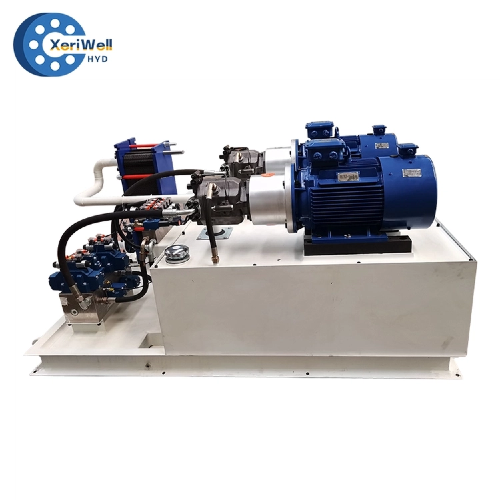

Hydraulic pump / power unit (HPU) — converts mechanical energy (e.g. from diesel engine or electric motor) into pressurized fluid
Hydraulic reservoir / tank — stores fluid, provides de-aeration, and helps heat dissipation
Valves (directional, pressure, flow control, relief, proportional) — regulate flow paths and pressures
Actuators (cylinders, motors) — transform hydraulic energy into linear or rotary motion
Hoses, pipes, fittings, manifolds — distribute the fluid
Filters, coolers — maintain cleanliness and temperature control
Sensors, gauges, control electronics — monitor pressures, flows, temperatures, and enable automation
Working principle in brief: the pump pressurizes hydraulic fluid, sending it through control valves. The fluid then drives actuators. After doing work, fluid returns to the reservoir, passing through filters or coolers as necessary.
Because hydraulic fluid is (nearly) incompressible, the system can transmit high forces precisely. Also, the system allows for flexible routing of power (via hoses), which is ideal in confined deck arrangement.
The hydraulic system is integrated with deck equipment (winches, cranes, steering gear, etc.). Often, one or more HPUs supply multiple sub-circuits. Complex systems may include load-holding valves, sequence valves, safety reliefs, and electrohydraulic controls. Some marine hydraulic systems employ closed-loop circuits or semi-closed loops depending on efficiency and response requirements.
Below we examine the major applications of hydraulic systems for ship decks, each highlighting how hydraulics solve real deck challenges.
Function & Importance
Hydraulic winches are used for mooring, anchoring, towing, and positioning. They provide high torque and precise control under load. Mooring drums and winches benefit from the smooth torque control and braking consistency of hydraulic drives.
How hydraulics help
Ability to sustain high loads (chains, ropes)
Controlled speed and variable torque
Overload protection using relief valves
Remote or centralized control
Capstans and windlasses are specialized forms of winches focused on anchor or line handling. They require high torque over lower speed ranges—hydraulic motors are well-suited for that. They work in tandem with winches or independently.
Usage Scenarios
Deck cranes, davits for lifeboats, material handling arms, and other lifting gear are commonly driven by hydraulic power. They must lift heavy payloads safely and smoothly—even in rough seas.
Advantages
Smooth acceleration / deceleration
Holding load with minimal drift (when valves closed)
Compact actuators vs bulky mechanical linkages
Better integration with motion compensation (on offshore vessels)
In particular, Active Heave Compensation (AHC) may be used in crane operations to counter vessel motion, using hydraulic control loops and sensors to maintain stable load position.
Large steel hatch covers or roll-on/roll-off ramps require powerful actuation. Hydraulics can open and close these heavy structures reliably, controlling seal pressure and movement.
Typical setups: hydraulic cylinders push, pull or tilt hatch covers, often using linkage systems. The hydraulic system ensures consistent pressure (for sealing) and safe slow movement.
Steering & Rudder Control
Hydraulics commonly drive steering gear systems, moving rudders with high force. For large vessels, mechanical steering alone is impractical; hydraulic actuation gives the needed torque control. Often redundant hydraulic circuits are used to maintain reliability in case of single-circuit failure.
Stabilizers & Fin Actuation
Some ships have hydraulic actuators for stabilizer fins or control surfaces. These systems respond to wave motions to reduce roll and improve vessel stability/comfort.
For offshore vessels or supply ships, anchor handling is a demanding hydraulic application. Chains, swivels, and heavy-line control require robust systems with capability for high pressure and torque.
Hydraulic motors and cylinders control anchor winches, chain stoppers, and tensioners. The system may include load monitoring and feedback control.
Understanding the benefits helps reinforce why “Hydraulic System for Ship Deck” is a strong technical solution.
Advantage | Description |
High power density | Hydraulics deliver large forces from relatively compact components |
Precise control | Smooth acceleration/deceleration, accurate positioning |
Flexibility of routing | Hoses and pipes allow complex layout in compact decks |
Load holding | Valves maintain position without continuous energy input |
Redundancy & safety | Multiple circuits, relief valves, fail-safe designs |
Robustness in marine environment | Proper materials resist corrosion, vibration, and salinity |
These attributes make hydraulic systems ideally suited for ship deck operations where reliability, compactness, and power are essential.
When designing a hydraulic system for ship deck, special considerations apply due to the marine environment and operational demands.
Deck systems are exposed to salt spray, humidity, UV, and mechanical stress. Components should use marine-grade materials (e.g. 316 stainless, nickel-aluminides) and protective coatings. Seals must resist saltwater and ozone.
Contamination is a major cause of hydraulic failure. Multi-stage filtration (high-pressure, return-line filters) is essential. Maintain oil cleanliness to ISO standards.
Hydraulic fluid heats up under load. For deck systems, oil coolers, heat exchangers, or ambient cooling must be planned. Excess heat accelerates fluid breakdown and reduces seal life.
Pressure relief valves, load-holding valves, sequence valves, and bypass circuits must be designed in. Redundancy helps withstand component failure. Emergency shutdown and fail-safe paths are mandatory.
Modern ships use PLCs, sensors, and feedback loops. Proportional / servo valves may control speed, pressure, or motion. For example, integration with vessel control systems allows coordinated deck operations or motion compensation.
Keep hoses short, avoid sharp bends, minimize pressure drop. Use proper supports against vibration. Use flexible hoses in moving parts and rigid piping in fixed runs. Account for thermal expansion.
Even the best-designed system needs proper upkeep. Here’s a practical guide for maintaining deck hydraulics.
Regular visual checks are vital. Suggested frequencies:
Daily: fluid level, temperature, audible leaks
Weekly: hoses, fittings, visual leak checks
Monthly: pressure checks, filter differential readings
Quarterly / Annual: full system pressure testing, condition monitoring
Creating a standardized checklist helps ensure consistency.
Issue | Possible Causes | Remedial Actions |
Leakage (external) | Worn seals, loose fittings | Replace seals, torque fittings correctly |
Loss of pressure / low output | Pump wear, internal leakage, clogged filters | Inspect pump internals, clean or replace filters |
Overheating | High load, inadequate cooling, low fluid | Improve cooling, lower load, check fluid level |
Contamination | Ingress of dirt/water | Improve filtration, clean reservoir, use desiccant breathers |
Slow or erratic response | Air in system, sticking valves | Bleed the system, clean or replace valves |
Use correct hydraulic oil (viscosity, additives) suitable for marine environment. Monitor fluid condition via sampling (water content, particles). Replace fluid when degraded.
Check for wear, abrasion, cracks, bulging. Replace aged hoses proactively. Keep spares ready. Use protective sleeves in high-wear zones.
At periodic intervals, disassemble and inspect rotating parts, seals, bearings. Rebuild or replace worn parts. Use OEM or marine-approved spares.
Looking ahead, the hydraulic systems for ship deck domain is evolving. Key trends include:
Hybrid systems combine electric motors and hydraulics to improve energy efficiency and reduce fuel consumption. They may operate hydraulics only when needed, with electric backup.
IoT sensors, condition monitoring, and predictive analytics allow systems to predict failures before they occur, reducing downtime and maintenance cost.
Biodegradable or low-toxicity fluids reduce environmental risk in leaks or spills. Designers increasingly adopt “green hydraulics” in marine systems.
For offshore operations, hydraulic systems combined with motion sensors (MRUs) and control algorithms can actively compensate for vessel roll, pitch, or heave (e.g. in crane deployment).
Modular HPUs and plug-and-play manifolds allow faster retrofit, upgrade, or replacement. Standardization reduces maintenance complexity for ship owners.
At XeriWell Co., Ltd., we specialize in custom hydraulic systems for ship deck applications. Here’s why clients trust us:
Engineering & design expertise in marine hydraulics
Capability to provide OEM / ODM / bespoke deck solutions
Use of corrosion-resistant materials and marine-grade components
Integrated control systems and automation support
Rigorous quality assurance and testing
After-sales support, spare parts, and service globally
Whether you need hydraulic systems for winches, cranes, steering, or complex multi-circuit decks, XeriWell can engineer a tailored, reliable solution to meet your vessel’s needs.
Hydraulic systems are fundamental to nearly every deck operation aboard modern ships. The Hydraulic System for Ship Deck enables lifting, anchoring, steering, camp cover actuation, and more with power, precision, and reliability.
Designing such a system requires careful attention to marine conditions, choice of components, safety redundancy, and integration with automation. Proper maintenance ensures longevity and operational safety. Looking forward, hybrid systems, smart monitoring, and green technologies will further enhance deck hydraulics.
If you’re looking for custom, high-performance deck hydraulic systems backed by marine-grade design and support, XeriWell is ready to partner with you.
