| Quantity: | |
|---|---|
BMR250
Xeriwell or Others
| Features: | Match Than ,M+S Motor | Product Name: | Rotary Hay Mixers Hydraulic Motor |
|---|---|---|---|
| Displacement: | 80CC - 500CC | Flnge: | 2 Flange |
| Power: | Hydraulic Oil | Shaft Size: | 32mm |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

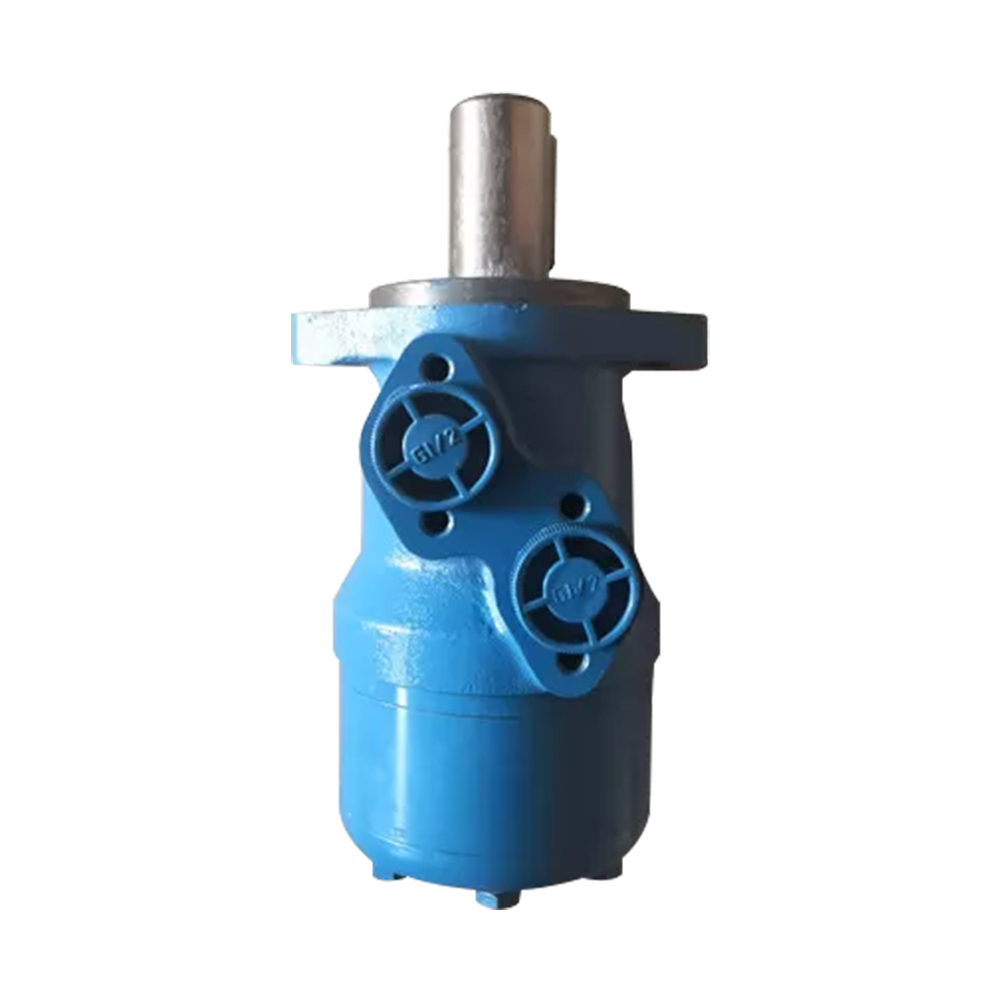

Rotary Hay Mixers High Torque Hydraulic Orbital Motor BMR250 / OMR250 / MR250
High quality products,Offer the lowest price,Protect customers profit and Offer the best after service are our principle.
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
We are looking for good long cooperation in the hydraulic field,very hope we can become good long partner.
Hope I can get your chance to have a good long cooperation.
1. Motors Features
Low noise level
Longer life expectancy
Low speed, high torque motors
Roller vane type drive system – offers high volumetric efficiency and long life
Manufactured with high quality materials and systems to exacting standards
2. Specification
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
3. Xeriwell Motors
• Xeriwell Hydraulic Motors match than ,M+S and Brevini hydraulic motors.
• Xeriwell Hydraulic Motors match than Eaton Char-Lynn motors.
• Xeriwell Hydraulic Motors match than some Parker motors and some hydraulic wheel motors.

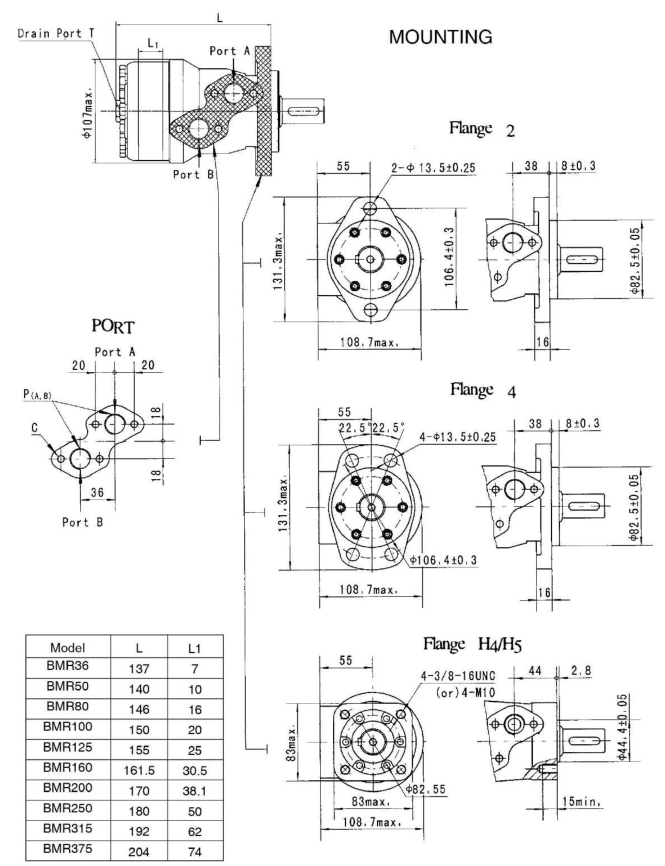

| Model | L | L1 |
| BMR36 | 137 | 7 |
| BMR50 | 140 | 10 |
| BMR80 | 146 | 16 |
| BMR100 | 150 | 20 |
| BMR125 | 155 | 25 |
| BMR160 | 161.5 | 30.5 |
| BMR200 | 170 | 38.1 |
| BMR250 | 180 | 50 |
| BMR315 | 192 | 62 |
| BMR375 | 204 | 74 |
