How Hydraulic Valves Work

Hydraulic systems are essential components in a wide range of industrial applications, enabling machinery and equipment to perform precise and controlled movements. Central to these systems is the hydraulic valve, a device designed to regulate the flow, pressure, and direction of hydraulic fluid. Understanding how hydraulic valves work is crucial for engineers, technicians, and industrial operators who aim to optimize system efficiency, ensure operational safety, and extend equipment lifespan.

Hydraulic valves act as the brain of the hydraulic system. Without proper valve operation, even the most advanced hydraulic machinery would fail to deliver precise performance. This article explores in detail the mechanisms behind hydraulic valves, explaining their components, working principles, types, actuation methods, and factors affecting their performance. By the end, readers will gain a thorough understanding of how these vital components function and why their correct selection and maintenance are critical.

What is a Hydraulic Valve?

A hydraulic valve is a mechanical device that controls the flow and pressure of hydraulic fluid within a hydraulic system. By directing fluid through specific channels, the valve enables actuators—such as cylinders and hydraulic motors—to perform desired movements with precision. In essence, a hydraulic valve converts the potential energy of hydraulic fluid into controlled mechanical work.

The primary roles of a hydraulic valve include:

• Flow Control: Regulating the speed of actuators by controlling fluid volume

• Pressure Control: Maintaining safe system pressure and preventing overloads

• Directional Control: Directing hydraulic fluid to different paths to achieve motion in various directions

Without effective hydraulic valves, hydraulic systems would lack the control required for complex industrial processes.

Basic Components That Enable Hydraulic Valves to Work

Understanding how hydraulic valves work starts with understanding their core components. Each part plays a critical role in controlling fluid movement, maintaining pressure, and ensuring smooth operation.

1. Valve Body (H2)

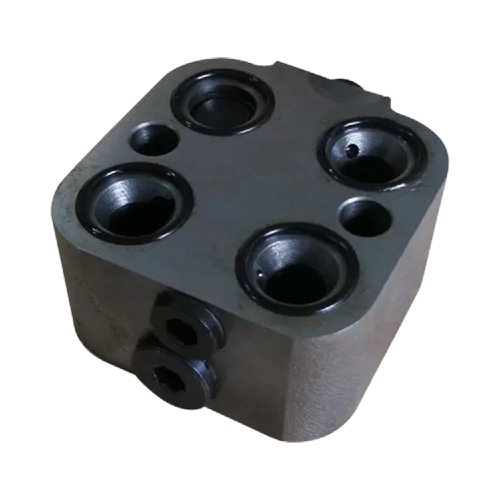

The valve body forms the main structure of the hydraulic valve. It houses the internal components, fluid channels, and ports that connect to the hydraulic system. The design and material of the valve body determine its strength, pressure rating, and durability under demanding operating conditions.

2. Spool or Poppet (H2)

The spool or poppet is the movable part of the valve that regulates fluid flow. Its position determines which channels are opened or closed, controlling the direction and amount of hydraulic fluid passing through. In directional control valves, the spool slides within the valve body to route fluid between inlet and outlet ports.

3. Spring and Actuator (H2)

Springs and actuators provide the force to move the spool or poppet. Springs can return the valve to a neutral position, while actuators—manual, mechanical, pneumatic, or electric—enable precise control over the valve’s movement. The combination of spring and actuator ensures accurate response to system demands.

4. Seals and Ports (H2)

Seals prevent fluid leakage, while ports provide connections between the valve and hydraulic system. High-quality seals are crucial for maintaining pressure and preventing contamination. Properly designed ports reduce turbulence and allow smooth fluid flow.

Summary Table: Core Components of a Hydraulic Valve

How Hydraulic Valves Control Fluid Flow

Hydraulic valves work by regulating three main aspects of fluid: direction, pressure, and flow rate. Understanding these principles is key to grasping how hydraulic valves work.

1. Directional Control (H2)

Directional control valves determine the path that hydraulic fluid takes through a system. By shifting the spool or poppet, the valve opens specific channels, directing fluid to extend or retract cylinders or rotate motors. This allows machinery to perform precise motions, such as lifting, pressing, or steering.

Mechanism: The spool’s position blocks some ports while opening others, controlling which actuator receives fluid.

2. Pressure Control (H2)

Pressure control valves maintain the system pressure within safe limits. A common example is the pressure relief valve, which opens when the pressure exceeds a set point, diverting fluid back to the tank. This prevents damage to hydraulic components and ensures consistent operation.

Mechanism: A spring-loaded poppet responds to fluid pressure; when the set pressure is exceeded, the valve opens to relieve pressure.

3. Flow Control (H2)

Flow control valves regulate the rate at which fluid moves through the system. By adjusting the size of the passage, these valves control actuator speed, ensuring smooth motion without jerks or delays.

Mechanism: A variable orifice changes the flow cross-section, altering the volume of fluid reaching the actuator per unit time.

Illustrative Table: Hydraulic Valve Functions

Working Mechanisms of Different Types of Hydraulic Valves

Hydraulic valves are categorized based on their primary function, and each type operates using distinct mechanisms.

1. Directional Control Valves (H2)

These valves control the path of hydraulic fluid. Sliding spools within the valve body connect or block ports to direct fluid flow. They are the most common type of valve and are essential for controlling the motion of actuators.

2. Pressure Relief Valves (H2)

Pressure relief valves prevent system overload by opening when pressure exceeds a set threshold. This protects pumps, hoses, and actuators from potential damage caused by excessive pressure.

3. Flow Control Valves (H2)

Flow control valves regulate the rate of fluid movement to control actuator speed. They can be fixed or adjustable, allowing precise tuning of system performance.

4. Proportional and Servo Valves (H2)

These advanced valves adjust flow and pressure based on electrical input signals. They enable highly precise control in automation and complex machinery, providing smooth, variable motion.

Actuation Methods and Their Effect on Operation

The method used to actuate a hydraulic valve significantly influences how it works and how it responds to system demands.

1. Manual Actuation (H2)

Manual valves use levers or handles to physically move the spool or poppet. They are simple and reliable but require operator intervention.

2. Mechanical Actuation (H2)

Mechanical actuation uses cams, gears, or linkages connected to other moving parts. The valve operation is synchronized with system movements.

3. Electric / Solenoid Actuation (H2)

Solenoid valves use electromagnetic coils to move the spool. They offer fast, precise, and remote control, ideal for automated systems.

4. Pneumatic / Hydraulic Actuation (H2)

Pneumatic or hydraulic actuators move the valve using pressure from another system. They provide high force and are suitable for large valves in industrial systems.

Factors Affecting How Hydraulic Valves Work

Several factors influence the efficiency and reliability of hydraulic valves:

• Fluid Properties: Viscosity and temperature affect flow and response. Contaminated fluid can cause wear or blockage.

• System Pressure and Flow: Incorrect pressure or flow can reduce performance or damage the valve.

• Valve Design and Material: Material quality and internal geometry impact durability and responsiveness.

• Maintenance and Lubrication: Regular cleaning and lubrication ensure smooth operation and prevent leaks or sticking.

Understanding How Hydraulic Valves Work Improves System Efficiency

Understanding how hydraulic valves work allows engineers to design more efficient systems, select the right valve for each application, and troubleshoot performance issues effectively. Proper knowledge reduces the risk of overpressure, fluid leakage, actuator delays, and system failure. This understanding supports optimized hydraulic system design, contributing to higher productivity and lower operational costs.

Conclusion

Hydraulic valves are the essential components that provide precise control over hydraulic systems. By managing flow, pressure, and direction, these valves ensure that machinery operates safely, efficiently, and reliably across a wide range of industries. Understanding how hydraulic valves work, from their internal structure to actuation methods, enables professionals to optimize system performance, extend equipment lifespan, and prevent costly downtime. For businesses and engineers seeking reliable solutions, XeriWell offers a comprehensive selection of high-quality hydraulic valves designed for durability, accuracy, and consistent performance under demanding conditions. Partnering with XeriWell gives you access to expert guidance, tailored solutions, and professional support to meet your specific hydraulic system requirements. Contact the XeriWell team today to explore their products and find the ideal hydraulic valve for your applications, ensuring long-term efficiency, safety, and reliability in your operations.
