| Quantity: | |
|---|---|
BMRW160
Xeriwell or Others
| Type: | Hydraulic Wheel Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | BMRW 160 | Size: | 50, 80, 100, 125, 160, 200, 250, 315, 375 ML/R |
| Flange: | 4-hole, Ø82.5mm Centring With Needle Bearing | Ports: | G1/2 |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

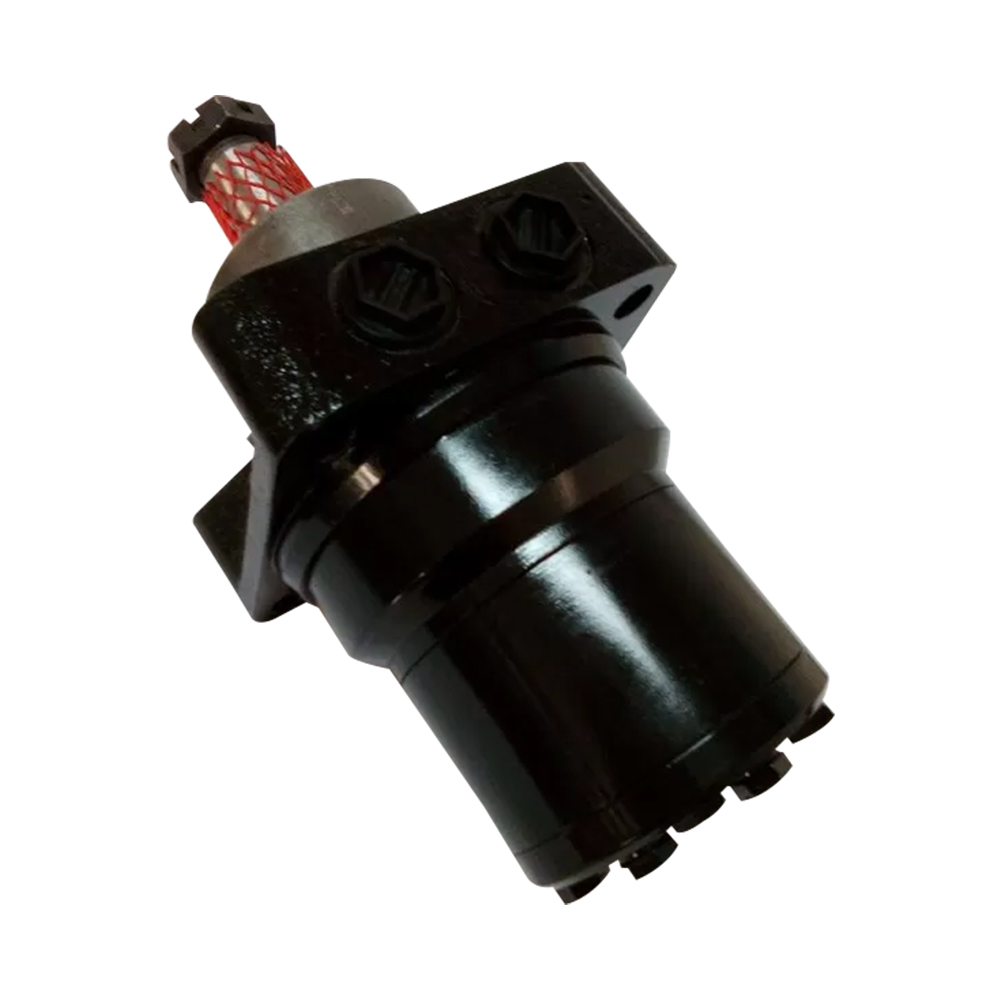

BMRW Medium Speed Hydraulic Wheel Motor 160cc with 35 mm tapered shaft
- Displacement: 160cc
- Shaft: 35mm, tpered 1/10
- Flange: 4-hole, Ø82.5mm centring with needle bearing
- Ports: G1/2, G1/4
- Model No.: BMRW 160
Introduction
Track (wheel) hydraulic travel motor by the high-speed hydraulic motors, brakes, planetary gear, valve groups and other components. For the shell drive, can be directly connected with the wheel or track drive wheels, reliable, high efficiency. The use of high bearing tapered roller bearing design, making it fully equipped with excavators at work and turning the axial force and radial force. The compact structure, beautiful appearance, superior performance, can be a direct substitute for imported products, widely used in drilling rigs, non-digging rigs, rock drilling rigs, DTH drilling rigs, rotary drilling rigs, roadheaders crawler walking track and rail vehicles, engineering Vehicles and other equipment.
| Type | OMER 125 | OMER 160 | OMER 200 | OMER 230 | OMER 250 | OMER 300 | OMER 350 | OMER 375 | OMER 475 | OMER 540 | OMER 750 | |
| Geometric Displacemen (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max.speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max.torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max.output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
| int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
| Max. Pressure (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
Applications:
Road rollers • Work platforms • Mowing machines • Miniloaders • Sweepers • Winches • Machine tools etc.
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
