| Quantity: | |
|---|---|
BMSW
Xeriwell or Others
| Product: | Hydraulic Wheel Motor | Type: | Wheel Motor |
|---|---|---|---|
| Model: | BMSW/OMSW | Displacement: | 315cc, 500cc |
| Warranty: | 18 Months | Color: | Black |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

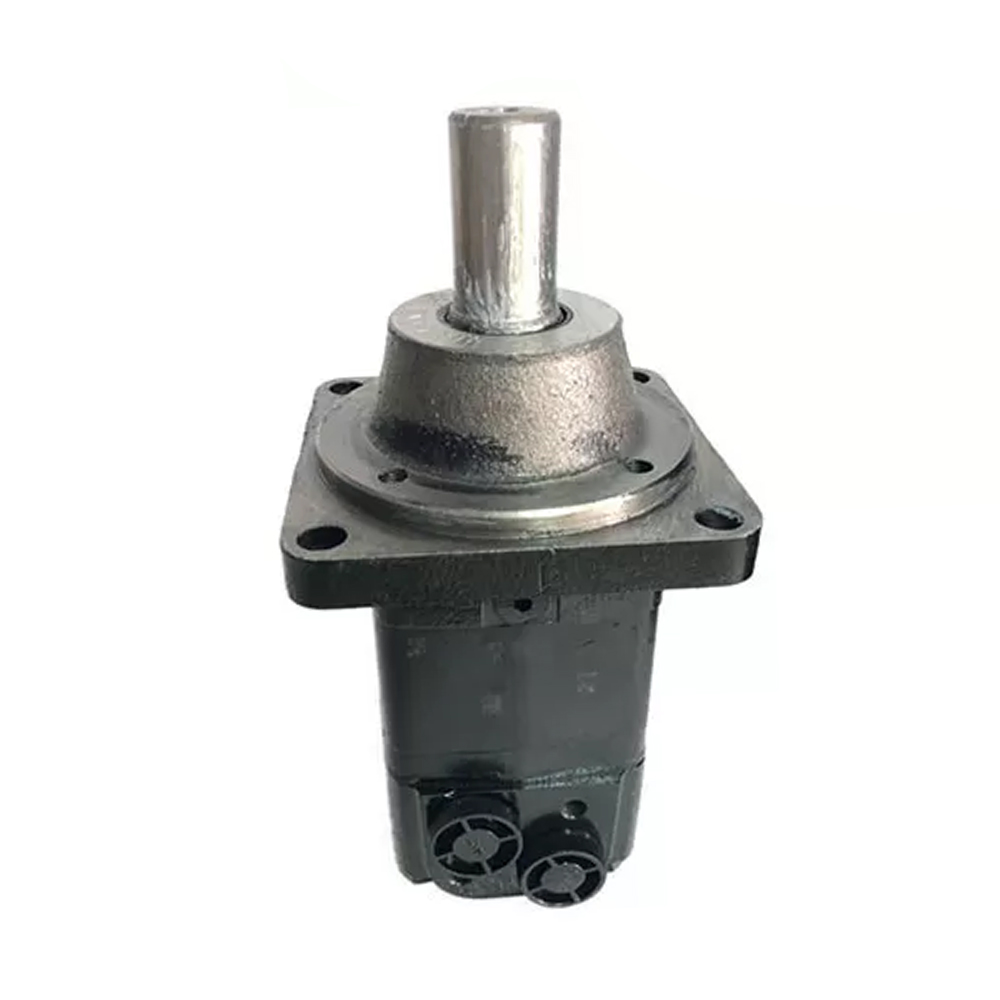

Hydraulic Wheel Motor BMSW/OMSW Hydraulic Spare Parts for Agricultural Machines
BM hydraulic motor is one type of high torque Iow speed hydraulic motors, with high efficiency and long life. BM motor has a wide Speed range, high starting torque and rotating stable at high speed Compact and light, it can be connected to working machine directly, adapted to all kinds of Iow speed heavy load facilities.
Features:
1. Disc valve motor, geroler type
2. Compact size, high efficiency
3. Low-friction and long life advantages
4. Internal check valves, Escort seal
5. This motor has a rugged housing with an extra large capacity side load bearing
Main Specifications:
| TYPE | BMSW-315 | BMSW-400 | BMSW-500 | BMSW-630 | BMSW-800 | BMSW-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |
Reference Brand List:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | BOSCH | |
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
| MLHV | 10000 SERIES |
Applications:
BMSW motor can be applied to situations with less load and interval operation of all wheel vehicle, such as wheel loader, wheel crane, tractor, etc.
