BMK2 WHEEL MOTOR
Xeriwell or Others
| Features: | Match /M+S/Eaton/Char_lynn | Material: | Cast Iron /Steel |
|---|---|---|---|
| Application: | Construction Machines, Mine Machines | Displacement: | 250cc |
| Max.speed(rpm): | Cont.308rpm/int.462rpm | Max.torque(N.m): | Cont.660N.m/int.820N.m |
| Max.pressure Drop: | Cont.20.5Mpa/int.26Mpa | Oil Temperature: | Normal-35℃-80℃ |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | hydraulic track motor,spool valve motor | ||

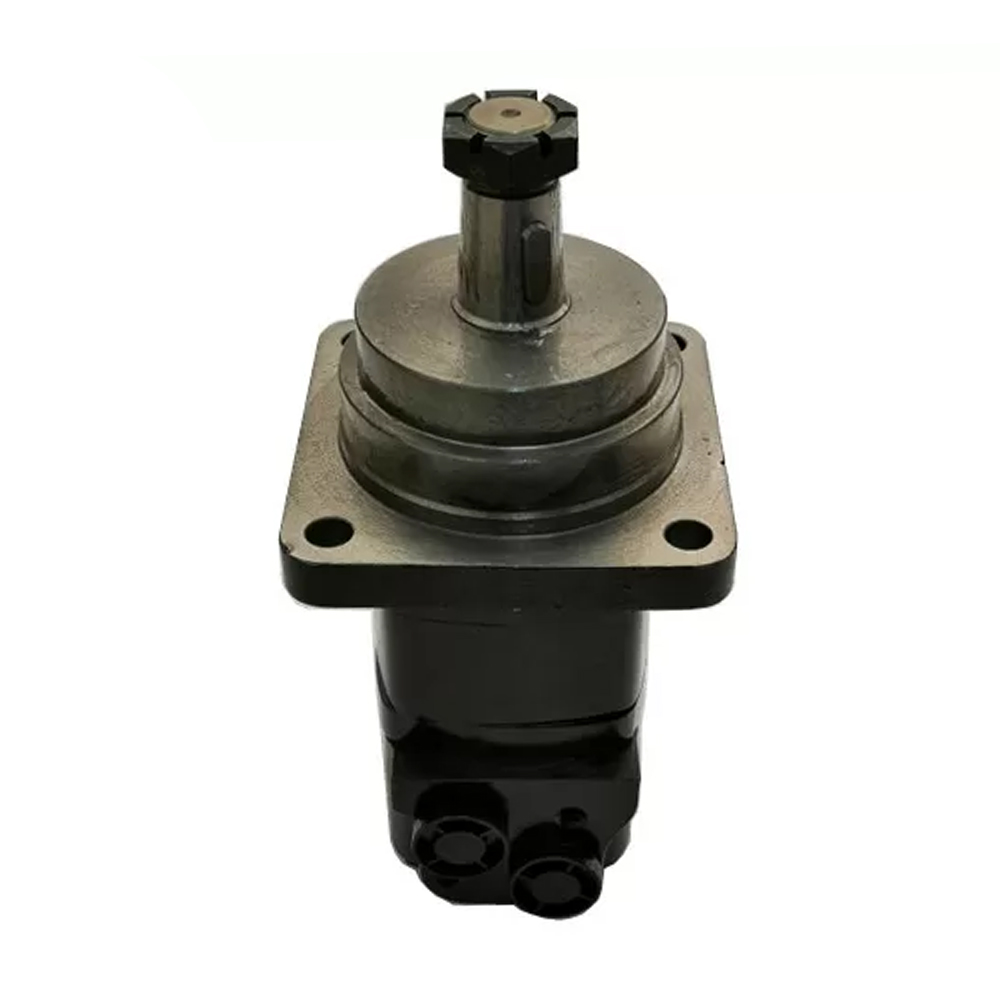

WHEEL DRIVE MOTOR CHAR-LYNN 105 hydraulic motor BMK2 high torque motors
BMK2 series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up,provide smooth and reliable operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The can offer capacities of high pressure and high torque in the wide of applications.
Applications:
BMK2 Wheel motor is a motor used to drive the vehicle.The general form is that the connection flange is located in teh middle of the motor
wheel motor can be applied to situations with less load and interval operation of all wheell vehicle, such as wheel loader, wheel crane, tractor, etc.
Main specification
| TYPE | BMK2 125CC | BMK2 160CC | BMK2 200CC | BMK2 250CC | BMK2 315CC | BMK2 400CC | |
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | |
Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 7 |
| int. | 95 | 115 | 115 | 115 | 115 | 24 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | |
APPLICATIONS:
Mobile equipment
Snow Removal, mowing
Spayer, trencher
Wood products
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Xeriwell is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
