| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Product: | Hydraulic Steering Pump | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 125cc (50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc Can Provide) | Founction: | LS (Load Sensing) |
| Paint: | Black | Performance: | Same As OSPC**LS, M+S HKUS*** , Eaton 401-1*** |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

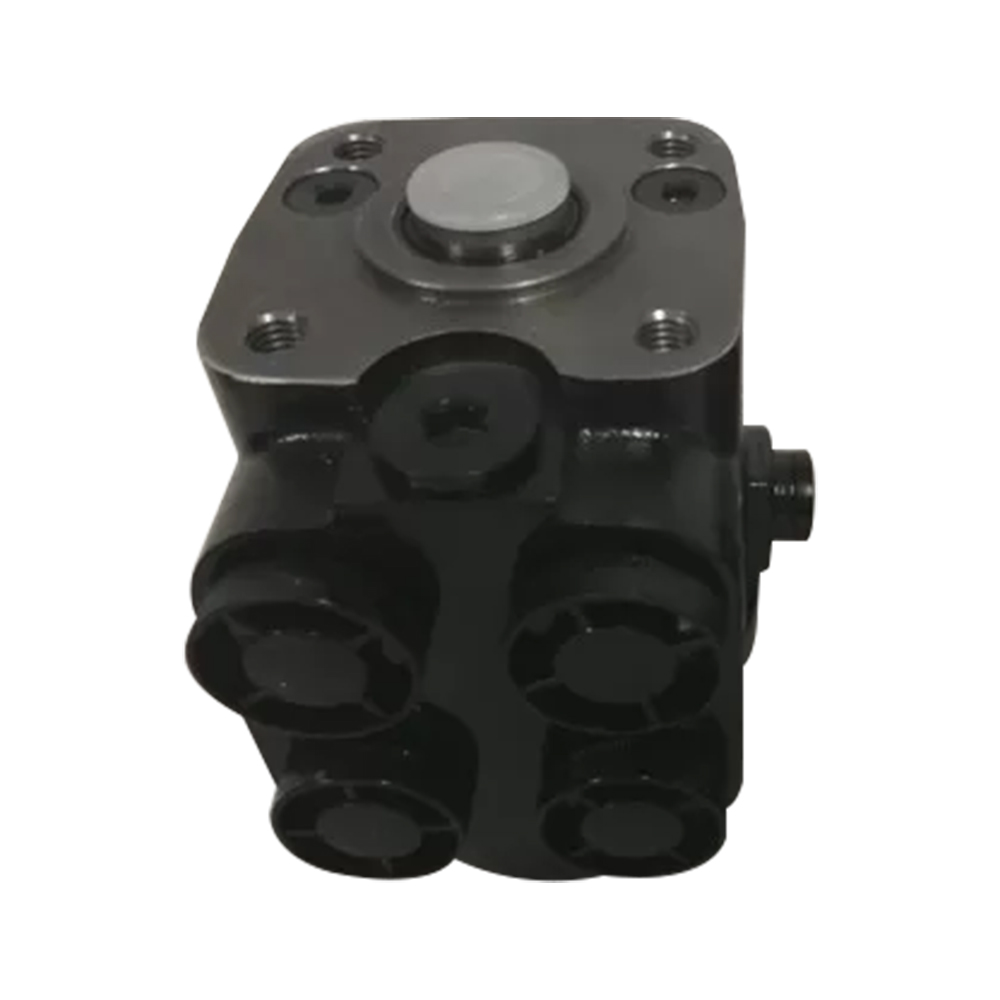

Professional Hydraulic Steering Valve , 101S Series Hydraulic Power Steering Pump
Guide unit, hydraulic steering, hydrostatic steering, orbitrol steering valve, are terms for what we call HYDRAULIC STEERING UNIT.
Xeriwell produce hydraulic steering unit, our power units are designed for use on low speed vehicles such as forklifts, tractors, loaders, mowers, fishing boats, construction equipment, aircraft ground support vehicles, mining and earthmoving equipment.
Xeriwell power steering = Eaton steering = Charlynn steering = steering = steering = Class steering = Massey Ferguson steering = many more makes commonly found on original equipment machinery.
101S series steering unit are one of our most popular type, founction available ON (open center non-reaction), CN (close center non-reaction), OR (open center reaction) and LS (load sensing).
101S series hydraulic control unit 's shape ,internal structure ,performance are same as OSPC**LS, M+S HKUS*** , Eaton 401-1***,...
| Product Name | 101S series hydraulic orbital steering valve |
| Displacement (ml/r) | 50, 80, 100, 125, 160, 200, 250, 315, 400ml |
| Max, input pressure (MPa) | 17.5 |
| Max.manual steering torque (N.m) | 130 |
| Relief valve pressure settings (MPa) | 6-----17.5 |
| Shock valve pressure settings | 12---23.5 |
| Max. Cont.pressure in line T (MPa) | 2.5 |
| Power steering torque (N.m) | 1.6---204 |
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| Pos.1 | Pos.2 | Pos.3 | Pos.4 | |||||
| 101S | - | * | - | *** | ** | * |
| Pos.1 | - | 功能符号 Function Code |
其中：
1: 开芯无反应 1:Open Center Non-Reaction
2: 开芯有反应 2:Open Center Reaction
4: 开芯无反应 4:Open Center Non-Reaction
| Pos.2 | - | 排量 Displacement mL/r |
| Pos.3 | - | 集成阀参数组合 Integrated Valve Parameter |
安全阀压力设定值: Relief valve pressure settings (MPa):06、07、08、10、12、14、15、16、17.5
(缓冲阀压力设定值比安全阀压力高 6MPa)
Shock valves pressure settings is 6 MPa higher than relief valve
| Pos.4 | - | 油口代码 Ports Code |
A、B、C、D、E、U、M、F、I、N
