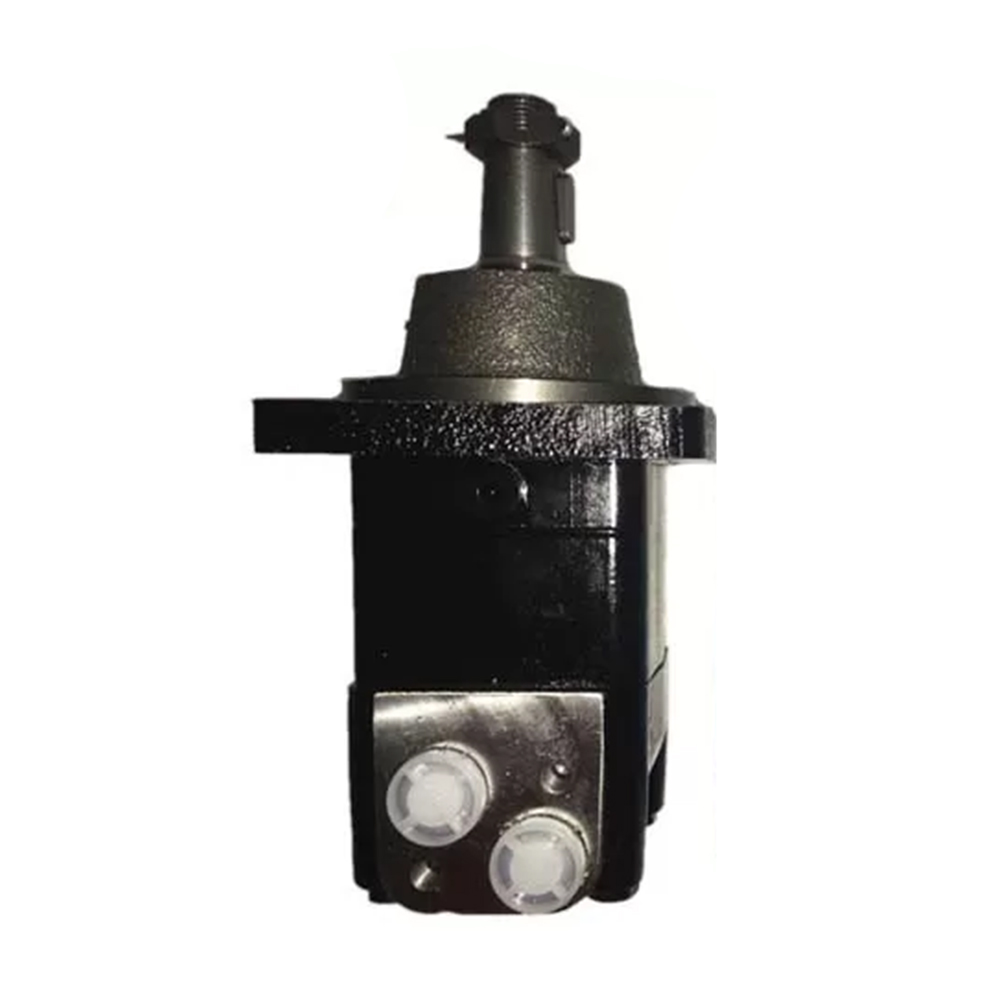

BMSW Wheel Motor
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Wheel Motor BMSW |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMSW315 BMSW400 |
| Displacement: | 80cc - 400cc | Application: | Construction Machinery |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||
High Pressure Oil Seal Wheel Motor OMSW315 OMSW400 MSW315 MSW400 BMSW315
► Characteristic Features
► Specification
| Type | BMSW 80 | BMSW 100 | BMSW 125 | BMSW 165 | BMSW 200 | BMSW 250 | BMSW 315 | BMSW 400 | |
| Displacement.(ml/r) | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
| Max.Pressure. Drop (Mpa) | cont. | 17.5 | 17.5 | 17.5 | 16 | 16 | 12.5 | 12.5 | 10 |
| int. | 20 | 20 | 20 | 20 | 20 | 16 | 16 | 14 | |
| peak. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 20 | 17.5 | |
| Max.torque (Nm) | cont. | 194 | 242 | 303 | 358 | 438 | 440 | 551 | 560 |
| int. | 218 | 283 | 345 | 429 | 540 | 580 | 625 | 687 | |
| peak. | 271 | 318 | 373 | 459 | 576 | 700 | 831 | 865 | |
| Speed. Range (cont.)(r/min) | 10-810 | 10-750 | 9-600 | 7-470 | 6-375 | 6-300 | 5-240 | 5-180 | |
| Max.Flow (cont.)(L/min) | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Max.Output.Power (cont.)(KW) | 14 | 16 | 16 | 14 | 14 | 11 | 10 | 8 | |
| Weight (kg) | 9.8 | 10.0 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.1 | |
| Type | BMSW |
|---|---|
| Displacement | 315 |
| Shaft | 32MM Cylindrical |
| Flange | Wheel |
| Port Position | Side |
| Shaft Seal | High Pressure |
| Drain | Yes |
► Application
Hydraulic Wheel Motor BMSW Series used for
1. Hydraulic drive systems of mine construction machinery
2. Transporting equipment
3. Agricultural and forest machinery
4. Special vehicles
5. Wheel traveling equipment
6. Driving tracks of rotating mechanisms
