BMSW Wheel Motor
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Wheel Motor BMSW |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMSW200 , BMSW315 |
| Displacement: | 80cc - 400cc | Application: | Construction Machinery |
| Highlight: | hydraulic track motor,spool valve motor | ||

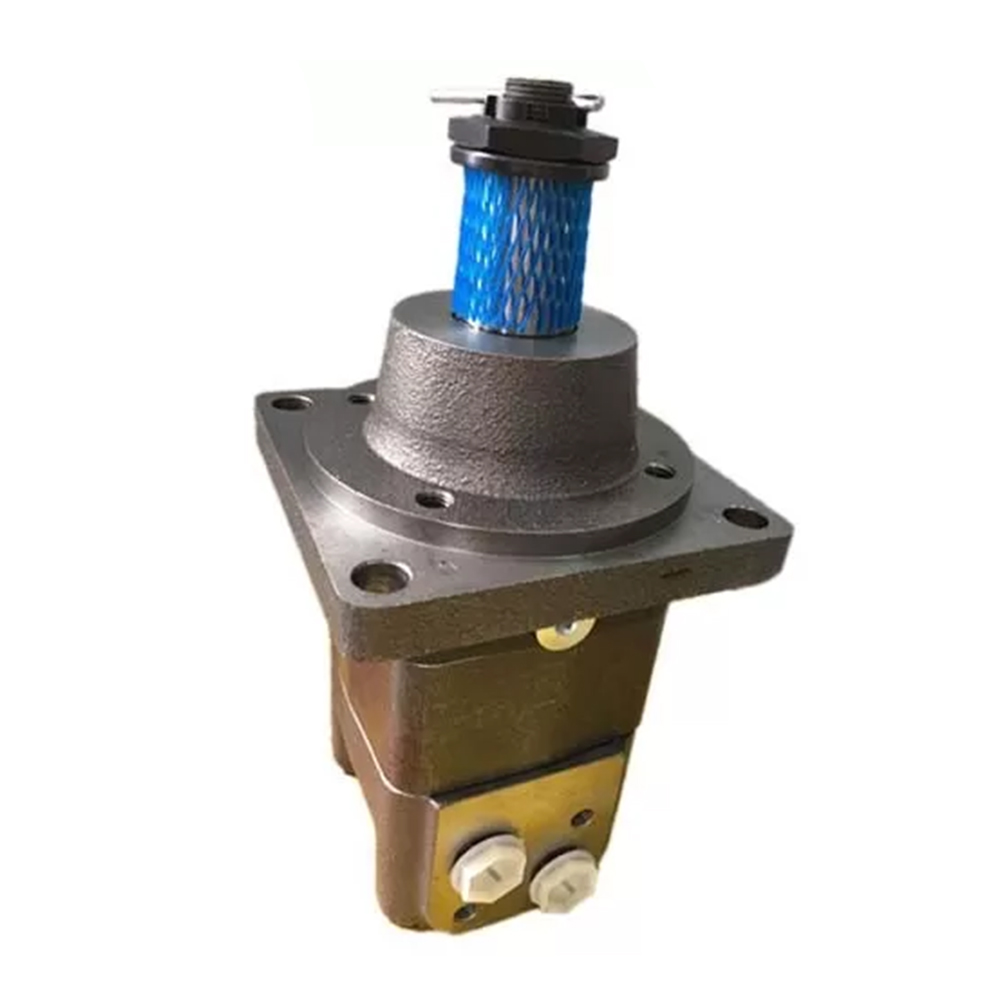

Hydraulic Wheel Motor BMSW / OMSW315 For Mine Construction Machinery
► Characteristic Features
1. Wheel Motor BMSW Same Than OMSW and M+S MSW Series.
2. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
3. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
4. Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
5. The new series motor is suitable for vehicles with greater loads and pressure drop.
► Specification
| Type | BMSW 80 | BMSW 100 | BMSW 125 | BMSW 165 | BMSW 200 | BMSW 250 | BMSW 315 | BMSW 400 | |
| Displacement.(ml/r) | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
| Max.Pressure. Drop (Mpa) | cont. | 17.5 | 17.5 | 17.5 | 16 | 16 | 12.5 | 12.5 | 10 |
| int. | 20 | 20 | 20 | 20 | 20 | 16 | 16 | 14 | |
| peak. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 20 | 17.5 | |
| Max.torque (Nm) | cont. | 194 | 242 | 303 | 358 | 438 | 440 | 551 | 560 |
| int. | 218 | 283 | 345 | 429 | 540 | 580 | 625 | 687 | |
| peak. | 271 | 318 | 373 | 459 | 576 | 700 | 831 | 865 | |
| Speed. Range (cont.)(r/min) | 10-810 | 10-750 | 9-600 | 7-470 | 6-375 | 6-300 | 5-240 | 5-180 | |
| Max.Flow (cont.)(L/min) | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Max.Output.Power (cont.)(KW) | 14 | 16 | 16 | 14 | 14 | 11 | 10 | 8 | |
| Weight (kg) | 9.8 | 10.0 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.1 | |
► Application
Hydraulic Wheel Motor BMSW Series used for
1. Hydraulic drive systems of mine construction machinery
2. Transporting equipment
3. Agricultural and forest machinery
4. Special vehicles
5. Wheel traveling equipment
6. Driving tracks of rotating mechanisms
