BMRW Wheel Motor
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Industrial Hydraulic Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMRW80 , BMRW400 |
| Displacement: | 50cc - 400cc | Application: | Harvester And Mower |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

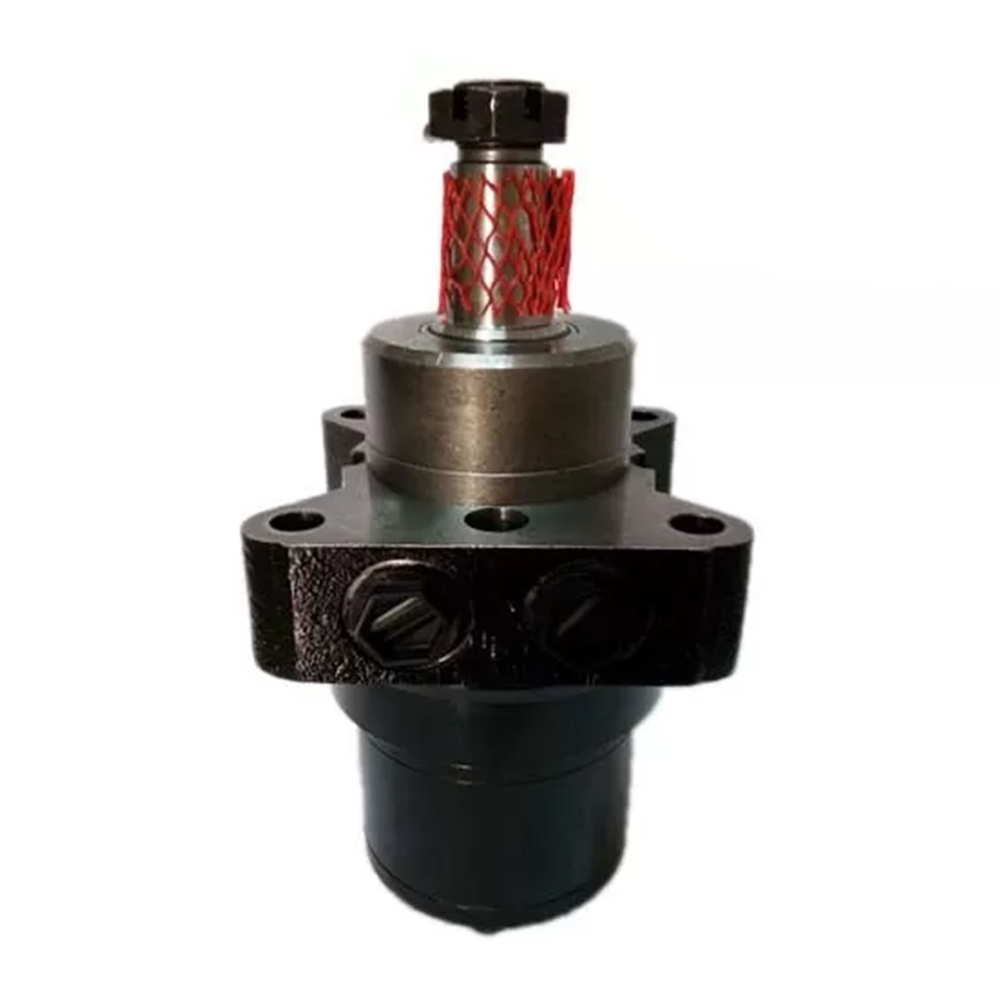

Hydraulic Wheel Motor Parker TF / OMRW / BMRW Motors For Harvester And Mowers
► Characteristic Features
1. Wheel Motor BMRW Same Than OMRW, Parker TF and M+S RW Series.
2. Recessed flange mounting
3. Needle bearing
4. Option of direct wheel hub mounting
5. Shaft has a very high radial load capacity
6. Wheel and winch drives
7. With leak oil outlet
8. Roller design
9. From the series of medium-sized orbit motors
► Specification
| TYPE | BMRW-50 | BMRW-80 | BMRW-100 | BMRW-125 | BMRW-160 | BMRW-200 | BMRW-250 | BMRW-315 | BMRW-400 | |
| Displacement(ml/r) | 51.7 | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
| Max.Pressure.Drop(Mpa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 | |
| peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 | |
| Max.torque(N.m) | cont. | 93 | 152 | 194 | 237 | 310 | 369 | 380 | 380 | 380 |
| int. | 118 | 189 | 236 | 296 | 378 | 450 | 470 | 470 | 470 | |
| peak. | 135 | 216 | 270 | 338 | 433 | 509 | 540 | 540 | 540 | |
| Speed.Range(cont.)(r/min) | 10-775 | 10-750 | 10-600 | 9-475 | 7-375 | 5-300 | 5-240 | 5-190 | 5-160 | |
| Max.Flow(cont.)(L/min) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Max.Output.Power(cont.)(Kw) | 7 | 10 | 10 | 10 | 10 | 8 | 6 | 5 | 4 | |
| Weight(kg) | 6.5 | 6.9 | 7 | 7.3 | 7.5 | 8 | 8.5 | 9 | 11 | |
► Application
Hydraulic Wheel Motor BMRW / OMRW / PARKER TF Used For
1. lawn mowers
2. Combin Harvester
3. Hydraulic winch
4. Mining Equipment
5. Wheel traveling equipment
