Types of Hydraulic Valves and Their Applications

Hydraulic systems are foundational to modern industry, enabling precise, reliable, and powerful control of machinery in sectors ranging from manufacturing and construction to agriculture and automotive. At the heart of these systems lies the hydraulic valve, a component specifically designed to regulate the flow, pressure, and direction of hydraulic fluid. Proper understanding of the different types of hydraulic valves and their practical applications is essential for engineers, operators, and technicians seeking to optimize performance, reduce maintenance costs, and maintain equipment longevity.

Hydraulic valves are not merely flow controllers; they are integral to the safety, efficiency, and precision of industrial systems. Selecting the correct type and configuration for a particular application ensures smooth operation, minimizes downtime, and enhances the reliability of critical machinery. This article delves deeper into the main types of hydraulic valves, their working mechanisms, and typical industry applications, providing insights into making informed choices for system design and operation.

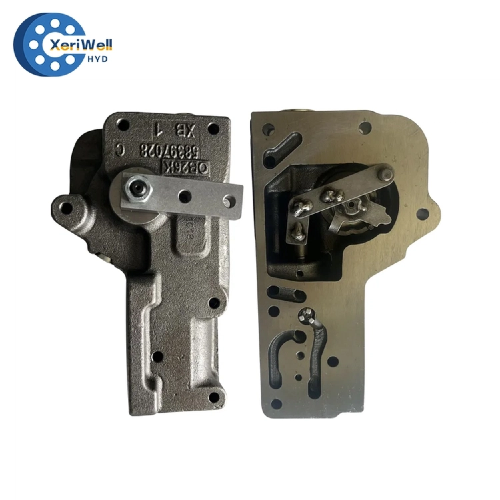

Overview of Hydraulic Valves

A hydraulic valve is a mechanical device designed to direct, regulate, and control the movement of hydraulic fluid within a system. It transforms the potential energy of pressurized fluid into controlled mechanical motion, allowing actuators such as hydraulic cylinders and motors to perform precise operations.

Key functions of hydraulic valves include:

• Flow Control: Adjusting fluid volume to regulate actuator speed and motion smoothness.

• Pressure Control: Maintaining safe system pressures to protect equipment and ensure reliability.

• Directional Control: Directing fluid along specific paths to achieve desired motion and operations.

Understanding these functions and how different valves perform them allows industrial professionals to design more efficient systems, troubleshoot operational issues, and prevent equipment failures.

Directional Control Valves

Function

Directional control valves manage the path that hydraulic fluid takes within a system, effectively determining the movement of actuators. By precisely controlling which ports are open or closed, these valves allow machines to execute a variety of operations, such as lifting, pushing, rotating, or pressing.

Working Principle

The key mechanism involves a movable spool or poppet inside the valve body. By shifting the spool, the valve connects or blocks different fluid channels. In neutral positions, the fluid may be blocked or returned to the tank. When actuated, the spool opens the appropriate channels to direct fluid flow to specific actuators, enabling controlled movement. Some advanced directional valves feature multiple spools for complex motion control or integrated check functions to prevent backflow.

Applications

Directional control valves are widely used in:

Construction equipment such as excavators and cranes, where precise movement control is critical.

Agricultural machinery like tractors and harvesters, ensuring accurate hydraulic operations.

Automotive hydraulic systems, including power steering and braking systems.

Pressure Control Valves

Function

Pressure control valves are designed to regulate system pressure, maintaining safe operating conditions and protecting hydraulic components from damage caused by excessive pressure. Common types include pressure relief valves, reducing valves, and sequence valves.

Working Principle

Pressure control valves typically feature a spring-loaded poppet or spool. When system pressure exceeds the valve’s set point, the poppet moves, allowing fluid to bypass or return to the reservoir. This prevents overpressure conditions and ensures consistent operation. Some valves also include adjustable set points, allowing operators to fine-tune the system pressure for specific applications.

Applications

Pressure control valves are essential in:

Protecting pumps and actuators from overload in hydraulic lift systems.

Maintaining safe pressures in braking or steering systems in vehicles.

Controlling sequence operations in industrial machinery, where multiple hydraulic actions must occur in a specific order.

Flow Control Valves

Function

Flow control valves regulate the speed at which hydraulic fluid moves through the system, directly controlling the speed of actuators. This ensures smooth, predictable, and precise movement of machinery components.

Working Principle

Flow control is achieved by varying the size of a passage or orifice through which hydraulic fluid passes. By adjusting this opening, the valve controls the volume of fluid reaching the actuator per unit of time. Advanced flow control valves may include check mechanisms to allow unrestricted flow in one direction while limiting flow in the opposite direction, ensuring consistent actuator performance.

Applications

Flow control valves are commonly applied in:

Industrial automation systems, where precise movement timing is crucial.

Hydraulic cylinders in machinery, enabling smooth extension and retraction.

Robotic arms, providing exact motion control for assembly or material handling.

Proportional and Servo Valves

Function

Proportional and servo valves provide precise, variable control of hydraulic flow and pressure, allowing for highly accurate actuator movements. These valves are crucial in applications where small adjustments in flow or pressure can significantly impact system performance.

Working Principle

Proportional and servo valves operate via electrical signals that control the position of the spool or poppet. The flow and pressure are adjusted proportionally to the input signal, offering fine-tuned control over actuators. Many of these valves include feedback sensors to ensure precise positioning, enabling smooth, variable, and repeatable movements.

Applications

Typical applications include:

High-precision industrial machinery such as CNC machines.

Automated production lines requiring fine-tuned control of multiple hydraulic actuators.

Robotics, where accuracy, speed, and responsiveness are critical.

Check Valves and Non-Return Valves

Function

Check valves, also known as non-return valves, allow hydraulic fluid to flow in only one direction. They are critical for maintaining system safety, preventing backflow, and ensuring proper actuator operation.

Working Principle

These valves usually contain a spring-loaded poppet or ball that permits fluid flow in the intended direction. When fluid attempts to flow backward, the poppet seals against the valve seat, blocking the reverse flow and protecting system components from potential damage.

Applications

Check valves are applied in:

Hydraulic circuits that require pressure retention.

Pump protection systems to prevent reverse flow.

Hydraulic circuits in heavy machinery where maintaining unidirectional flow is critical.

Combination and Specialized Hydraulic Valves

Function

Combination and specialized hydraulic valves integrate multiple functions or are designed for highly specific applications. For example, a single valve may combine directional, pressure, and flow control, reducing system complexity and space requirements.

Applications

These valves are used in:

Complex hydraulic systems in manufacturing and construction machinery.

Large-scale industrial equipment requiring multi-functional control.

Specialized applications in aerospace, automotive testing rigs, or custom automation systems.

Summary Table: Types of Hydraulic Valves and Their Functions

Choosing the Right Hydraulic Valve

Selecting the correct hydraulic valve is essential for achieving system efficiency, reliability, and safety. Key considerations include:

• Valve Type: Matching the valve function to specific system requirements.

• Pressure and Flow Requirements: Ensuring compatibility with hydraulic system parameters.

• Material and Durability: Selecting valves resistant to hydraulic fluid, temperature, and environmental conditions.

• Certification and Quality Standards: Opting for ISO or CE-certified valves to ensure reliability.

• Supplier Expertise: Partnering with an experienced supplier guarantees technical support and proper valve selection.

The right valve ensures optimal performance, minimizes maintenance needs, and enhances system longevity.

Conclusion

Hydraulic valves are essential components in industrial hydraulic systems, ensuring precise control, safety, and efficiency across various applications. From directional and pressure control valves to proportional, servo, check, and combination valves, each type plays a crucial role in regulating flow, pressure, and direction, enabling machinery to perform accurately and reliably. Understanding the working principles and applications of these valves allows engineers and operators to design robust systems, prevent equipment failure, and optimize overall performance. For those seeking high-quality solutions, XeriWell offers a comprehensive range of hydraulic valves engineered for durability, precision, and consistent performance under demanding conditions. Their experienced team can provide expert guidance, helping you select the right valve for your specific hydraulic system requirements. Whether you need technical advice or want to explore suitable products, contacting XeriWell ensures access to professional support and tailored solutions that enhance operational efficiency, system reliability, and long-term productivity.
