BMP/OMP Motors
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Wheel Motor With Brake |
|---|---|---|---|
| Brand Name: | Xeriwelle | Model Number: | BMP |
| Displacement: | 50cc - 500cc | Application: | Mini Skid Steer |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

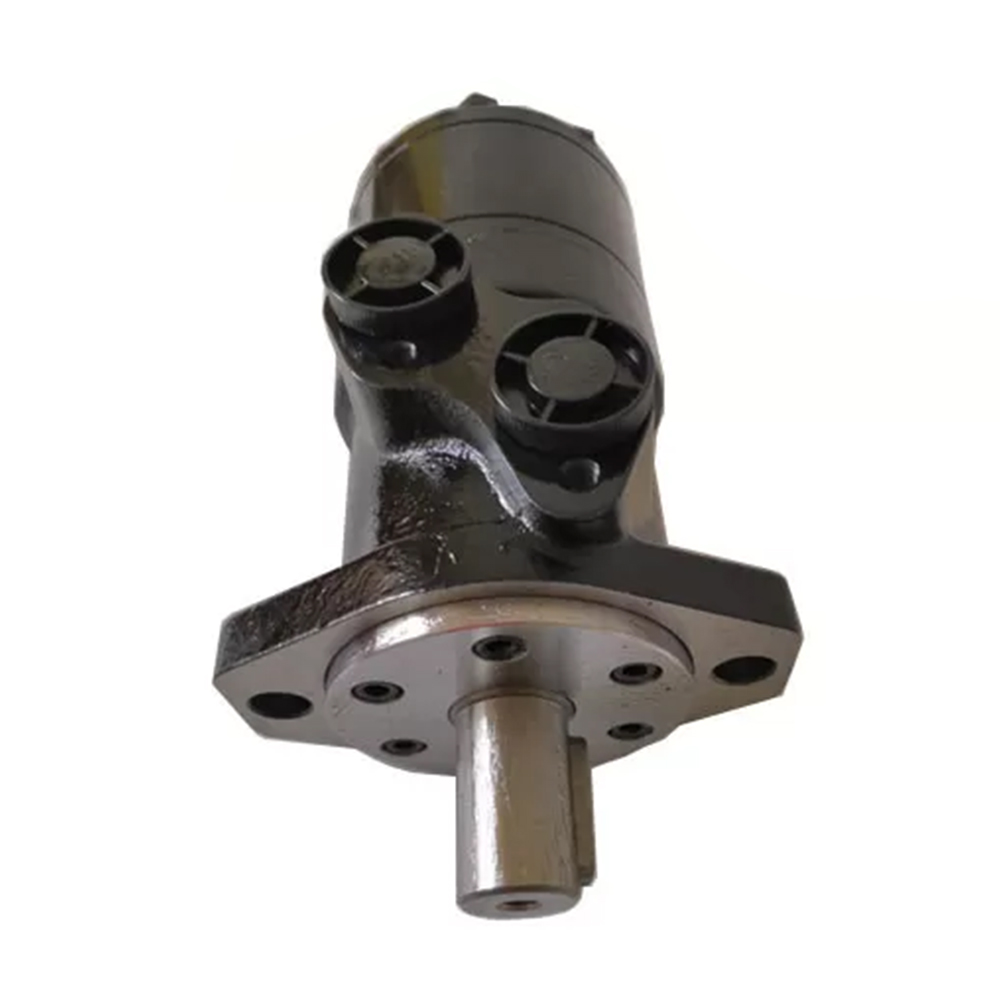

high flow hydraulic motor Omp Bmp 200rpm 300rpm 500rpm orbit Motor For Mini Skid Steer
► Characteristic Features
Hydraulic Motor BMP same as OMP and M+S MP Motors
1. Low pressure of start up, provide smooth reliable operation and high efficiency.
2. Special design in the driver-linker and prolong operating life.
3. Compact volume and easy installation.
4. High pressure oil seals
5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.
► Specification
BMP / OMP Motors
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
► Application
Hydraulic Motor BMP Used For Agricultural forestry and orchard equipment
1. Vineyard Sweeper
2. Pruning Sweeper
3. Agricultural and forest machinery
4. Shovels
5. Garden seeders
6. Sickles
7. Grape scissors
8. Secateurs
9. High wheel cultivators
We are proud of being your solution partner in hydraulics.
Strong at alternative , Eaton Char-lynn, Parker, M+S, industiral, mobile, agri, marine parts,
able to support your business with more & better hydraulic solutions
