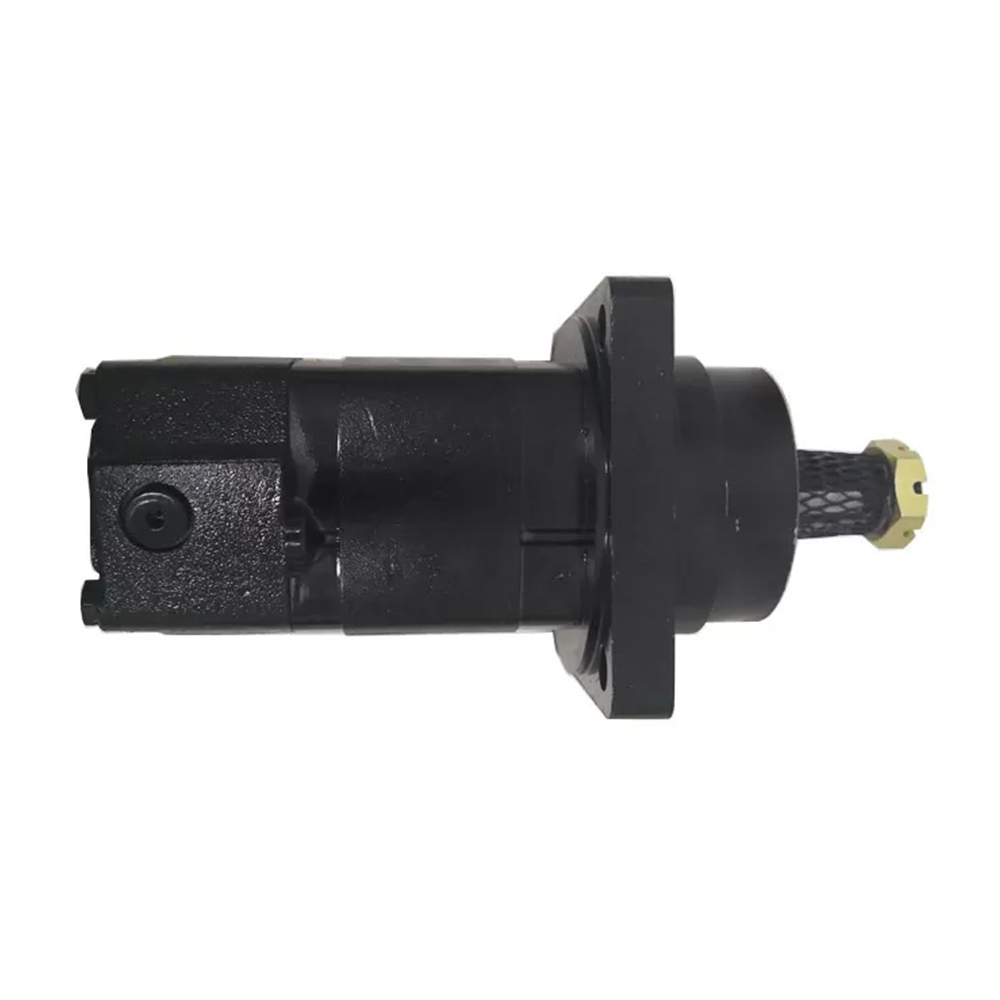

BMK2 WHEEL MOTOR
Xeriwell or Others
| Features: | Match /M+S/Eaton/Char_lynn | Material: | Cast Iron /Steel |
|---|---|---|---|
| Application: | Construction Machines, Mine Machines | Displacement: | 315cc |
| Max.speed(rpm): | Cont.246rpm/int.365rpm | Max.torque(N.m): | Cont.765N.m/int.885N.m |
| Max.pressure Drop: | Cont.21Mpa/int.24Mpa | Oil Temperature: | Normal-35℃-80℃ |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||
high quality hydraulic wheel motor and pump char-lynn 2000series hydraulic motor excavator swing gear motor BMK2
BMK2 series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up,provide smooth and reliable operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The can offer capacities of high pressure and high torque in the wide of applications.
Applications:
BMK2 Wheel motor is a motor used to drive the vehicle.The general form is that the connection flange is located in teh middle of the motor
wheel motor can be applied to situations with less load and interval operation of all wheell vehicle, such as wheel loader, wheel crane, tractor, etc.

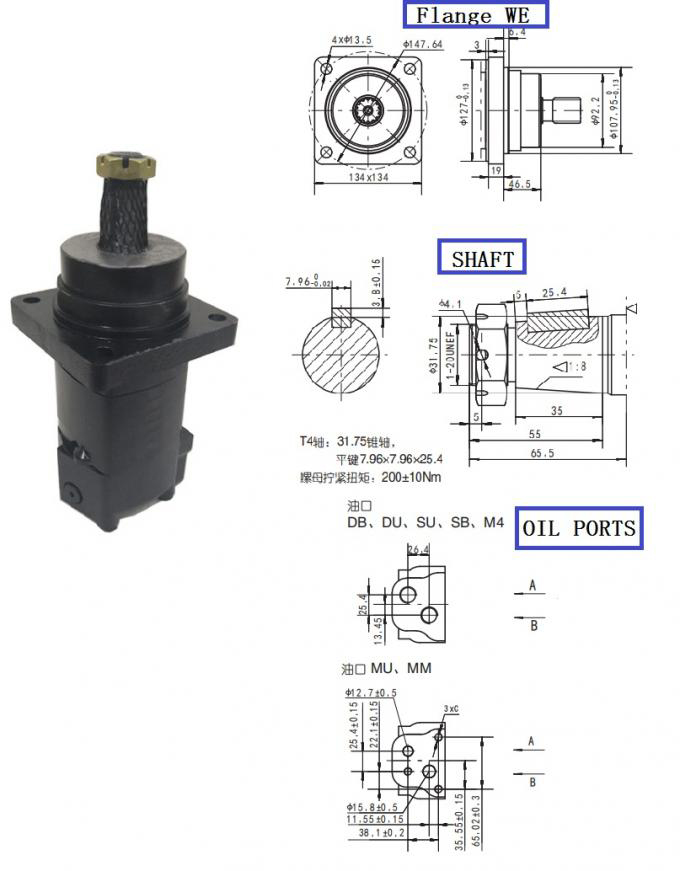

Main specification
| TYPE | BMK2 125CC | BMK2 160CC | BMK2 200CC | BMK2 250CC | BMK2 315CC | BMK2 400CC | |
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | |
Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 7 |
| int. | 95 | 115 | 115 | 115 | 115 | 24 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | |
APPLICATIONS:
Mobile equipment
Snow Removal, mowing
Spayer, trencher
Wood products
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Xeriwell is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
