Availability: | |
---|---|
Quantity: | |
BMRW160
Xeriwell or Others
Type: | Hydraulic Wheel Motor | Manufacturer: | Xeriwell |
---|---|---|---|
Model No.: | BMRW 160 | Size: | 50, 80, 100, 125, 160, 200, 250, 315, 375 ML/R |
Flange: | 4-hole, Ø82.5mm Centring With Needle Bearing | Ports: | G1/2 |
Highlight: | orbital hydraulic motor,cycloid hydraulic motor |

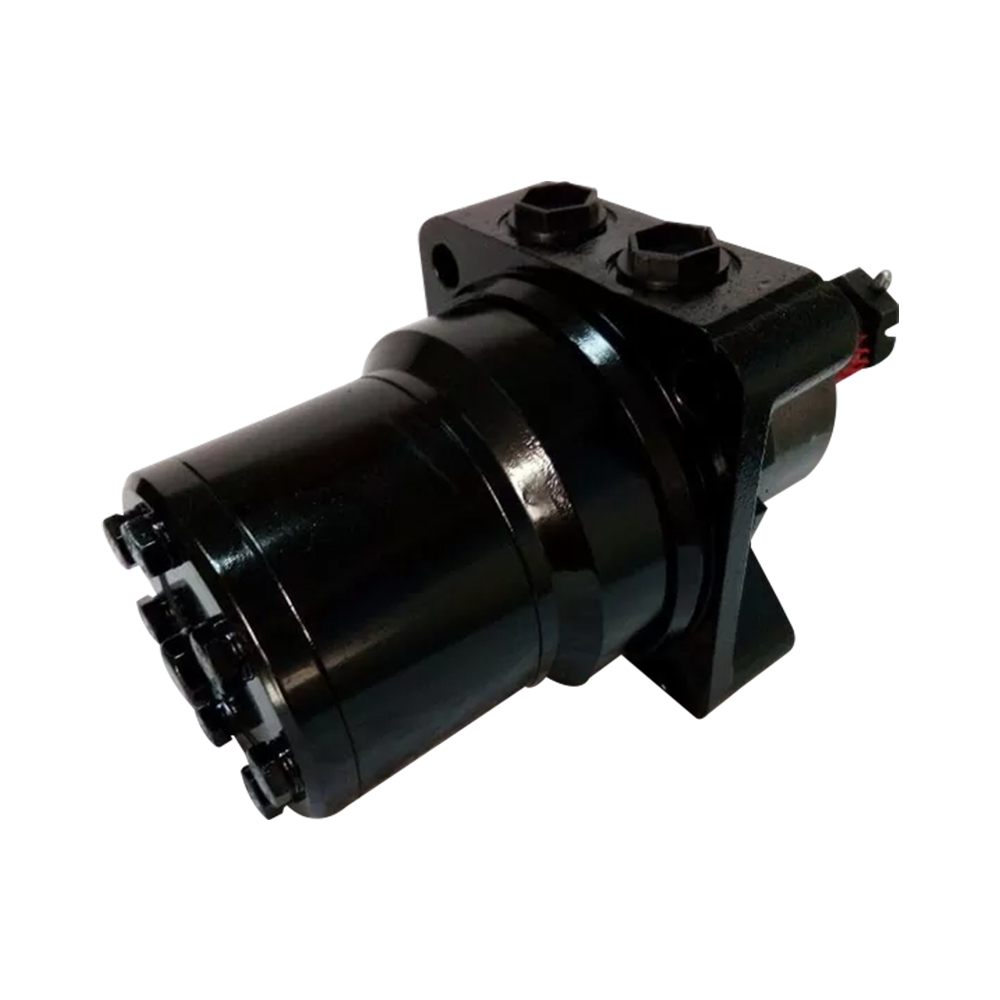

Medium Speed Orbit Hydraulic Motor BMRW 160cc with 35 mm tapered shaft
Output volume (cc/rev): 160
Shaft: Konuswelle 35mm
max r.p.m.: 375
Torque max. (Nm): 380
Power max. (kW): 12,5
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: Standard
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"

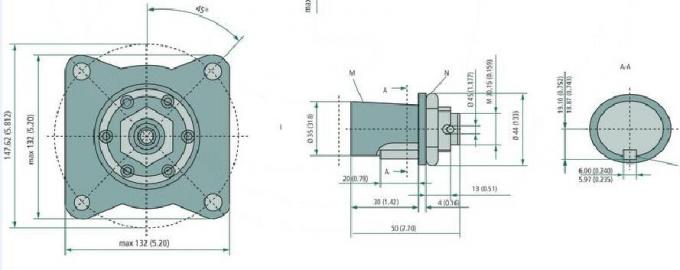

L (mm): 125,8
L1 (mm): 27,8
Characteristics
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
The output shaft adapts in needle roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
Type | OMER 125 | OMER 160 | OMER 200 | OMER 230 | OMER 250 | OMER 300 | OMER 350 | OMER 375 | OMER 475 | OMER 540 | OMER 750 | |
Geometric Displacemen (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
Max.speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
Max.torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
Max.output (kW) | cont. | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
int. | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
Max. Pressure (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
