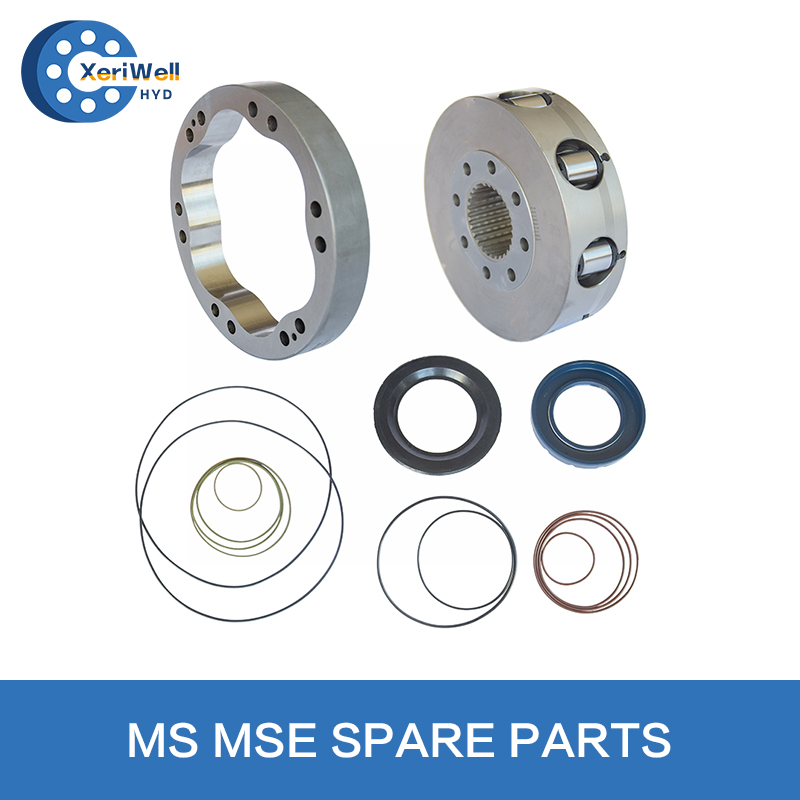

Poclain MS MSE Hydraulic Motor and spare parts

Poclain MS MSE Hydraulic Motor and spare parts

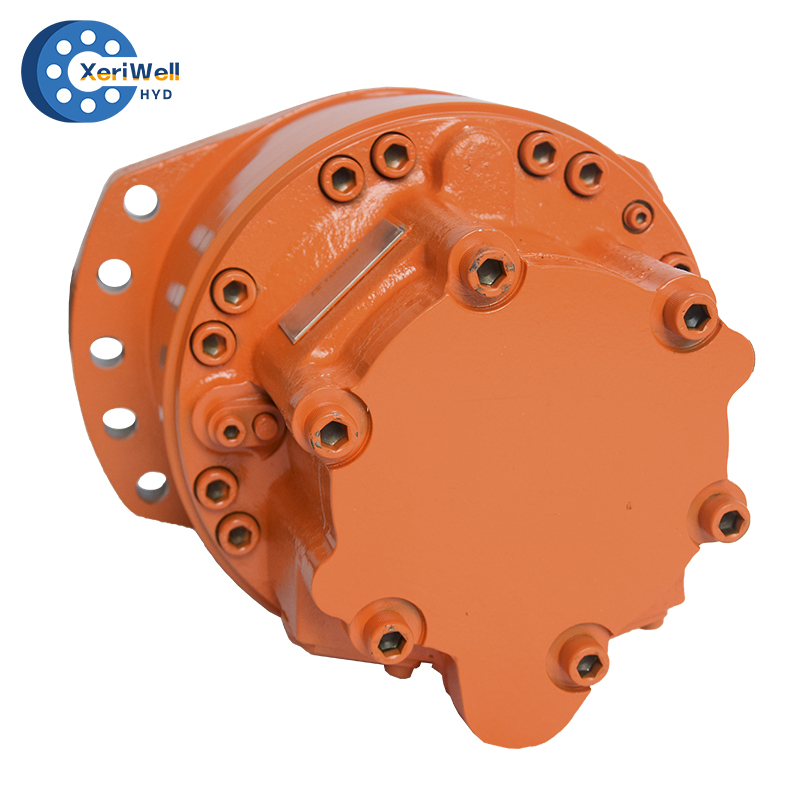

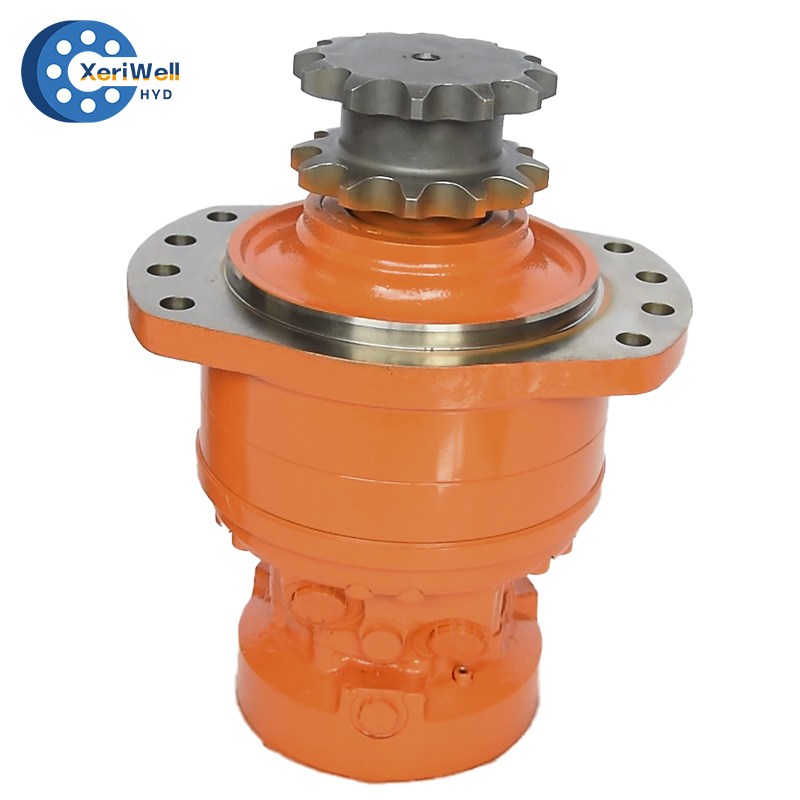

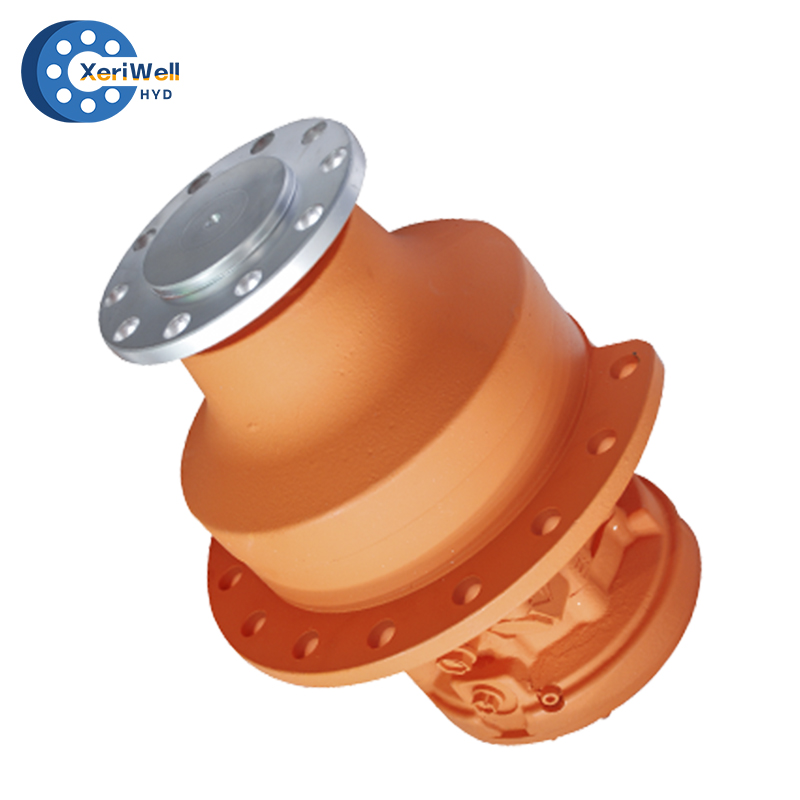

POCLAIN MS and MSE series' LSHT radial cam-ring hydraulic motors are widely applied in deck, construction, mining machinery, cement equipments, heavy metallurgy, military industry, and can be directly used in hydrostatic transmission units.

1. The modular design of the product, output module, function module, flow-distribution module and brake module, enables customers to select according to their actual requirements, thus to reduce their mechanical configuration to make the whole layout flexible and simple.

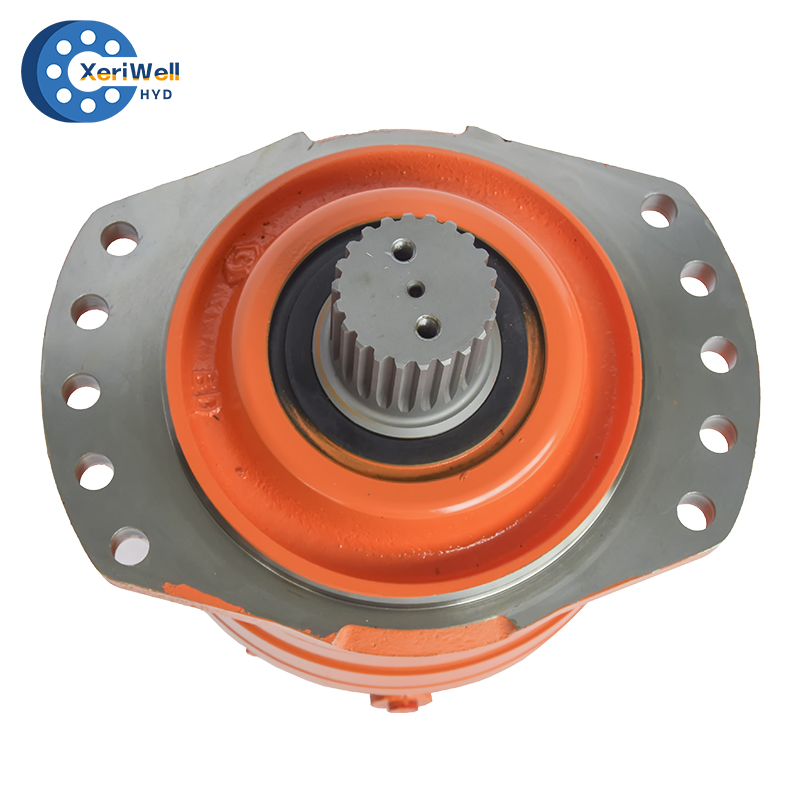

2. The output module of products applies biconical roller bearing to withstand stronger radial and axial force.

3. The disc flow-distribution module features with automatic wear-compensation function, which keeps high volumetric efficiency of motors in long term.

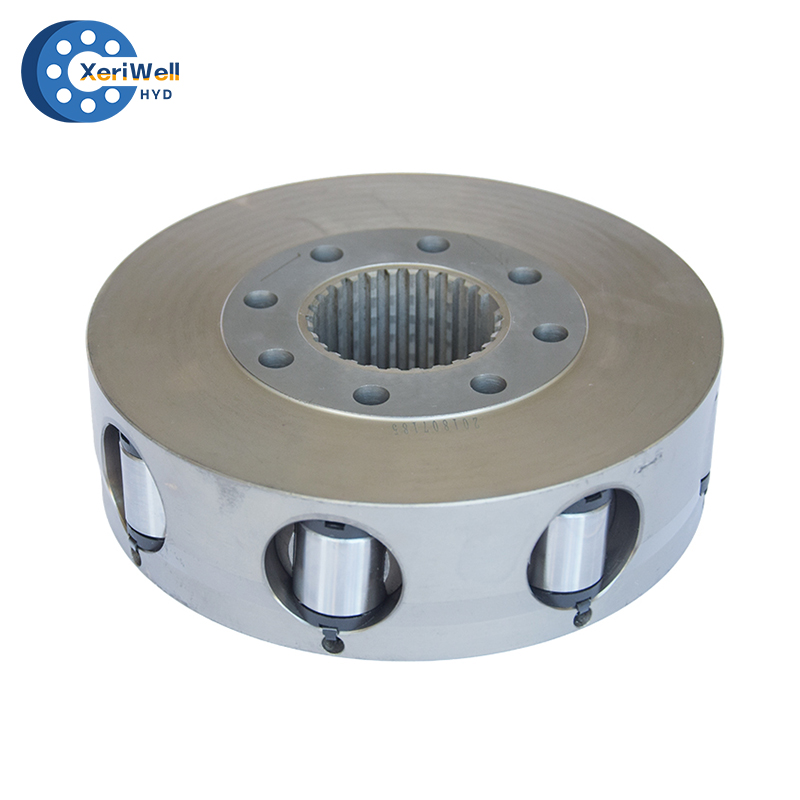

4. The Function module applies sliding shoe which features with high load, anti-friction and heat-resistance performance, to reduce mechanical friction loss, optimizes stator curves' design, thus to improve the running stability and impact-resistance of the motor.

5. The application of new composite processing technology enhances fatigue, abrasive and correction resistance of the parts, thus to prolong the service life of the motor. Customers select according to their actual requirements, thus to reduce their mechanical configuration to make the whole layout flexible and simple.

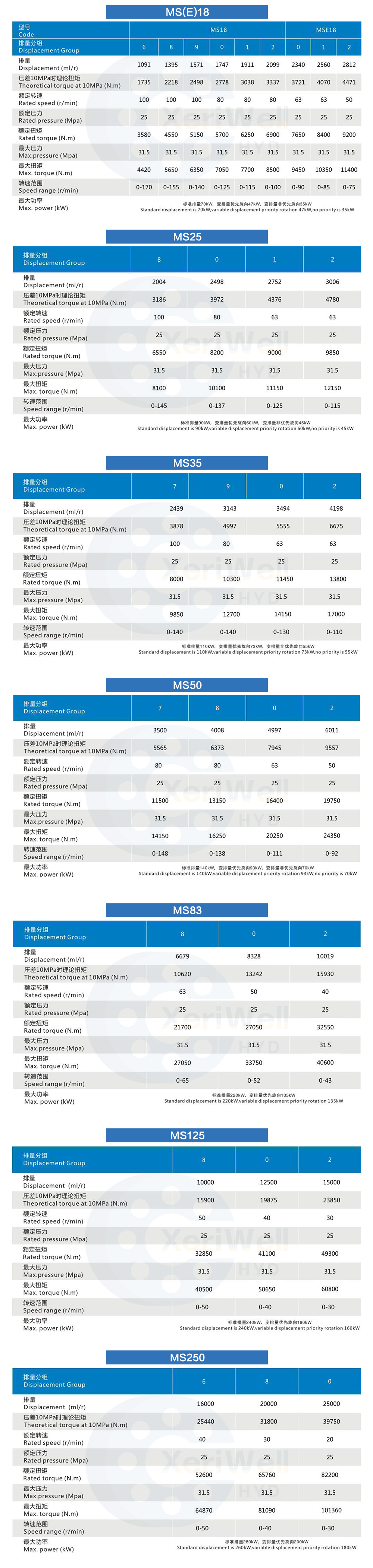

Type: MS02, MS05, MS08, MS11, MS18, MS25, MS35, MS50, MS83, MS125,MS250

MSE02, MSE03, MSE05, MSE08, MSE11, MSE18

MS(E)02
型号 Code	MS02				MSE02
排量分组 Displacement Group	8	0	1	2	0	1	2
排量 Displacement (ml/r)	172	213	235	255	332	364	398
压差10MPa时理论扭矩 Theoretical torque at 10MPa (N.m)	273	339	374	405	528	579	633
额定转速 Rated speed (r/min)	200	200	160	160	160	125	100
额定压力 Rated pressure (Mpa)	25	25	25	25	25	25	25
额定扭矩 Rated torque (N.m)	550	700	750	800	1100	1150	1300
最大压力 Max.pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5
最大扭矩 Max. torque (N.m)	650	850	950	1000	1300	1450	1600
转速范围 Speed range (r/min)	0-390	0-310	0-285	0-260	0-200	0-182	0-165
最大功率 Max. power (kW)	标准排量18kW MSE02(22kW),变排量优先流向12kW MSE02(16.5kW),变排量非优先流向9kW MSE02(11kW),Standard displacement is 18kW MSE02 22kW),variable displacement priority rotation 12kW MSE02 16.5kW,no priority is 9kW MSE02 11kW).

MS(E)05
型号 Code	MS05					MSE05
排量分组 Displacement Group	6	8	0	1	2	8	0	1	2	3
排量 Displacement (ml/r)	260	376	468	514	560	503	625	688	750	820
压差10MPa时理论扭矩 Theoretical torque at 10MPa (N.m)	413	598	744	817	890	800	994	1094	1193	1304
额定转速 Rated speed (r/min)	160	160	125	125	125	100	100	100	80	80
额定压力 Rated pressure (Mpa)	25	25	25	25	25	25	25	25	25	25
额定扭矩 Rated torque (N.m)	850	1200	1500	1650	1800	1650	2050	2250	2450	2650
最大压力 Max.pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5
最大扭矩 Max. torque (N.m)	1050	1500	1850	2050	2250	2030	2500	2750	3000	3300
转速范围 Speed range (r/min)	0-265	0-250	0-240	0-220	0-200	0-200	0-190	0-175	0-160	0-140
最大功率 标准排量29kW,变排量优先流向19kW,变排量非优先流向15kW. Max. power (kW) Standard displacement is 29kW,variable displacement priority rotation 19kW,no priority is 15kW.

MS(E)08
型号 Code	MS8						MSE8
排量分组 Displacement Group	6	8	9	0	1	2	0	1	2
排量 Displacement (ml/r)	467	627	702	780	857	934	1043	1146	1248
压差10MPa时理论扭矩 Theoretical torque at 10MPa (N.m)	743	997	1116	1240	1363	1485	1658	1822	1984
额定转速 Rated speed (r/min)	160	160	125	125	100	100	80	80	80
额定压力 Rated pressure (Mpa)	25	25	25	25	25	25	25	25	25
额定扭矩 Rated torque (N.m)	1530	2050	2300	2550	2800	3050	3400	3750	4100
最大压力 Max.pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5
最大扭矩 Max. torque (N.m)	1890	2500	2800	3150	3450	3750	4200	4600	5050
转速范围 Speed range (r/min)	0-210	0-210	0-185	0-170	0-155	0-140	0-130	0-110	0-105
最大功率 标准排量41kW,变排量优先流向37kW,变排量非优先流向21kW Max. power (kW) Standard displacement is 41kW,variable displacement priority rotation 27kW,no priority is 21kW

MS(E)11
型号 Code	MS11						MSE11
排量分组 Displacement Group	7	8	9	0	1	2	9	0	1	2
排量 Displacement (ml/r)	730	837	943	1048	1147	1259	1263	1404	1536	1687
压差10MPa时理论扭矩 Theoretical torque at 10MPa (N.m)	1161	1331	1499	1666	1824	2002	2008	2232	2442	2682
额定转速 Rated speed (r/min)	125	125	125	100	100	80	80	80	63	63
额定压力 Rated pressure (Mpa)	25	25	25	25	25	25	25	25	25	25
额定扭矩 Rated torque (N.m)	2400	2750	3100	3400	3750	4100	4150	4600	5050	5500
最大压力 Max.pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5	31.5
最大扭矩 Max. torque (N.m)	2950	3350	3800	4200	4650	5100	5100	5650	6200	6800
转速范围 Speed range (r/min)	0-200	0-195	0-190	0-185	0-180	0-170	0-170	0-155	0-140	0-130
最大功率 标准排量50kW,变排量优先流向33kW,变排量非优先流向25kW Max. power (kW) Standard displacement is 50kW,variable displacement priority rotation 33kW,no priority is 25kW
