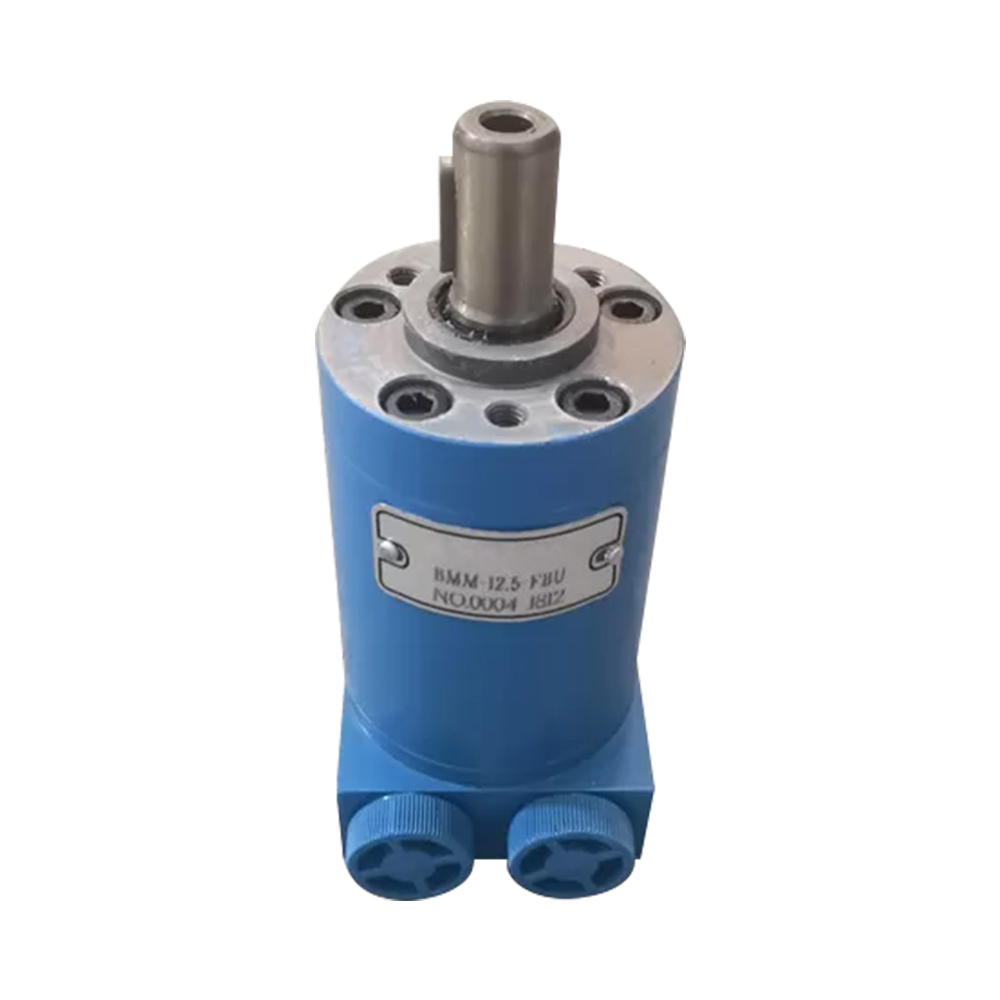

Orbital Hydraulic Motor 151G0004 OMM12.5 BMM12.5 Shaft 16mm
Shijiazhuang Xeriwell Technology Co.,Ltd, north of China.We are professional manufacturer produce Hydraulic Orbital Motors.
Xeriwell BMM12.5 match than OMM12.5 151G0004
1. Oil Port : G3/8"
2. Drain Port : G1/8"
3. Screw : M6
4. Shaft : 16mm
5. Key : 5x5x16mm

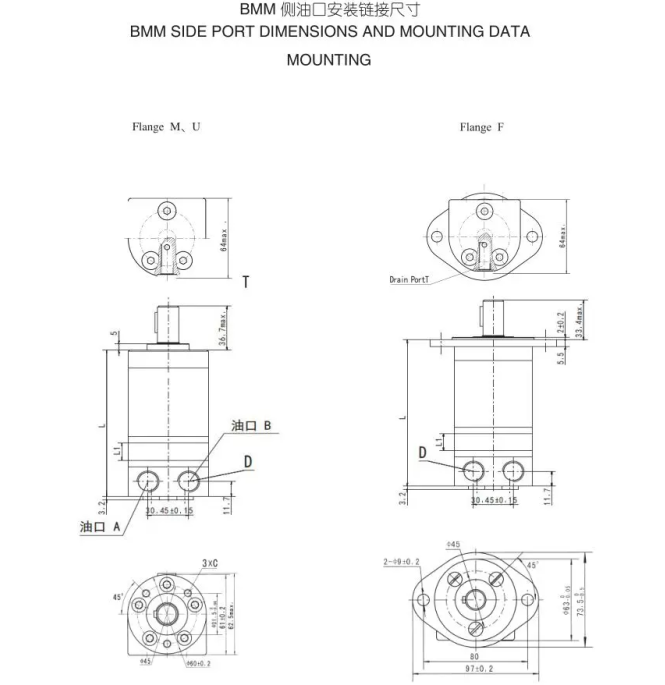

6. Side oil port.
7. Displacement : 12.5cc
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
| OMM / BMM | ||||||
| 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 | 151G-0211 |
| 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 | 151G-0211 |
| 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | - | - |
| 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 | - |
| 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - | 151G-0211 |
| 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | - | - | 151G-0211 |
Xeriwell HYDRAULIC BMM DETAILS
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
