BMP 100CC
Xeriwell or Others
| Type: | Orbit Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMP | Displacement: | 100ml/r |

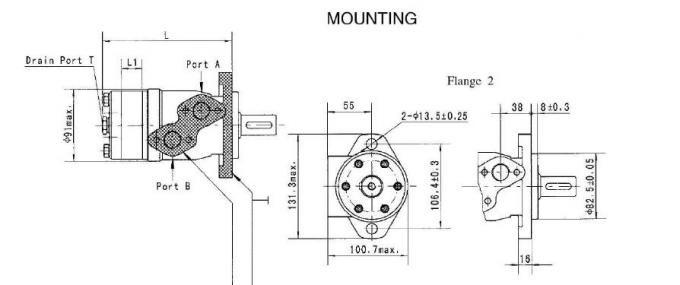

| Mounting: | 2 - Bolt | Shaft: | 25 Mm Splined |
| Oil Port: | G 1/2 | Drain: | G 1/4 |
| Color: | Black, Grey, Blue | ||
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||

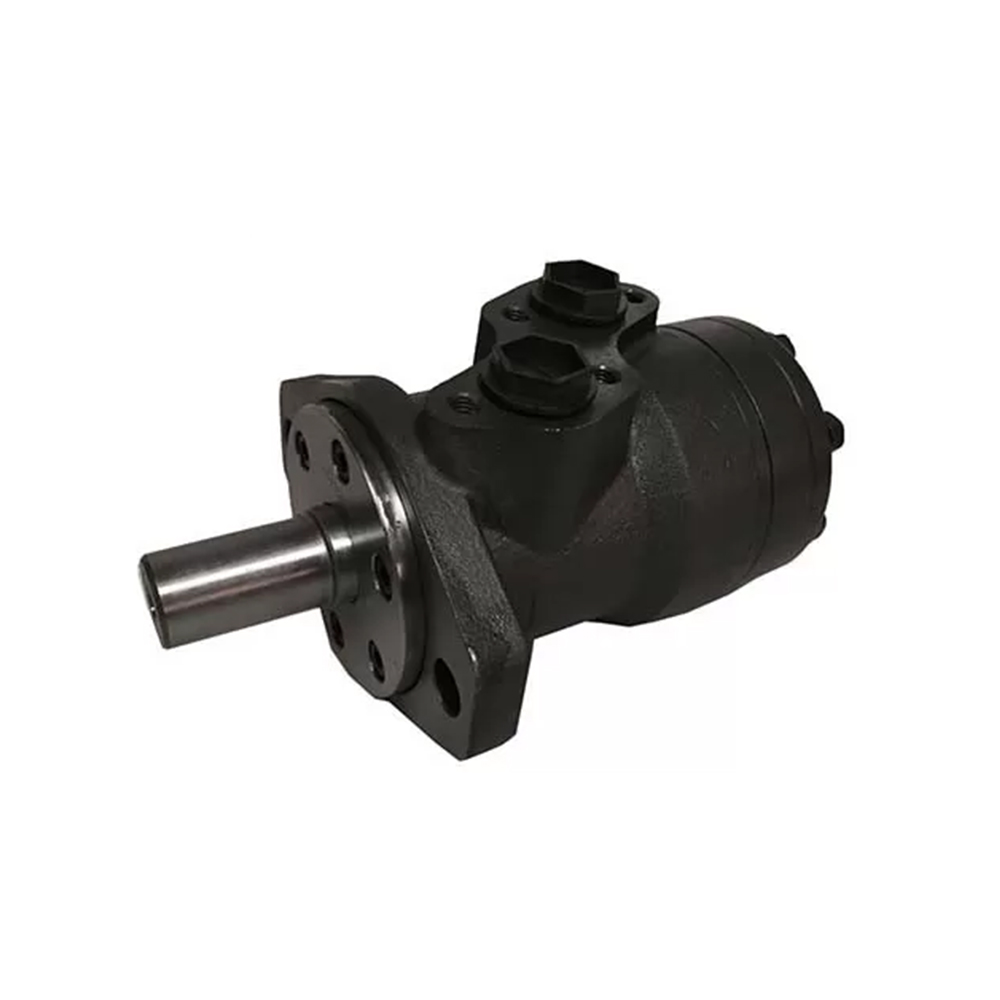

2 Bolt Oval Flange BMP Orbit Hydraulic Motor 100cc with G1/2 Ports G1/4 Grain
BMP is a basic orbit motor with China tope quality and stable performance.
Apply to all all automation and motion control applications.
Alternative with OMP, Eaton Char Lynn H series, M+S MP series, and other makes from Euro.
Features:
Displacement: 50 - 400 cm3/rev;
Speed range: 145 - 858 rpm;
Maximum pressure: from 90/110 bar through 125/140 bar (continuous/peak);
Maximum torque: 74n*m/521n*m
Advantages:
Low pressure start;
Reinforced shaft seal;
High startup torque and ability to withstand significant back pressures;
The ability to transfer axial and radial loads ;
Compact volume and easy installation.
Model Crossing:
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
