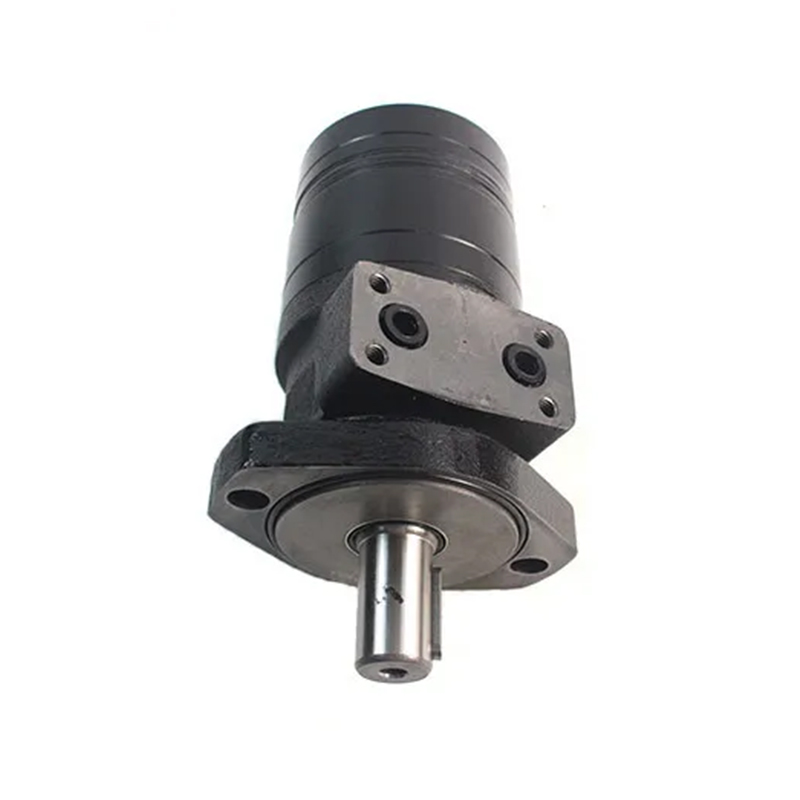

Parker TE Series Hydraulic Torqmotor TE0165CN410AAAB, 2-Bolt Flange, 1" SAE Parallel Key Shaft, Manifold Mount Port Threads

Parker TE Series Hydraulic Torqmotor TE0165CN410AAAB, 2-Bolt Flange, 1" SAE Parallel Key Shaft, Manifold Mount Port Threads

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BME2-165-HM-A
Brand:
Xeriwell or Others

Product Description

Product:	Low Speed High Torque Motor	Material:	Cast Iron
Displacement:	165 Ml/r	Speed:	283-355 Rpm
Torque:	307-422 Nm	Output:	8.9-15.7 Kw
Pressure Drop:	14 - 19 MPa	Flange:	SAE A Mount
Shaft:	25.4MM Shaft	Rotation:	CCW
Highlight:	TE0165CN410AAAB Parker TE Series Motor , TE0165CN410AAAB Parker TE Motor , 2 Bolt Parker TE Motor

Parker TE Series Motor TE0165CN410AAAB, 2 bolt flange shaft, 1" SAE Parallel key, manifold port threads

Quick review:

Model number: BME2-165-HM-A
Displacement:165 ml/r
Speed, 283-355 rpm
Torque, 307-422 Nm
Output, 8.9-15.7 Kw
Pressure Drop, 14 - 29 MPa
Flange, square mount
Shaft, 25.4mm key shaft
Rotation, CCW
Features, suit Parker TE0165CN410AAAB

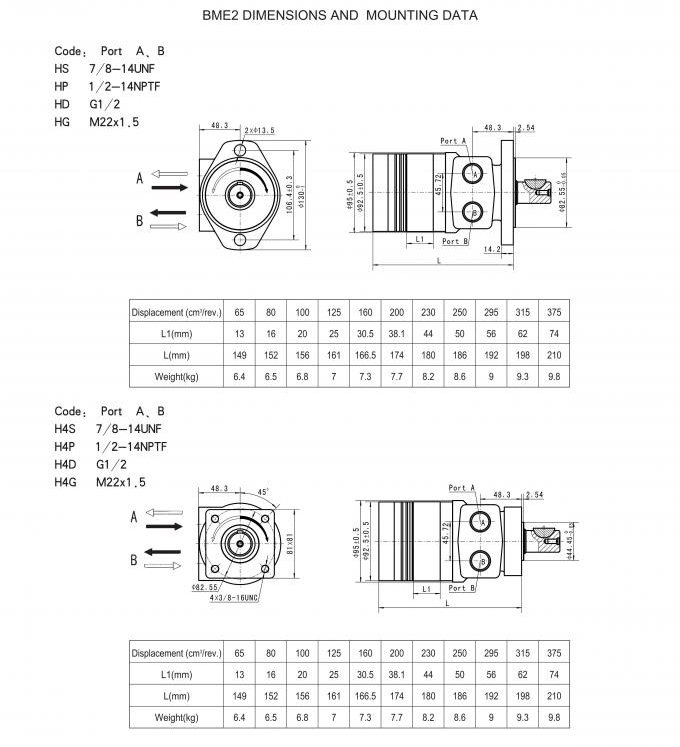

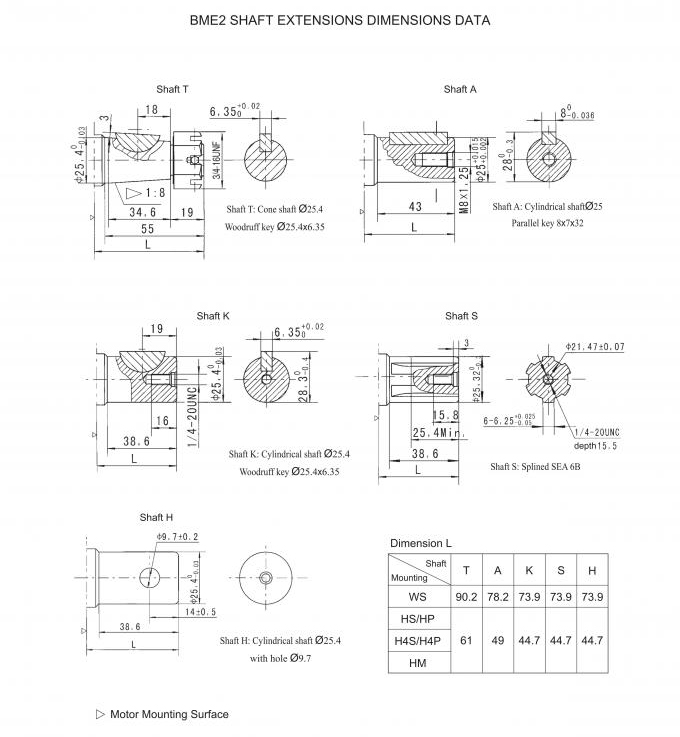

Here is it's technical details:

Type		BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
Type		65	80	100	125	160	200	230	250	295	315	375
Geometric displacement (cm3 /rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
Max. speed (rpm)	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N•m)	cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque (N•m)	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output (kW)	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	165	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
Max. flow (L/min)	int.	57	57	57	57	57	57	75	75	75	75	75

Composition of a Hydraulic System: Five Core Components

Power Components
Serving as the heart of a hydraulic system, power components primarily refer to hydraulic pumps. Their core function is to convert mechanical energy output from prime movers (e.g., electric motors, internal combustion engines) into hydraulic energy carried by the working fluid.
Actuators
Actuators convert the hydraulic energy of the working fluid into mechanical energy to drive loads. The two mainstream types are hydraulic cylinders and hydraulic motors: cylinders deliver linear motion, while motors generate rotary motion.
Control Components
This category covers a full range of hydraulic control valves, including pressure control valves, flow control valves and directional control valves. These valves regulate and adjust the pressure, flow rate and flow direction of the working fluid to satisfy the system’s power transmission and performance requirements.
Auxiliary Components
Auxiliary parts comprise hydraulic reservoirs, oil filters, coolers, heaters, accumulators, tubing, pipe fittings, sealing rings, quick couplings, high-pressure ball valves, hose assemblies, pressure test ports, pressure gauges, oil level indicators and fluid temperature gauges. These auxiliary and protective parts guarantee stable and reliable system operation.
Working Media
Typical working media include hydraulic oil and emulsions. They act not only as energy transfer carriers, but also enable system condition monitoring and fault diagnosis. Common options are mineral-based oils, animal & vegetable oils, and water-oil emulsions.

Operating Principle of Hydraulic Systems

A hydraulic pump draws fluid from the reservoir and pressurizes it before feeding the fluid into hydraulic control valves. The valves govern fluid pressure and flow direction, then route pressurized fluid to hydraulic cylinders or hydraulic motors. These actuators convert fluid pressure into usable mechanical power to drive equipment and complete operational tasks. Once the work cycle finishes, fluid is redirected via control valves back to the reservoir to restart the circulation process.

Industrial Applications of Hydraulic Systems

Hydraulic technology is extensively adopted across numerous sectors: national defense, machine tools, metallurgy, automotive manufacturing, textiles and shipbuilding.

Defense: Hydraulic drive & control systems are standard onboard army, navy and air force military hardware.
Machine Tools: Widely integrated into grinders, drill presses, milling machines and planers.
Automotive: Deployed on hydraulic off-road vehicles, hydraulic tipper trucks and more.
