Heavy-duty mobile and industrial machinery faces a constant operational challenge. Equipment requires exact torque delivery at low speeds without stalling. Machines must also operate continuously without overheating under immense stress. Traditional transmission systems often struggle to meet these rigorous, repetitive demands. We are now seeing a significant shift away from mechanical axles or standard axial piston configurations. Instead, engineers increasingly rely on Low Speed High Torque (LSHT) radial piston motors to solve these power transmission bottlenecks.
This guide provides an evidence-based evaluation framework for specifying a POCLAIN Hydraulic Motor. It focuses specifically on differentiating the multipurpose MS and MSE series for specific load profiles. You will learn how radial piston architectures outperform alternatives in high-shock environments. You will also discover the core evaluation filters for your application and understand how advanced anti-slip integration maximizes machine efficiency.
Architecture advantage: Radial piston LSHT designs outlast axial or gear variants in high-shock, high-dust environments.
Series differentiation: Poclain MS MSE lines offer modular displacement (172cc to 15,000cc) with distinct valving upgrades that reduce pressure drop by over 50%.
System synergy: Selecting a hydraulic motor requires matching pump output, braking requirements (service/parking), and anti-slip options (e.g., Twin-Lock™) for true total cost of ownership (TCO) optimization.
Engineers often face limitations when deploying gear and vane hydraulic motors. These traditional motors drop torque density dramatically when external loads vary. Vane motors are highly sensitive to microscopic fluid contamination. Gear motors lose volumetric efficiency rapidly as internal wear increases over time. You cannot rely on them for heavy-duty traction drives.
We must compare axial piston motors against radial piston realities. Axial configurations provide high volumetric efficiency at elevated rotational speeds. However, they suffer under severe shock loads. They also struggle to deliver smooth, stutter-free torque at very low speeds. When a machine hits a sudden obstacle, an axial motor can stall or suffer internal mechanical damage.
The baseline of a Poclain motor relies on a rugged radial piston design. The cam-lobe architecture absorbs extreme pressure peaks effortlessly. Pistons move outward radially against a multi-lobe cam ring. Pressurized fluid forces the pistons against the lobes to generate direct rotational force. This specific design supports frequent, aggressive reversing. It maintains remarkably high volumetric efficiency even at minimal RPMs. You get full starting torque from zero speed.
However, you must acknowledge the operational trade-offs. LSHT motors excel in demanding start-stop tasks. Skid steers, forestry harvesters, and heavy wheel loaders rely heavily on them. They handle massive breakout forces brilliantly. Conversely, they are not naturally designed for high-speed highway transit. You need multi-speed capabilities or dual displacement options for rapid road transport.
Performance Feature | Axial Piston Motor | Radial Piston Motor (LSHT) |
|---|---|---|
High-Speed Efficiency | Excellent (Suitable for fast transit) | Moderate (Requires dual-displacement) |
Low-Speed Torque | Poor (Prone to stuttering at low RPM) | Exceptional (Smooth delivery near 0 RPM) |
Shock Load Resistance | Low (Susceptible to internal damage) | High (Cam-lobe design absorbs spikes) |
Starting Torque | Moderate | Very High |

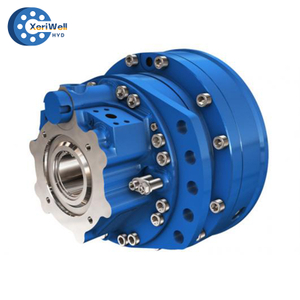

The "Multipurpose" category sits at the heart of the Poclain product matrix. The MS and MSE series act as highly adaptable workhorses. They differ greatly from the specialized MK compact lines or MZ swing drives. You deploy them when a machine requires both robust traction and versatile mounting options.
Displacement and power scalability make this series unique. The engineering range is massive. It spans from the compact MS02 all the way to the massive MS125. A single unit can support up to 50 kW of mechanical power. They handle continuous peak pressures up to 450 bar safely. This scalability lets manufacturers standardize their drive architectures across different machine sizes.
The MSE efficiency upgrade represents a significant leap forward. Engineers redesigned the fluid gallery in the newer MSE lines and higher-tier MS models. Optimized internal pathways reduce fluid turbulence. The Poclain MS MSE models feature advanced valve designs that cut system pressure drop by over 50 percent. Less pressure drop means the fluid stays much cooler. This directly reduces engine fuel consumption and lowers overall energy demands.
Drive modularity gives engineers incredible flexibility. Direct-drive architectures eliminate the need for fragile mechanical gearboxes. You can configure them in two distinct ways:
Wheel Motor Configuration: The motor housing flanges directly to the wheel rim. This maximizes ground clearance and simplifies the chassis design.
Shaft Motor Configuration: The motor uses a standard splined shaft. You use this for tool driving, industrial augers, or custom drivetrains.
Do not just match basic displacement numbers when choosing a motor. You must establish rigorous success criteria. Evaluate your specific duty cycle thoroughly. Consider extreme load variations and environmental exposure. Dust, deep mud, and continuous vibration change how internal components perform. What works in a clean factory will fail in a muddy quarry.
You must define several key technical parameters before finalizing a specification. Use the following sequential evaluation process:
Calculate Max Torque (N.m) & Power (kW): Determine the true rim pull required for the heaviest loads. Breakout force demands precise torque calculations. Skid steers pushing into compacted dirt face extreme resistance spikes. The motor must handle these sudden load walls safely.
Assess Speed Requirements (RPM): Calculate the absolute maximum speed required. Assess the necessity of multi-speed options carefully. Dual displacement configurations allow machines to switch seamlessly between work-mode torque and transport-mode speed.
Determine Braking Integration: Integrate braking systems based on strict regulatory compliance. Choose dynamic service brakes for active deceleration. Select static parking brakes for holding loads on inclines. Unbraked configurations suit specific enclosed industrial applications. Always align this with local 40 kph road safety laws.
Contamination limits and fluid considerations dictate component lifespan. Maintain strict ISO fluid cleanliness levels at all times. Poor filtration destroys internal valves rapidly. Monitor operating temperature limits diligently. Hot, degraded oil prevents proper lubrication and causes premature cam or piston wear.
Many engineers fall victim to the system fallacy. Specifying a top-tier Hydraulic Motor solves nothing if the pump is inadequate. Poor valving setups throttle motor performance artificially. You must treat the entire hydrostatic loop as a unified, cohesive system. Matching the pump output accurately ensures the motor receives the exact flow it needs.
Traction management prevents severe field failures. Environments with heavy mud cause differential wheel slip. This slip leads to machine bogging and extreme tire wear. You can eliminate this by integrating Twin-Lock™ or electronic SD-CT Off-Road™ systems. They actively monitor wheel speeds. When one wheel slips, the system seamlessly redirects hydraulic flow to the wheels with actual grip.
Energy optimization requires smart integration. Pair your motor with an electronic displacement control system. Systems like EcoDrive™ automatically lower engine RPM during transit phases. They yield verified reductions in fuel consumption. Operators also experience significantly lower ambient noise and smoother driving dynamics in the cabin.
Supply chain realities demand strict attention. Relying on gray-market components introduces massive failure risks. Unmatched third-party seal kits degrade incredibly fast under 450 bar pressure peaks. Always specify genuine components through verified channels. Counterfeit internal valves often fail during critical load-holding tasks, causing severe safety hazards.
Understand lead time and modularity benefits. The MS and MSE series feature highly modular builds. Authorized distributors can configure exact specifications locally from base stock. They swap valving blocks or mounting flanges rapidly. This inherent modularity reduces machine downtime during sudden field failures. You do not have to wait months for a factory-built replacement.
Measure the lifecycle equation based on long-term durability. Focus intensely on extended Mean Time Between Failures (MTBF). Upfront engineering prevents chronic overheating. Highly efficient internal valving reduces your hydraulic cooling needs. Lower fuel burn extends continuous field operation time. Durable components simply outlast cheaper alternatives.
Prepare the required data for your next steps. A formal configuration quote requires precise operational data. Gather the total machine weight and the loaded tire radius. Determine the maximum operational incline and target transit speed. Finally, document the available hydraulic flow and system pressure from your primary pump.
Correctly sizing an MS or MSE series motor transforms overall machine productivity. You gain unmatched durability and exact torque control in harsh environments. The radial piston design easily outlasts conventional technologies under heavy shock loads. It delivers reliable power exactly when the operator demands it.
True efficiency emerges when you treat the motor as a core engineered component. It is never just a simple, standalone replacement part. Integrating smart valving, precise braking, and anti-slip technology creates a highly synergetic drive loop. This approach drastically minimizes overheating and unnecessary fuel burn.
Consult directly with an engineering application specialist or an authorized distributor. Gather your exact duty cycle data and request a complete load-profile simulation. Taking these proactive steps ensures your hydraulic system operates at absolute peak performance.
A: The MSE series represents an efficiency upgrade over the standard MS line. Engineers redesigned the internal fluid gallery and optimized the valving. This refinement reduces system pressure drop by over 50 percent, which lowers fluid temperatures and directly decreases the machine's fuel consumption.
A: Yes, but it requires a strict engineering review. Radial motors provide vastly superior low-speed torque and shock resistance. However, you must account for different mounting flanges, varying physical dimensions, and specific maximum speed limitations before retrofitting an existing machine.
A: Absolutely. They excel in continuous industrial applications. You must simply maintain proper fluid viscosity, ensure strict ISO cleanliness levels, and size the heat exchangers correctly to handle the specified duty cycle rating without overheating.
A: You must provide the total vehicle mass, maximum target speed, maximum gradeability (incline percentage), loaded tire radius, rolling resistance, and the available hydraulic system pressure and flow.
