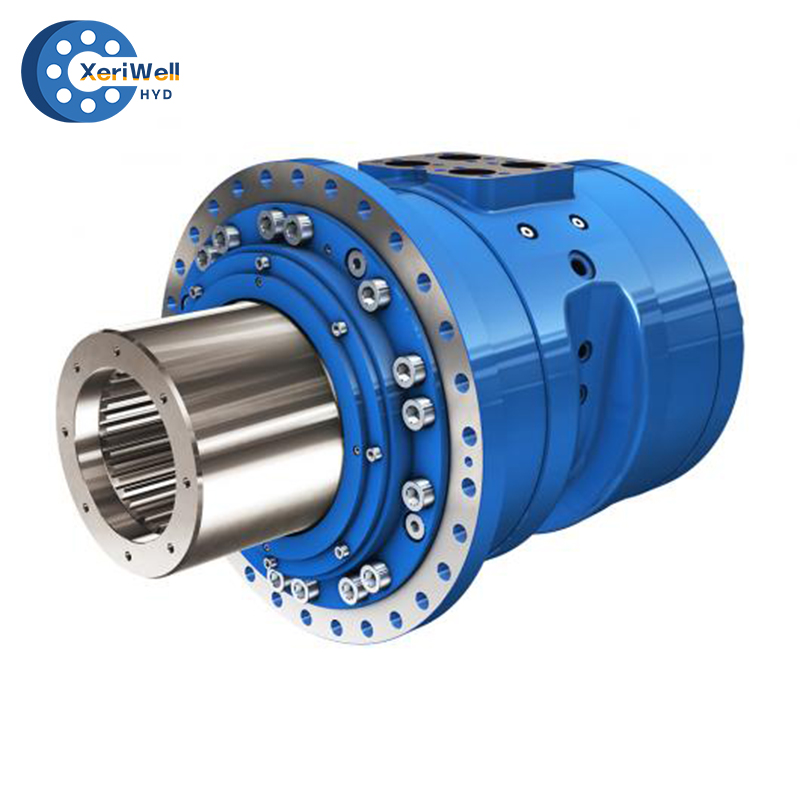

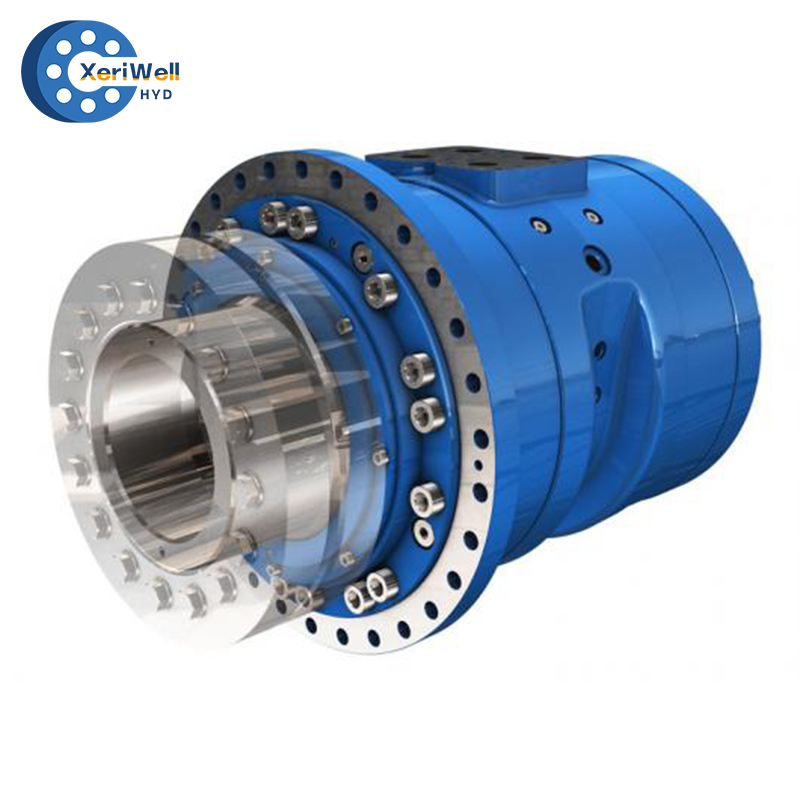

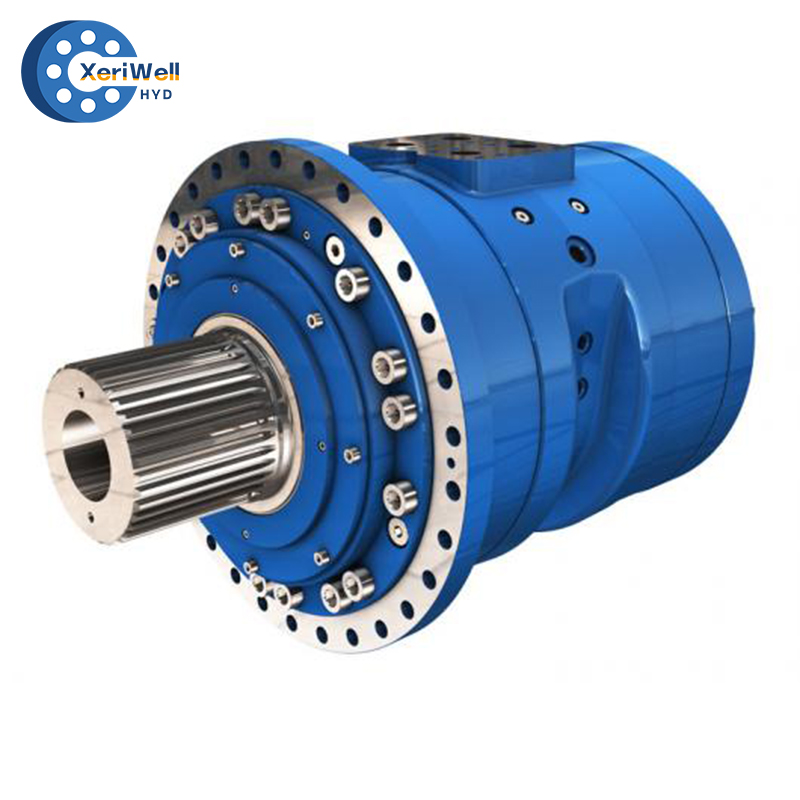

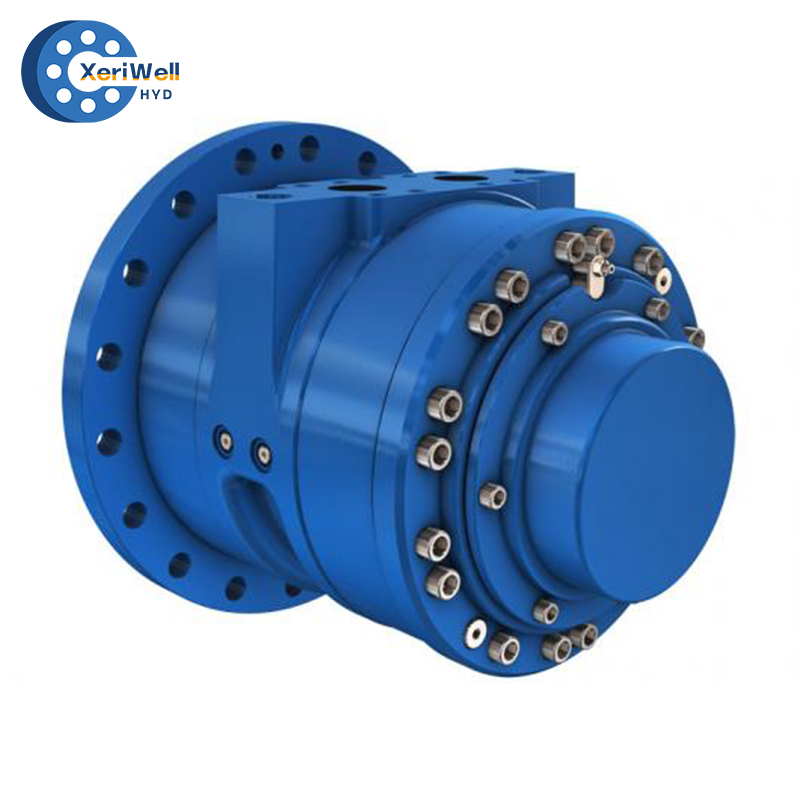

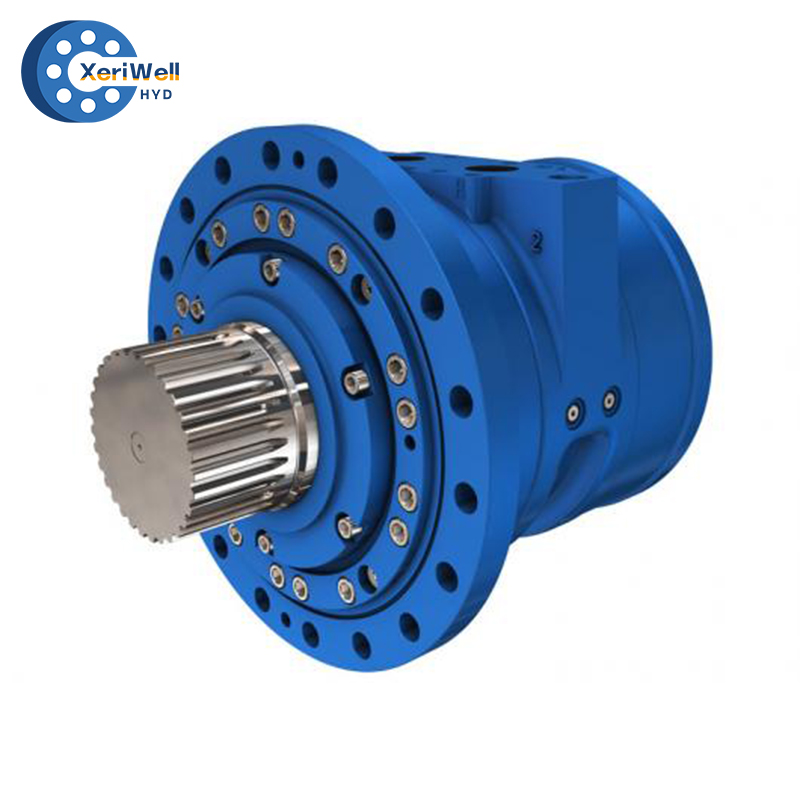

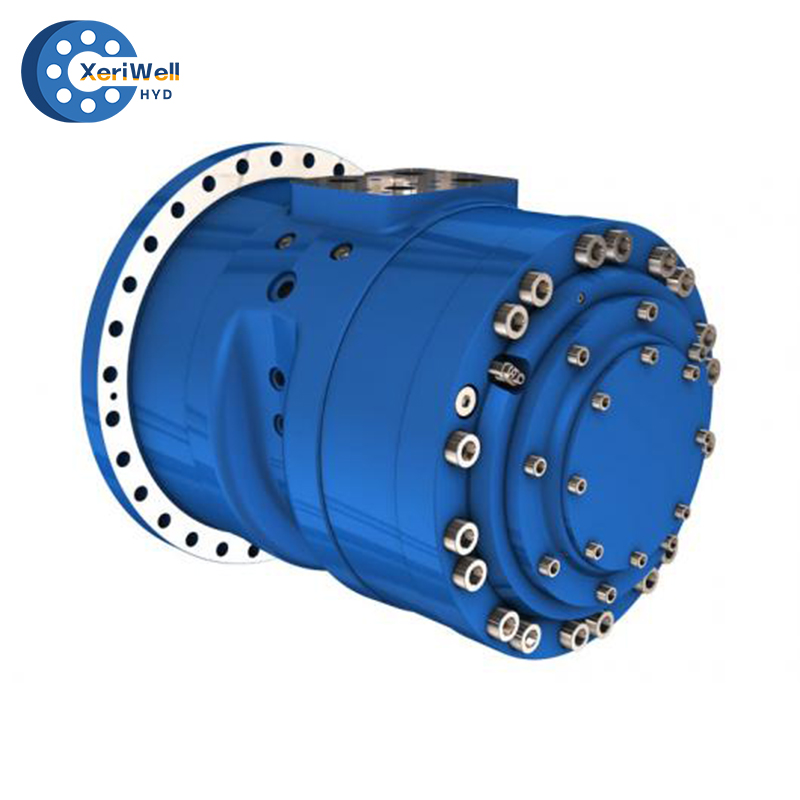

Poclain's MI series hydraulic motors are engineered for high-power applications, delivering exceptional torque and performance for both stationary and mobile industrial uses. With displacements ranging from 17,500 cc to 40,000 cc, these motors are ideal for demanding sectors such as environmental services, construction equipment, and industrial machinery.
Key Features:
1）High Torque Output: The MI series delivers maximum torque up to 200,000 Nm, ensuring efficient operation in heavy-duty applications.
2）Robust Design: Built to withstand rigorous conditions, these motors operate at pressures up to 450 bar, providing reliable performance in demanding environments.
3）Versatile Integration: The dedicated industrial design facilitates easy integration into various applications, including large shredders, winches, and conveyors.
4）High Power Capacity: With power capabilities up to 600 kW, the MI series supports high-performance requirements across multiple industries.
5）Optimized Speed Range: Designed to achieve speeds up to 130 rpm, these motors offer flexibility to meet diverse operational needs.
These features make Poclain's MI series hydraulic motors a reliable choice for industries seeking powerful and durable hydraulic solutions.

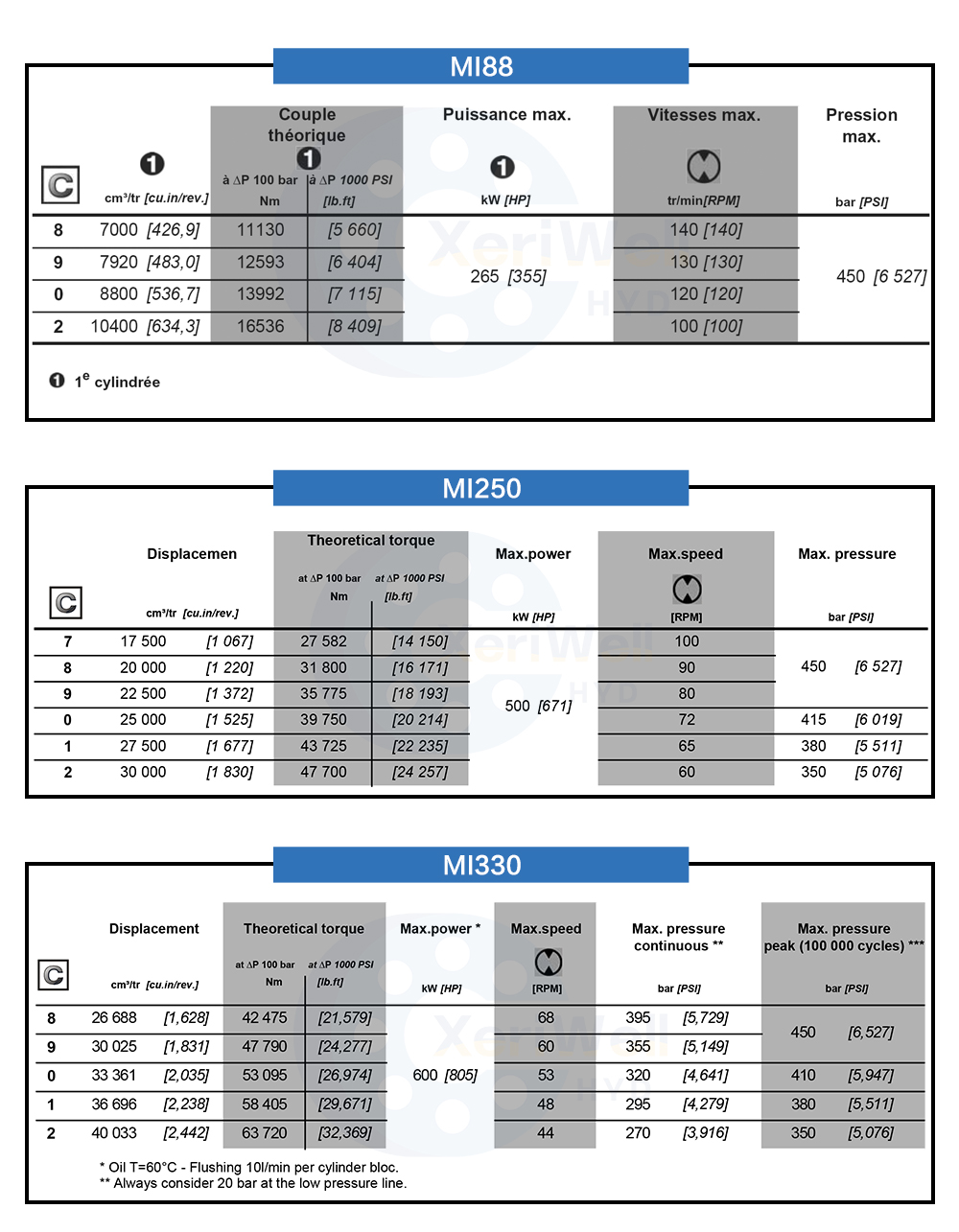

Type: MI88/250/330
| MI88 | ||||||
| Couple théorique | Puissance max. | Vitesses max. | Pression max. | |||
| ① | cm3/tr [cu.in/rev.] | à ΔP 100 bar Nm | à ΔP 1000 PSI [lb.ft] | kW [HP] | tr/min[RPM] | bar [PSI] |
| 8 | 7000 [426,9] | 11130 | [5 660] | 265 [355] | 140 [140] | 450 [6 527] |
| 9 | 7920 [483,0] | 12593 | [6 404] | 130 [130] | ||
| 0 | 8800 [536,7] | 13992 | [7 115] | 120 [120] | ||
| 2 | 10400 [634,3] | 16536 | [8 409] | 100 [100] | ||
| MI250 | |||||||
| Displacemen | Theoretical torque | Max.power | Max.speed | Max. pressure | |||
| C | cm3/tr [cu.in/rev.] | at ΔP 100 bar Nm | at ΔP 1000 PSI [lb.ft] | kW [HP] | [RPM] | bar [PSI] | |
| 7 | 17 500 | [1 067] | 27 582 | [14 150] | 500 [671] | 100 | 450 [6 527] |
| 8 | 20 000 | [1 220] | 31 800 | [16 171] | 90 | ||
| 9 | 22 500 | [1 372] | 35 775 | [18 193] | 80 | ||
| 0 | 25 000 | [1 525] | 39 750 | [20 214] | 72 | 415 [6 019] | |
| 1 | 27 500 | [1 677] | 43 725 | [22 235] | 65 | 380 [5 511] | |
| 2 | 30 000 | [1 830] | 47 700 | [24 257] | 60 | 350 [5 076] | |
| MI330 | ||||||||
| Displacement | Theoretical torque | Max.power * | Max.speed | Max. pressure continuous ** | Max. pressure peak (100 000 cycles) *** | |||
| C | cm3/tr [cu.in/rev.] | at ΔP 100 bar Nm | at ΔP 1000 PSI [lb.ft] | kW [HP] | [RPM] | bar [PSI] | ||
| 8 | 26 688 | [1,628] | 42 475 | [21,579] | 600 [805] | 68 | 395 [5,729] | 450 [6,527] |
| 9 | 30 025 | [1,831] | 47 790 | [24,277] | 60 | 355 [5,149] | ||
| 0 | 33 361 | [2,035] | 53 095 | [26,974] | 53 | 320 [4,641] | 410 [5,947] | |
| 1 | 36 696 | [2,238] | 58 405 | [29,671] | 48 | 295 [4,279] | 380 [5,511] | |
| 2 | 40 033 | [2,442] | 63 720 | [32,369] | 44 | 270 [3,916] | 350 [5,076] | |
| * Oil T=60°C - Flushing 10l/min per cylinder bloc. ** Always consider 20 bar at the low pressure line. | ||||||||
