Specifying the correct Low Speed High Torque (LSHT) drive remains a critical engineering challenge. Heavy machinery performance depends heavily on this single component. Underspecifying a drive unit leads to catastrophic premature failure. Unplanned downtime ruins operational productivity. Conversely, overspecifying inflates initial capital budgets unnecessarily. You must balance immediate spatial constraints against long-term operational demands. Both radial piston and orbital designs deliver impressive torque at low speeds. They achieve this without needing a complex gearbox. However, their internal mechanics dictate vastly different efficiency curves. They also exhibit different operational lifespans under continuous heavy loads. In this article, we provide a clear, evidence-based evaluation framework. You will learn how to match internal motor mechanics to your exact duty cycle. We will guide you through torque demands, fluid requirements, and operational durability.
Hydraulic radial piston motors deliver >95% volumetric and mechanical efficiency, making them the standard for continuous, heavy-duty applications requiring maximum starting torque.
Orbital motors offer a highly compact, cost-effective solution best suited for intermittent duty cycles and applications where space constraints outweigh long-term efficiency losses.
Matching the motor to the exact operational parameters (pressure spikes, side loads, continuous vs. intermittent use) is critical to mitigating implementation failure.
Engineers consistently seek ways to simplify heavy machinery. Eliminating mechanical gearboxes stands out as a primary method to achieve this goal. Direct drive systems reduce mechanical complexity significantly. You remove gears, separate lubrication circuits, and bulky housings from the vehicle footprint. This saves space. It also lowers ongoing maintenance burdens. When you utilize a direct drive, you mount the hydraulic motor directly to the driven shaft or wheel hub.
To evaluate these drive systems accurately, we must define clear success criteria. You cannot judge a drive system solely by its maximum horsepower. Instead, successful implementation relies on three specific parameters:
Required starting torque versus running torque: Breaking a heavy load loose requires immense initial force. This breakout friction often exceeds the force needed to maintain movement.
Acceptable pressure drop and heat generation: Inefficient motors generate excessive heat. High temperatures degrade hydraulic fluid. They also demand larger, heavier cooling systems.
Maintenance intervals and downtime tolerance: Some machines tolerate frequent maintenance stops. Others, like marine winches or mining excavators, require continuous uptime.
The primary technological divide in LSHT applications comes down to internal geometry. You must choose between piston-driven mechanics and gear-within-a-gear mechanics. The industry commonly refers to the latter as gerotor or geroler designs. Each mechanical approach solves the low-speed torque problem differently.
A Hydraulic Radial Piston Motor relies on precise internal piston movements. Pressurized fluid enters the cylinder block. This fluid pushes pistons outward radially. These pistons press against an eccentric cam or a multi-lobe cam ring. The reaction force creates powerful rotational movement. Because the internal parts fit together with extremely tight tolerances, fluid cannot bypass the pistons easily.
This strict mechanical tolerance provides exceptional performance strengths. First, these motors deliver outstanding starting torque. They routinely achieve over 90% of their theoretical torque from a dead stop. Second, they boast phenomenal volumetric and mechanical efficiency. Efficiency levels typically exceed 95%. High efficiency translates directly into lower heat generation. The hydraulic fluid remains cooler. Finally, piston mechanics sustain high pressure continuously. They do not suffer from rapid internal wear under punishing, non-stop duty cycles.
Always verify the casing drain pressure limits. High casing pressure can blow out shaft seals. Ensure your return lines allow unrestricted flow back to the reservoir.
Despite these strengths, inherent limitations exist. Precision machining requires complex manufacturing processes. This complexity results in higher initial capital expenditure. Furthermore, the multi-lobe cam rings and heavy-duty cylinder blocks take up space. They create a larger physical footprint. They also add significant mass to the machine compared to orbital designs.

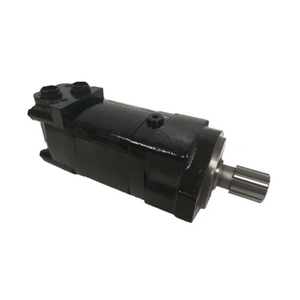

Orbital motors solve the LSHT challenge using an entirely different geometry. They utilize a gerotor or geroler element. Inside the housing, an inner rotor meshes with a fixed outer stator. The inner rotor has one less tooth than the stator. As fluid enters the chambers, it forces the inner rotor to walk around the stator. A drive link connects this orbiting motion to the output shaft.
This design provides distinct performance strengths. The power density is incredibly high. You get massive torque from a very small package. The highly compact envelope makes them ideal for constrained spaces. You will frequently find them tucked inside agricultural wheels or small conveyor drives. Additionally, mass production makes them highly economical. They present a lower upfront purchase price for fleet-scale manufacturing.
Never deploy an orbital motor for a continuous, heavy-duty winch drive. The continuous high pressure will force fluid past the gerotor teeth, causing rapid internal heat buildup and premature failure.
The inherent limitations center around efficiency. Orbital motors typically operate between 70% and 85% efficiency. The loose internal clearances allow fluid to slip past the rotor under load. This volumetric loss creates friction and heat. High energy consumption follows. If you subject an orbital motor to continuous high-pressure duty cycles, the internal gears wear down rapidly.
Treating these two technologies as interchangeable frequently leads to system failure. You must evaluate them head-to-head across specific operational metrics.
At very low speeds, radial piston designs prove superior. They maintain consistent rotational force. You can achieve stable creeping speeds without experiencing cogging or sudden jerks. This smoothness proves vital for positioning heavy loads accurately. Conversely, orbital motors often suffer from torque ripple at extremely low speeds. The changing geometry of the gerotor teeth causes slight variations in output force. You should keep orbital motors within mid-range LSHT parameters for optimal smoothness.
Efficiency directly impacts the rest of your machine design. A highly efficient radial piston system allows you to downsize other components. You can specify a smaller hydraulic pump. You can reduce the size of the diesel engine or electric motor driving that pump. You also rely less on bulky hydraulic cooling systems. Lower efficiency in an orbital system demands larger power units. You must account for greater fluid heating. You also risk potential power loss at the implement itself.
Engineers must analyze the crossover point of mechanical longevity. You must determine when the eliminated replacement cycles of a radial unit surpass the initial convenience of an orbital unit. Under continuous heavy loads, an orbital motor may require replacement every 12 to 18 months. The internal gear teeth simply wear away. A radial piston unit, operating under identical parameters, routinely functions for five years without requiring major internal overhauls. The long-term reliability of a high torque hydraulic motor depends strictly on matching its internal wear characteristics to your duty cycle.
The following chart summarizes the functional differences between the two drive types. Use this data to benchmark your system requirements.
Performance Metric | Radial Piston Motor | Orbital (Gerotor) Motor |
|---|---|---|
Starting Torque | Excellent (>90% theoretical) | Moderate (70-80% theoretical) |
Low-Speed Stability | Smooth, no cogging | Prone to torque ripple at creep speeds |
Overall Efficiency | High (90-95%+) | Lower (70-85%) |
Heat Generation | Low | High under continuous load |
Physical Envelope | Bulky and heavy | Highly compact and lightweight |
Selecting the motor type represents only the first step. You must also evaluate integration risks. Poor system design will destroy even the most robust motor.
You must assess the output shaft capabilities carefully. Many applications apply severe external forces to the shaft. Direct wheel drives carry the weight of the vehicle. Heavy winches pull laterally against the shaft. Radial piston units typically utilize heavy-duty taper roller bearings. They accommodate massive external radial and axial loads easily. Orbital motors use smaller bearings. Excessive side loads will shatter an orbital motor shaft quickly. Always calculate your maximum radial load before finalizing your selection.
Internal precision dictates filtration needs. Piston motors rely on microscopic clearances to maintain high pressure. Particulate contamination scores the piston bores. It ruins the multi-lobe cam surfaces. Therefore, piston motors require strict filtration. You typically need to maintain ISO cleanliness codes of 18/16/13 or better. Orbital motors tolerate dirtier fluid. Their loose clearances swallow larger particles without immediate catastrophic failure. An ISO code of 20/18/15 often suffices for orbital circuits.
Motor Technology | Recommended ISO Cleanliness | Filter Micron Rating (Absolute) |
|---|---|---|
Radial Piston | 18/16/13 | 10 µm |
Orbital (Gerotor) | 20/18/15 | 25 µm |
Heavy machinery rarely operates smoothly. An excavator bucket strikes solid bedrock. A marine winch catches a sudden wave swell. These events send massive shock waves through the hydraulic fluid. You must evaluate how both motor types handle these pressure spikes. An LSHT radial motor handles shock loads exceptionally well due to heavy cast housings. However, circuit design remains paramount. You must install cross-port relief valves close to the motor ports. These valves sheer off pressure spikes before they blow out internal motor seals.
Making the final choice requires discipline. Do not let spatial constraints blindly dictate the use of an orbital motor if the duty cycle demands a piston unit. Use the following framework to shortlist your drive solution.
Specify Orbital Motors when:
The application runs intermittently. Agricultural sweepers, light conveyors, and auxiliary functions fit this profile perfectly.
Upfront capital expenditure drives the project constraints.
Space remains severely restricted, and redesigning the machine frame proves impossible.
The system operates at lower continuous pressures, minimizing internal slip and heat generation.
Specify Hydraulic Radial Piston Motors when:
The application runs continuously under high load. Mining excavators, marine winches, and industrial shredders require this durability.
High starting torque under heavy breakout loads remains strictly non-negotiable.
Long-term reliability and system energy efficiency hold priority over initial purchase price.
The application requires precise positioning at creeping speeds without jerky movements.
Both radial piston and orbital technologies solve the LSHT requirement effectively. However, they serve entirely different duty cycles. Treating them as universally interchangeable leads to compromised machinery performance and frequent breakdowns. Orbital designs prioritize compact size and low initial deployment barriers. Radial piston designs prioritize unyielding durability, extreme efficiency, and massive starting torque.
Your next step requires data collection. Review your existing load cycles meticulously. Calculate your exact starting torque requirements. Evaluate your continuous pressure demands and maximum side loads. Finally, consult with a dedicated hydraulics application engineer. They will help you finalize system sizing, select appropriate cross-port relief valves, and ensure your filtration strategy matches your chosen motor. Accurate integration guarantees heavy-duty performance.
A: Mechanically, usually no. They require completely different mounting flanges and shaft dimensions. Radial piston units also occupy a much larger spatial envelope. You cannot easily fit them into the tight spaces designed for orbital motors. Fluid plumbing, casing drain lines, and system pressure settings will also need significant adjustment.
A: Lifespan depends highly on fluid cleanliness, operating pressure, and duty cycle. Under continuous heavy load, a radial piston motor can outlast an orbital motor by thousands of hours. If maintained properly with strict filtration, radial units operate for years. Orbital motors subjected to continuous high pressure may fail within months.
A: The price difference reflects manufacturing complexity. Radial piston motors require precision-machined pistons, reinforced cylinder blocks, heavy-duty taper roller bearings, and complex multi-lobe cam rings. They demand tight internal tolerances. Conversely, orbital motors rely on a simpler, mass-produced gerotor gearset that requires fewer high-precision components.
