Poclain MHP Hydraulic Motor

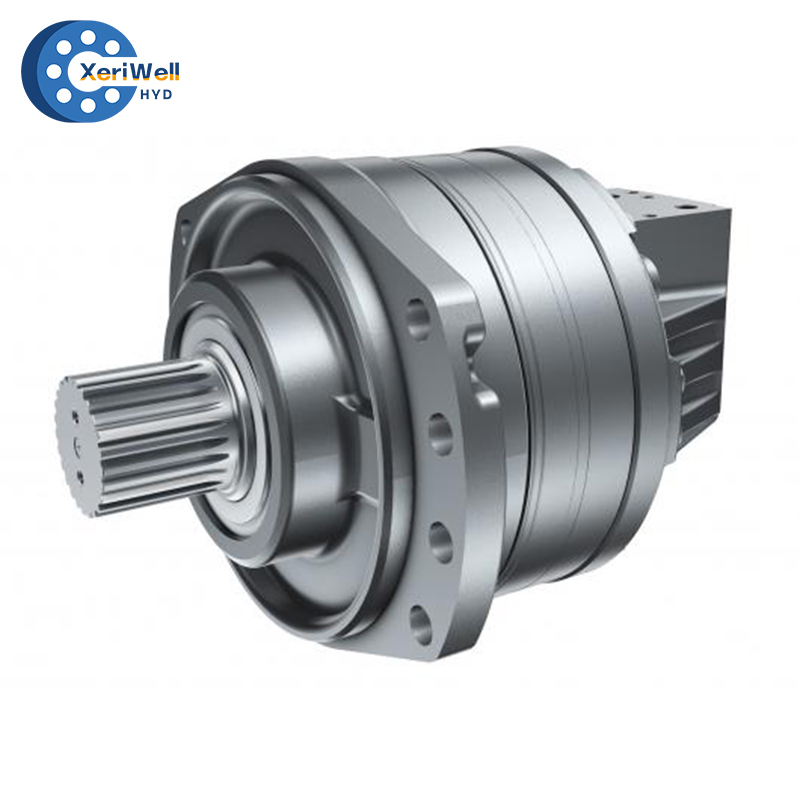

Poclain MHP Hydraulic Motor Product Introduction

Poclain's MHP series hydraulic motors are engineered for high-performance applications, offering direct drive solutions ideal for wheel or tool drives. With displacements ranging from 311 cc to 3,526 cc, these motors are suitable for demanding sectors such as construction, material handling, agriculture, mining, and industrial machinery.

Key Features:

1）High Power Output: The MHP series delivers power up to 280 kW, accommodating a wide range of heavy-duty applications.

2）Robust Torque Performance: Capable of producing maximum torque up to 28,059 Nm, these motors ensure efficient operation under substantial loads.

3）High-Pressure Operation: Designed to operate at pressures up to 500 bar, the MHP motors maintain performance in rigorous conditions.

4）Multi-Speed Capability: The multi-speed design allows for maximum speeds up to 345 rpm, providing flexibility across various operational requirements.

5）Modular Design: The MHP series features a modular construction, facilitating customization to meet specific application needs.

These features make Poclain's MHP series hydraulic motors a versatile and reliable choice for industries requiring high-performance hydraulic solutions.

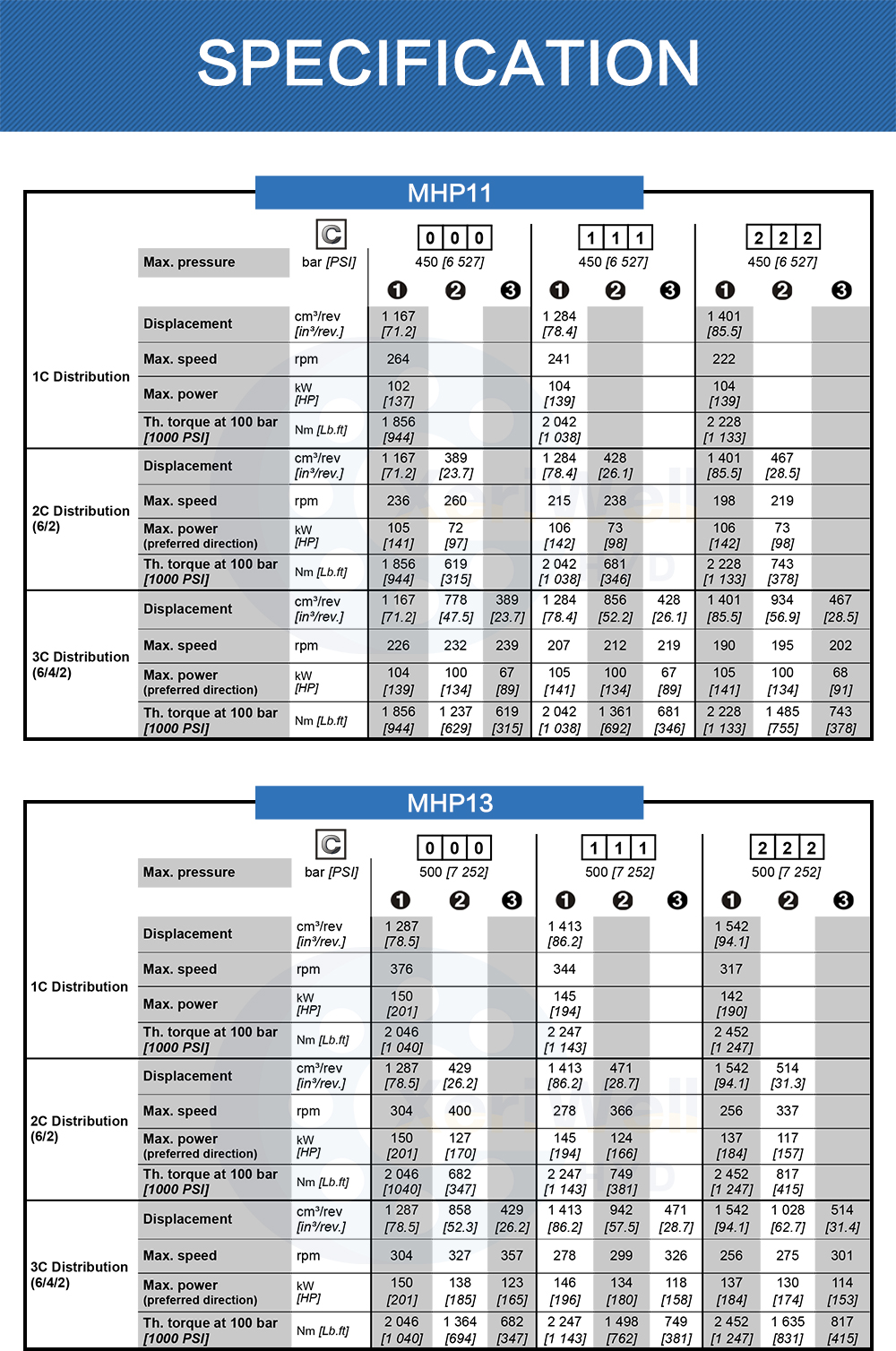

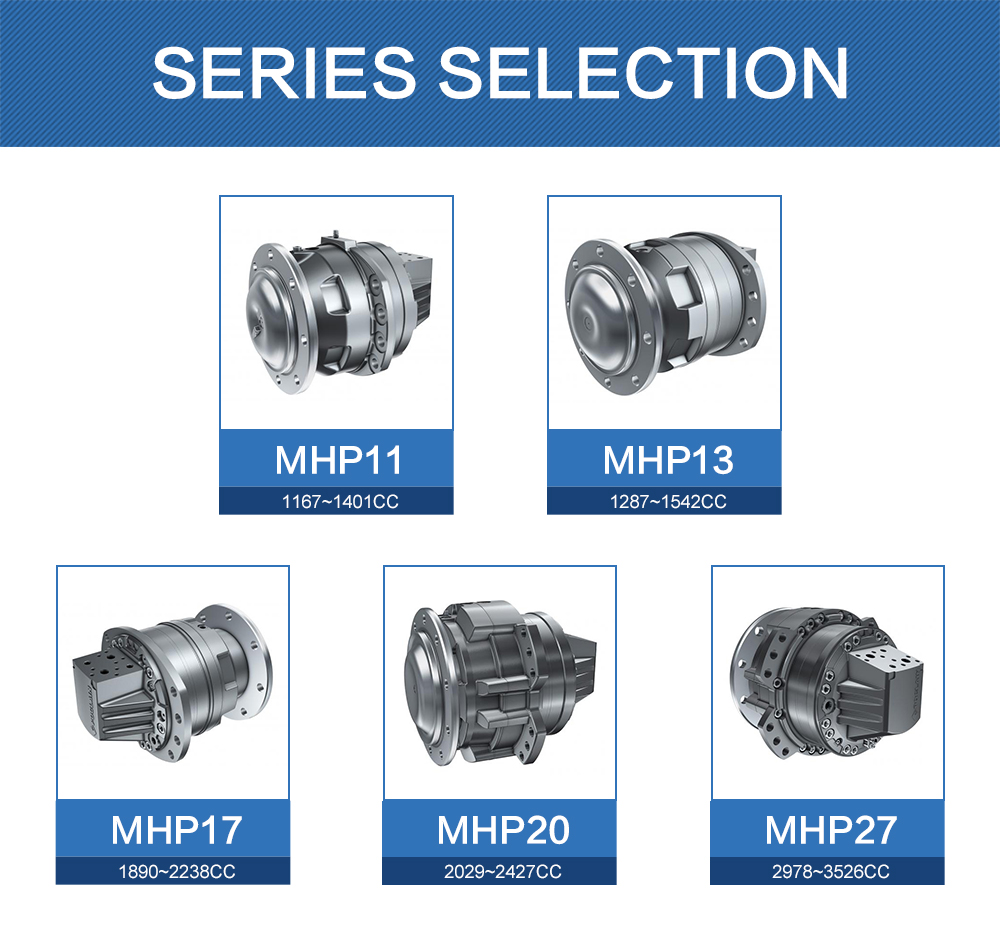

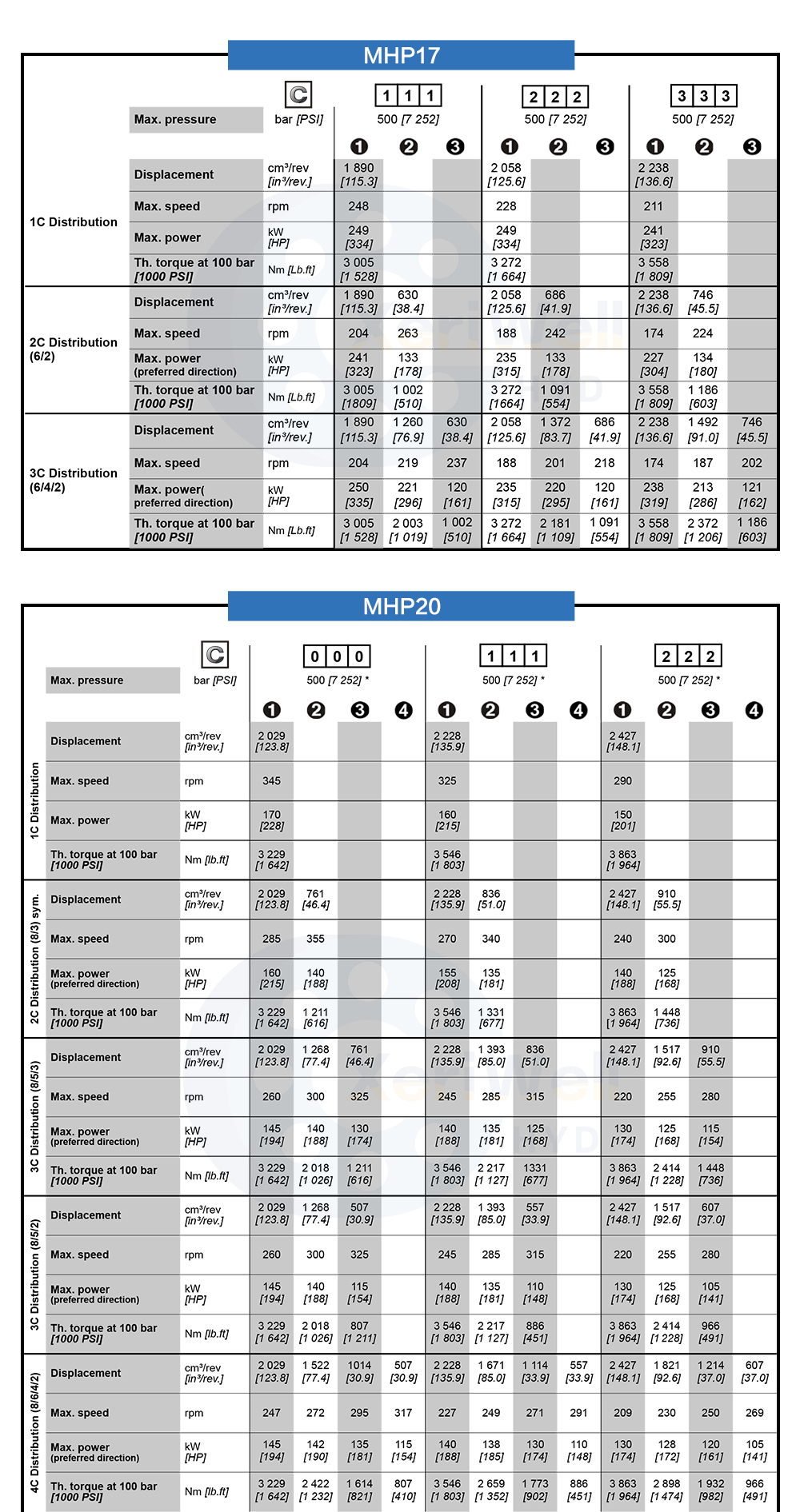

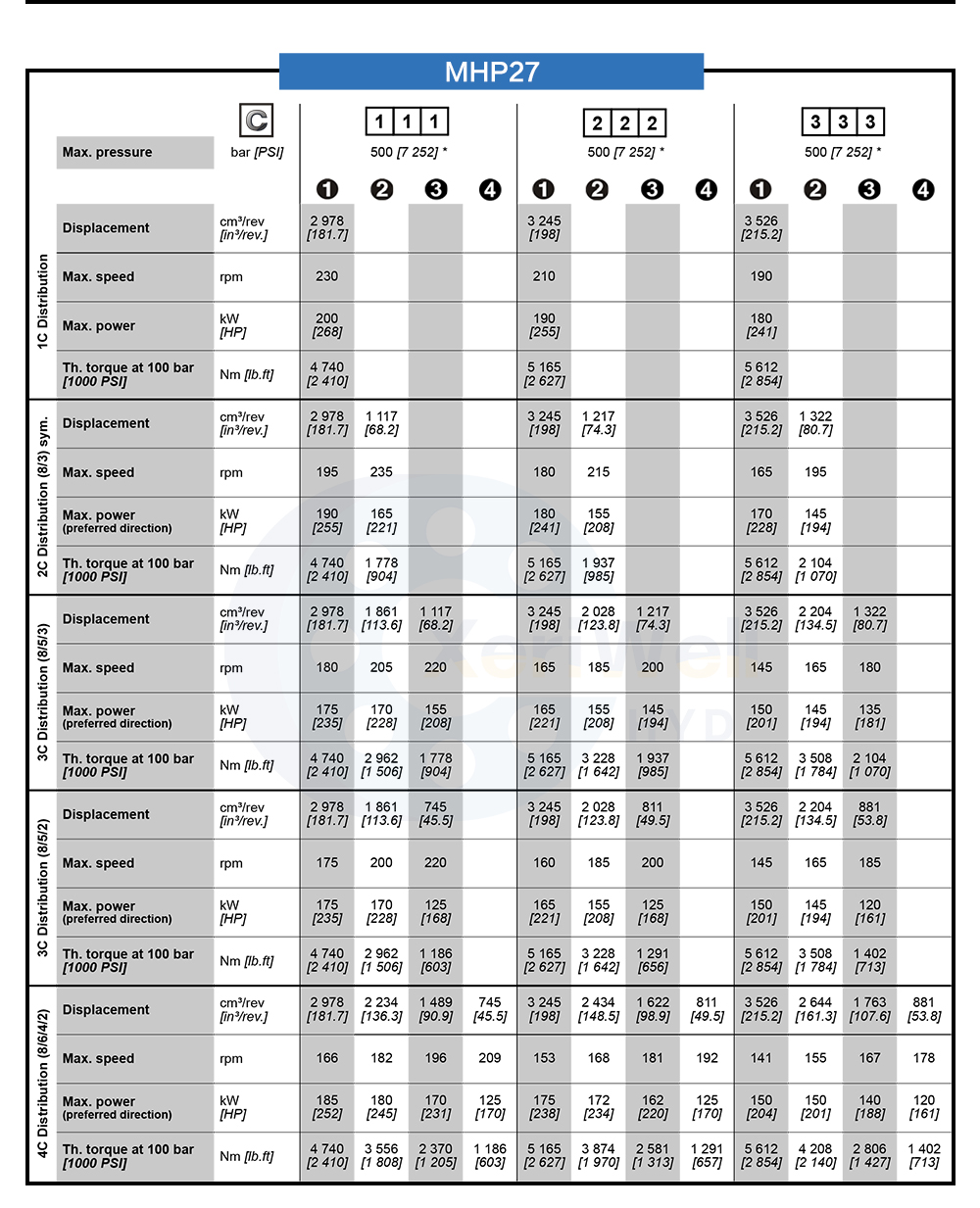

Type: MHP11/13/17/20/27
