| Quantity: | |
|---|---|
119-1042
Xeriwell or Others
| Item: | Disc Valve Motors | Model: | 119-1042-003 |
|---|---|---|---|
| Displacement: | 665.3 CM3/R [40.60 IN3/R] | Flange: | 127.0 [5.00] PILOT DIA. |
| Shaft: | 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END | Port: | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| Highlight: | 10000 series char lynn hyd motor,jaw crusher char lynn hyd motor | ||

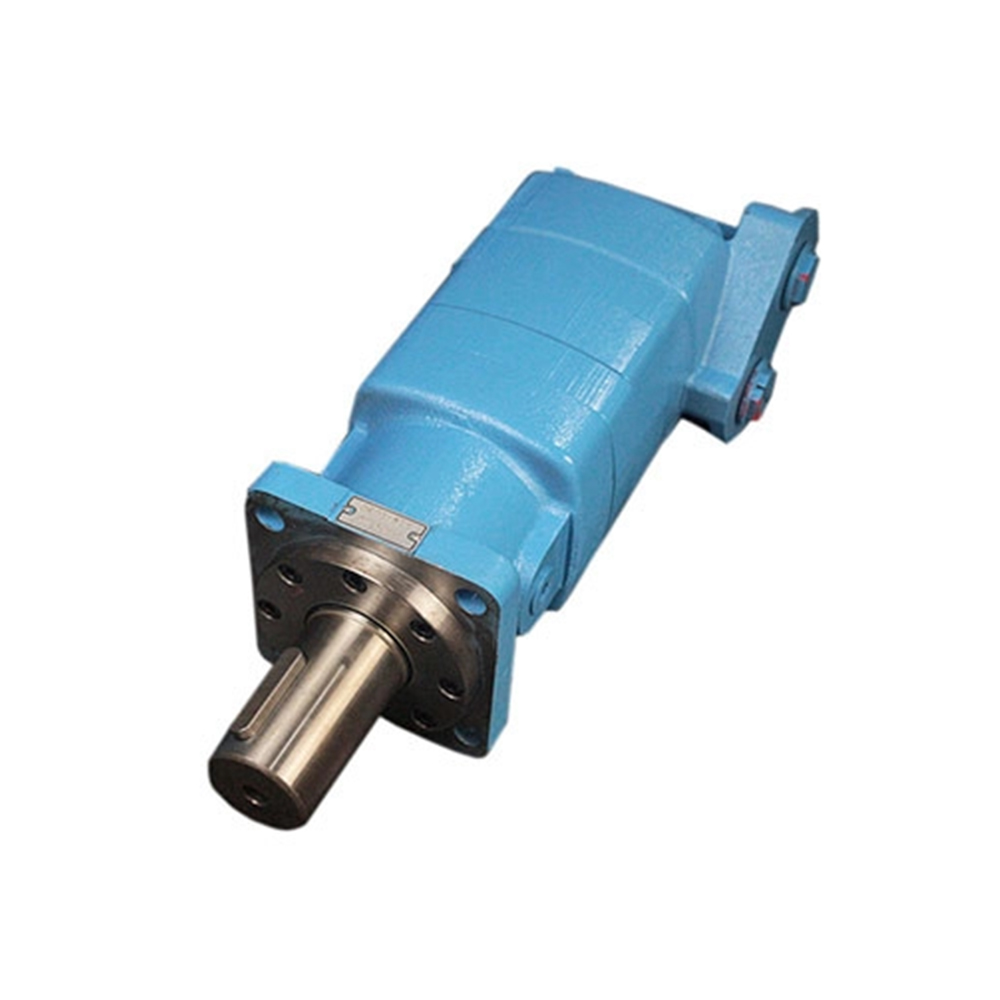

Char-Lynn 10,000 Series Hyd Motor 119-1042-003 for Jaw Crusher-665cm³/r, 4-Bolt Flange, Straight Shaft, 2-1/4in
Corrugated Jaw Liner
Hydraulically Driven
Char-Lynn 10,000 Series Hyd Motor
119-1042-003
| Series | 10000 - Standard type |
| Displacement | 665 cm³/r |
| Mounting Type | 4-Bolt Flange - 5 in Pilot |
| Shaft Type | Straight |
| Output Shaft Size | 2-1/4 in Straight - Straight Key |
| Overall Height | 5.79 in |
| Overall Length | 17.74 in |
| Overall Width | 5.91 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size | 1 1/4 inch Split Flange |
PARAMETERS
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar | bar | 205 | 205 | 205 | 190 |
Eaton similar type motors are available we belows:
J (129-) Xeriwell BMM
H (101-) Xeriwell BMPH
S (103-) Xeriwell BMRS
T (158-) Xeriwell BMRS
W (162-) HAJJIU BMRW
2000 (104-, 105-, 106-, 193-) Xeriwell BMK2
4000 (109-, 110-, 111-) Xeriwell BMK4
6000 (112-, 113-, 114-) Xeriwell BMK6
10000 (119-) Xeriwell BMK10
