  • BMT315 / OMT315

  • Xeriwell or Others

Features: High Pressure Oil Seal Product Name: Hydraulic Orbital Motor
Model Number: Xeriwell BMT315 Displacement: 160cc--800cc
Application: Hydraulic Drilling Rigs

Highlight:

orbital hydraulic motor

,

cycloid hydraulic motor

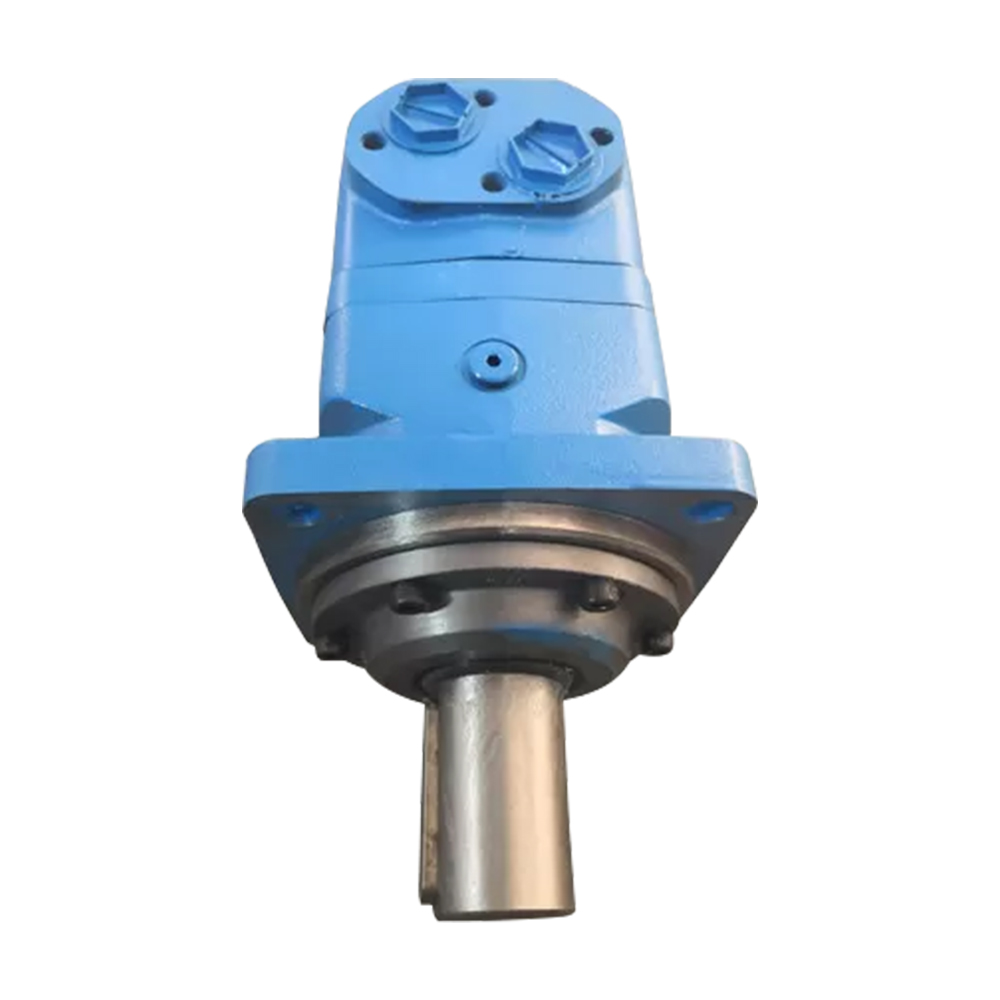

Low Speed High Torque Drilling Rig Motor OMT315 151B3003

Xeriwell BMT315 = OMT315 151B-3003

Displacement: 315cc

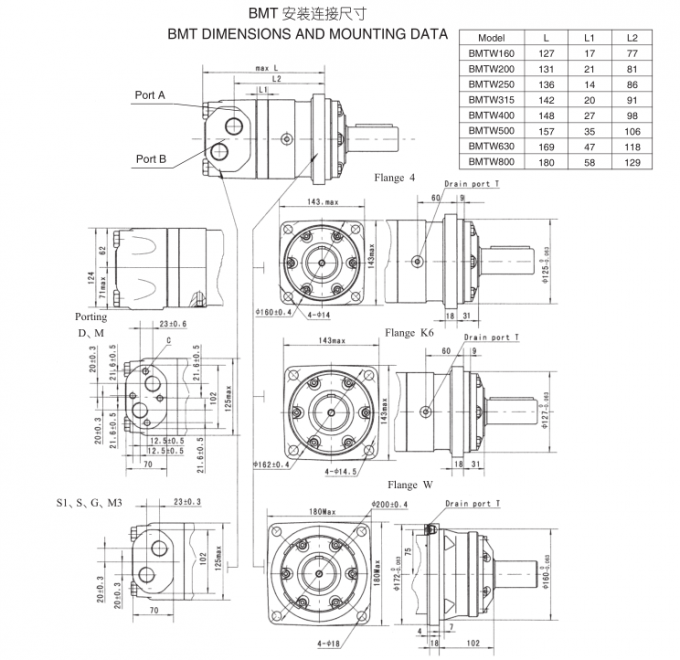

Flange: 4-Ø14 square flange Ø160

Pilot: Ø125

Shaft: Ø40

Key: 12*8*70

Oil Port: G3/4

Xeriwell Hydraulic BMT Motors Displacement
BMT / MT / OMT / HT 160cc
BMT / MT / OMT / HT 200cc
BMT / MT / OMT / HT 250cc
BMT / MT / OMT / HT 315cc
BMT / MT / OMT / HT 400cc
BMT / MT / OMT / HT 500cc
BMT / MT / OMT / HT 630cc
BMT / MT / OMT / HT 800cc

Specification

Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)
161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)
cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)
cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25
