| Quantity: | |
|---|---|
OMV/BMV
Xeriwell or Others
| Product: | Orbital Motor | Model No.: | OMV630 |
|---|---|---|---|
| Flange: | 4 Hole Square | Shaft Size: | 50 Mm ; M12 X 1,75 Tap |
| Shaft Key:: | A14 X 9 X 70 Mm (DIN 6885) | Port Size:: | Side Port |
| Highlight: | 10.25.4216 Orbit Hydraulic Motor,Omv630 Orbit Hydraulic Motor,Crusher Parts Omv630 | ||
Quick review:

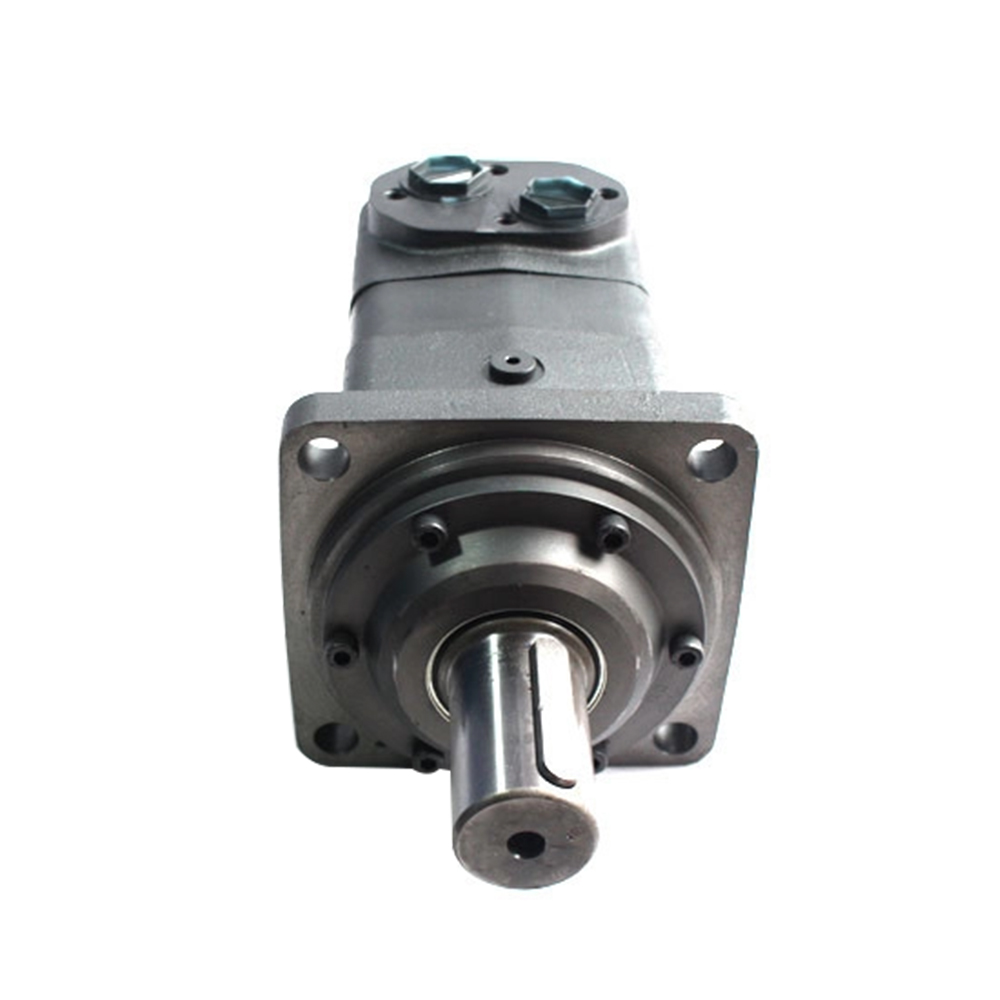

This is an BMV630 Orbital Motor with standard flange.
used on TEREX FINLAY crusher parts | crusher spares | crusher castings | crusher wear parts | screen parts | screen spares
OEM Number:10.25.4216 HYDRAULIC MOTOR
Type code:151G3309

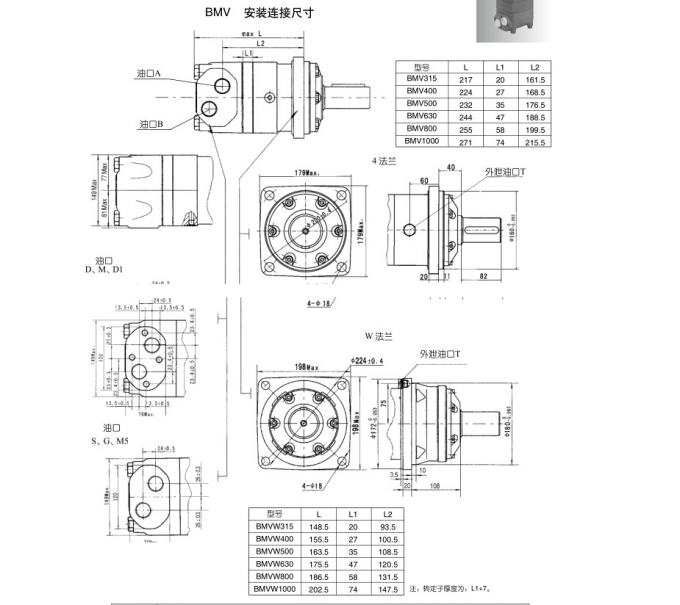

Technical information
key shaft Ø50 mm Flange 4 bolts
Ø200 - centring Ø160 mm lateral port
1""BSP - Drain 1/4 BSP ref Danfoss
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
