Parker denison M5A M5AS M5ASF M5AF Hydraulic Vane motor Product Introduction

Parker Denison M5 series motor is a fan motor, it has features below:

LOW NOISE MOTOR: 12 vanes and a patented cartridge design allows a very low noise level, whatever the speed.

HIGH PERFORMANCE MOTOR: The M5B series have been designed especially for severe duty applications wich require high pressure , high speed and low fluid lubricity.

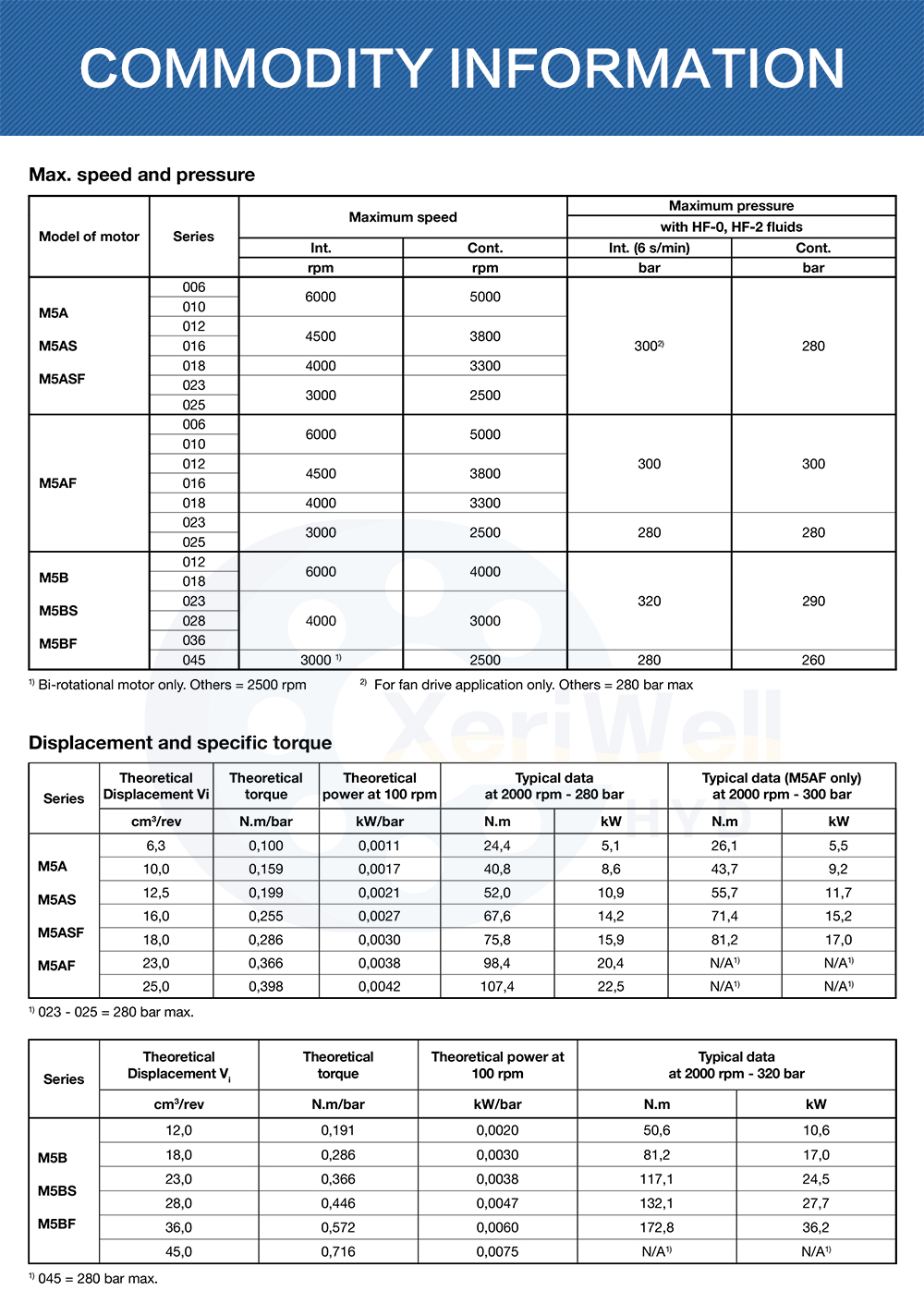

Max. pressure (intermittent)

M5A* 006 to 018 ...................................................................... : 300 bar

M5A* 023 - 025 ........................................................................ : 280 bar

M5B* 012 to 036 ...................................................................... : 320 bar

M5B* 045 ................................................................................. : 280 bar

Max. speed (intermittent, low loaded cond.)

M5A* 006 to 018 ................................................................. : 4000 RPM

M5A* 023 - 025 ................................................................... : 3000 RPM

M5B* 012 - 018.................................................................... : 6000 RPM

M5B* 023 - 028 - 036........................................................... : 4000 RPM

M5B* 045 ............................................................................. : 3000 RPM

HIGH EFFICIENCY: Up to 90 % overall at 300 bar for M5A* and 320 bar for M5B*.

Vane motors begin life with a high volumetric efficiency, and maintain that efficiency throughout their operating life.

Vane pin holdout design improves the mechanical efficiency at low pressure.

HIGH STARTING TORQUE: The high starting torque efficiency of the vane type motors allows them to start under high load without pressure overshoots, jerks and high instantaneous horsepower loads.

LOW TORQUE RIPPLE: This 12 vane type motor exhibits a very low torque ripple (typical ± 1,5%), even at low speeds.

HIGH LIFETIME: The vane, rotor and cam ring are pressure balanced to increase life over the full speed range. Double lip vanes reduce the sensitivity to fluid pollution.

INTERCHANGEABLE ROTATING GROUPS: Our precise manufacturing allows any component to be interchangeable. Rotating groups may be easily replaced to renew the motor or change the displacement to suit altered requirements for speed or torque.

ROTATION AND DRAIN: The M5B-M5BS are bi-directional motors, externally drained.

The M5AF and M5BF, externally drained, are available in three types of rotation : bi-directional, clockwise, counter-clockwise.

The M5AF1 and M5BF1, internally drained, are available in two types of rotation : clockwise, and counter-clockwise.

CROSS PORT CHECK VALVE: The uni-directional M5AF, M5AF1, M5BF and M5BF1 are designed with an internal valve that allows smooth dynamic braking, with a very simple hydraulic circuit and without risk of motor cavitation.

MOUNTING: M5B - M5BS : Cylindrical keyed or splined shaft according to SAE J744, ISO 3019-2 or J498.

These products are designed primarily for coaxial drives which do not impose axial or side loading on the shaft.

M5AF - M5AF1 : Cylindrical keyed or taper shaft, and a high load capacity double ball bearing allows the direct mounting on shaft (fan, ...).

M5BF : A stiff taper or cylindrical keyed shaft and a high load capacity double ball bearing allow the direct mounting on shaft (fan, ...).
