| Quantity: | |
|---|---|
105-1-73.8-B
Xeriwell or Others
| Product Name: | Hydraulic Steering Control Pumps | Oil Port: | 3/4-16 UNF O-ring |
|---|---|---|---|
| Quality: | Grade AAA | Material: | Metal |
| Displacement: | 73.8cc | Applications: | Used For , MF, , Fiat, Class, MTZ Etc. |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

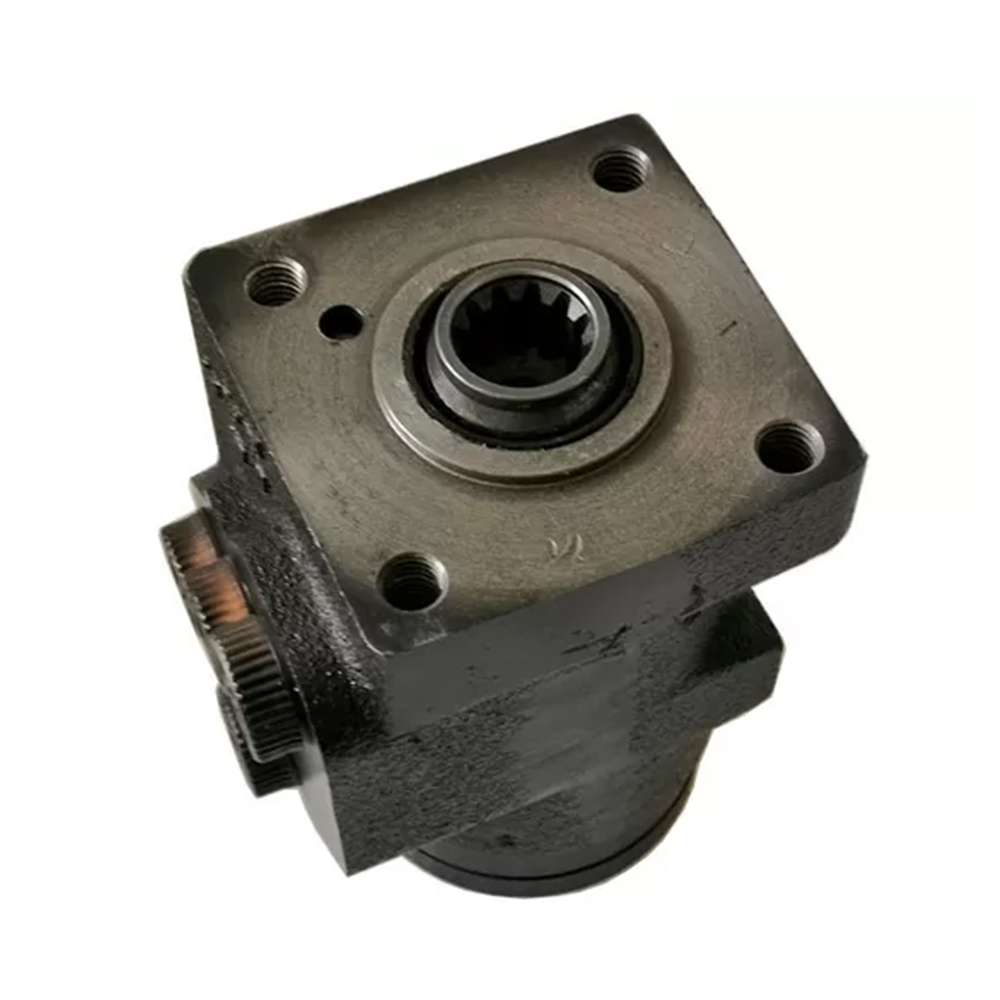

Tractor Hydraulic Steering Unit Orbitrol Power 105 eaton charlynn hydraulic steering power 291-1034-003
Xeriwell hydraulic steering units -----8 types,such as BZZ / 101 / 101S / 101S-5T / 102/103/060/109 series,
match the brand :OSPB,OSPC,OSPM series
M+S:HKU/HKUS
Charlynn/eaton:40/45 series,3,6,10series,5 series
Characters:
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101*-***-**-* | ||||||||||
| Function code | 1,2,3 | 1,3 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Function Code:
10 series steering units are one of our most popular type, founction available ON (open center non-reaction), CN (close center non-reaction), OR (open center reaction) and LS (load sensing).
Applications:
Its role is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission.
Widely used in , shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles.
With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.
