| Quantity: | |
|---|---|
BMM-32-MAE
Xeriwell or Others
| Features: | Danfoss OMM32 Interchangeable | Product: | Orbital Hydraulic Motor |
|---|---|---|---|
| Model No.: | BMM-32-MAE | Size: | 32 Ml/r |
| Flange: | 3-M6 Circle-flange, Pilot Ø31.5×5 | Shaft: | Shaft Ø16, Parallel Key 5×5×16 |
| Rotation: | Clockwise | Port: | G3/8, G1/8 |
| Highlight: | OMM32 Orbit Hydraulic Motor,151G0006 Orbit Hydraulic Motor,BMM-32-MAE Danfoss Orbital Motors | ||

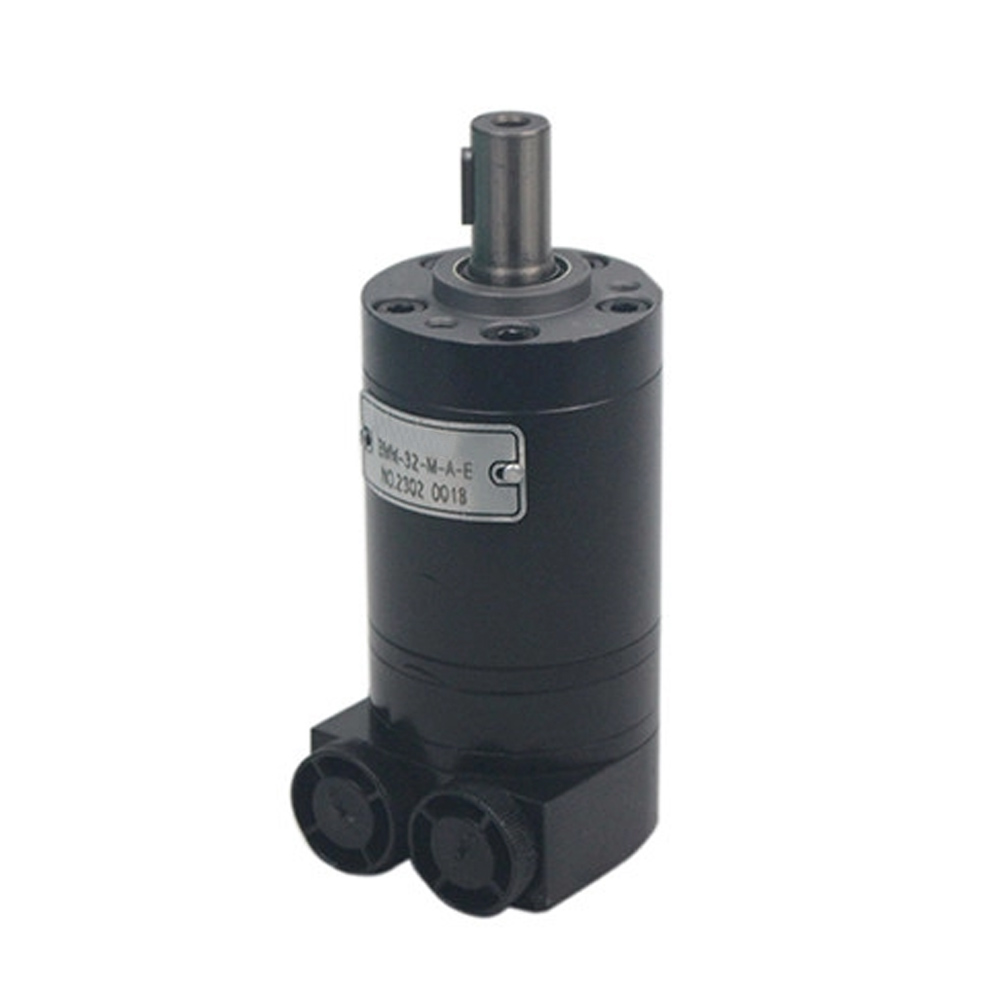

Orbital Hydraulic Motor OMM32-151G0006 BMM-32-MAE Compatible with Danfoss
Quick review:
Xeriwell BMM = Danfoss OMM
Model Number:
BMM-32-MAE
Details:
| Product | Orbital Hydraulic Motor |
| Model No. | BMM-32-MAE |
| Size | 32 ml/r |
| Flange | 3-M6 Circle-flange, pilot Ø31.5×5 |
| Shaft | Shaft Ø16, parallel key 5×5×16 |
| Rotation | CCW |
| Port | G3/8, G1/8 |
| Features | Danfoss OMM32 interchangeable |
Specification:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
