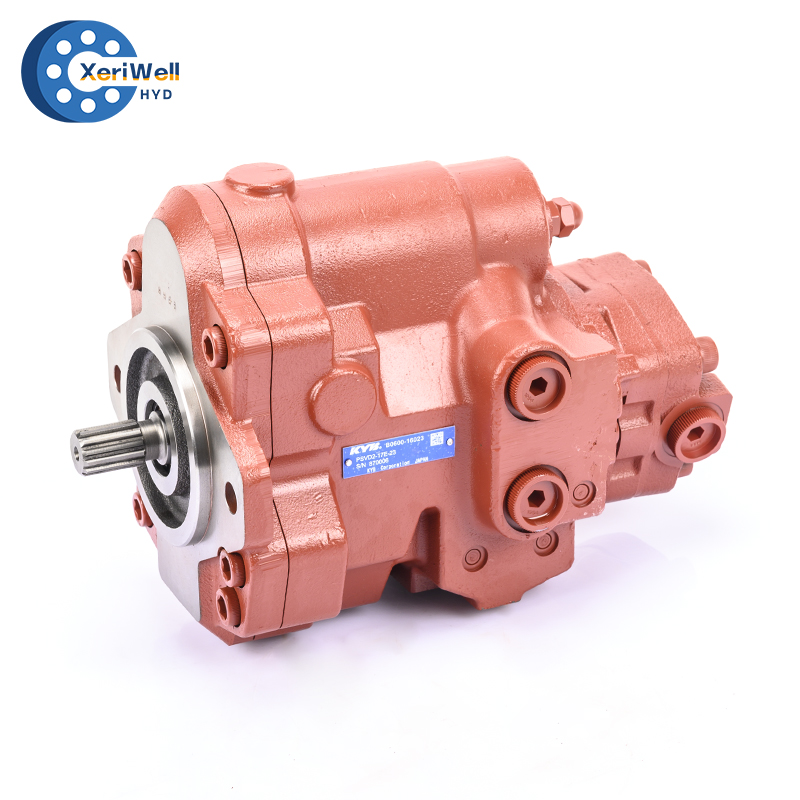

Executing proper hydraulic pump sizing does not just prevent failure. It stops inefficiencies from cascading throughout your entire fluid power system. You might face excessive energy consumption or thermal breakdown. Equipment stalling under heavy loads happens frequently when components mismatch. We must move past theoretical fluid dynamics. You must embrace practical engineering reality. Successful sizing requires calculating baseline metrics accurately. You evaluate flow, pressure, and displacement first. Then, you immediately adjust these figures. Real-world mechanical and volumetric inefficiencies require strict compensation. This article provides a verified, step-by-step framework. Procurement engineers and system integrators will find immense value here. You will learn to specify the exact pump dimensions required. We also map these figures to necessary motor power. You will ensure stable production environments. Our methods protect your industrial machinery from premature wear and sudden operational shutdowns.
Standard hydraulic formulas assume 100% efficiency; real-world applications require factoring in volumetric and mechanical losses (typically 10–15%).
Sizing must account for starting torque requirements, not just running torque, to prevent load-start stalling.
Selecting between a gear pump, vane pump, or piston pump directly alters your sizing math due to differing internal leakage (slip) rates.
Ignoring Net Positive Suction Head (NPSH) and fluid viscosity will lead to cavitation, regardless of how perfectly the displacement is calculated.
Specifying wrong pump dimensions guarantees operational failure. You must understand the physical symptoms of both oversizing and undersizing. This knowledge helps you diagnose existing systems effectively. It also prevents costly design flaws in new builds.
The oversizing trap is incredibly common in industrial design. Engineers often select a massive unit out of caution. This forces the system to dump excess flow over relief valves constantly. It generates continuous, damaging heat. It accelerates seal wear rapidly. You end up wasting significant kilowatt-hours over the machine lifecycle. Oversized systems also create dangerous situations. Actuators might move far too quickly, creating jerky, unsafe motions.
Conversely, undersizing leads to immediate mechanical failure under load. You will notice sluggish actuator speeds immediately. The system fails to maintain adequate pressure during peak operational demands. Your electric motor will overheat quickly. It runs continuously at maximum capacity just to keep fluid moving. Constant overheating destroys motor windings and degrades oil quality fast.
Let us define a strict evaluation baseline. A properly sized system meets three distinct criteria every time:
Actuators move at the precise target speed, ensuring correct fluid flow.
The system sustains necessary force, maintaining stable pressure against resistance.
It achieves these benchmarks without exceeding the electric motor continuous duty rating.
We approach sizing through a strict mathematical sequence. You cannot guess these values. Industry standards require precise formulas to establish your theoretical baseline. We outline the four essential steps below.
Determine Required Flow Rate (Actuator Speed) You first map the relationship between actuator speed and necessary fluid volume. Measure your cylinder or motor speed requirements. Translate this data into Gallons Per Minute (GPM) or Liters Per Minute (L/min). Flow dictates exactly how fast your equipment moves. A high-speed conveyor needs high flow. A slow, precise shop press requires minimal flow.
Calculate Required Pump Displacement Displacement represents the exact volume pushed per revolution. Target flow rate and your chosen electric motor operating speed (RPM) dictate this physical size. You divide your target flow by your RPM to find the theoretical displacement. Electric motors typically run at fixed speeds like 1450 RPM or 1750 RPM. You must know this RPM before calculating internal dimensions.
Define Maximum System Pressure (Actuator Force) Do not view pressure as a direct pump output. Frame it strictly as the system resistance to flow. Calculate this metric based on the maximum physical load your hydraulic cylinder must move. Heavier loads push back harder against the fluid. This resistance dictates your required system pressure limits.
Compute Required Input Motor Power (HP or kW) Finally, calculate the electrical power needed to drive the fluid. You combine your flow and pressure data. The math is straightforward but critical. Pressure multiplied by flow, divided by a specific constant, equals theoretical power.
Calculation Goal | Formula (Imperial Units) | Formula (Metric Units) |
|---|---|---|
Required Flow Rate | GPM = (RPM × Displacement in⊃3;) / 231 | L/min = (RPM × Displacement cm³) / 1000 |
Required Displacement | Disp = (GPM × 231) / RPM | Disp = (L/min × 1000) / RPM |
Input Motor Power | HP = (GPM × PSI) / 1714 | kW = (L/min × Bar) / 600 |
Theoretical formulas assume a perfect engineering world. Real industrial environments introduce mechanical and volumetric losses. You must adjust your baseline calculations to reflect actual operating conditions. Failure to compensate guarantees poor performance.
We start by correcting for volumetric efficiency. As system pressure rises, internal fluid slip increases. Some fluid always leaks back through pump internal clearances. Standard units often operate at 85 to 90 percent volumetric efficiency. You must divide your theoretical flow by this efficiency rating. This critical calculation reveals your true displacement needs. If you ignore slip, your actuators will move slower than expected under heavy loads.
Next, apply strict mechanical safety margins. Theoretical horsepower calculations require a safety factor. You multiply the theoretical power by a factor of 1.15 to 1.20. This buffer accounts for mechanical friction within the housing. It also compensates for friction inside the motor coupling. If you ignore this margin, your electric motor will stall constantly.
Viscosity and thermal variance severely impact your calculations. Cold start-ups feature high fluid viscosity. Thick oil increases suction resistance significantly. This drives up power requirements during initial operation. Conversely, high operating temperatures cause extremely low viscosity. Thin oil increases internal leakage drastically. You need a slightly larger displacement to maintain your target flow when temperatures spike. Operators must define their temperature extremes before finalizing the sizing documentation.
Your sizing math changes depending on the architecture you select. Each design handles internal leakage differently. You must adjust your efficiency formulas based on the specific type you purchase.
Consider the gear pump first. We position these as robust, cost-effective solutions for moderate pressure systems. Their lower volumetric efficiency requires slightly larger displacement sizing buffers. You must account for more internal slip as system pressure climbs. They are highly reliable but demand a conservative power estimate to prevent motor stalling.
Next, look at the vane pump. We highlight their quiet operation. They provide excellent suitability for steady-state industrial applications. However, they carry specific minimum and maximum RPM limitations. This constraints your motor selection during the sizing process. You cannot run them at excessive speeds without causing severe internal damage. They rely on centrifugal force to extend their vanes, demanding precise speed matching.
Finally, examine piston designs. We frame these for high-pressure, high-efficiency requirements. They demand a much smaller efficiency correction factor. Their internal seals remain incredibly tight even at extreme pressures. However, their upfront cost is substantially higher. Their extreme sensitivity to fluid contamination demands stricter system filtration planning. You must protect this high-end hydraulic pump from microscopic debris to maintain its superior efficiency rating.
Pump Architecture | Typical Volumetric Efficiency | Primary Sizing Consideration | Best Application Scenario |
|---|---|---|---|
Gear Architecture | 80% to 90% | Needs larger displacement buffers for high slip. | Mobile equipment, material handling. |
Vane Architecture | 85% to 92% | Strict RPM limits dictate motor selection. | Indoor industrial presses, quiet zones. |
Piston Architecture | 90% to 95%+ | Requires exact power math; highly efficient. | High-pressure systems, continuous heavy duty. |
You must evaluate two critical system guardrails before finalizing your design. Many engineers perfectly calculate running flow but ignore these dynamic constraints. Ignorance here leads to catastrophic hardware failure.
First, understand starting torque versus running torque perfectly. We strongly warn against sizing motor power purely on running conditions. Systems starting under heavy loads require massive torque. Winches, loaded conveyors, and heavy lifting cylinders are prime examples. They require significantly higher starting torque to overcome static friction. You often must specify a much larger electric motor just to get the system moving. A motor sized only for steady-state running will hum loudly and trip circuit breakers during a loaded start.
Second, calculate the Net Positive Suction Head (NPSH) thoroughly. We introduce NPSH as your critical defense against cavitation. Cavitation destroys metal internals rapidly. You evaluate the suction line diameter, the pipe length, and fluid vapor pressure. Ensure the suction line is short and wide. Never starve the fluid inlet. A starved unit creates vacuum bubbles. These bubbles implode violently against internal metal surfaces. They erode gears and pistons in a matter of hours. Proper suction sizing prevents this destruction entirely.
Successful sizing remains an iterative engineering loop. You calculate your theoretical needs first. Next, you adjust for efficiency losses and mechanical friction. Then, you verify these figures against motor torque limits. Finally, you confirm your suction conditions prevent cavitation.
Do not rely solely on catalog maximums. We advise buyers to require specific performance curves from manufacturers. Evaluate actual flow versus pressure graphs before purchasing. These curves show exactly how much internal slip occurs at your target pressure.
Prepare your documentation properly. Compile a strict specification sheet immediately. Include your target flow, maximum operating pressure, fluid viscosity range, and duty cycle. Share this exact data with your chosen suppliers. Demand final engineering validation before signing any purchase orders.
A: Your unit is likely oversized. An oversized unit generates excessive flow. The system forces this unused fluid over relief valves constantly. This continuous bypass action creates massive friction, turning kinetic energy into damaging heat. You must reduce the displacement or lower the motor RPM to match actual system demands.
A: Yes, you generally do. Gear designs have lower volumetric and mechanical efficiency than piston equivalents. You experience more internal fluid slip. This inefficiency requires a 15 to 20 percent power offset. You must specify a larger electric motor to deliver the same usable power to your actuators.
A: Fluid viscosity changes drastically with temperature. High temperatures thin the hydraulic oil, lowering its viscosity. This thin fluid increases internal slip within the housing. Your effective output drops. You must factor in a larger displacement buffer to compensate for this leakage when operating in hot environments.
A: No, you cannot. Theoretical math assumes perfect conditions. Real systems experience physical friction in bearings, seals, and motor couplings. You must multiply your theoretical horsepower by a safety margin of 1.15 to 1.20. Ignoring this mechanical safety margin guarantees your motor will stall under peak loads.
