Hydraulic pumps are the heart of any hydraulic system, converting mechanical energy into hydraulic energy to power various types of machinery. When selecting a hydraulic pump, two of the most common types encountered are gear pumps and piston pumps. Both serve the fundamental purpose of moving hydraulic fluid through the system, but their design, efficiency, performance, and suitability vary greatly. This article will provide a comprehensive analysis of gear and piston hydraulic pumps, helping you make an informed decision on which to choose for your specific application.
Before diving into the detailed comparison, it’s essential to understand what a hydraulic pump is and why it’s critical to hydraulic systems. A hydraulic pump generates flow with enough power to overcome pressure induced by the load. In simpler terms, it pushes the hydraulic fluid through the system, enabling actuators like cylinders or motors to perform work.
There are several types of hydraulic pumps, but gear pumps and piston pumps are among the most widely used in industrial and mobile hydraulics due to their robust performance and reliability. Understanding their mechanics, strengths, and limitations will clarify which pump type fits best in various scenarios.
Gear pumps are among the simplest and most cost-effective hydraulic pumps available. They operate by meshing two or more gears to move fluid through the pump. The rotating gears create a vacuum at the pump inlet, drawing fluid into the gear teeth spaces. As the gears continue rotating, they carry fluid around the casing and expel it under pressure through the outlet.
Simplicity and Cost-Effectiveness: Gear pumps have fewer moving parts, making them easier to manufacture, maintain, and repair.
Compact Size: Their straightforward design allows for smaller pump dimensions and lighter weight.
Good for Low to Medium Pressure: Typically, gear pumps operate efficiently under pressures up to 3000 psi.
Reliable and Durable: Their solid construction often results in longer service life under proper maintenance.
Lower Efficiency: Compared to piston pumps, gear pumps tend to have more internal leakage and less volumetric efficiency.
Noise Levels: Gear pumps often generate more noise during operation due to gear meshing.
Fixed Displacement: Most gear pumps are fixed displacement, limiting their flexibility in variable flow applications.

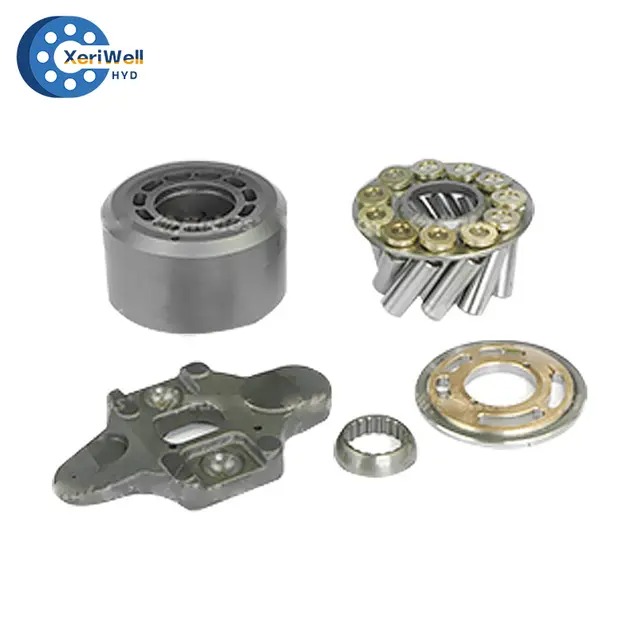

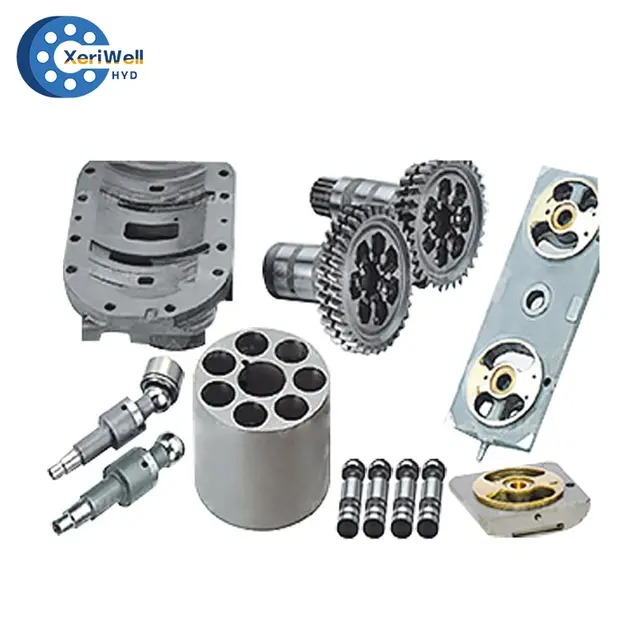

Piston pumps represent a more complex and high-performance category of hydraulic pumps. They use pistons arranged in a cylinder block that reciprocates to move fluid. The pistons’ linear movement creates suction and pressure to push the hydraulic fluid through the system. Piston pumps can be axial or radial based on the piston orientation.
High Efficiency: Piston pumps offer superior volumetric and mechanical efficiency, often exceeding 90%.
High Pressure Capability: They can operate reliably at very high pressures, often up to 5000 psi or more.
Variable Displacement Options: Many piston pumps allow adjustment of flow rates and pressure, offering greater control and system flexibility.
Quiet Operation: They generally produce less noise due to smooth piston movement.
Higher Cost: The intricate design and precision manufacturing make piston pumps more expensive.
Maintenance Complexity: More moving parts translate to potentially higher maintenance requirements and complexity.
Size and Weight: Typically larger and heavier than gear pumps, which may be a disadvantage in space-limited applications.
| Feature | Gear Hydraulic Pump | Piston Hydraulic Pump |
|---|---|---|
| Operating Pressure | Up to ~3000 psi | Up to ~5000 psi or higher |
| Efficiency | 70% - 85% | 85% - 95% |
| Noise Level | Higher due to gear meshing | Lower due to smooth piston action |
| Cost | Lower cost | Higher cost |
| Maintenance | Easier and less frequent | More complex and frequent |
| Displacement | Fixed displacement | Variable or fixed displacement |
| Size and Weight | Compact and lightweight | Larger and heavier |
| Application Suitability | Low to medium pressure, simple systems | High pressure, precise control systems |
Choosing the right hydraulic pump depends on several critical factors, including application requirements, budget, system pressure, and desired efficiency. Below are key considerations to guide your selection process:
If your application demands high pressure above 3000 psi, piston pumps are generally the better choice due to their robust design and ability to handle high pressures safely and efficiently. Gear pumps are ideal for systems operating at lower to medium pressures.
For systems that require variable flow rates and precise control, piston pumps offer variable displacement models that can adjust flow dynamically to match demand, improving energy efficiency. Gear pumps mostly provide fixed displacement, limiting adaptability.
If cost-effectiveness is a priority and the system demands are moderate, gear pumps present a reliable and economical option. Piston pumps, while more expensive, may deliver cost savings over time through efficiency and durability in demanding applications.
In compact or weight-sensitive designs, gear pumps typically fit better due to their smaller size and lower weight. Piston pumps may require more space and additional support due to their heavier construction.
Noise can be a critical factor in some environments. Piston pumps usually operate more quietly compared to the mechanical noise of gear meshing in gear pumps.
If ease of maintenance and lower downtime are priorities, gear pumps are easier to service due to their simpler mechanics. Piston pumps require more specialized attention and regular maintenance schedules.
Generally, gear pumps are designed for low to medium pressure ranges (up to about 3000 psi). Using them in higher pressure systems can cause premature wear or failure. For pressures above this range, piston pumps are preferred.
The lifespan depends heavily on operating conditions and maintenance. Gear pumps, due to simpler design, are durable in less demanding environments. Piston pumps, while more complex, can last longer under high pressure and heavy-duty use if maintained properly.
Yes, piston pumps typically have higher volumetric and mechanical efficiency, which translates to lower energy consumption for the same hydraulic power output.
Gear pumps are less tolerant to contaminated fluids compared to piston pumps. Particles can cause wear on gear teeth and reduce efficiency.
No, gear pumps are generally fixed displacement by design. Variable flow requires either changing pump speed or switching to a variable displacement pump like a piston pump.
Selecting between a gear hydraulic pump and a piston hydraulic pump ultimately hinges on your specific hydraulic system’s demands. Gear pumps offer simplicity, affordability, and compactness suited for low to medium pressure applications with relatively straightforward flow requirements. On the other hand, piston pumps excel in high-pressure environments requiring high efficiency, precision control, and variable flow capabilities but come at a higher cost and maintenance complexity.
Evaluate your system’s pressure ratings, flow variability needs, budget constraints, noise tolerance, and maintenance capacity to make the optimal choice. Investing in the right pump can enhance system reliability, efficiency, and longevity, providing significant operational benefits over time.
