| Quantity: | |
|---|---|

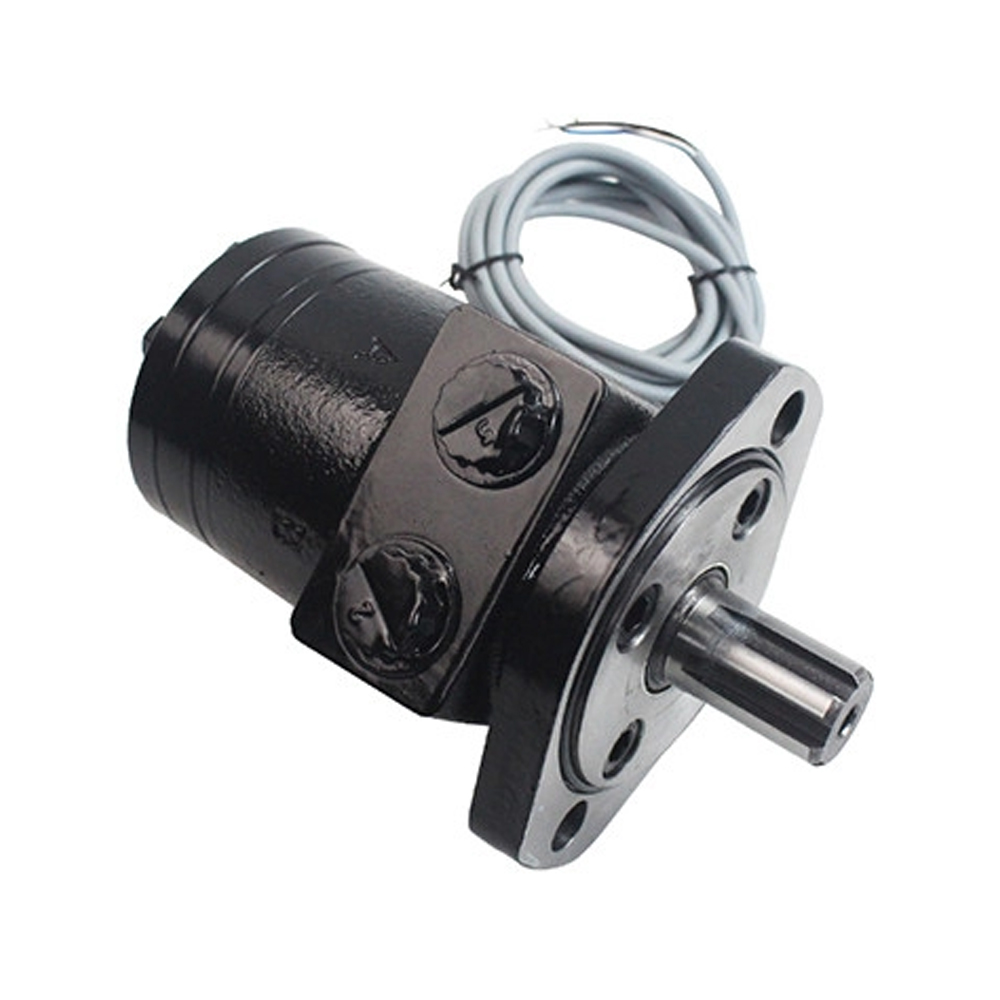

BMPH-100-H2-S-S-B
Xeriwell or Others
| Item: | Speed Sensor Motor | OEM #: | BMPH-100-H2-S-S-B |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 100 Ml/r |
| Mounting Flange: | 2-hole | Shaft Type: | 6B |
| Highlight: | Sensor BMPH Orbital Motors,China BMPH Orbital Motors,BMPH Orbital Motors With Speed Sensor | ||
Quick review:
Model no.: BMPH-100-H2-S-S-B

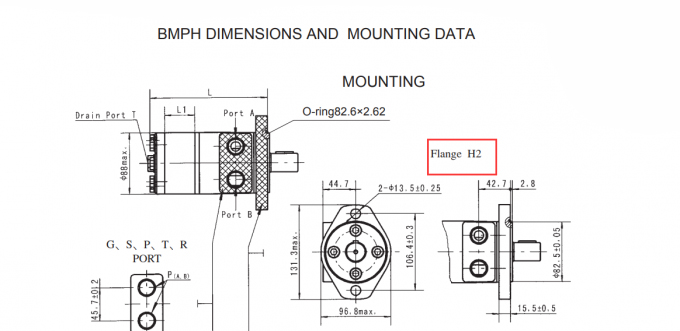

Flange: 2 bolt
Shaft: 1'' 6B
Feature: with Speed sensor
Details specifications
Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Technical data for BMP with 31.75 and 32 shaftt:
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
