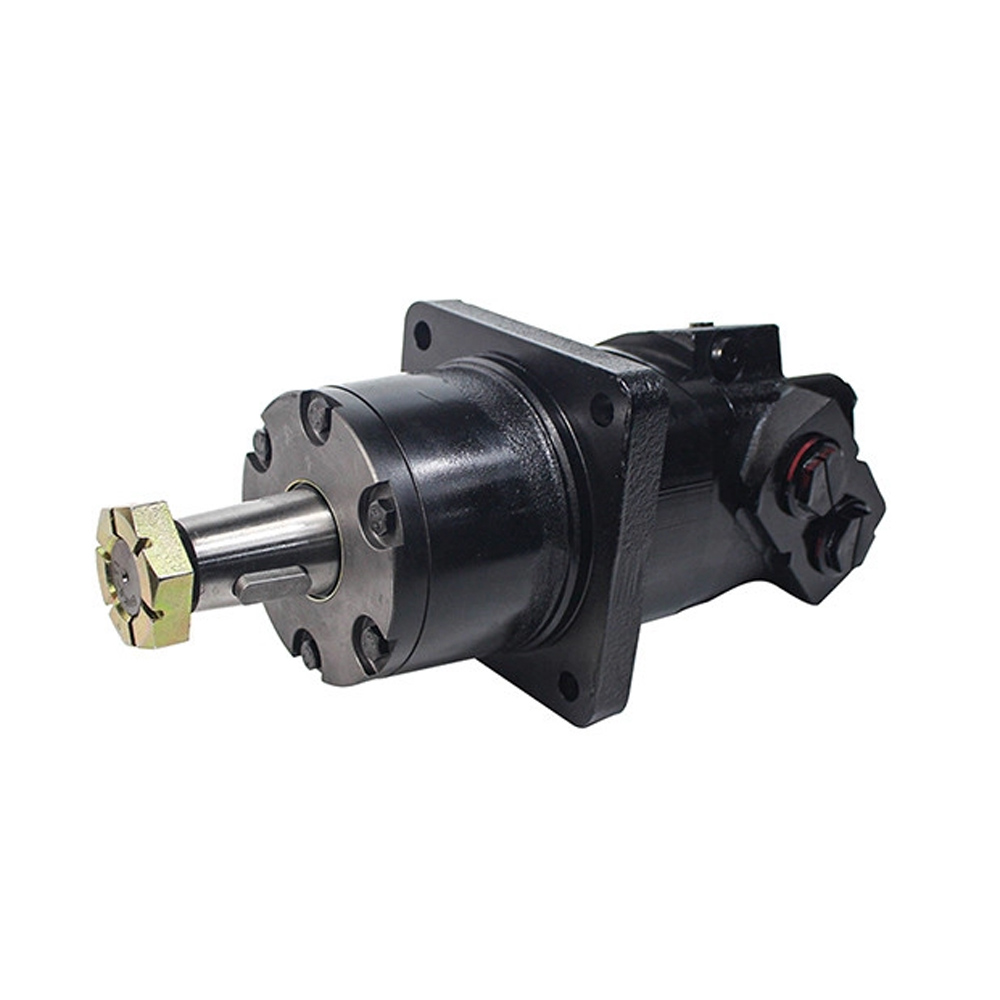

Eaton Charlynn 113-1163-006
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | 113-1163-006 | Displacement: | 500ml/r |
| Flange: | Wheel Mount | Shaft: | 1:8 45mm Tapper Shaft |
| Port Size: | 1 5/16-12UN | Drain Line: | 7/16-20UNF |
| Highlight: | 500cc motor With Wheel Mount,500cc Orbital Hydraulic motor,Eaton Charlynn 113-1163-006 Replacement motor | ||
Eaton Charlynn 113-1163-006 replacement, 500cc with wheel mount, 1:8 45mm Tapper Shaft
Quick review:
BMK6-500-W-T1-SF5 = Eaton Char lynn 113-1163-006
Output volume (cc/rev): 500

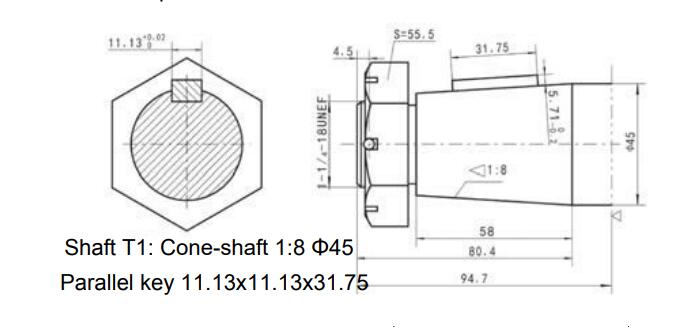

Shaft Ø (mm): 1:8 45mm Tapper Shaft
max r.p.m.: 455
Torque max. (Nm): 1880
Pressure difference (bar): 300
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard
Connection: 1 5/16-12UN
Leakage oil connection: 7/16-20UNF
Main specifiction:
| TYPE | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |

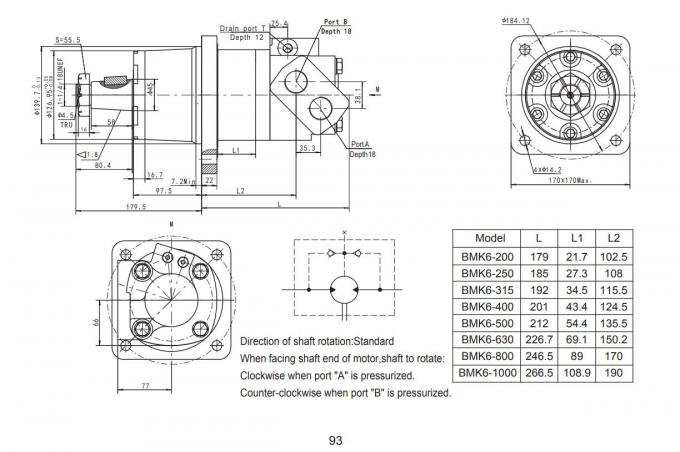

| Model | L | L1 | L2 |
| BMK6-200 | 179 | 21.7 | 102.5 |
| BMK6-250 | 185 | 27.3 | 108 |
| BMK6-315 | 192 | 34.5 | 115.5 |
| BMK6-400 | 201 | 43.4 | 124.5 |
| BMK6-500 | 212 | 54.4 | 135.5 |
| BMK6-630 | 226.7 | 69.1 | 150.2 |
| BMK6-800 | 246.5 | 89 | 170 |
| BMK6-1000 | 266.5 | 108.9 | 190 |

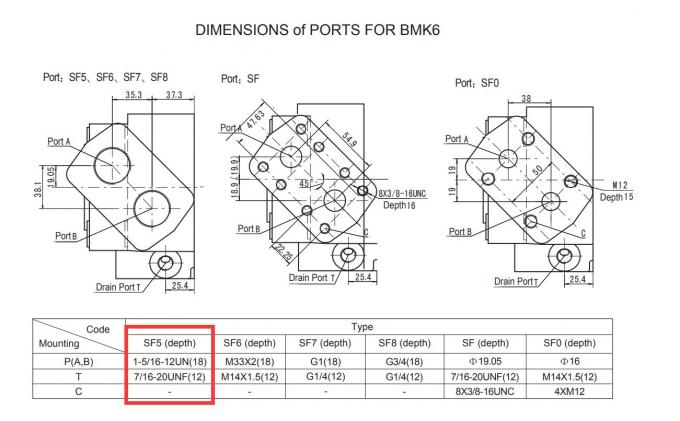

| Mounting Code | Type | |||||
| SF5 (depth) | SF6 (depth) | SF7 (depth) | SF8 (depth) | SF (depth) | SF0 (depth) | |
| P(A,B) | 1-5/16-12UN(18) | M33X2(18) | G1(18) | G3/4(18) | 桅 19.05 | 桅 16 |
| T | 7/16-20UNF(12) | M14X1.5(12) | G1/4(12) | G1/4(12) | 7/16-20UNF(12) | M14X1.5(12) |
| C | - | - | - | - | 8X3/8-16UNC | 4XM12 |
