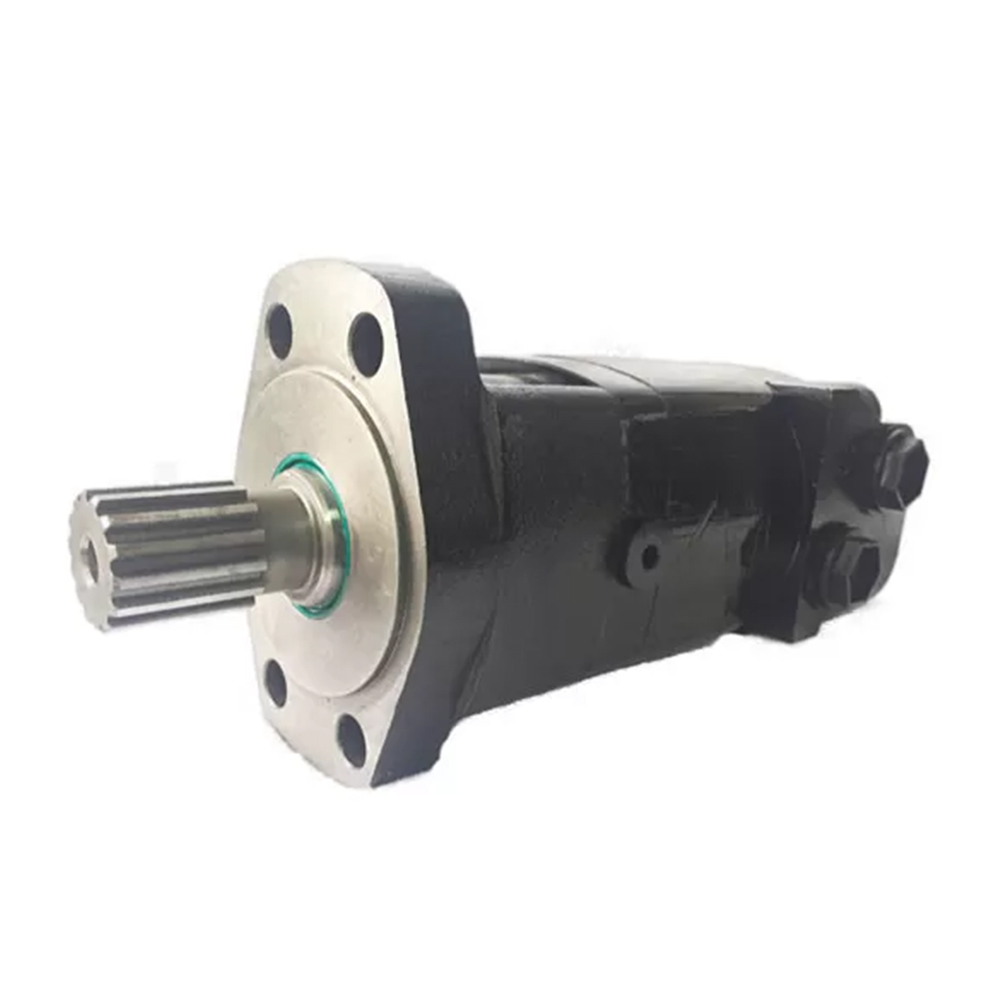

Hydraulic Drive Motor BMS Transmission Engines 4 Bolt Rhombus, 14 Teeth Spline
Description:
We are the specialized manufacturer of orbital hydraulic motor, we can produce kinds of motor with different models and technical parameters. Which has provided wide choice to meet customer’s needs.Meanwhile, Our products manufactured can be completely interchanged with SAUER OMP, OMR, OMH, OMS, OMT AND OMV series.
Features:
1. Advanced design in disc distribution flow, which can automatically compensatein operating.
2. Various kinds of flange, output shaft and oil port mounting dimension.
3. Shaft seal can bear high pressure of back and the motor can be used in parallel or inseries.
4.Special design in the driver-linker and prolong operation life.
5. The output shaft adopts in tapered roller bearings thatpermit high axial and radial forces. The can offers capacities of highpressure and high torque in the wide of applications.
Applications:
BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Model Crossing:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | BOSCH | ||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | |||
| BMM | MM | OMM | MGX | ||||||
| MLHK | J SERIES | - | - | - | BGM | ||||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | ||
| TE | |||||||||
| HP | H SERIES | DH | MG | RS | TB | ||||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | |||
| HR | S,T SERIES | DS | RE | TF | |||||
| MLHRW, RW | W SERIES | OMEW | |||||||
| BMH/BM4 | MH | OMH | |||||||
| MLHH | ME | ||||||||
| HW, HWF | RE | TG | |||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | |||||
| HPR | |||||||||
| MLHS | 2000 SERIES | ME | RE | ||||||
| BMT/BM6 | MT | OMT | MGT, GMT | ||||||
| MLHT | 6000 SERIES | MJ | HT | ||||||
| MTM | TMT | ||||||||
| BMV | MV | OMV | MGV, GMV | ||||||
| MLHV | 10000 SERIES |
| Model | L | L1 | L2 |
| BMS-80 | 167 | 13 | 123.2 |
| BMS-100 | 171 | 17 | 127.2 |
| BMS-125 | 176 | 22 | 132.2 |
| BMS-160 | 181.5 | 27.5 | 137.7 |
| BMS-200 | 189 | 35.1 | 145.2 |
| BMS-250 | 201 | 47 | 157.2 |
| BMS-315 | 213 | 59 | 169.2 |
| BMS-375 | 225 | 71 | 181.2 |
| Model | L | L1 | L2 |
| BMS-80-W | 129.4 | 13 | 86 |
| BMS-100-W | 133.4 | 17 | 90 |
| BMS-125-W | 138.4 | 22 | 95 |
| BMS-160-W | 143.9 | 27.5 | 100.5 |
| BMS-200-W | 151.4 | 35.1 | 108 |
| BMS-250-W | 163.4 | 47 | 120 |
| BMS-315-W | 175.4 | 59 | 132 |
| BMS-375-W | 187.4 | 71 | 144 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) |
| P(A,B) | G1/2(18) | M22x1.5(18) | 7/8-14 O-ring (18) | 1/2-14NPTF (15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10 (13) | 2-3/8-16UNC (13) | 2-3/8-16UNC (13) |
| Pos.1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
| Code | Disp. | Flange | Output Shaft | Ports and Drain Port | Rotation Direction | Paint | Unusually Function | ||||||
| BMS | 80 100 125 160 200 250 315 375 | E2 E4 F6 W E2B SP | 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5 × 6.3 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5 × 6.3 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5 × 2.6 4-Ø13.5 Wheel-flange Ø160.,pilot Ø125 × 8 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6 × 9.4 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5 × 6.3 | A B D G F FD SL T1 T3 S1 I | Shaft Ø25,parallel key 8 × 7 × 32 Shaft Ø32,parallel key 10 × 8 × 45 Shaft Ø25.4,parallel key6.35 × 6.35 × 25.4 Shaft Ø31.75,parallel key 7.96 × 7.96 × 31.75 Shaft Ø31.75,spined tooth 14-DP12/24 Long Shaft Ø31.75,spined tooth 14-DP12/24 shaft Ø34.85,Spined key 6-34.85 × 28.14 × 8.64 Cone-shaft Ø95,parallel key B6 × 6 × 20 Cone-shaftØ31.75,parallel key 7.96 × 7.96 × 31.75 Shaft Ø25.4,spined tooth SAE 68 Sub-shaft Ø22,spined tooth 13-DP16/32 Short shaft 12-DP12/24 | D M S P | G1/2 Manifold Mount 2-M10，G1/4 M22 × 1.5 Manifold Mount 2-M10，M14 × 1.5 7/8-14UNF O-ring manifold 2-3/8-16，7/16-20UNF 1/2-14NPTF manifold 2-3/8-16UNC，7/16-20UNF | 0mt R | Standard Opposite | 0 Omit B S | No paint Blue Black Silver grey | Omit F LS | Standard Free Running Low Speed |
| BMSS | D E | 4-Ø11 Circle-flange Ø125,pilot Ø100 × 6 4-Ø13.5 Square-flange Ø127,pilot Ø101.6 × 6.3 | 0ri | ||||||||||
| Note:When the table is used,please fill the code of left rows in the table and give us,which the code information is consists of construction,displacement,mounting flange,output shaft and ports . If the specification is not in the table or you have specific requirements,please contact us . SP for T1、D、B、F、G . Shaft T1、D、B、FD、G for flange SP code T2、D1、B1、F1、G1.The specific dimensions see installation diagram provides additional. | |||||||||||||
