BK10-1-1150-T31-S1
Xeriwell or Others
| Type: | Hydraulic Motor Brake | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BK10-1-1150-T31-S1 | Min Static Torque: | 1150 Nm |
| Release Pressure: | 2.8 MPa | Max Release Pressure: | 21 MPa |
| Max Speed: | 300 Rpm | Release Volume: | 12cm3 |
| Max Pressure In Drain Space: | 0.05 MPa | Application: | Scissors Aerial Work Platform And Agriculture Machine |
| Highlight: | BK10 brake motor,Agriculture Machine brake motor | ||
Quick details:

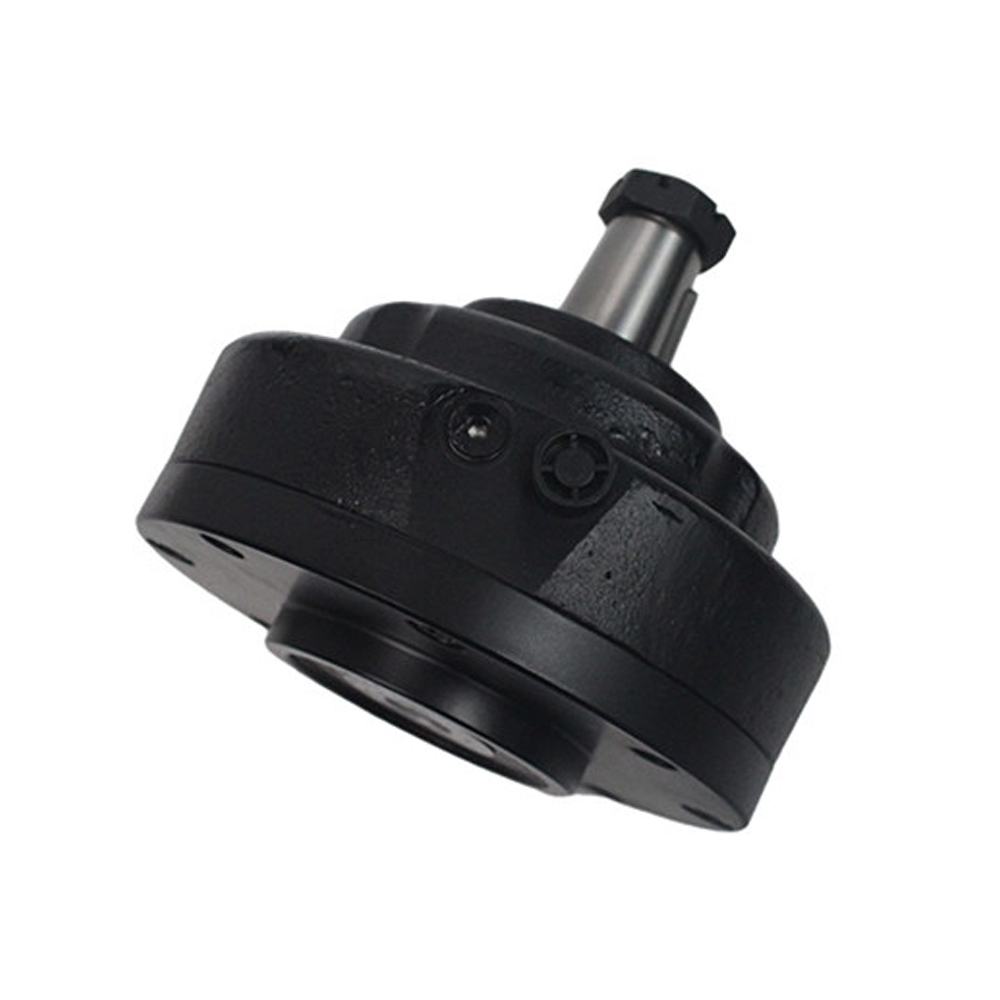

BK10 series hydraulic brake.
Type, Hydraulic Motor Brake
Brand, Xeriwell
Model No., BK10-1-1150-T31-S1
Min static torque, 1150 Nm
Release Pressure, 2.8 MPa
Max release pressure, 21 MPa
Max Speed, 300 rpm
Release Volume, 12cm3
Max pressure in drain space, 0.05 MPa
Application, Scissors aerial work platform and agriculture machine
Feature:
* The output shaft adopts the same heavy duty roller bearing in front and behind, which is bigger ability on radial load.
* It adopts optimized disc brake piece and spring load, for reliable braking and good endurance.
* Optimizing piston and loading mechanism, to provide the minimum dimension of wheel connection method.
* With double braking release port, in order to discharge the braking cylinder gas or external brake fluid.
* Big braking torque, suitable for static braking
How to extend the service life of the brake system:
In order to make the BK10 series brake work under the best situation, we recommend the normal requirements as follows:
Assembly: 1st of all , we have to mount the brake BK10 with hydraulic motor, and then fill the brake with lubrication oil through the drain port, and then mount with other parts.
Fluid type:Mineral based-HM(GB/T763.2-87) (ISO6743/4) or HLP(DIN51524).
Temperature range:normal -20℃-90℃the best optimal situation 20℃-60℃
Viscosity range: 20~75mm2/s; the best optimal situation 42~74mm2/s at 40℃.
Filtration:nominal filtration of 25 micron, ISO code 20/16.
Maintenance: changed after the first 50~100h;then after every 500~1000h.
