MB220105BBBA
Xeriwell or Others
| Product: | Medium Duty Hydraulic Motor | Model Number: | MB Series |
|---|---|---|---|
| Applications: | Hydraulic System Request High Pressure | Rotary: | Counter-clockwise |
| Flange: | 6 Hole Mounting | Shaft: | Spline Shaft |
| Highlight: | MB220105BBBA hydraulic orbit motor,Ross Interchange hydraulic orbit motor,MB220105BBBA orbit motor | ||

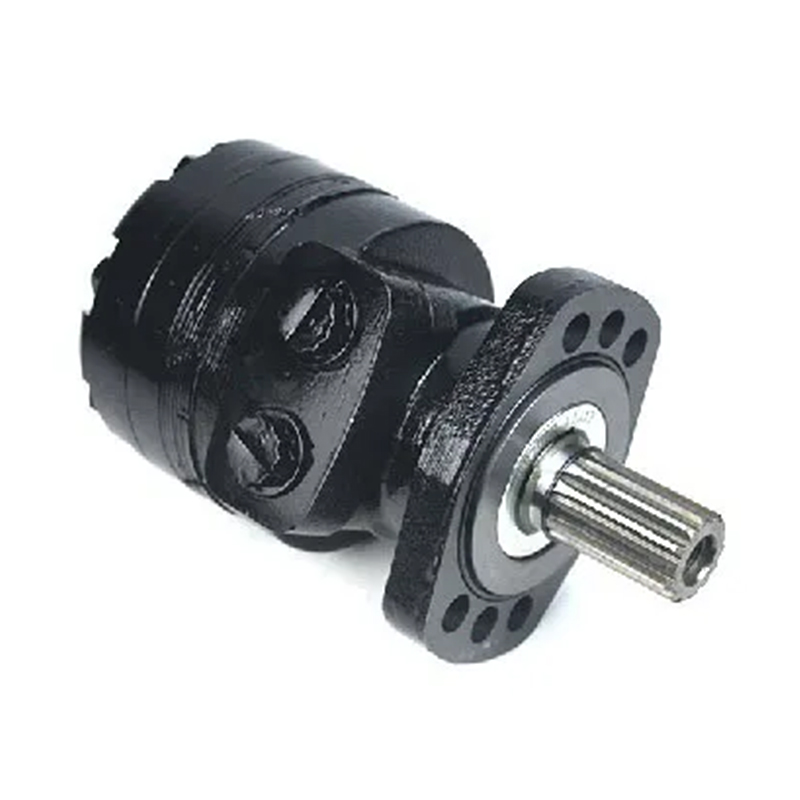

hydraulic motor industrial fluid power MB220105BBBA Ross Interchange orbit Motor
Low Speed High Torque (LSHT) hydraulic motors orbit type motors that interchange with Parker hydraulic motors, Danfoss hydraulic motors, White Drive Products hydraulic motors, TRW Ross hydraulic motors and Eaton Char-Lynn hydraulic motors. Honor Pumps high speed, low torque hydraulic gear motors that interchange with Barnes Contcentric hydraulic motors. Anfield Industries hydraulic motors.
All hydraulic motors that are promoted as a "Drop in replacement for" meet or exceed the specifications of the the hydraulic motor that they are replacing. These hydraulic motors are a direct replacement for fit, form and function. All hydraulic motors that Xeriwell offer have a 12 month warranty
Part Number:
MB220105BBBA
BMER-2-375-FS-FD1-R-B LSHT Hydraulic Motor
4 Bolt Magneto Mount
22.2 Cu In. Displacement (540cc)
1-1/4" 14 teeth spline Shaft
#10 SAE ports (7/8-14 UNF)
Specifications:
| CODE | DISPLACEMENT | CONT MAX | INTER MAX | CONT MAX FLOW | INTER MAX FLOW lpm (gpm) | CONT MAX TORQUE Nm (lb-in) | INTER MAX TORQUE Nm (lb-in) | CONT MAX PRESSURE BAR (psi) | INTER MAX PRESSURE BAR (psi) | PEAK MAX PRESSURE BAR (psi) |
| cc (in3/rev) | SPEED rpm | SPEED rpm | lpm (gpm) | |||||||
| 120 | 121 (7.4) | 360 | 490 | 45 (12) | 61 (16) | 327 (2900) | 383 (3400) | 207 (3000) | 241 (3500) | 276 (4000) |
| 160 | 162 (9.9) | 370 | 470 | 61 (16) | 76 (20) | 475 (4200) | 542 (4800) | 207 (3000) | 241 (3500) | 276 (4000) |
| 200 | 204 (12.4) | 300 | 370 | 68 (18) | 83 (22) | 542 (4800) | 633 (5600) | 207 (3000) | 241 (3500) | 276 (4000) |
| 230 | 232 (14.2) | 260 | 320 | 68 (18) | 83 (22) | 644 (5700) | 712 (6300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 260 | 261 (15.9) | 260 | 350 | 76 (20) | 91 (24) | 712 (6300) | 791 (7000) | 207 (3000) | 241 (3500) | 276 (4000) |
| 300 | 300 (18.3) | 250 | 320 | 83 (22) | 95 (25) | 825 (7300) | 938 (8300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 350 | 348 (21.2) | 220 | 270 | 83 (22) | 95 (25) | 921 (8150) | 1045 (9250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 375 | 375 (22.8) | 200 | 250 | 76 (20) | 91 (24) | 1006 (8900) | 1158 (10250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 470 | 465 (28.3) | 160 | 200 | 76 (20) | 91 (24) | 1096 (9700) | 1184 (10475) | 172 (2500) | 189 (2750) | 207 (3000) |
| 540 | 536 (32.7) | 140 | 170 | 76 (20) | 91 (24) | 983 (8700) | 1243 (11000) | 138 (2000) | 172 (2500) | 207 (3000) |
| 750 | 748 (45.6) | 100 | 130 | 76 (20) | 91 (24) | 1062 (9400) | 1237 (10950) | 103 (1500) | 121 (1750) | 138 (2000) |
