Charge Pump in Hydraulic Systems: Function, Symptoms, and Replacement Considerations

Equipment downtime in closed-loop hydrostatic transmissions (HST) frequently traces back to a highly critical, yet commonly overlooked component: the hydraulic charge pump. A failing unit does not just cause sluggish machine performance. It directly starves the main piston pump of vital fluid. This starvation risks catastrophic and incredibly expensive system-wide failure across your entire machine fleet. When pressures drop, internal metal parts grind together. Metal shavings then rapidly contaminate the entire hydraulic circuit.

You cannot afford to ignore early warning signs like operational lag or unusual whining noises. This guide provides maintenance directors, engineers, and procurement specialists with a robust diagnostic framework. We will help you evaluate core functionality and accurately identify mechanical failure symptoms. By following these technical guidelines, you will make evidence-based replacement decisions to keep heavy machinery operational and maximize structural longevity.

Key Takeaways

• Core Role: The hydraulic charge pump maintains positive pressure, replenishes fluid lost to internal leakage, and circulates oil for system cooling in closed-loop circuits.
• Primary Symptoms: Whining noises (cavitation), localized overheating, and loss of drive power (especially in final drives) are immediate red flags.
• Replacement Logic: Upgrading or replacing requires exact matching of displacement and pressure ratings; choosing between leading systems like a DANFOSS Hydraulic Pump or a REXROTH Hydraulic Pump depends on existing circuit architecture and OEM specifications.
• Risk Mitigation: 90% of premature replacement failures are due to inadequate system flushing and poor filtration during installation.

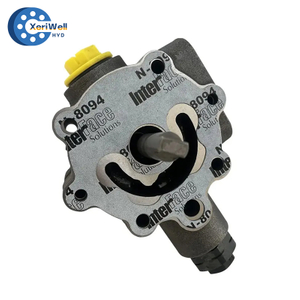

The Engineering Function of a Hydraulic Charge Pump in Closed-Loop Systems

Engineers must first differentiate closed-loop architectures from standard open-loop systems. In an open-loop circuit, fluid returns directly to a large central reservoir after completing its work. A single hydraulic pump pulls fluid from this tank and pushes it through the directional control valves. Closed-loop systems operate differently. They route exhaust fluid from the hydraulic motor directly back into the primary pump inlet. This creates a continuous, highly responsive power loop.

However, closed-loop designs have an inherent challenge. Every main piston pump intentionally leaks a small amount of fluid into its outer case. This controlled internal leakage lubricates the internal slippers, pistons, and barrel faces. Because this lubricating fluid leaves the primary loop, the closed circuit continuously loses volume. A secondary, smaller pump must operate alongside the main unit to replace this lost volume. We call this essential secondary component the charge pump.

Core Functions in the Hydraulic Circuit

• Makeup Fluid / Leakage Replenishment: The charge pump continuously pulls fresh fluid from the reservoir. It forces this fluid into the low-pressure side of the closed loop. This action perfectly offsets the volume lost to internal case leakage.
• Thermal Management: Fluid trapped inside a continuous loop generates immense heat. The charge system forces a calculated percentage of hot oil out of the main loop. It routes this hot oil through a heat exchanger, preventing severe thermal degradation.
• Positive Inlet Pressure: Piston pumps cannot draw fluid efficiently on their own. The charge circuit maintains constant pressure at the main inlet. This constant feed prevents devastating cavitation inside the primary rotating group.
• Control Pressure Supply: Modern heavy equipment relies on precise servo controls. The charge circuit provides the reliable pilot pressure necessary to operate these stroking mechanisms and shift directional spools.

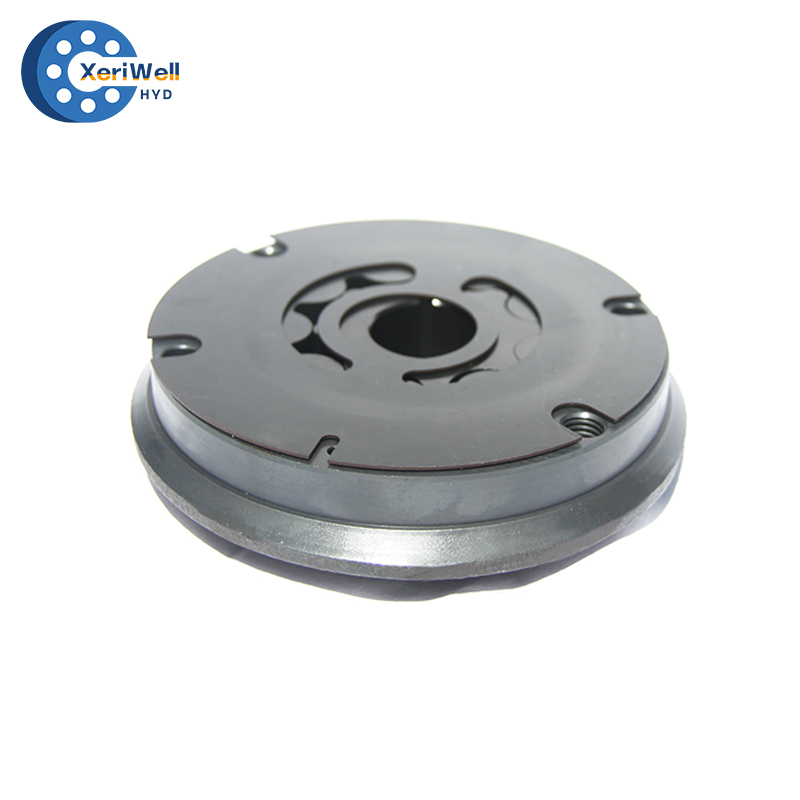

Diagnosing Failure: Symptoms vs. System Root Causes

Effective troubleshooting begins with a strict diagnostic framework. You must isolate the hydraulic charge pump from the main hydrostatic transmission or the final drive. Many technicians mistakenly condemn the main transmission when a simple auxiliary pump failure is the actual culprit. Proceeding without isolation leads to severe misdiagnosis and wasted maintenance budgets.

Observable Symptoms in the Field

You can identify impending failures by monitoring three specific categories of observable machine behavior. Never ignore these critical operational red flags.

• Low Charge Pressure Readings: This remains the definitive diagnostic metric. You must install a calibrated gauge into the designated charge pressure port (often marked M3 or M4). Observe the pressure at low idle and high idle. A drop below the OEM minimum threshold instantly confirms internal wear or excessive leakage.
• Acoustic Anomalies: Listen closely to the equipment under load. Cavitation sounds like a high-pitched, steady whine. It indicates starvation. Mechanical grinding sounds much harsher. Grinding points directly to advanced gear or gerotor wear inside the housing.
• Operational Lag: Sluggish steering or delayed drive responses strongly suggest pilot pressure loss. When charge pressure drops, the servo pistons cannot angle the main swashplate fast enough to meet operator demands.

Common Root Causes of Failure

Symptoms reveal the problem, but true diagnostics require finding the root cause. Fluid contamination stands as the primary killer. Microscopic debris bypasses old filters and scores the soft aluminum housings of internal gerotor assemblies. Incorrect fluid viscosity also causes major issues. Oil that is too thick restricts inlet flow, while oil that is too thin bypasses internal seals. Finally, extreme thermal degradation breaks down the oil's lubricating film, accelerating metal-to-metal wear.

Repair vs. Replace: Evaluation Criteria for Charge Pumps

Maintenance teams frequently debate whether to rebuild a failing unit or replace it entirely. Financial and operational realities strongly favor complete replacement. Most charge systems utilize a gerotor or external gear design. When these gears wear down, they also heavily score the surrounding housing. Because machining tolerances run tighter than 0.001 inches, replacing just the internal gears rarely restores full volumetric efficiency. Fluid simply slips past the new gears through the old housing grooves.

Sizing and Specification Protocols

Procuring a replacement demands strict attention to specific engineering metrics. Guessing on specifications guarantees immediate system failure.

• Volumetric Displacement: You must match the cubic centimeters per revolution (cc/rev). Installing a unit with lower displacement starves the main loop. Installing one with excessive displacement creates dangerous heat and over-pressurizes the circuit.
• Pressure Relief Valve Settings: Auxiliary pumps feature integrated relief valves. These typically range between 150 to 400 PSI, depending entirely on the machinery application. You must verify this setting against the OEM service manual.
• Rotation Direction: Procurement errors frequently happen here. Pumps operate either Clockwise (CW) or Counter-Clockwise (CCW). Installing a unit with the wrong rotational direction will instantly blow the main shaft seal upon engine startup.

OEM Integration: DANFOSS Hydraulic Pump vs. REXROTH Hydraulic Pump Systems

Navigating brand ecosystems requires deep understanding of component compatibility. Leading manufacturers design distinct architectures. You cannot mix control logic or filtration standards across different original equipment brands.

DANFOSS Integration Considerations

A DANFOSS Hydraulic Pump system typically features highly modular charge configurations. The widely used Series 90 and Series 42 hydrostatic transmissions utilize externally mounted charge units. This modularity allows technicians to replace the charge circuit without removing the heavy main transmission from the vehicle chassis. Danfoss systems also rely on specific pressure filtration setups. You will often find integrated filter pads directly on the charge pump housing. When sourcing verified aftermarket parts for these series, ensure the mounting splines and pilot rings match the original OEM dimensions perfectly.

REXROTH Integration Considerations

A REXROTH Hydraulic Pump system demands extreme precision. The standard A4VG series integrates the charge pump deeply into the rear cover of the main unit. These designs often feature integrated boost valves and complex internal coring. Rexroth architectures are notoriously unforgiving regarding fluid cleanliness. They require strict adherence to ISO 4406 cleanliness standards, typically demanding an 18/16/13 particle count. When integrating a new unit into a Rexroth loop, you must ensure the internal pressure override (POR) valve settings synchronize perfectly with the new auxiliary flow rate.

Installation Risks and Maintenance SOPs (Standard Operating Procedures)

We must strongly warn against simple "drop-in" replacements. If you do not address the root cause of the initial failure, the new component will destroy itself within hours. If the previous pump failed due to metal shearing, those sharp shards still circulate inside your hoses and coolers. The entire closed-loop system must undergo rigorous flushing procedures.

Implementation Steps for Safe Installation

1. Drain and Flush: Drain all existing oil from the hydraulic reservoir. Disconnect and thoroughly flush the hydrostatic lines, including the case drain line and the oil cooler. Do not skip the cooler, as debris aggressively traps inside its internal fins.
2. Replace All Filters: This step remains completely non-negotiable. Remove and replace all suction strainers, return filters, and pressure-side filters. Installing a new pump behind an old, restricted filter causes immediate inlet cavitation.
3. Prime the Housing: Never install a dry unit. You must pre-fill (prime) the new pump case with clean, pre-filtered hydraulic fluid prior to mechanical startup. Rotating a dry gerotor at engine speed causes instantaneous metal galling.
4. Conduct a Low-Idle Startup: Start the engine at its lowest possible idle setting. Instantly verify the charge pressure using an external gauge. Do not engage the transmission or apply any working load until the gauge confirms stable, positive pressure within the OEM specification range.

Conclusion

A perfectly functioning hydraulic charge pump acts as the ultimate insurance policy for your expensive main transmission. These auxiliary components perform heavy lifting behind the scenes. They manage system heat, replenish vital fluid, and keep the main pistons lubricated. Ignoring obvious symptoms like low charge pressure or high-pitched cavitation guarantees catastrophic main pump failure. Such failures easily cost tens of thousands of dollars in replacement parts and lost production time.

We urge maintenance teams to act proactively. Connect a gauge and conduct a baseline pressure test on your equipment today. Document the idle and loaded readings to establish a reliable machine history. If your readings fall below the required thresholds, do not wait for a complete breakdown. Locate your current pump's metal data tag. Record the exact model code and serial number. Contact your technical sales team immediately for a specified compatibility check and a fast replacement quote to secure your machinery.

FAQ

Q: What is the normal operating pressure for a hydraulic charge pump?

A: Normal operating pressure varies by machinery manufacturer and specific transmission size. However, it typically falls between 150 to 350 PSI above the actual case pressure. You must always consult your specific OEM service manual to verify the exact baseline threshold for your machine.

Q: Can a failing charge pump damage my final drive?

A: Yes. By failing to provide sufficient makeup fluid and essential cooling flow, a weak pump causes the entire main hydrostatic loop to overheat and cavitate. This severe fluid degradation and pressure loss leads directly to catastrophic final drive motor failure.

Q: How do I test my charge pump without removing it?

A: You can test it by installing a calibrated hydraulic pressure gauge into the designated charge pressure test port on the outer pump housing. Start the machine and carefully compare the low idle versus high idle pressure readings against the factory specifications.
