A failed hydraulic pump can stop production without warning. Rushing the replacement order can create an even bigger problem. The hydraulic pump nameplate is usually the best place to start. It may show the model code, serial number, displacement, and operating data. However, the plate may not show every critical detail. Rotation, shaft type, mounting, or controls can be hidden inside the full model code. This guide explains how to record the plate correctly, separate key specifications, decode the model, and verify the physical pump. You will also learn how to handle faded, damaged, or missing nameplates before placing an order.
Do not begin by interpreting the code. First, capture everything exactly as printed. Small characters can represent major configuration differences.
Start with the complete model designation. Copy every letter, number, dash, slash, and suffix. Do not record only the familiar pump series. The model number usually describes a product configuration. A serial number normally identifies one individual unit. Production codes may indicate manufacturing periods or revisions.
Those fields serve different purposes during replacement sourcing. A series number may identify the general pump family. It may not identify the exact installed configuration.
For example, one model family may contain several displacement options. It may also offer multiple shafts and controls. A missing suffix can therefore change the required replacement.
Record these details when available:
Complete model or type code
Serial number
Product or part number
Production or date code
Rated operating information
Any additional stamped codes
Never guess unclear characters during transcription. Characters such as 0 and O look similar. The same problem affects 1 and I.
Take clear photographs while the pump remains installed. This preserves information before handling damages the plate. Use one straight photo of the full nameplate. Then take close images of unclear areas. Good lighting often reveals worn markings more clearly.
Photograph the whole pump as well. Include both port sides and the control section. These images become valuable during later verification. Avoid aggressive cleaning on an old nameplate. Grinding or heavy scraping can remove remaining marks. Use gentle cleaning when oil covers the surface.
Information to Capture | Why It Matters |
Complete model designation | Identifies the configuration family |
Serial or production code | Helps trace versions or revisions |
Prefixes and suffixes | May define critical pump options |
Clear nameplate photo | Reduces transcription errors |
Full pump photos | Helps verify external configuration |
Once the information is recorded, separate identification data from operating specifications. They answer different replacement questions. Identification tells you which pump you probably have. Performance data shows whether a candidate pump suits the hydraulic system. Both areas need confirmation.
Displacement is one of the most important pump specifications. It describes fluid volume moved during each shaft revolution. Common units include cm³/rev or cc/rev.
Do not confuse displacement with actual system flow. Pump speed also influences delivered flow. Internal efficiency affects the real output. A simple relationship helps explain the difference: Theoretical flow depends on displacement and rotational speed.
Therefore, two pumps sharing similar pressure ratings can behave differently. A displacement mismatch changes actuator speed and system behavior.
Pressure information also needs careful interpretation. Some documents distinguish continuous pressure from peak pressure. The two values are not interchangeable. Speed limits matter for the same reason. A replacement must operate safely at the machine's drive speed. Excessive speed can increase wear and heat.
Common information worth checking includes:
Pump displacement
Rated or continuous pressure
Maximum or intermittent pressure
Rated speed
Maximum permissible speed
Flow data, when provided
Recommended operating conditions
Never choose a replacement from pressure alone. Pressure capability does not confirm displacement or physical compatibility.
Many replacement-critical details are not printed individually. Instead, they may be encoded inside the model designation.
These can include:
Rotation direction
Shaft configuration
Mounting flange
Displacement group
Control type
Port arrangement
Design version
This is why reading a hydraulic pump nameplate requires more than copying numbers. You also need to understand what those codes represent. At XeriWell, we prefer receiving the full identification information when helping customers check replacements. A partial series number can leave several configurations possible. The buyer should therefore treat the nameplate as evidence. It is not automatically a complete purchase specification.
The complete model code often carries more replacement information than any single specification. Ignoring one section can produce the wrong pump. Model coding structures vary between pump families. Never assume the same letter means the same thing everywhere.
A hydraulic pump model designation may contain several information groups. Each group can narrow the configuration.
Depending on the pump family, those groups may indicate:
Pump series
Frame size
Displacement
Rotation
Drive shaft
Mounting arrangement
Pressure control
Flow control
Port configuration
Design revision
Consider a long variable-pump designation. The central section may identify its pump series and displacement. Later characters may define rotation or control options.
Removing those later characters changes the available information. You may still identify the product family correctly. However, you cannot confirm the replacement configuration.
That distinction is especially important in OEM replacement work. Several variants can share almost identical housings. Photos alone may not reveal their internal differences.
Model-Code Area | Main Question Before Ordering |
Series or frame | Is the pump architecture correct? |
Displacement code | Is the displacement equivalent? |
Rotation code | Does it match drive rotation? |
Shaft code | Will it fit the existing coupling? |
Mounting code | Does the flange and pilot match? |
Control code | Will hydraulic response remain compatible? |
Use documentation for the exact pump family whenever possible. Look for a model-code breakdown or technical catalog. Read each code position according to that source. Do not decode unfamiliar characters from memory. Do not borrow coding rules from another pump series.
This becomes important when older models are discontinued. The original code still provides valuable configuration information. Keep the complete designation when requesting an alternative.
A modern replacement may use a different product number. That does not automatically mean it is incompatible. The critical question is whether its relevant specifications match. Likewise, a similar model number does not prove interchangeability. One changed character can represent another control or shaft.
After decoding the nameplate, compare those findings against the installed pump. This step catches identification errors before ordering. A model-code match is valuable. Physical confirmation adds another layer of protection.
Start with pump rotation. Hydraulic pumps are often designed for a specified rotation direction. Using the wrong version can prevent normal operation. Be careful when describing clockwise or counterclockwise rotation. Rotation depends on the viewing direction. Always follow the relevant technical documentation.

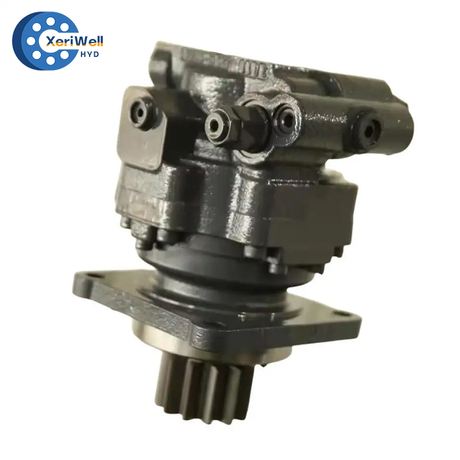

Next, inspect the drive shaft. Check whether it uses splines, a keyed shaft, or another design. Confirm dimensions where uncertainty remains. The coupling must match the replacement shaft correctly. An incorrect spline count can stop installation immediately. A similar-looking keyed shaft can also differ in diameter.
Check the mounting interface next. Important dimensions can include:
Flange style
Bolt pattern
Pilot diameter
Shaft projection
Mounting orientation
Do not assume similar housings share identical mounts. Product families can contain several installation options.
Port position matters almost as much as mounting. A correct pump can still create installation trouble when its ports face differently. Inspect the suction and pressure connections carefully. Also identify drain or pilot connections where applicable.
Record port sizes and connection types when possible. Compare their position relative to the mounting flange. Variable pumps need another check. Examine the control housing and adjustment arrangement. Different control options can create very different system behavior.
A pump may use pressure compensation. Another version may include flow or load-related controls. The replacement must preserve the required function. Photographs help greatly during this stage. Capture the pump from several angles before removal. Include control housings and hose connections.
Real replacement jobs rarely provide perfect identification. Dirt, corrosion, paint, and years of service can damage a nameplate. A missing plate does not make identification impossible. It simply means you need more supporting evidence.
Begin by photographing the damaged area. Use several lighting angles. Side lighting sometimes reveals shallow stamped characters. Separate confirmed characters from uncertain ones. For example, record an unclear section as unknown. Do not silently replace it with a likely character.
Next, inspect other parts of the pump. Some housings carry casting numbers or additional tags. They can help identify a pump family. However, casting numbers require caution. A housing may serve several finished configurations. The casting number may not identify the complete pump.
Machine records can provide additional evidence. Useful sources include:
Equipment parts manuals
Previous purchase records
Repair reports
Hydraulic schematics
Maintenance records
Historical photographs
The equipment model can narrow the search. Still, one machine model may use different pumps across production years.
When the hydraulic pump nameplate cannot provide enough information, collect physical data systematically. Measure the mounting flange and bolt pattern. Check the shaft dimensions and spline arrangement. Record the port sizes and orientation.
Also collect relevant machine information. Include the equipment type and pump application. Note any known operating pressure or drive-speed information.
A useful identification package can contain:
1. Full pump photographs
2. Remaining nameplate information
3. Mounting dimensions
4. Shaft dimensions
5. Port positions
6. Rotation information
7. Equipment model
8. Known hydraulic operating data
If customers need our help checking a suitable XeriWell replacement, we can review these details together. They give us much stronger evidence than appearance alone. Do not treat measurements as permission to choose a similar pump. Use them to verify a technically supported candidate.
Before releasing the purchase order, perform one final comparison. Divide the check into identification, hydraulic performance, and physical fit. A replacement should satisfy all three areas. Passing only one category is not enough.
Start by confirming the identification data. Check the complete model designation again. Include relevant production or serial information. Then review hydraulic performance. Confirm displacement and pressure capability. Check allowable speed and control characteristics. Finally, confirm the physical interface. Rotation, shaft, flange, ports, and controls should match the machine requirements.
Use this final check:
Identification
Complete model code confirmed
Series or equivalent configuration confirmed
Unclear characters resolved
Relevant production differences checked
Hydraulic Performance
Displacement confirmed
Pressure ratings suitable
Speed range suitable
Control function suitable
Mechanical Installation
Rotation confirmed
Shaft configuration confirmed
Mounting flange confirmed
Pilot dimensions checked
Port layout confirmed
Drain connections identified
External controls verified
A pump should not be approved only because the model family matches. It should not be approved from displacement alone either. Each group answers a different compatibility question. Together, they create a much stronger replacement decision.
A detailed quotation request improves supplier verification. It also reduces back-and-forth communication. Send a clear nameplate photo first. Include the complete typed model code underneath. This helps avoid errors caused by poor image quality.
Add several pump photographs. Show the shaft side, port arrangement, and control section. Provide measurements when identification remains uncertain. Machine and application information can provide useful context. It can reveal whether the proposed configuration makes sense.
Your quotation package should ideally contain:
Hydraulic pump nameplate photograph
Complete model designation
Serial or production information
Full pump photographs
Shaft and mounting details
Port and control photographs
Machine or application information
Clearly marked unknown specifications
This approach shifts verification earlier in the process. Problems are easier to resolve before shipment.
Choosing between repair, rebuild, and OEM hydraulic pump replacement depends on damage, wear, cost, and expected service life. Minor faults may justify repair, while deeper internal wear often requires rebuilding. A complete replacement becomes more practical when damage is severe or reliability remains uncertain. The final choice should balance downtime, total cost, and long-term performance. XeriWell provides hydraulic pump solutions for different replacement needs. Accurate product matching helps improve reliability, reduce installation risks, and restore equipment performance efficiently.
A: A hydraulic pump nameplate may show the model code, serial number, displacement, pressure rating, speed, production data, and other identification details used for replacement matching.
A: The complete hydraulic pump nameplate code can identify displacement, rotation, shaft, mounting, ports, controls, or design versions. Missing one suffix may result in the wrong replacement.
A: If the hydraulic pump nameplate is unreadable, use clear photos, visible stamped codes, shaft measurements, mounting dimensions, port positions, rotation, and machine records to confirm the pump configuration.
A: Usually not. A hydraulic pump replacement should also match displacement, rotation direction, shaft type, mounting flange, port arrangement, pressure capability, and control configuration.
A: The model number normally identifies the pump type or configuration. The serial number usually identifies an individual unit and can help trace production details or revisions.
A: No. Similar-looking pumps can have different displacement, shafts, rotation, ports, or controls. Confirm the full specification before comparing hydraulic pump replacement prices or approving an alternative.
