A replacement pump can look correct and still be wrong. Small differences in rotation, shaft, or mounting can stop installation. A reliable hydraulic pump replacement starts with identification before removal or ordering. The model code, rotation direction, shaft configuration, and mounting interface all need careful checks. Physical fit is only part of the decision. Displacement, pressure rating, port layout, controls, and operating speed also matter. This guide shows a practical checking sequence. You will learn how to identify the existing pump, compare the replacement, and complete final checks before startup.
The complete model code should be your first reference. Do not rely only on equipment type or pump appearance. A shared pump family does not guarantee identical specifications.
One additional letter or number may identify another configuration. It may indicate displacement, shaft design, rotation, control type, or mounting arrangement. For this reason, partial identification creates unnecessary purchasing risk.
Photograph the nameplate before removing the existing pump. Take several photos from clear viewing angles. Keep the full model code visible in every record.
Also record information found around the pump body. Some manufacturers place rotation arrows or secondary codes elsewhere. These details may not appear on the main nameplate.
Record the following information whenever available:
Complete model or type code
Pump series
Part or order number
Serial number
Nominal displacement
Rotation marking
Pressure information
Speed information
Control or regulator code
Port configuration
Avoid shortening the model code during purchasing discussions. A common family name usually identifies only the basic design. It does not confirm every replacement detail. A clear nameplate photograph also reduces transcription errors. This matters when codes contain similar letters and numbers.
Next, separate the code into meaningful specification groups. You do not need to memorize every coding system. You do need to understand which features require confirmation.
Compare the existing pump and replacement across these areas:
Identification Item | Existing Pump | Replacement Pump |
Pump family or series | Record | Verify |
Displacement | Record | Match |
Rotation | Record | Match |
Shaft option | Record | Match |
Mounting option | Record | Match |
Control configuration | Record | Match |
Port arrangement | Record | Verify |
Coding systems vary between pump families. Never assume similar suffixes mean similar functions. When a code section remains unclear, confirm it through technical documentation.
Xeriwell lists hydraulic pump categories including gear, vane, and piston pump options. It also supplies pump parts such as shafts, seals, and repair components. When we assist with pump identification, complete model information gives us a stronger starting point.
Rotation errors can turn a correct-looking pump into the wrong replacement. This problem becomes more likely when teams use only “clockwise” or “counterclockwise.” Those words need a viewing reference. A pump may appear clockwise from one end and counterclockwise from another. Always confirm the specified viewing position.
Start with the existing pump markings. Check the housing, nameplate, technical data, and directional arrows. Then determine how the manufacturer defines rotation. The shaft end is a common reference point. However, you should never assume this convention automatically. Confirm it for the specific pump family.
The correct check should answer two questions:
1. Which direction does the shaft rotate?
2. From which side is that direction viewed?
The second question prevents many avoidable mistakes. “Clockwise” alone does not fully describe pump rotation. You should also document the drive direction before removal. Photograph the coupling arrangement when access allows. This gives your team another reference during installation.
Now compare the replacement pump against the actual drive system. Do this before connecting the coupling.
Use a simple sequence:
1. Confirm the machine drive direction.
2. Confirm the pump viewing convention.
3. Verify the replacement rotation specification.
4. Check inlet and outlet orientation.
5. Resolve every mismatch before installation.
Do not assume hose reversal solves a rotation problem. Internal flow paths may depend on the designed rotation. Lubrication and control functions can also depend on it.
Incorrect rotation can produce poor flow or abnormal noise. It may also create severe internal loading. The pump should not be used for trial-and-error testing.
A matching pump series can still use another shaft option. Shaft compatibility involves much more than outside diameter. The replacement must connect correctly to the existing coupling. It also needs the correct installed position. Poor engagement can create unwanted mechanical loads.
First identify the basic shaft design. Common arrangements include keyed, splined, straight, and tapered versions. Application-specific designs may also appear.
For a keyed shaft, check several dimensions:
Shaft diameter
Usable shaft length
Key width
Key height
Keyway position
Retaining arrangement
For a splined shaft, confirm additional details:
Number of splines
Major diameter
Minor diameter
Spline profile
Engagement length
Applicable spline standard
Do not judge spline compatibility by visual appearance. Two splines can look nearly identical. Their geometry may still prevent proper engagement. Measurement quality also matters. Worn shafts can produce misleading readings. Whenever possible, combine measurements and model-code information.
Next, check how the shaft sits inside the drive coupling. Correct shaft dimensions alone do not guarantee correct engagement. The coupling should engage enough shaft length. However, it should not bottom against the pump. The shaft position must also match the original installation geometry.
Inspect the old coupling before reusing it. Look for damaged splines, worn keys, loose fits, or fretting. A damaged coupling can shorten the life of a new pump. The shaft centerline should remain aligned after installation. Forcing the coupling into position can transfer radial loads. Excess axial loading can also affect bearings and seals.
A practical shaft comparison should confirm these items:
Shaft style matches
Diameter or spline specification matches
Key and keyway match
Effective shaft length matches
Coupling engagement is correct
Installed shaft position matches
Existing coupling remains serviceable
Correct rotation and shaft design still do not guarantee installation. The pump must locate correctly against the machine mounting surface. Mounting geometry controls alignment between the pump and drive. Small differences can create large problems after tightening.
Do not compare only the outside flange shape. Measure the full interface around the mounting face.
Check these dimensions:
Flange style
Number of mounting bolts
Bolt-hole spacing
Pilot diameter
Pilot depth
Mounting-face dimensions
Shaft centerline location
Pump body clearance
The pilot deserves special attention. It helps locate the pump concentrically inside the mounting interface. An incorrect pilot can prevent proper seating. Never compensate using forced bolts or enlarged holes. These methods hide the compatibility problem instead of solving it.
Improvised brackets also require careful engineering review. They can change alignment and structural loading. A direct replacement should fit without forced positioning.
Port arrangement belongs in the mounting inspection. The pump may bolt into place but remain impossible to connect correctly.
Confirm the main inlet and outlet locations first. Then identify every secondary connection.
These may include:
Case-drain ports
Pilot ports
Control connections
Load-sensing connections
Auxiliary ports
Check port size and connection type. Also compare their angle relative to the mounting flange. Hose clearance matters inside compact machines. A replacement port may face another component. The hose could then bend below its intended radius.
Adapters can solve some connection differences. However, they should not hide a poor replacement choice. Extra fittings may increase restriction or introduce additional leak points.
Physical fit represents only one part of the decision. A pump can mount correctly yet perform very differently. This happens when displacement, pressure rating, speed range, or controls differ. You should verify these specifications before installation begins.
Start by comparing pump displacement. It affects theoretical flow for a given shaft speed. A different displacement can change actuator speed and drive demand.
Next, check pressure capability. The replacement must support the expected working conditions. Do not compare only a maximum marketing value. Operating speed also needs confirmation. Every pump has an intended speed range. Running outside that range can affect filling, lubrication, and durability.
Your comparison should include:
Displacement per revolution
Required operating flow
Continuous pressure capability
Allowable peak pressure
Normal shaft speed
Permitted speed range
Application duty cycle
Expected input power
Pump performance also depends on the surrounding hydraulic system. Poor oil condition, contamination, cavitation, and excessive temperatures can damage pumps. These failure causes are widely documented in replacement guidance.
However, do not turn specification matching into failure diagnosis. The immediate goal is simpler. The replacement must meet the original operating requirements.

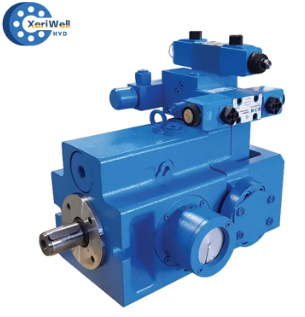

Variable pumps require another level of checking. Similar pump housings may contain very different control assemblies.
Depending on the application, compare:
Pressure compensator configuration
Load-sensing control
Flow-control arrangement
Mechanical controls
Hydraulic controls
Electronic interfaces
Through-drive configuration
Control differences directly affect system behavior. A pump can have the correct displacement and still respond incorrectly. Do not select a variable pump by housing size alone. Use the complete model code and control information. Photos of the regulator assembly can also help identification. If technical records are missing, document the existing connections carefully. Record every hose and electrical interface before removal.
The final inspection should happen before protective covers are removed. Place both pumps side by side whenever practical. This check catches mistakes before installation work begins. It also gives purchasing and maintenance teams a clear comparison record.
Work through the pump from shaft end to rear housing. Avoid jumping randomly between specifications.
Use this final comparison:
Check | Required Action |
Full model code | Confirm every important section |
Rotation | Confirm direction and viewing convention |
Shaft | Match type and dimensions |
Coupling | Verify fit and engagement |
Mounting flange | Match flange and pilot |
Bolt pattern | Confirm spacing and hole positions |
Main ports | Match size and orientation |
Auxiliary ports | Identify every required connection |
Displacement | Confirm required value |
Pressure and speed | Confirm operating range |
Controls | Match system requirements |
Clearance | Check installed envelope |
Take comparison photographs for important machines. They become useful maintenance records for future replacements.
At Xeriwell, we can work from the complete model code and clear pump photographs. Images of the nameplate, shaft, mounting face, and ports provide better identification data than appearance alone.
Installation quality matters after compatibility is confirmed. Keep open lines and ports clean during the work. Inspect contamination risks when the previous pump failed internally. Damaged components may release debris into the circuit. New filters may also be necessary before startup.
Follow the required filling and priming procedure. Never intentionally run the replacement pump dry. It needs adequate lubrication from the beginning.
Before initial startup:
Verify coupling alignment.
Tighten mounting hardware correctly.
Check suction connections for air leaks.
Confirm fluid level and condition.
Verify every hose connection.
Confirm control connections.
Follow the required priming procedure.
Start under controlled conditions when the machine allows it. Watch pressure, noise, leakage, temperature, and actuator response.
Do not immediately blame the replacement for abnormal behavior. Recheck rotation and suction conditions first. Then review controls, contamination, and installation details.
A reliable hydraulic pump replacement requires both mechanical and hydraulic compatibility. The safest process starts with the full model code, then checks rotation, shaft, mounting, ports, operating specifications, controls, and the final side-by-side comparison. External appearance should never replace detailed verification. Rotation needs the correct viewing reference. Shafts must match both dimensions and coupling requirements, while mounting checks must include the pilot and bolt pattern. If any model-code detail remains unclear, confirm it before ordering. XeriWell supports replacement selection with hydraulic pump options and identification assistance, helping users reduce mismatch risks and choose a more suitable pump for their application.
A: For a hydraulic pump replacement, record the full model code, displacement, rotation direction, shaft type, mounting flange, port arrangement, pressure rating, and operating speed before ordering.
A: Before a hydraulic pump replacement, confirm clockwise or counterclockwise rotation from the specified viewing side. Never rely on direction alone without knowing the manufacturer's viewing convention.
A: During hydraulic pump replacement, the shaft dimensions, spline or keyway, pilot diameter, and bolt pattern must match. Incorrect geometry can prevent coupling engagement or proper alignment.
A: Not always. Similar housings can hide different displacement, shaft, rotation, controls, or port configurations. The complete hydraulic pump model code and technical specifications should determine compatibility.
A: Hydraulic pump replacement cost depends on pump type, displacement, pressure rating, shaft and mounting configuration, controls, availability, and whether adapters or installation changes are required.
A: After hydraulic pump replacement, poor performance can result from incorrect rotation, mismatched displacement, suction leaks, wrong control settings, contamination, or improper priming and installation.
