| Quantity: | |
|---|---|
CBT Series
Xeriwell or Others
| Product: | Hydraulic Aluminum Motor | Type: | CBT |
|---|---|---|---|
| Size: | 04ml/r, 06ml/r, 08ml/r, 10ml/r, 12ml/r, 14ml/r, 16ml/r, 20ml/r, 25ml/r | Pressure: | 16MPa |
| Oil Port: | Flange Connection & Metric Thread Connection | Mount: | 2 Bolt |
| Highlight: | high torque gear motor,low speed gear motor | ||
Hydraulic Gear Motor Cast Iron and Aluminum CBT Series Replace 2MM1U14
Xeriwell is a reputable manufacturer focused on gear pumps and gear motors for agricultural and construction machinery. Our product range includes single and tandem pumps in Group 1, Group 2 and Group 3 configurations. We provide customized production based on customers’ drawings and samples, and have established stable cooperation with clients from Poland, Ukraine, Germany, Bulgaria, Belarus, Russia, France, Italy, Romania, Argentina, Chile, Brazil, Peru, Thailand, Vietnam and other countries worldwide.

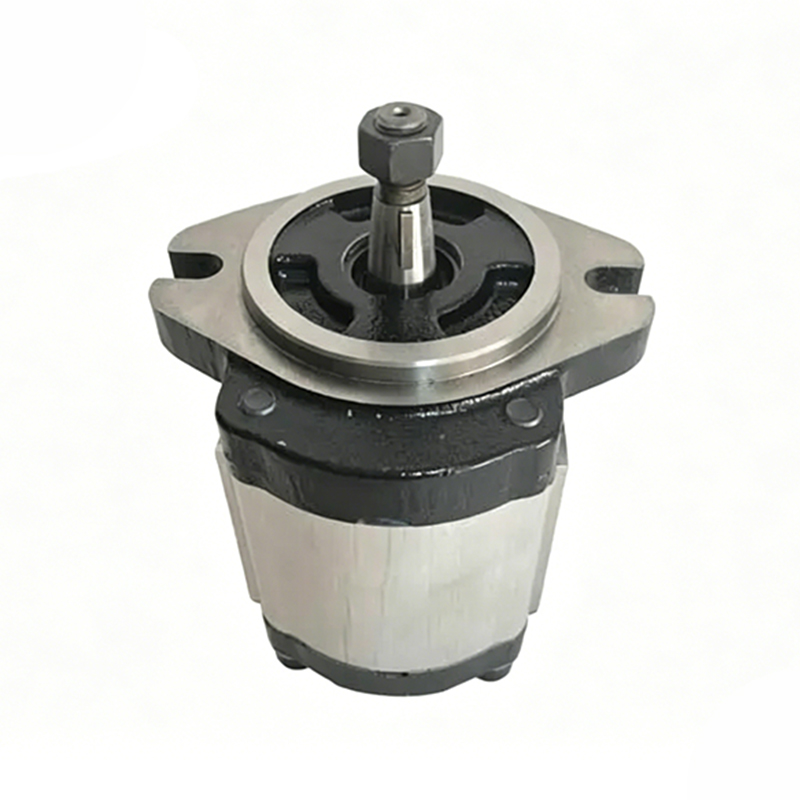

Specifications of the gear motor in photos please see below:
2MM1U14
14 cc / .85 ci
2 BOLT "A" MOUNT
BI-ROTATION
5/8" KEYED SHAFT
SIDE PORTS #12 SAE x #12 SAE
6 SAE DRAIN PORT IN REAR
Xeriwell CBT series gear motor, can replace HONOR 2MM1U14.
Xeriwell Gear Motor/ Pumps widely used on Agricultural tractors, Harvesters, Garden Tractors, Dump Trucks, Forklifts, Combine Harvesters, Fishing, Sweepers, Water Tanks, Trailers, Crane, Truck Crane, Excavators, Loaders, Earth Movers, Machine Tool, etc.
This CBT type is our best seller to global market, today i introduce motor CBT series to you:
CBT series gear motor/ pumps are external motors with axial compensation and radial balancing. They are widely applied in hydraulic system of Agricultural & Tractor and Engineering Trucks.

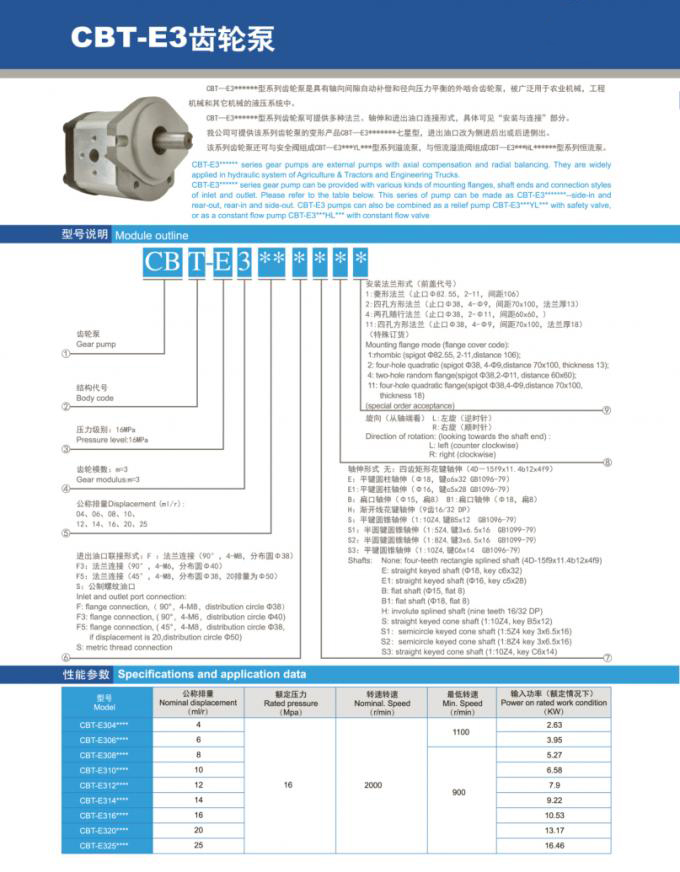

CBT series gear motor/ pumps can be provided with various kinds of mounting glanges, shaft ends and connection styles of inlet and outlet. Please refer to the table below. This series of motor/ pump can be made as side-in and rear-out, rear-in and side-out. CBT motor/ pump can also be combined as a relief pump with safety valve, or as a constant flow pump with constant flow valve.
| 1 | Gear Pump |
| 2 | Body Code |
| 3 | Pressure:16MPa |
| 4 | Module of Gear: m=3 |
| 5 | Norminal Displacement (ml/r):04,06,08,10,12,14,16,18,20,25 |
| 6 | 3.port connection: F: flange connection (90°, 4-M8, distribution circleφ38) F3: flange connection(90°, 4-M6, distribution circleφ40) , F5: flange connection (45°, 4-M8, distribution circleφ38) , If displacement is 20ml/r, the distrbution circle is φ50) S: metric thread connection (only for 2#front cover) |
| 7 | 3.Shaft ends: None: four-teeth rectangle splined shaft key (4D-15f9x11.4b12x4f9) E1: straight keyed shaft (Φ 16, C5x28) B: flat shaft (Φ 15, flat 8) B1: flat shaft (Φ 18, flat 8) S3: straight keyed cone (1:10Z4, key B6x14) |
| 8 | Rotation (looking from the shaft end): L: Left R: Right |
| 9 | 3.Mounting flange type (front cover code): 1:rhombic (spigot Φ82.55, 2-Φ11,distance 106); 2: four-hole quadratic (spigot Φ38, 4-Φ9,distance 70x100, thick 13); 4: two-hole random (spigot Φ38,2-Φ11, distance 60x60); 11: four-hole quadratic (spigot Φ38,4-Φ9,distance 70x100, thick 18) (special order acceptance) |
