Why a Hydraulic Pump Gets Hot: Overheating Causes, Checks, and Solutions

Views: 0     Author: Site Editor     Publish Time: 2026-07-31      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Few things frustrate maintenance teams more than dealing with recurring thermal issues. You might spend thousands replacing a broken unit, only to watch the new one immediately run hot. This vicious cycle drains operational budgets quickly. It also stalls critical production timelines.

Heat naturally occurs as a byproduct of inefficiency during fluid power transmission. While some warmth is entirely normal, temperatures spiking beyond optimal ranges cause severe problems. Excessive heat rapidly destroys essential fluid properties. Such thermal stress compromises internal components, leading to catastrophic machine failure.

This guide provides a systematic diagnostic framework. We designed it to help you isolate root causes accurately. You will learn how to prevent collateral damage. We will help you stop wasting money on misdiagnosed replacement parts. By understanding these thermal dynamics, you can make smarter, evidence-based maintenance decisions.

Key Takeaways

  • Excessive heat often originates from pressure drops or flow restrictions within the broader hydraulic system, not just the pump itself.
  • Operating consistently above 180°F (82°C) severely degrades hydraulic fluid viscosity, leading to accelerated mechanical wear.
  • Replacing a hydraulic pump without diagnosing faulty hydraulic valves or blocked cooling circuits will result in repeat failures.
  • Evaluating repair versus replacement requires factoring in downtime costs, warranty availability, and system-wide contamination risks.

The Operational and Financial Impact of Hydraulic Pump Overheating

Thermal overload severely disrupts the delicate balance of fluid power machinery. When you ignore rising temperatures, the consequences compound rapidly. You face severe operational disruptions. You also incur massive financial losses. We must understand exactly how heat destroys these systems from the inside out.

Fluid Degradation

High temperatures wreak havoc on fluid dynamics. Heat accelerates oil oxidation exponentially. This chemical breakdown reduces fluid viscosity drastically. A thin fluid film fails to lubricate moving parts properly. Metal components begin grinding against each other. hydraulic pump overheating accelerates this wear cycle dramatically. The oil loses its ability to transfer heat. It essentially becomes a destructive sludge. This sludge clogs filters and damages precision clearances.

Component Damage

Sustained heat literally bakes internal elastomeric seals. O-rings harden, crack, and fail prematurely. This leads to immediate external leaks. Internal friction spikes as clearances tighten from thermal expansion. We often see severely scored valve plates. Seized bearings represent another common failure point. A damaged hydraulic pump requires immediate mechanical intervention. Once surface hardening disappears, the core metal degrades rapidly. Catastrophic failure becomes inevitable.

Cost of Inaction

Unplanned downtime cripples facility productivity. Maintenance crews waste valuable labor hours replacing misdiagnosed parts. Degraded O-rings create severe safety hazards on the plant floor. Blown lines can inject high-pressure fluid into workers nearby. The financial impact extends far beyond just buying a replacement unit. Your business suffers from delayed production schedules. Missed delivery deadlines damage customer relationships. Ignoring thermal warnings guarantees expensive consequences later.

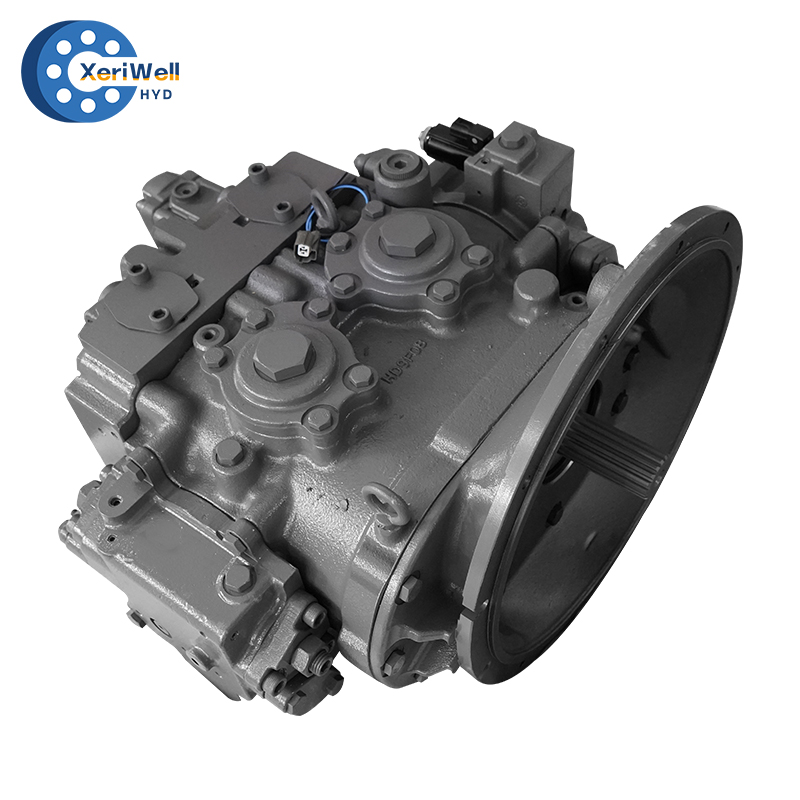

hydraulic pump overheating

Primary Causes of Excessive Heat in a Hydraulic System

Heat always originates from energy losses. When input energy does not convert into mechanical work, it becomes heat. Identifying the specific source of this inefficiency is crucial. You must examine pressure, flow, fluids, and cooling mechanisms methodically.

Pressure and Flow Issues

Improperly adjusted relief valves cause massive thermal issues. They continuously dump pressurized fluid back to the reservoir. This pressure drop converts energy directly into heat. A sticking relief valve acts exactly like an immersion heater. Internal leakage happens naturally as components wear down. This slippage forces the unit to work harder. It must run faster to maintain required flow rates. Higher rotational speeds generate more friction. More friction equals more heat.

Fluid and Contamination Factors

Using the wrong fluid viscosity causes immediate trouble. Thick fluids create excessive internal friction during operation. Thin fluids bypass critical internal clearances too easily. Aeration severely damages internal metal surfaces. Air bubbles compress violently under high pressure. They superheat the surrounding fluid instantly. Cavitation creates similar destruction. Vapor bubbles implode against metal surfaces. These micro-explosions tear away metal particles. This generates intense localized heat spots.

Cooling System Failures

Heat exchangers often get blocked by ambient debris. A clogged radiator cannot dissipate thermal loads effectively. Scale buildup inside water coolers restricts flow. A malfunctioning cooling circuit traps heat inside the loop. Sometimes, engineers size the reservoir incorrectly. An inadequate tank prevents proper heat dissipation. Fluid returns to the intake before it can cool down. A healthy hydraulic system needs enough dwell time for effective thermal transfer.

Common Mistakes to Avoid

  • Ignoring seasonal ambient temperature changes when selecting oil viscosity.
  • Failing to blow out heat exchanger fins during routine maintenance.
  • Setting the main system relief valve pressure too close to the compensator setting.
  • Overfilling the reservoir, which limits the air space needed to dissipate heat.

The "New Pump, Same Heat" Dilemma: Hidden Systemic Faults

Many technicians fall into a frustrating trap. They install a brand-new unit, but temperatures spike again immediately. This happens because they treated the symptom, not the root cause. You must look beyond the prime mover.

System-Wide Verification

Swapping parts blindly solves absolutely nothing. The actual root cause usually hides elsewhere in the circuit. You must verify system-wide operating parameters first. Installing a new unit onto a broken circuit guarantees failure. We always recommend comprehensive troubleshooting. Never assume the primary rotating group is the only faulty component.

Hydraulic Valve Checks

Malfunctioning directional valves create continuous parasitic loads. A sticking proportional hydraulic valve forces the prime mover to compensate constantly. The system never enters a true idle state. This continuous maximum effort generates immense heat. Spools can wear down and allow fluid crossover. This internal bypassing creates hidden heat zones. You must test every directional and flow control component thoroughly.

Closed vs. Open Systems

Implementation realities differ significantly between circuit types. Closed-loop circuits demand highly specific flushing procedures. You must verify charge pump pressures carefully. A failing charge pump starves the main loop of cool oil. Open systems might not require these exact verification steps. However, both topologies require strict fluid cleanliness. Understanding your specific circuit architecture is vital for accurate diagnostics.

Contamination Carryover

Metallic debris from the old, destroyed unit remains in the lines. This microscopic shrapnel circulates freely. It will immediately score the internal clearances of your replacement unit. You must flush all lines comprehensively. Always replace all return and pressure filters before startup. Neglecting this step introduces fatal contamination on day one.

Step-by-Step Diagnostic Framework for Overheating

Guesswork has no place in fluid power maintenance. You need a reliable, repeatable framework. This systematic approach saves time and prevents misdiagnosis. Follow these distinct phases carefully.

Baseline Thermal Audit

Grab an infrared thermometer or a thermal imaging camera. Map the temperature gradients across the entire circuit. Check the reservoir, casings, cylinders, and valves. The primary rule of thumb is simple. Pinpoint the hottest component first. If a relief valve reads forty degrees hotter than the tank, investigate it. Thermal mapping provides visual proof of hidden inefficiencies.

Pressure and Flow Testing

You must use a reliable inline flow meter. Check the volumetric efficiency under maximum working load. Compare your actual output to the manufacturer specifications. Large discrepancies indicate severe internal wear. Measure the pressure drop across primary filters. High differential pressure indicates severe restriction. Flow testing removes all assumptions from your troubleshooting process.

Fluid Analysis

Visually inspect the reservoir fluid immediately. Check for dark colors or burnt odors. A milky appearance means severe water ingress. Foaming on the surface indicates air aeration problems. We highly recommend sending samples to a laboratory. They can perform an ISO particle count. They will test the exact viscosity and additive package depletion. This data proves invaluable.

Mechanical Inspection

Listen closely to the machinery before shutting it down. High-pitched whining noises point directly to cavitation. Rattling sounds indicate severe mechanical binding. Shut the machinery off safely. Lock out the power source. Perform a thorough physical inspection of mounting flanges and drive couplings. Look for fretting or misalignment.

Diagnostic Action Steps

  1. Conduct a comprehensive thermal audit across all physical components.
  2. Measure exact flow rates under maximum working load conditions.
  3. Extract and analyze oil samples for water, air, or debris.
  4. Perform a visual and auditory mechanical check of the drive train.

Thermal Troubleshooting Reference

Use the chart below to match symptoms with probable causes during your baseline thermal audit.

Observed Symptom Probable Cause Recommended Action
Localized heat at relief valve Valve setting too low or stuck open Adjust pressure setting or clean valve spool.
Hot return line, cool pressure line Internal cylinder bypassing Rebuild cylinder seals.
Entire reservoir runs hot Clogged heat exchanger or bad fan Clean radiator fins; verify cooling water flow.
Pump casing extremely hot Severe internal slippage or cavitation Check suction line for leaks; verify flow efficiency.

Repair vs. Replace: Decision Criteria for Hydraulic Pumps

When you confirm the unit has failed, you face a major choice. Do you rebuild it or buy a new one? This decision impacts your budget and production schedule. You must evaluate several critical factors objectively.

Performance to Outcomes

Weigh the cost of a complete rebuild carefully. Compare it against the price of a brand-new unit. Factor in delivery lead times. A comprehensive rebuild might take several weeks. A new unit could arrive on your dock tomorrow. Consider the required machining tolerances. Heavily worn casings might not accept oversized internal components safely.

System Lifecycle

Consider the total age of your machinery. If your current unit is completely obsolete, retrofitting becomes necessary. Evaluate the engineering effort required to integrate a modern equivalent. You might need custom mounting flanges or altered shaft splines. Sourcing remanufactured parts might save time for older systems. Ensure remanufactured components meet original OEM specifications.

Warranty and Compliance

Look closely at OEM warranties. Vendor reliability matters immensely when making this decision. Rebuilt units must include verified bench-test reports. Never accept a rebuilt unit without proof of performance. This documentation ensures trustworthiness. It proves the unit meets strict volumetric efficiency standards. A strong warranty protects your operational budget.

Shortlisting Logic

Choose your component vendors wisely. Look for suppliers offering immediate local availability. Demand transparent performance specifications before purchasing. Technical support is crucial for smooth system integration. Ask if they provide application-specific sizing assistance. A good vendor acts as a partner, not just a parts bin. They will help you verify circuit parameters before installation.

Best Practices for Component Sourcing

  • Always request a dynamometer test report for remanufactured units.
  • Verify shaft rotation direction and spline count before ordering.
  • Confirm seal materials are compatible with your specific fluid type.
  • Ask about expedited shipping options to minimize facility downtime.

Conclusion

A hot component is merely a symptom of broader system inefficiency. Methodical diagnosis always beats blind part swapping. You must investigate flow restrictions, pressure drops, and cooling failures. By utilizing thermal audits and flow meters, you isolate root causes accurately. This systematic approach prevents repeat failures.

Maintenance teams should take immediate action. Document your current operating temperatures and baseline pressures today. Conduct a comprehensive thermal audit of your most critical machinery. If you suspect internal leakage or severe valve failure, consult a certified fluid power specialist immediately.

Do not let thermal stress destroy your productivity. Browse available inventory for replacement units, valves, and cooling components. Contact technical sales teams for application-specific sizing. They can guide you through advanced troubleshooting and help you secure the exact parts you need.

FAQ

Q: What is the maximum safe operating temperature for a hydraulic system?

A: Generally, temperatures above 180°F (82°C) are dangerous for standard hydraulic fluids and seals. Operating at these extremes destroys viscosity and accelerates wear. Ideal operating ranges usually sit between 110°F and 130°F (43°C - 54°C). Keeping temperatures within this ideal zone ensures maximum component lifespan and efficiency.

Q: Why would a hydraulic swash plate pump burn the valve plate?

A: Extreme fluid temperatures cause a complete loss of the protective lubricating film. This film normally separates the rotating cylinder block from the stationary valve plate. Without it, you get direct metal-on-metal friction. This intense friction leads to rapid scoring, burning, and catastrophic mechanical failure.

Q: Can a bad relief valve cause my hydraulic pump to overheat?

A: Yes. If a relief valve is set too low or gets stuck partially open, it constantly forces pressurized fluid over the relief path. This continuous pressure drop converts energy directly into heat rather than useful mechanical work. It acts like an internal heater within your circuit.
