| Type: | |
|---|---|

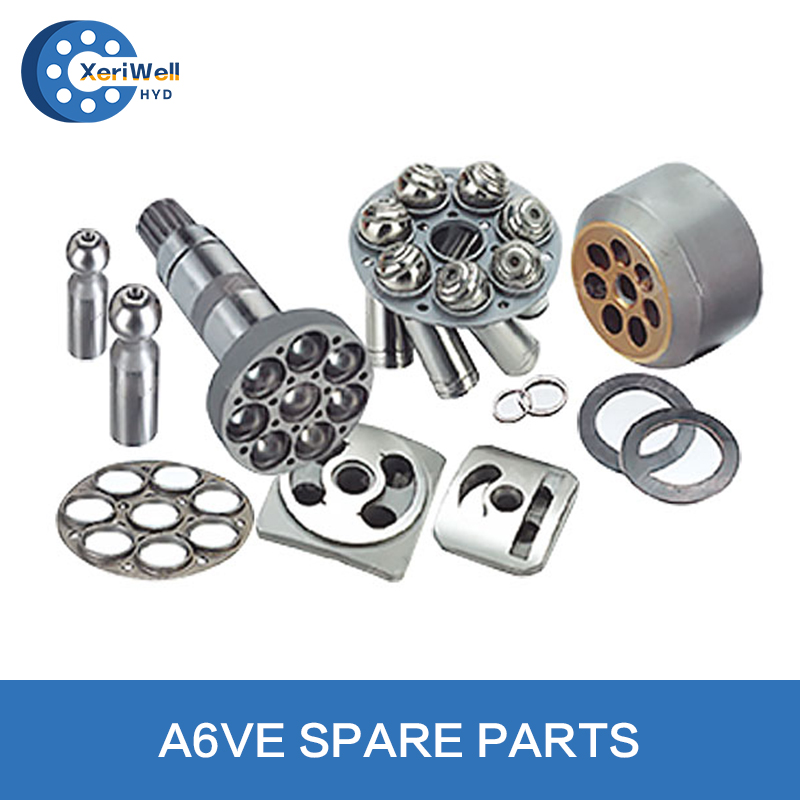

| spare parts avaliable: | |
| Quantity: | |

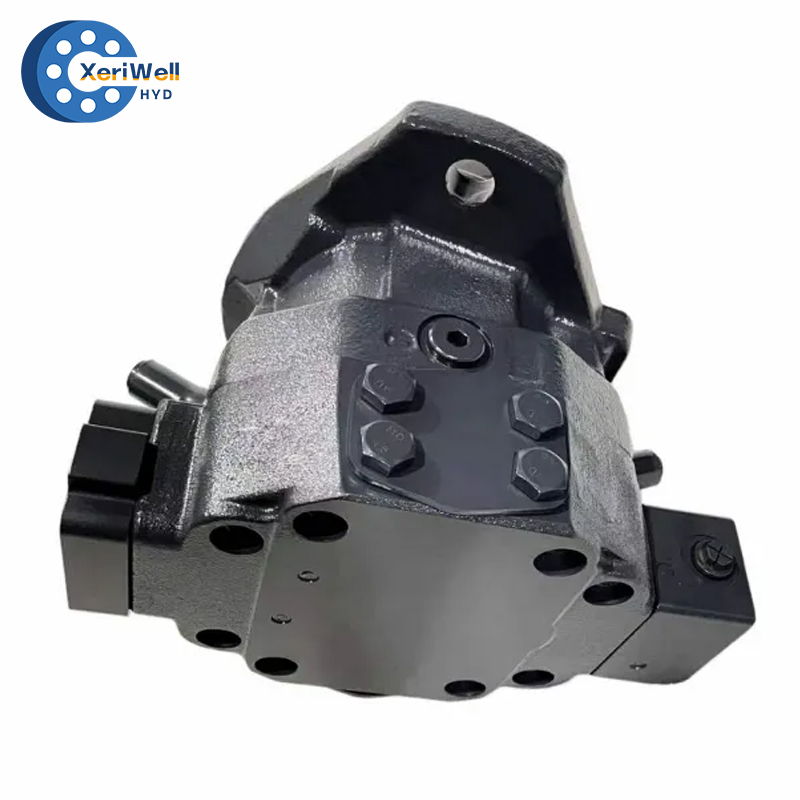

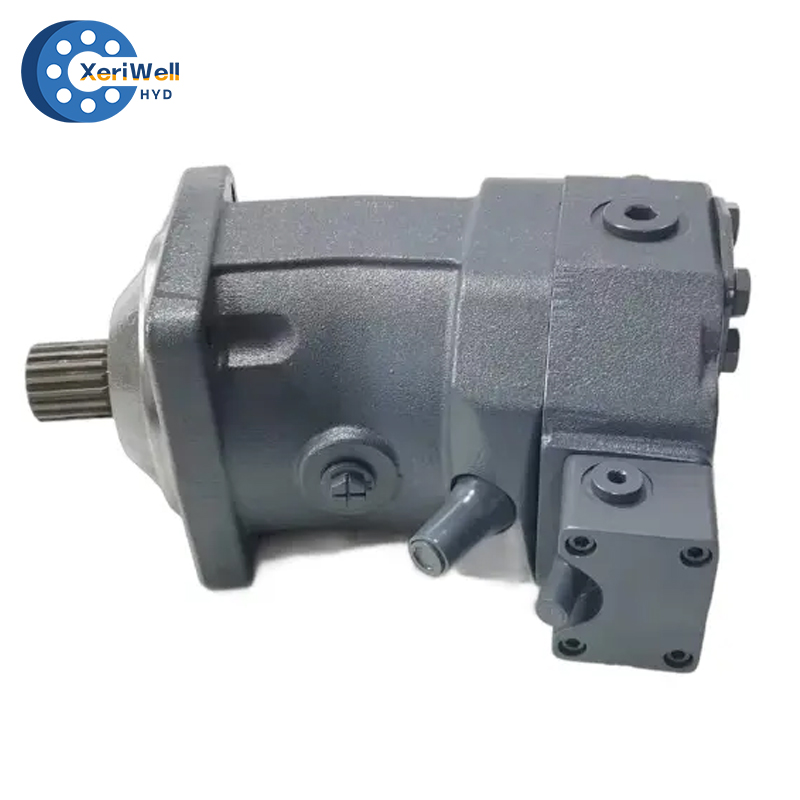

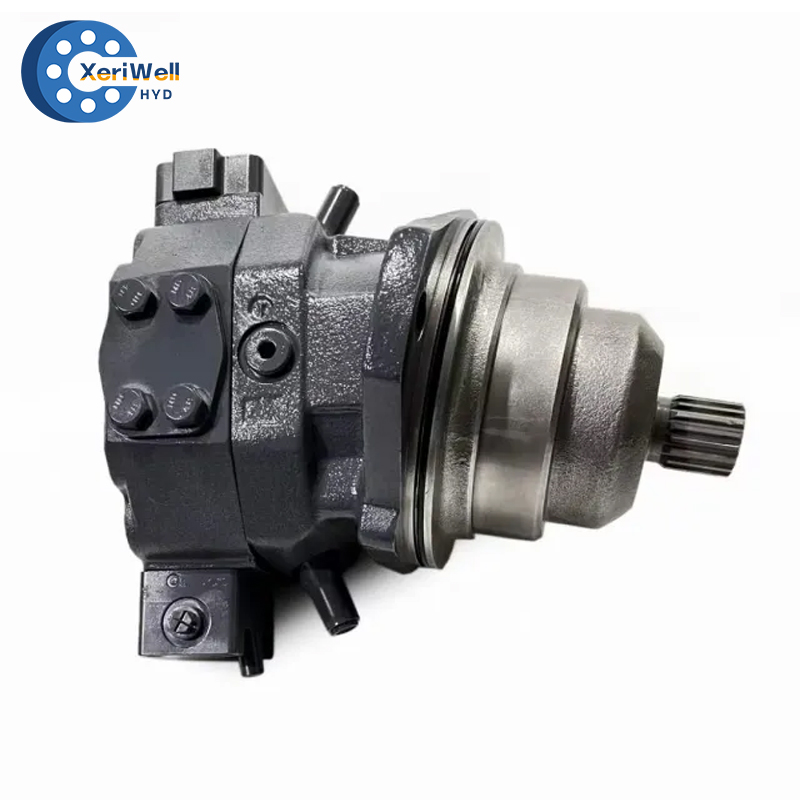

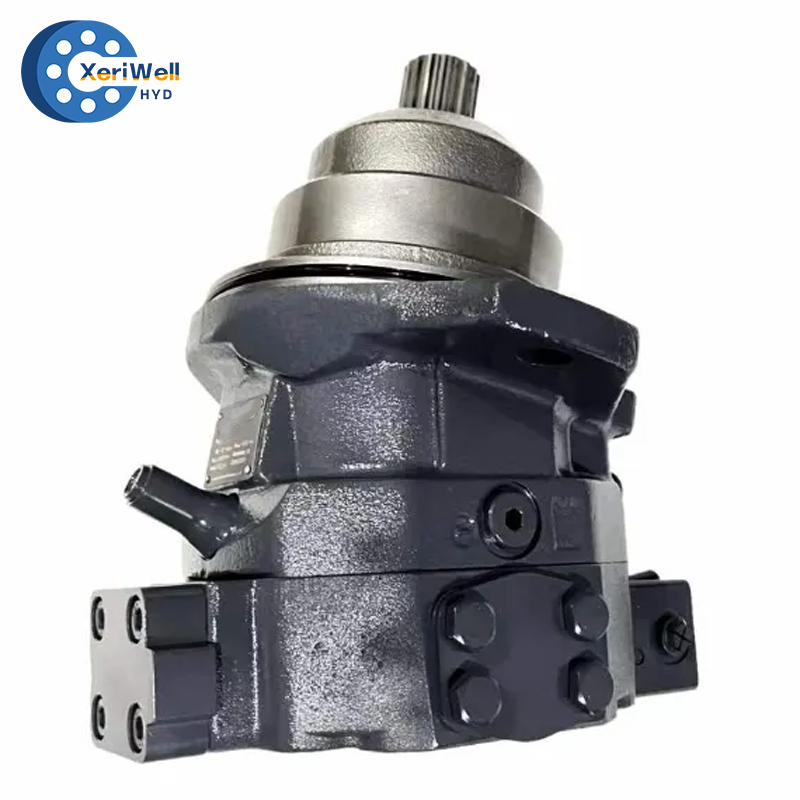

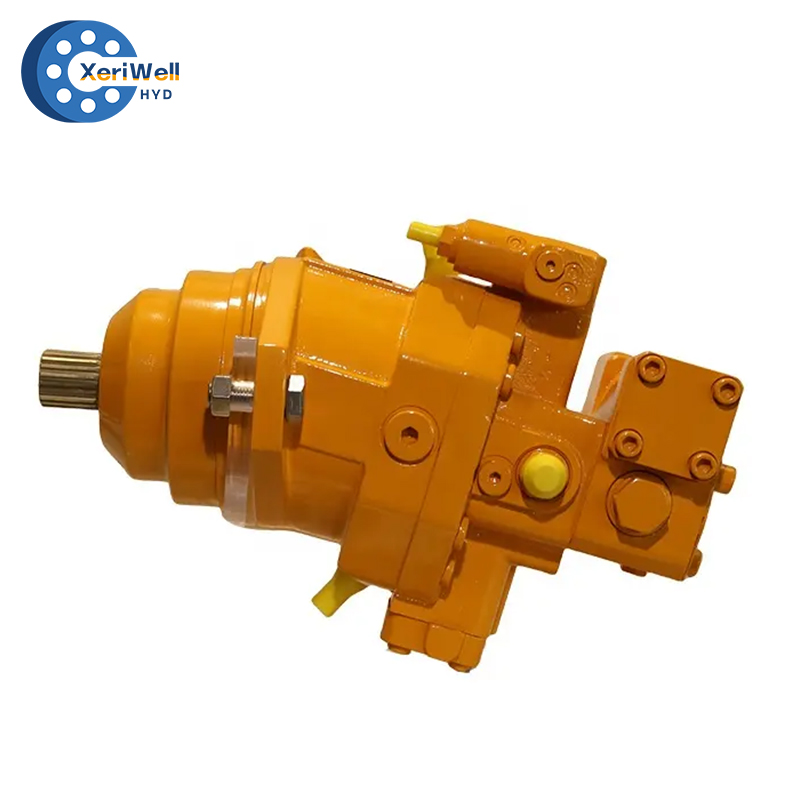

A6VE
Xeriwell or Others
REXROTH A6VE 28/55/80/107/160/200/250 Hydraulic Motor technical data:

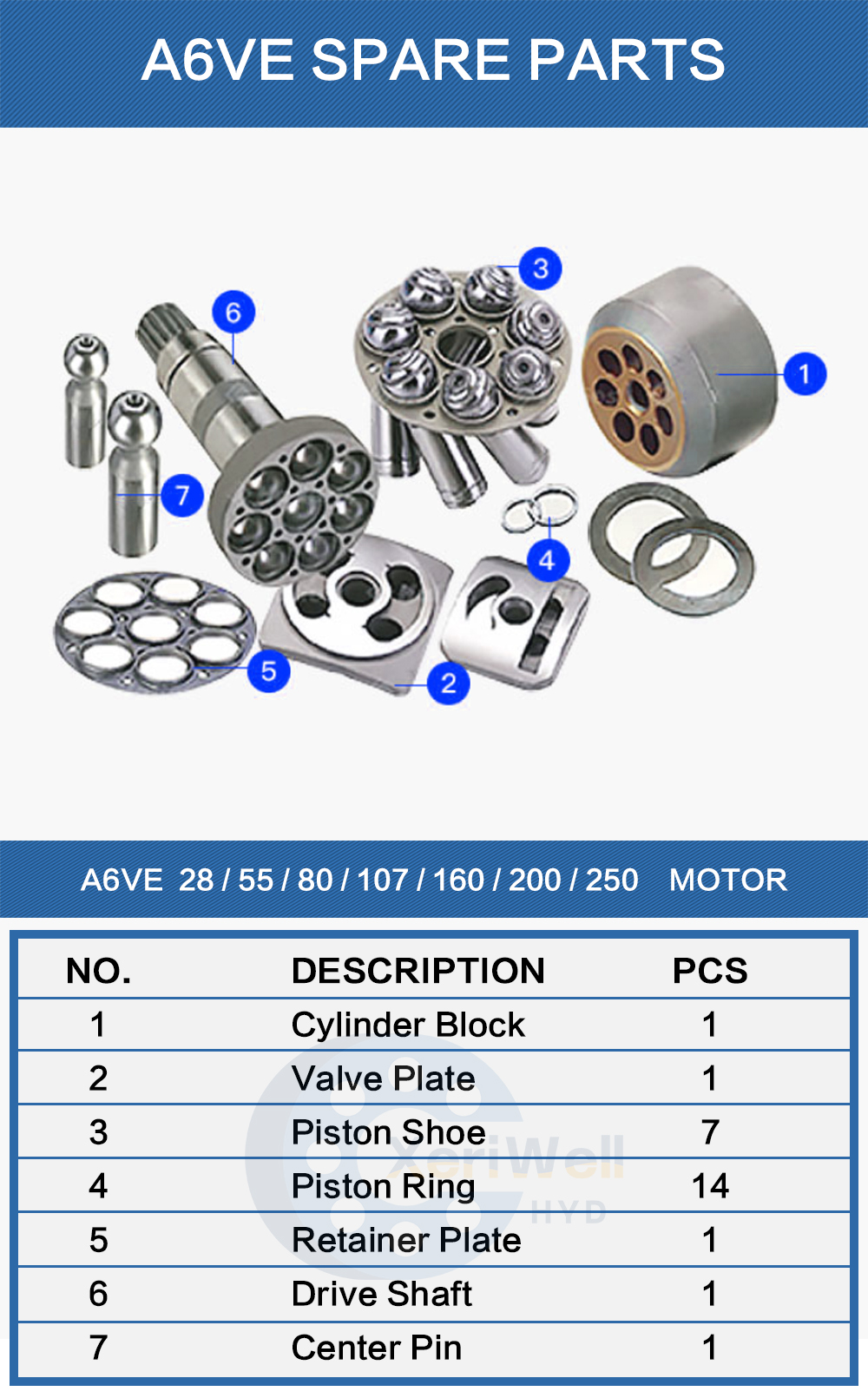

REXROTH A6VE 28/55/80/107/160/200/250 Hydraulic Motor spare parts List
| Table of values (theoretical values,without efficiency and tolerances;values rounded) | |||||||||
| Size | Size | 28 | 55 | 80 | 107 | 160 | 250 | ||
| Displacement1) | Vg max | cm3 | 28.1 | 54.8 | 80 | 107 | 160 | 250 | |
| Vg 0 | cm3 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Speed max. (while adhering to max. permissible flow) | nmaxat Vg max | rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 2700 | |
| nmax1at Vg<V g1 | rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 3600 | ||
| Vg1= 0.63 x Vg max | cm3 | 18 | 35 | 51 | 68 | 101 | 1882) | ||
| nmax 0at Vg 0 | rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 3600 | ||
| Max flow | qV max | L/min | 156 | 244 | 312 | 380 | 496 | 675 | |
| Max torque | Tmaxat Vg max3) | Nm | 179 | 349 | 509 | 681 | 1019 | 1391 | |
| Rotary stiffness Vg maxto Vg/2 Vg/2to 0(interpolated) | Cmin | Nm/rad | 5670 | 10400 | 15500 | 21000 | 35300 | 59500 | |
| Cmax | Nm/rad | 18100 | 32000 | 47900 | 65200 | 105000 | 181000 | ||
| Moment of inertia for rotary group | JTW | kgm2 | 0.0014 | 0.0042 | 0.008 | 0.0127 | 0.0253 | 0.061 | |
| Angular acceleration maximum | α | rad/s2 | 47000 | 31500 | 24000 | 19000 | 11000 | 10000 | |
| Filling capacity | V | L | 0.5 | 0.75 | 1.2 | 1.5 | 2.4 | 3 | |
| Mass (approx.) Port plate 02 Port plate 22 | m | kg | 16 | 26 | 34 | 47 | 64 | 90 | |
| m | kg | – | 35 | 43 | 53 | 72 | – | ||
| 1)The minimum and maximum displacements are infinitely variable,see ordering codes on page 2. (default settings for sizes 250 unless specified in order:Vg min= 0.2 • Vg max,Vg max= Vg max). 2)Vg1= 0.75 x Vg max(approx.) 3)Sizes 28 to 160:Δp = 400 bar;size 250:Δp = 350 bar | |||||||||
| Caution:Exceeding the permissible limit values may result in a loss of function,a reduction in service life or in the destruction of the axial piston unit. Other permissible limit values with respect to speed variation,reduced angular acceleration as a function of the frequency and the permissible startup angular acceleration (lower than the maximum angular acceleration) can be found in data sheet RE 90261. | |||||||||
