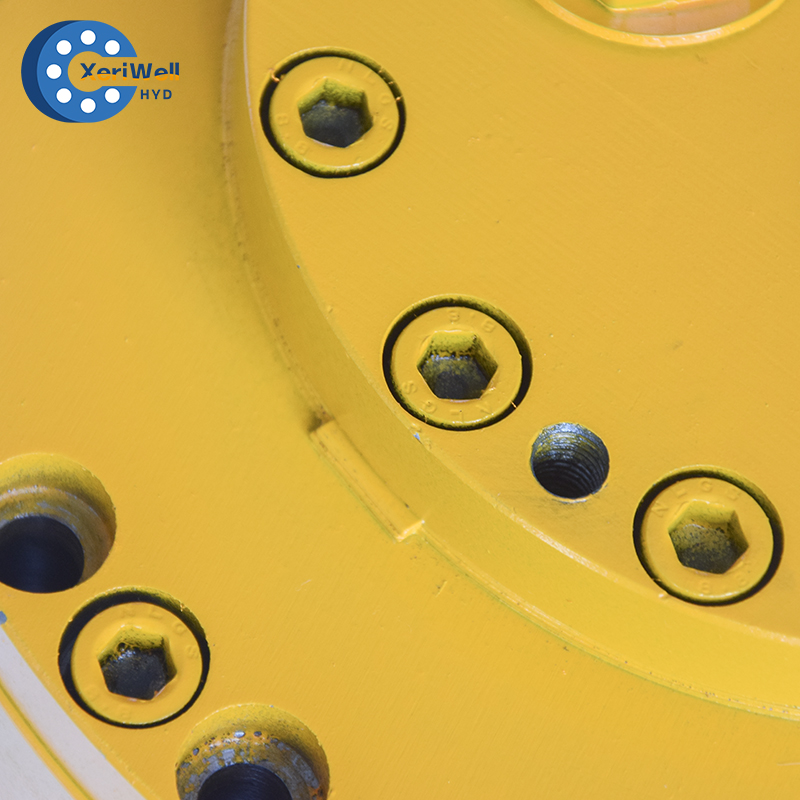

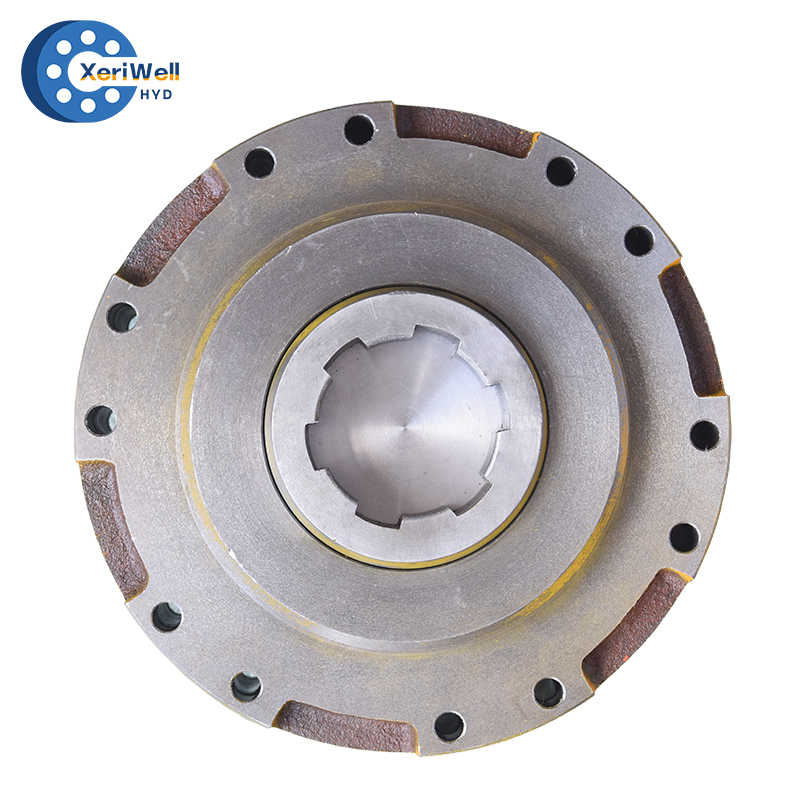

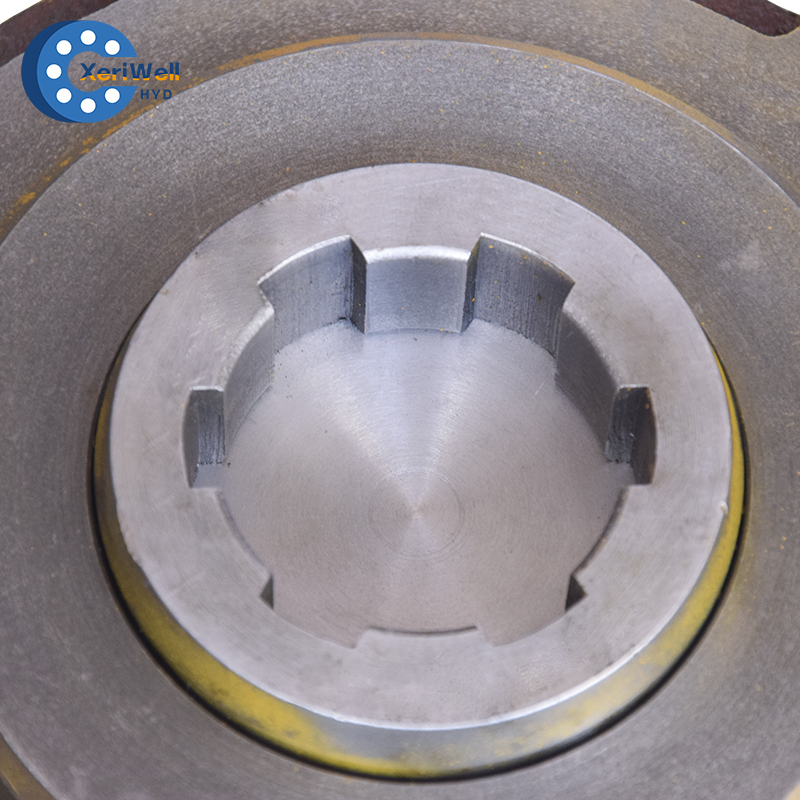

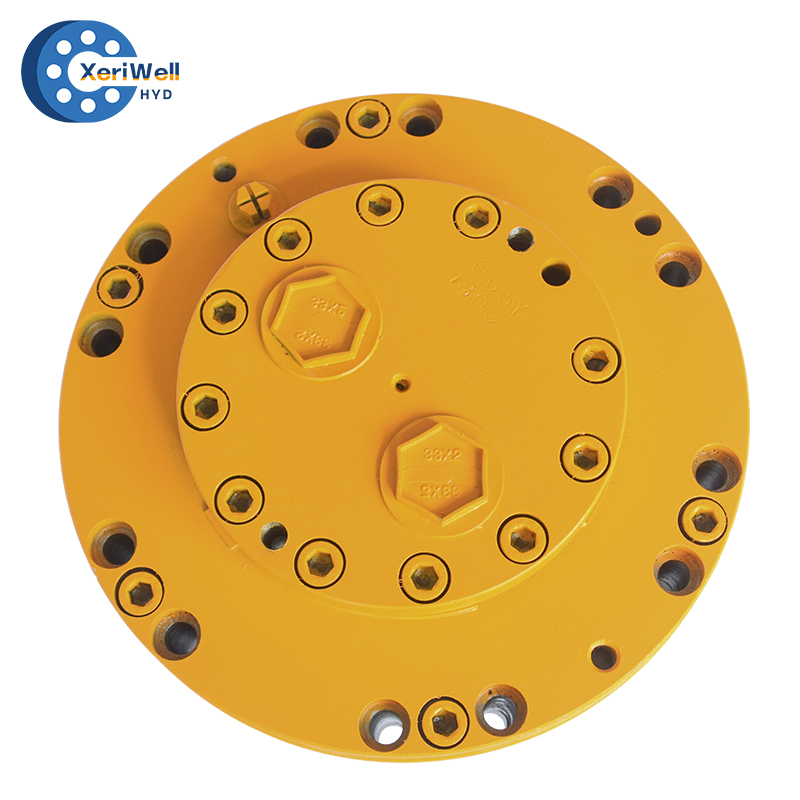

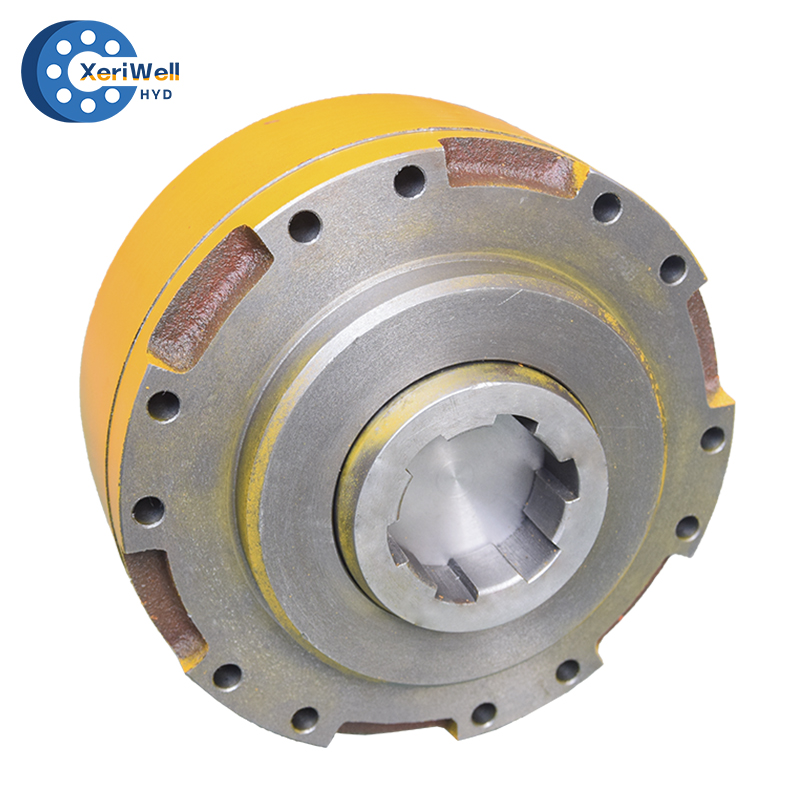

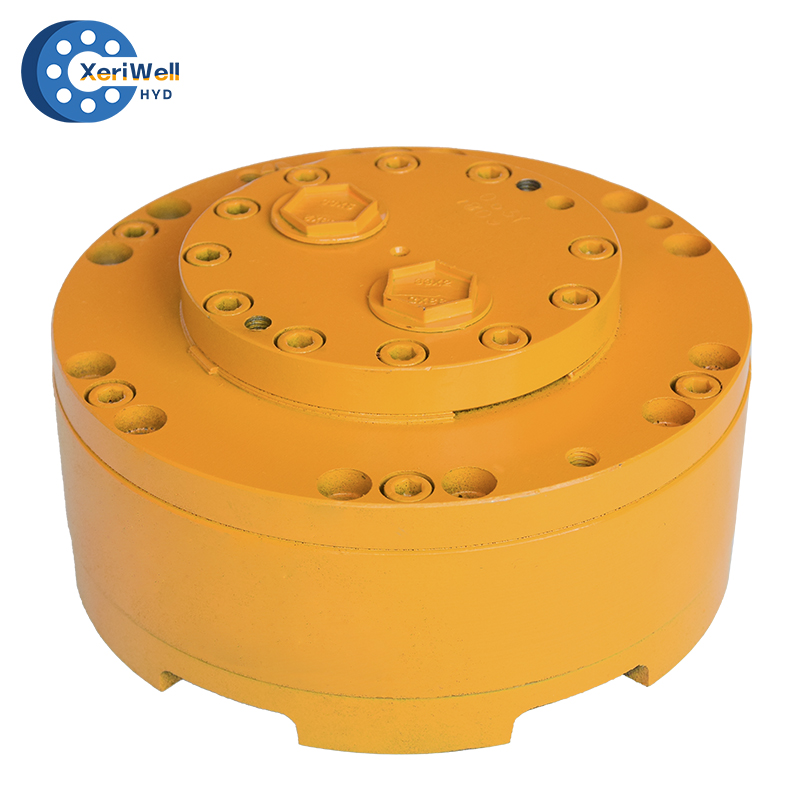

QJM series hydraulic motor can constitute hydraulic transmission device with different oil pumps, valves and hydraulic parts, which can meet the requirements on all conditions. QJM hydraulic motor has the characteristics of light weight, small volume, wide speed regulation range, perfect stablity performance at low speed, tolerance of stamping, high efficiency, long lifetime, etc. Now it is widely used in constructional engineering, metallurgical equipment, petroleum, coal mine, ship, geological prospecting, etc.
Main features:
1. Because the rolling body of this motor is replaces by a steel ball rather than two or more rollers and beams. Therefore, QJM series hydraulic motor has such features as: simple structure, reliable performance, small volume and light weight.
2. Small kinematics' pair inertia and hard steel ball make this motor continuously work under the strong impact load.
3. QJM series hydraulic motor has higher mechanical and volumetric efficiency. It can operate stably at low speed, and it has large starting torque.
4. Because of the characteristics of the structure, this motor's requirement of oil return backpressure is lower, general need is 0.3-0.8Mpa, the higher the speed, the greater the backpressure.
5. As this model has variable displacements dual and trinal speeds, it has greater speed range.
6. Simple structure and easy maintenance. It has no special requirement for the cleanliness of the oil. And the oil filtration precision can be selected according to the requirement of the matching oil pump.

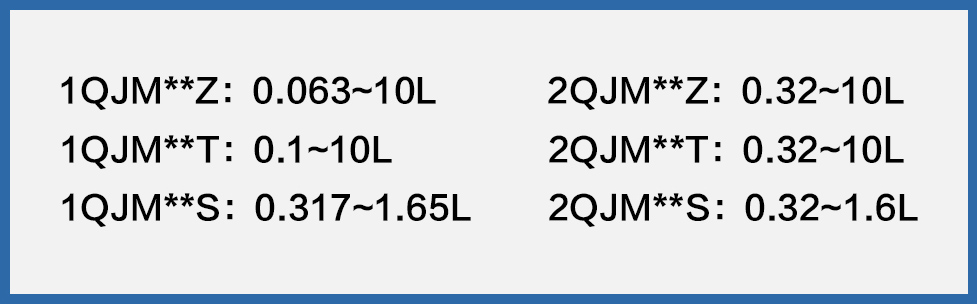

Type: 1QJM001 1QJM002 1QJM01 1QJM02 1QJM11 1QJM12 1QJM21 1QJM32 1QJM42 2QJM02 2QJM11 2QJM21 2QJM32

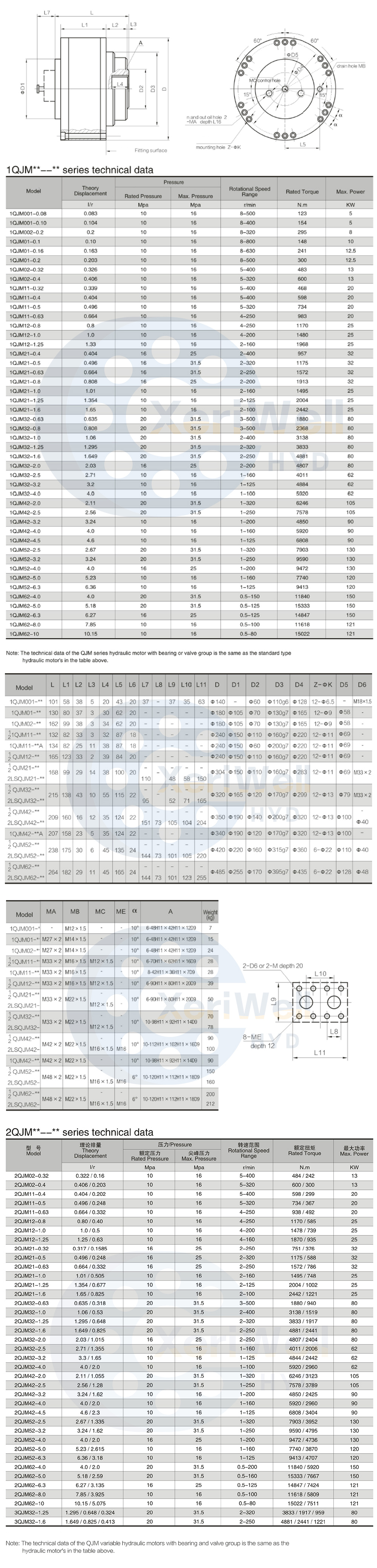

QJM Hydraulic Motor catalogue pdf manual diagram
| 1QJM**--** series technical data | ||||||
| Model | Theory Displacement | Pressure | Rotational Speed Range | Rated Torque | Max. Power | |
| Rated Pressure | Max. Pressure | |||||
| l/r | Mpa | Mpa | r/min | N.m | KW | |
| 1QJM001–0.08 | 0.083 | 10 | 16 | 8–500 | 123 | 5 |
| 1QJM001–0.10 | 0.104 | 10 | 16 | 8–400 | 154 | 5 |
| 1QJM002–0.2 | 0.2 | 10 | 16 | 8–320 | 295 | 8 |
| 1QJM01–0.1 | 0.1 | 10 | 16 | 8–800 | 148 | 10 |
| 1QJM01–0.16 | 0.163 | 10 | 16 | 8–630 | 241 | 12.5 |
| 1QJM01–0.2 | 0.203 | 10 | 16 | 8–500 | 300 | 12.5 |
| 1QJM02–0.32 | 0.326 | 10 | 16 | 5–400 | 483 | 13 |
| 1QJM02–0.4 | 0.406 | 10 | 16 | 5–320 | 600 | 13 |
| 1QJM11–0.32 | 0.339 | 10 | 16 | 5–400 | 468 | 20 |
| 1QJM11–0.4 | 0.404 | 10 | 16 | 5–400 | 598 | 20 |
| 1QJM11–0.5 | 0.496 | 10 | 16 | 5–320 | 734 | 20 |
| 1QJM11–0.63 | 0.664 | 10 | 16 | 4–250 | 983 | 20 |
| 1QJM12–0.8 | 0.8 | 10 | 16 | 4–250 | 1170 | 25 |
| 1QJM12–1.0 | 1 | 10 | 16 | 4–200 | 1480 | 25 |
| 1QJM12–1.25 | 1.33 | 10 | 16 | 2–160 | 1968 | 25 |
| 1QJM21–0.4 | 0.404 | 16 | 25 | 2–400 | 957 | 32 |
| 1QJM21–0.5 | 0.496 | 16 | 31.5 | 2–320 | 1175 | 32 |
| 1QJM21–0.63 | 0.664 | 16 | 31.5 | 2–250 | 1572 | 32 |
| 1QJM21–0.8 | 0.808 | 16 | 25 | 2–200 | 1913 | 32 |
| 1QJM21–1.0 | 1.01 | 10 | 16 | 2–160 | 1495 | 25 |
| 1QJM21–1.25 | 1.354 | 10 | 16 | 2–125 | 2004 | 25 |
| 1QJM21–1.6 | 1.65 | 10 | 16 | 2–100 | 2442 | 25 |
| 1QJM32–0.63 | 0.635 | 20 | 31.5 | 3–500 | 1880 | 80 |
| 1QJM32–0.8 | 0.808 | 20 | 31.5 | 3–500 | 2368 | 80 |
| 1QJM32–1.0 | 1.06 | 20 | 31.5 | 2–400 | 3138 | 80 |
| 1QJM32–1.25 | 1.295 | 20 | 31.5 | 2–320 | 3833 | 80 |
| 1QJM32–1.6 | 1.649 | 20 | 31.5 | 2–250 | 4881 | 80 |
| 1QJM32–2.0 | 2.03 | 16 | 25 | 2–200 | 4807 | 80 |
| 1QJM32–2.5 | 2.71 | 10 | 16 | 1–160 | 4011 | 62 |
| 1QJM32–3.2 | 3.2 | 10 | 16 | 1–125 | 4884 | 62 |
| 1QJM32–4.0 | 4 | 10 | 16 | 1–100 | 5920 | 62 |
| 1QJM42–2.0 | 2.11 | 20 | 31.5 | 1–320 | 6246 | 105 |
| 1QJM42–2.5 | 2.56 | 20 | 31.5 | 1–250 | 7578 | 105 |
| 1QJM42–3.2 | 3.24 | 10 | 16 | 1–200 | 4850 | 90 |
| 1QJM42–4.0 | 4 | 10 | 16 | 1–160 | 5920 | 90 |
| 1QJM42–4.5 | 4.6 | 10 | 16 | 1–125 | 6808 | 90 |
| 1QJM52–2.5 | 2.67 | 20 | 31.5 | 1–320 | 7903 | 130 |
| 1QJM52–3.2 | 3.24 | 20 | 31.5 | 1–250 | 9590 | 130 |
| 1QJM52–4.0 | 4 | 16 | 25 | 1–200 | 9472 | 130 |
| 1QJM52–5.0 | 5.23 | 10 | 16 | 1–160 | 7740 | 120 |
| 1QJM52–6.3 | 6.36 | 10 | 16 | 1–125 | 9413 | 120 |
| 1QJM62–4.0 | 4 | 20 | 31.5 | 0.5–150 | 11840 | 150 |
| 1QJM62–5.0 | 5.18 | 20 | 31.5 | 0.5–125 | 15333 | 150 |
| 1QJM62–6.3 | 6.27 | 16 | 25 | 0.5–125 | 14847 | 150 |
| 1QJM62–8.0 | 7.85 | 10 | 16 | 0.5–100 | 11618 | 121 |
| 1QJM62–10 | 10.15 | 10 | 16 | 0.5–80 | 15022 | 121 |
| Note:The technical data of the QJM series hydraulic motor with bearing or valve group is the same as the standard type hydraulic motor's in the table above. | ||||||
| Model | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | D | D1 | D2 | D3 | D4 | Z−ΦK | D5 | D6 |
| 1QJM001–** | 101 | 58 | 38 | 5 | 20 | 43 | 20 | 37 | – | 37 | 35 | 63 | Φ140 | – | Φ60 | Φ110g6 | Φ128 | 12–Φ6.5 | – | M18×1.5 |
| 1QJM01–** | 130 | 80 | 37 | 3 | 30 | 62 | 20 | – | – | – | – | – | Φ180 | Φ105 | Φ70 | Φ130g7 | Φ165 | 12–Φ9 | Φ58 | - |
| 1QJM02–** | 162 | 99 | 38 | 3 | 34 | 62 | 20 | – | – | – | – | – | Φ180 | Φ105 | Φ70 | Φ130g7 | Φ165 | 12–Φ9 | Φ58 | - |
| 1/21QJM11–** | 132 | 82 | 33 | 3 | 32 | 87 | 18 | – | – | – | – | – | Φ240 | Φ150 | Φ110 | Φ160g7 | Φ220 | 12–Φ11 | Φ69 | - |
| 1QJM11–**A | 134 | 82 | 25 | 11 | 38 | 87 | 18 | – | – | – | – | – | Φ240 | Φ150 | Φ60 | Φ200g7 | Φ220 | 12–Φ11 | Φ69 | - |
| 1/2QJM12–** | 165 | 123 | 33 | 2 | 39 | 84 | 20 | – | – | – | – | – | Φ240 | Φ150 | Φ110 | Φ160g7 | Φ220 | 12–Φ11 | Φ69 | - |
| 1/2QJM21–** | 168 | 99 | 29 | 14 | 38 | 100 | 20 | –110 | – | – | – | – | Φ304 | Φ150 | Φ110 | Φ160g7 | Φ283 | 12–Φ11 | Φ69 | M33×2 |
| 1/2QJM32–** | 215 | 138 | 43 | 10 | 55 | 115 | 22 | –95 | – | – | – | – | Φ320 | Φ165 | Φ120 | Φ170g7 | Φ299 | 12–Φ13 | Φ79 | M33×2 |
| 1/2QJM42–** | 209 | 160 | 16 | 12 | 35 | 124 | 22 | –151 | –73 | – | – | – | Φ350 | Φ190 | Φ140 | Φ200g7 | Φ320 | 12–Φ13 | Φ100 | -Φ40 |
| 2LSQJM21–** | 207 | 158 | 23 | 5 | 35 | 124 | 22 | – | – | – | – | – | Φ340 | Φ190 | Φ120 | Φ170g7 | Φ320 | 12–Φ13 | Φ100 | – |
| 1QJM42–**A | 207 | 158 | 23 | 5 | 35 | 124 | 22 | – | – | – | – | – | Φ340 | Φ190 | Φ120 | Φ170g7 | Φ320 | 12–Φ13 | Φ100 | – |
| 1/2QJM52–** | 238 | 175 | 30 | 6 | 45 | 135 | 24 | –144 | –73 | –101 | –105 | –220 | Φ420 | Φ220 | Φ160 | Φ315g7 | Φ360 | 6–Φ22 | Φ110 | Φ40 |
| 2LSQJM52–** | 264 | 182 | 29 | 11 | 45 | 165 | 24 | –144 | –73 | –101 | –123 | –255 | Φ485 | Φ255 | Φ170 | Φ395g7 | Φ435 | 6–Φ22 | Φ128 | Φ48 |
| Model | MA | MB | MC | ME | α | A | Weight (kg) | ||
| 1QJM001-* | - | M12×1.5 | - | - | 10° | 6-48H11×42H11×1209 | 7 | ||
| 1QJM01-* | M27×2 | M14×1.5 | - | - | 10° | 6-48H11×42H11×1209 | 15 | ||
| 1QJM02-* | M27×2 | M14×1.5 | - | - | 10° | 6-48H11×42H11×1209 | 24 | ||
| 1/21QJM11-* | M33×2 | M16×1.5 | M12×1.5 | - | 10° | 6-70H11×62H11×1609 | 28 | ||
| 1QJM11–** | M33×2 | M16×1.5 | - | - | 10° | 8-42H11×36H11×7D9 | 28 | ||
| 1/2QJM12–** | M33×2 | M16×1.5 | M12×1.5 | - | 10° | 6-90H11×80H11×2009 | 39 | ||
| 1/2QJM21–** | M33×2 | M22×1.5 | M12×1.5 | - | 10° | 6-90H11×80H11×2009 | 50 | ||
| 1/2QJM32–** | M33×2 | M22×1.5 | M12×1.5 | - | 10° | 10-98H11×92H11×14D9 | 70 78 | ||
| 1/2QJM42–** | M42×2 | M22×1.5 | M16×1.5 | M16 | 10° | 10-112H11×102H11×16D9 | 90 100 | ||
| 1QJM42–** | M42×2 | M22×1.5 | - | - | 10° | 10-98H11×92H11×14D9 | 90 | ||
| 1/2QJM52–** | M48×2 | M22×1.5 | M16×1.5 | M16 | 6° | 10-120H11×112H11×18D9 | 150 160 | ||
| 1/2QJM62–** | M48×2 | M22×1.5 | M16×1.5 | M16 | 6° | 10-120H11×112H11×18D9 | 200 212 | ||
| 2QJM**--** series technical data | ||||||
| 型 号 Model | 理论排量 Theory Displacement | 压力/Pressure | 转速范围 Rotational Speed Range | 额定扭矩 Rated Torque | 最大功率 Max. Power | |
| 额定压力 Rated Pressure | 尖峰压力 Max. Pressure | |||||
| l/r | Mpa | Mpa | r/min | N.m | KW | |
| 2QJM02–0.32 | 0.322 / 0.16 | 10 | 16 | 5–400 | 484 / 242 | 13 |
| 2QJM02–0.4 | 0.406 / 0.203 | 10 | 16 | 5–320 | 600 / 300 | 13 |
| 2QJM11–0.4 | 0.404 / 0.202 | 10 | 16 | 5–400 | 598 / 299 | 20 |
| 2QJM11–0.5 | 0.496 / 0.248 | 10 | 16 | 5–320 | 734 / 367 | 20 |
| 2QJM11–0.63 | 0.664 / 0.332 | 10 | 16 | 4–250 | 938 / 492 | 20 |
| 2QJM12–0.8 | 0.80 / 0.40 | 10 | 16 | 4–250 | 1170 / 585 | 25 |
| 2QJM12–1.0 | 1.0 / 0.5 | 10 | 16 | 4–200 | 1478 / 739 | 25 |
| 2QJM12–1.25 | 1.25 / 0.63 | 10 | 16 | 4–160 | 1870 / 935 | 25 |
| 2QJM21–0.32 | 0.317 / 0.1585 | 16 | 25 | 2–250 | 751 / 376 | 32 |
| 2QJM21–0.5 | 0.496 / 0.248 | 16 | 25 | 2–320 | 1175 / 588 | 32 |
| 2QJM21–0.63 | 0.664 / 0.332 | 16 | 25 | 2–250 | 1572 / 786 | 32 |
| 2QJM21–1.0 | 1.01 / 0.505 | 10 | 16 | 2–160 | 1495 / 748 | 25 |
| 2QJM21–1.25 | 1.354 / 0.677 | 10 | 16 | 2–125 | 2004 / 1002 | 25 |
| 2QJM21–1.6 | 1.65 / 0.825 | 10 | 16 | 2–100 | 2442 / 1221 | 25 |
| 2QJM32–0.63 | 0.635 / 0.318 | 20 | 31.5 | 3–500 | 1880 / 940 | 80 |
| 2QJM32–1.0 | 1.06 / 0.53 | 20 | 31.5 | 2–400 | 3138 / 1519 | 80 |
| 2QJM32–1.25 | 1.295 / 0.648 | 20 | 31.5 | 2–320 | 3833 / 1917 | 80 |
| 2QJM32–1.6 | 1.649 / 0.825 | 20 | 31.5 | 2–250 | 4881 / 2441 | 80 |
| 2QJM32–2.0 | 2.03 / 1.015 | 16 | 25 | 2–250 | 4807 / 2404 | 80 |
| 2QJM32–2.5 | 2.71 / 1.355 | 10 | 16 | 1–160 | 4011 / 2006 | 62 |
| 2QJM32–3.2 | 3.3 / 1.65 | 10 | 16 | 1–125 | 4844 / 2442 | 62 |
| 2QJM32–4.0 | 4.0 / 2.0 | 10 | 16 | 1–100 | 5920 / 2960 | 62 |
| 2QJM42–2.0 | 2.11 / 1.055 | 20 | 31.5 | 1–320 | 6246 / 3123 | 105 |
| 2QJM42–2.5 | 2.56 / 1.28 | 20 | 31.5 | 1–250 | 7578 / 3789 | 105 |
| 2QJM42–3.2 | 3.24 / 1.62 | 10 | 16 | 1–200 | 4850 / 2425 | 90 |
| 2QJM42–4.0 | 4.0 / 2.0 | 10 | 16 | 1–160 | 5920 / 2960 | 90 |
| 2QJM42–4.5 | 4.6 / 2.3 | 10 | 16 | 1–125 | 6808 / 3404 | 90 |
| 2QJM52–2.5 | 2.67 / 1.335 | 20 | 31.5 | 1–320 | 7903 / 3952 | 130 |
| 2QJM52–3.2 | 3.24 / 1.62 | 20 | 31.5 | 1–250 | 9590 / 4795 | 130 |
| 2QJM52–4.0 | 4.0 / 2.0 | 16 | 25 | 1–200 | 9472 / 4736 | 130 |
| 2QJM52–5.0 | 5.23 / 2.615 | 10 | 16 | 1–160 | 7740 / 3870 | 120 |
| 2QJM52–6.3 | 6.36 / 3.18 | 10 | 16 | 1–125 | 9413 / 4707 | 120 |
| 2QJM62–4.0 | 4.0 / 2.0 | 20 | 31.5 | 0.5–200 | 11840 / 5920 | 150 |
| 2QJM62–5.0 | 5.18 / 2.59 | 20 | 31.5 | 0.5–160 | 15333 / 7667 | 150 |
| 2QJM62–6.3 | 6.27 / 3.135 | 16 | 25 | 0.5–125 | 14847 / 7424 | 121 |
| 2QJM62–8.0 | 7.85 / 3.925 | 10 | 16 | 0.5–100 | 11618 / 5809 | 121 |
| 2QJM62–10 | 10.15 / 5.075 | 10 | 16 | 0.5–80 | 15022 / 7511 | 121 |
| 3QJM32–1.25 | 1.295 / 0.648 / 0.324 | 20 | 31.5 | 2–320 | 3833 / 1917 / 959 | 80 |
| 3QJM32–1.6 | 1.649 / 0.825 / 0.413 | 20 | 31.5 | 2–250 | 4881 / 2441 / 1221 | 80 |
| Note:The technical data of the QJM variable hydraulic motors with bearing and valve group is the same as the hydraulic motor’s in the table above. | ||||||
