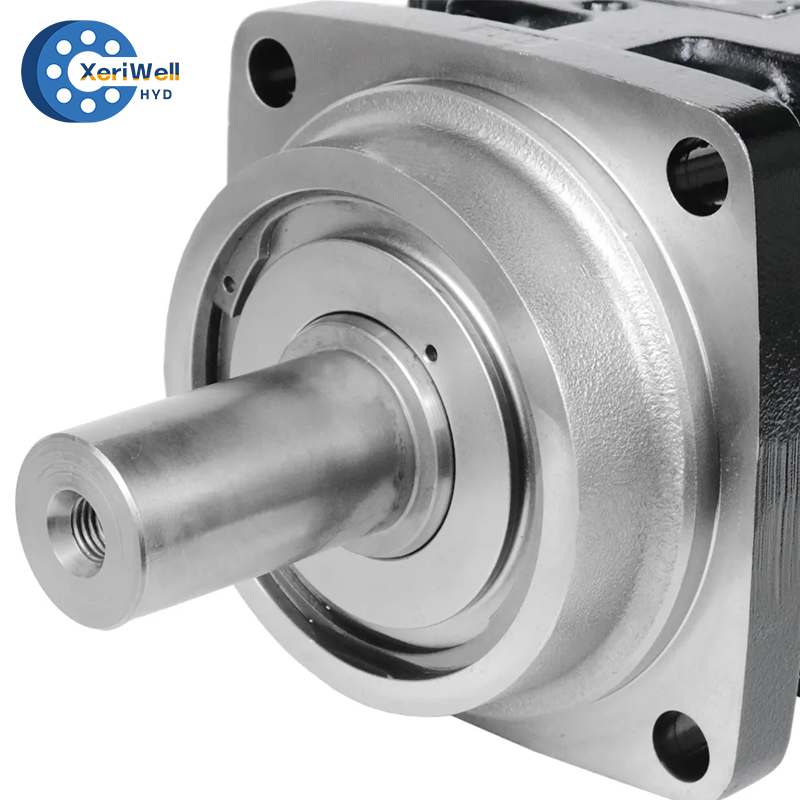

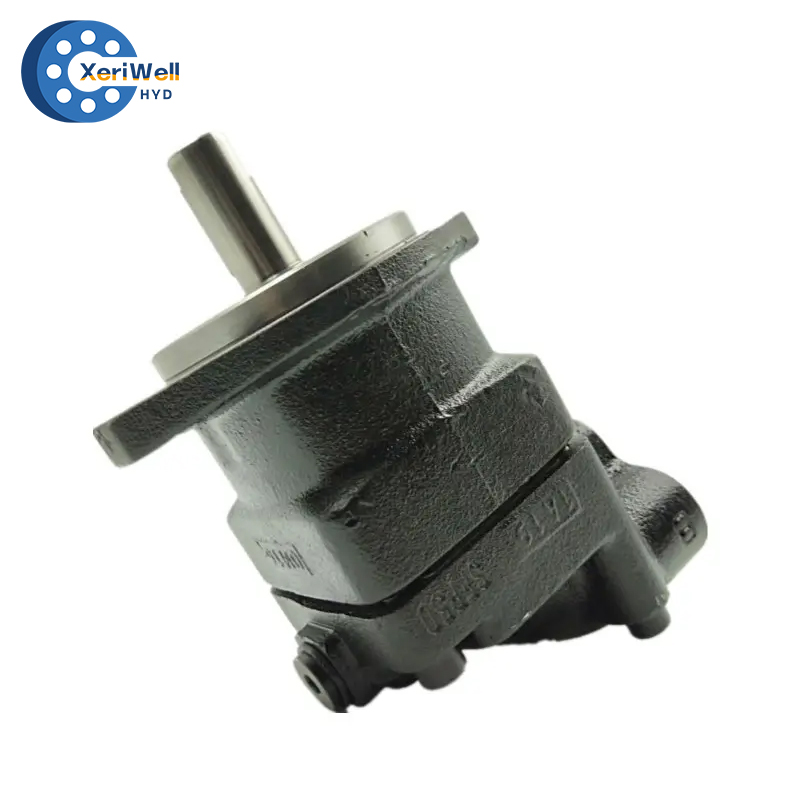

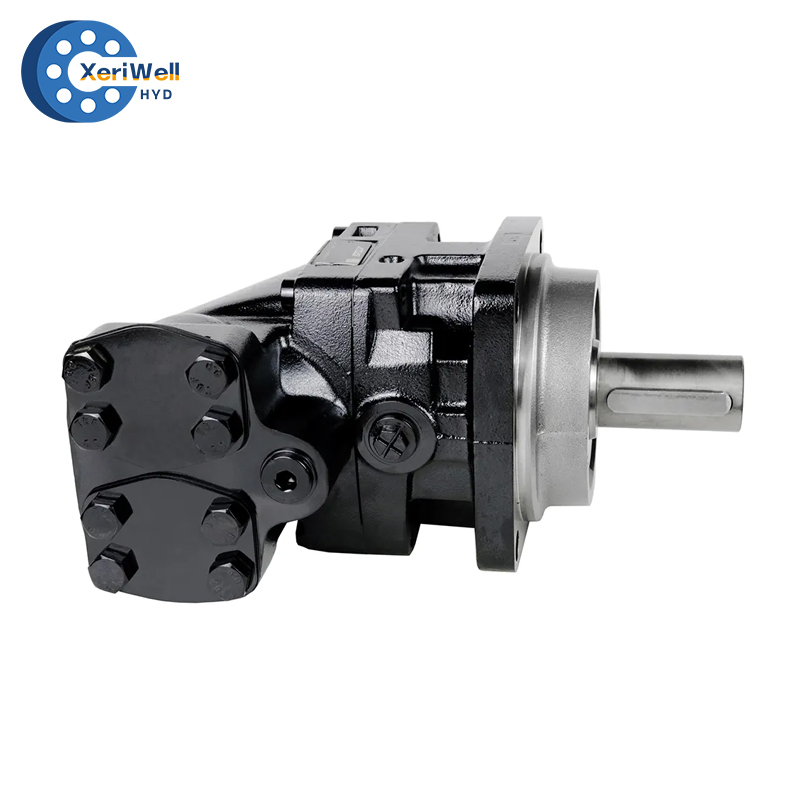

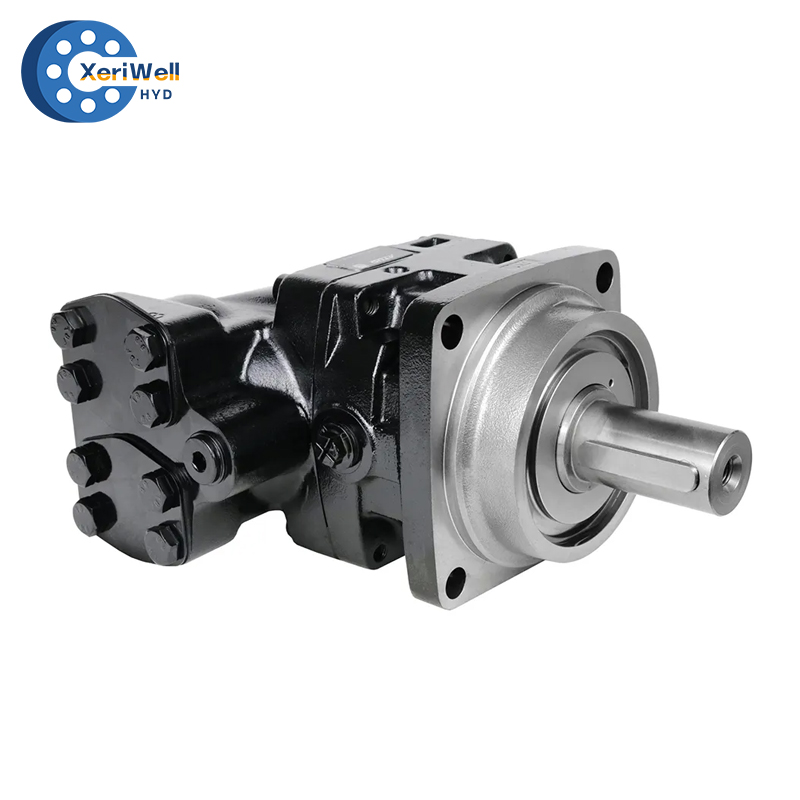

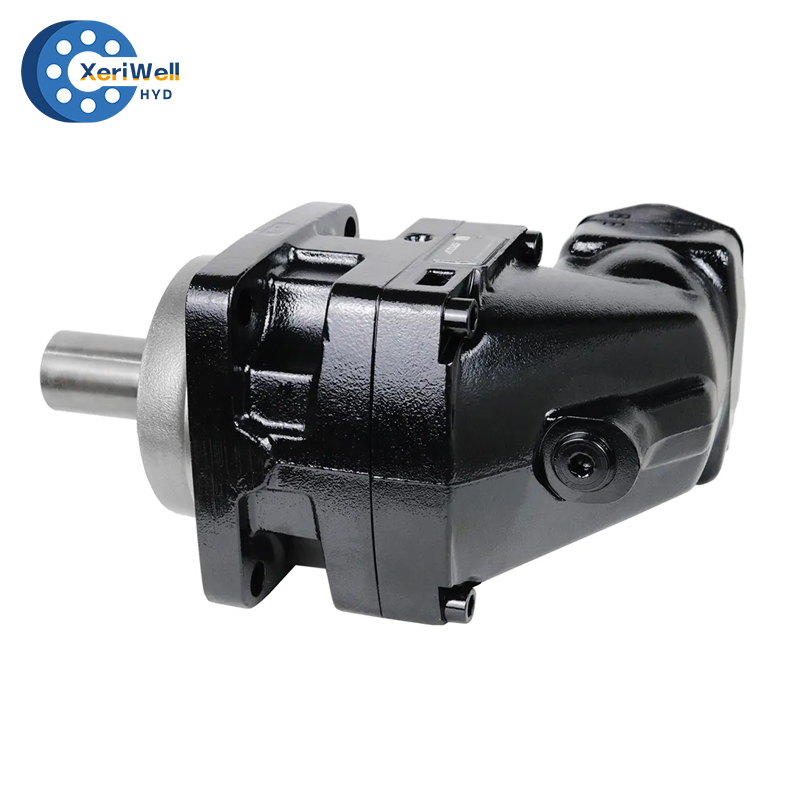

Parker F12 Hydraulic Motor

Parker F12 Hydraulic Motor Product Introduction

Parker F12 series motor is bent axis, fixed displacement heavyduty motor/pump series. They can be used in numerous applications in both open and closed loop circuits.

• Series F12 conforms to current ISO and SAE mounting flange and shaft end configurations. A very compact cartridge version is also available.

Characteristic features:

• Thanks to the unique spherical piston design, F12 motor can be used at unusually high shaft speeds. Operating pressures to 480 bar provides for the high output power capability.

• The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump.

• The laminated piston ring offers important advantages such as low internal leakage and thermal shock resistance.

• The pump version has highly engineered valve plates for increased selfpriming speed and low noise, available with left and right hand rotation.

• The F12 motor produce very high torque at start-up as well as at low speeds.

• Our unique timing gear design synchronizes shaft and cylinder barrel, making the F12 very tolerant to high 'G' forces and torsional vibrations.

• Heavy duty roller bearings permit substantial external axial and radial shaft loads.

• The F12's have a simple and straightforward design with very few moving parts, making them very reliable motors/pumps.

• The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design with long service life and, above all, proven reliability.

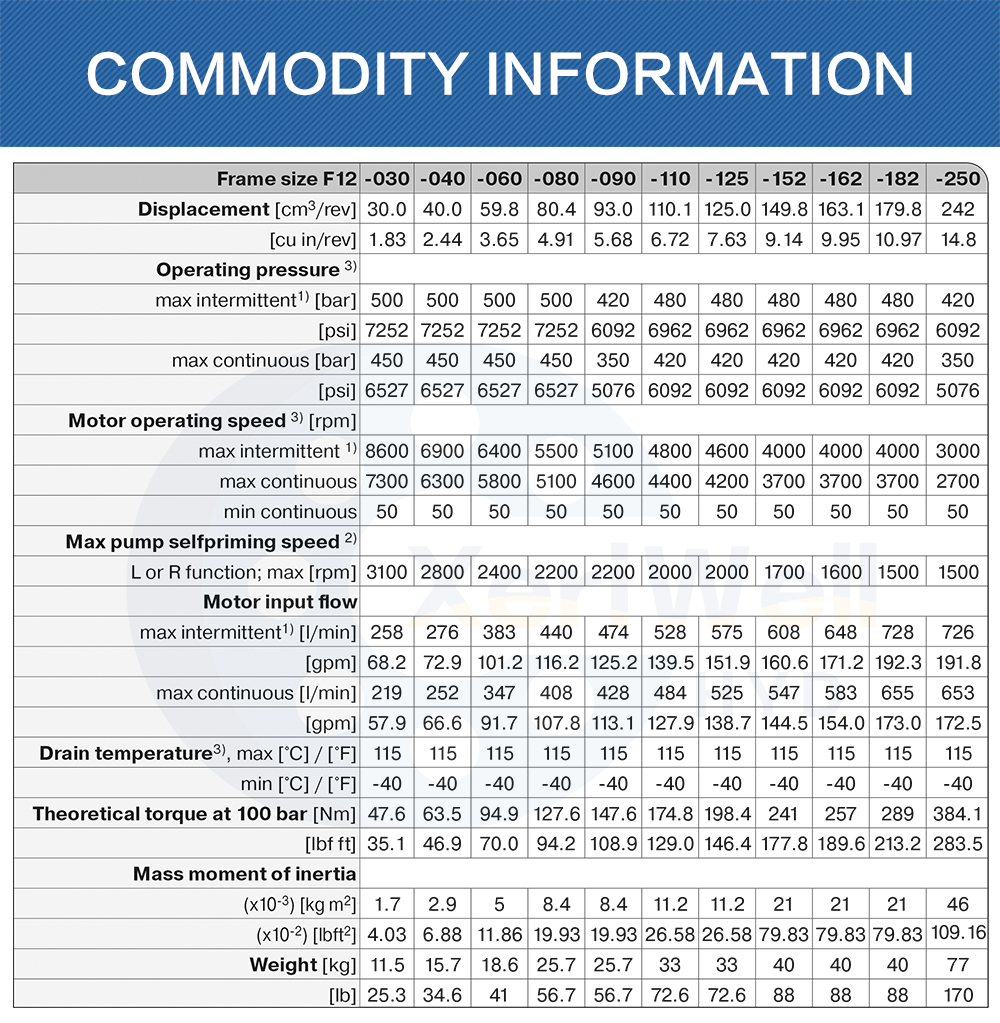

Type: F12-30, F12-40, F12-60, F12-80, F12-110

Parker F12 Hydraulic Motor catalogue pdf manual diagram

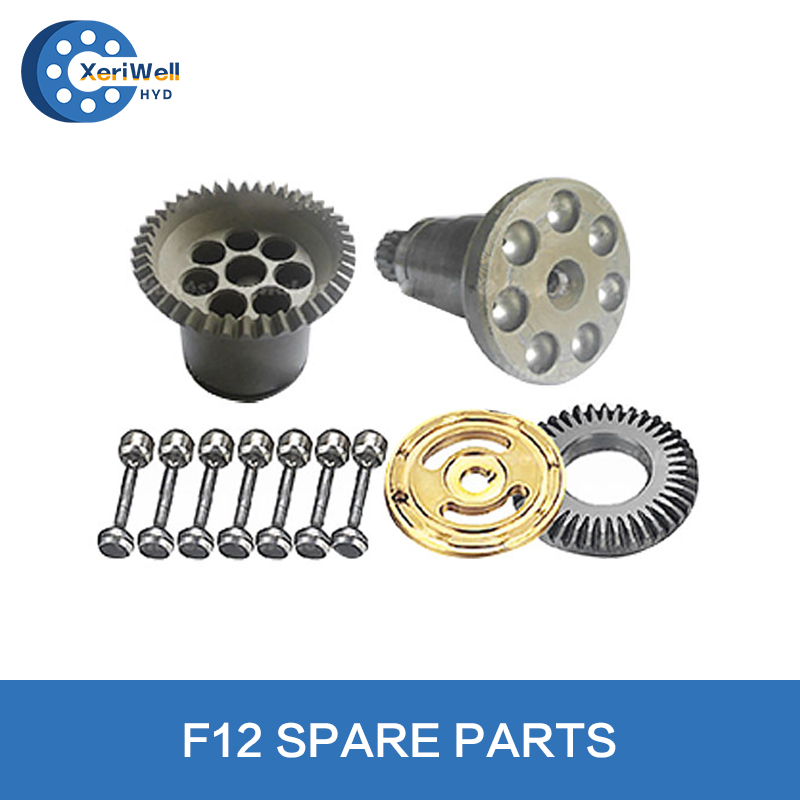

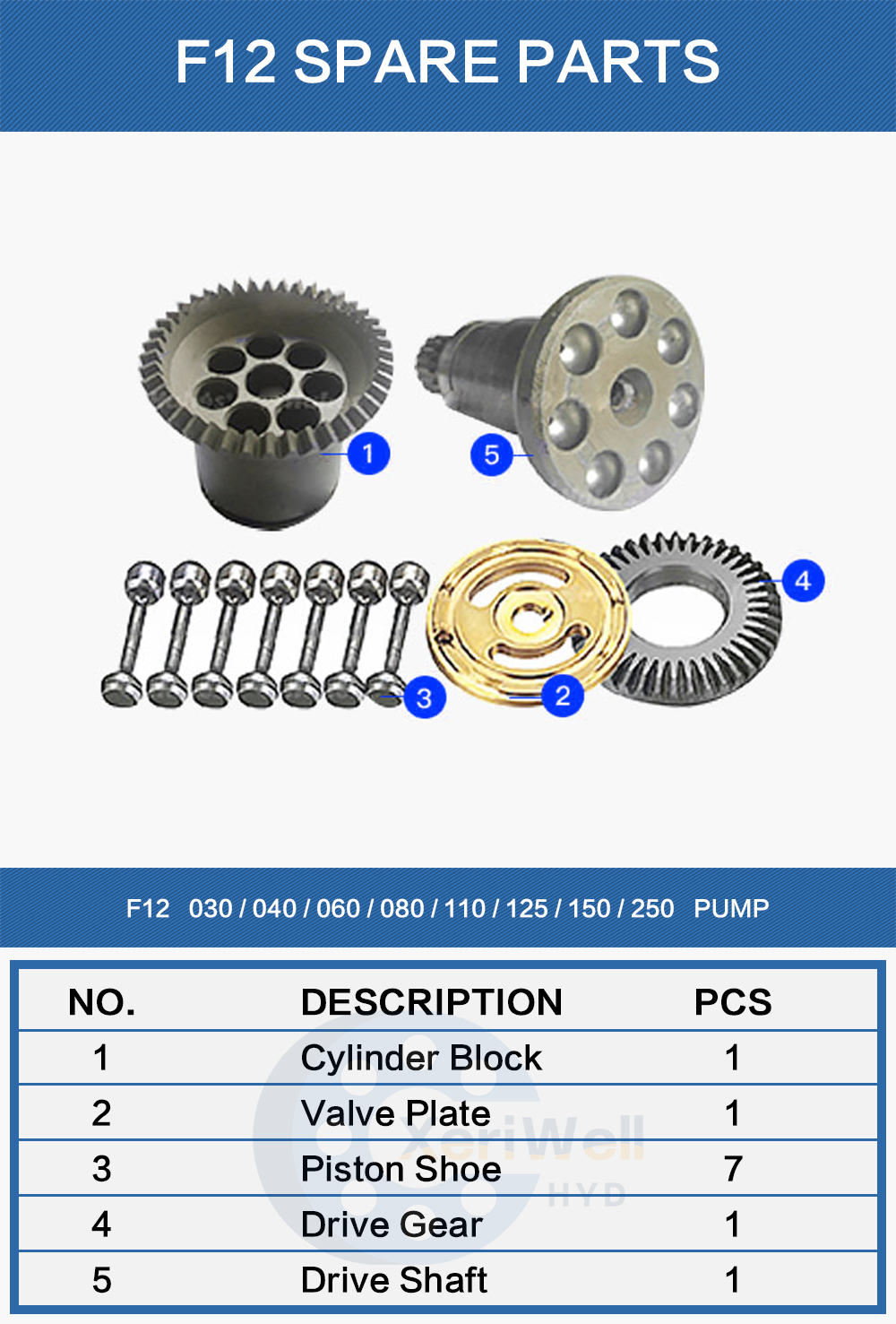

Parker F12 -030/040/060/080/090/110/125/152/162/182/250 Hydraulic Motor spare parts list:
